Door Control Module Replacement

Door Control Module Replacement

Removal Procedure

Important: This vehicle is equipped with express up, torque sensitive window on the front door windows.

When the battery or the power has been removed from the front door module, the front door module will need to be reprogrammed after power is restored and all repairs are completed.

1. Remove the door trim panel.




2. Remove the door control module (1) by releasing the retainer tabs (2).

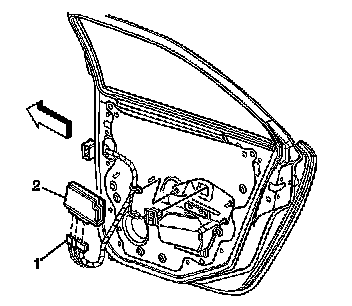

3. Disconnect the electrical connectors (1) from the control module (2).

Installation Procedure




1. Connect the electrical connectors (1) to the control module (2).

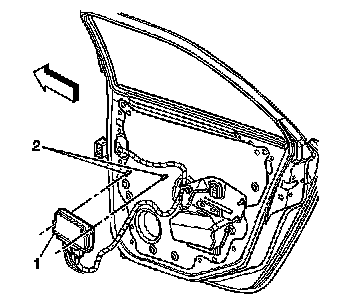

2. Snap the door module (1) onto the mounting studs (2).
3. Install the door trim panel.
4. Reprogram the front door module. Refer to Window Motor Programming - Express Function. Programming and Relearning
5. Refer to Control Module References for programming and setup information. Programming and Relearning
