Power Window Lockout Function Inoperative



Power Window Lockout Function Inoperative

Test Description

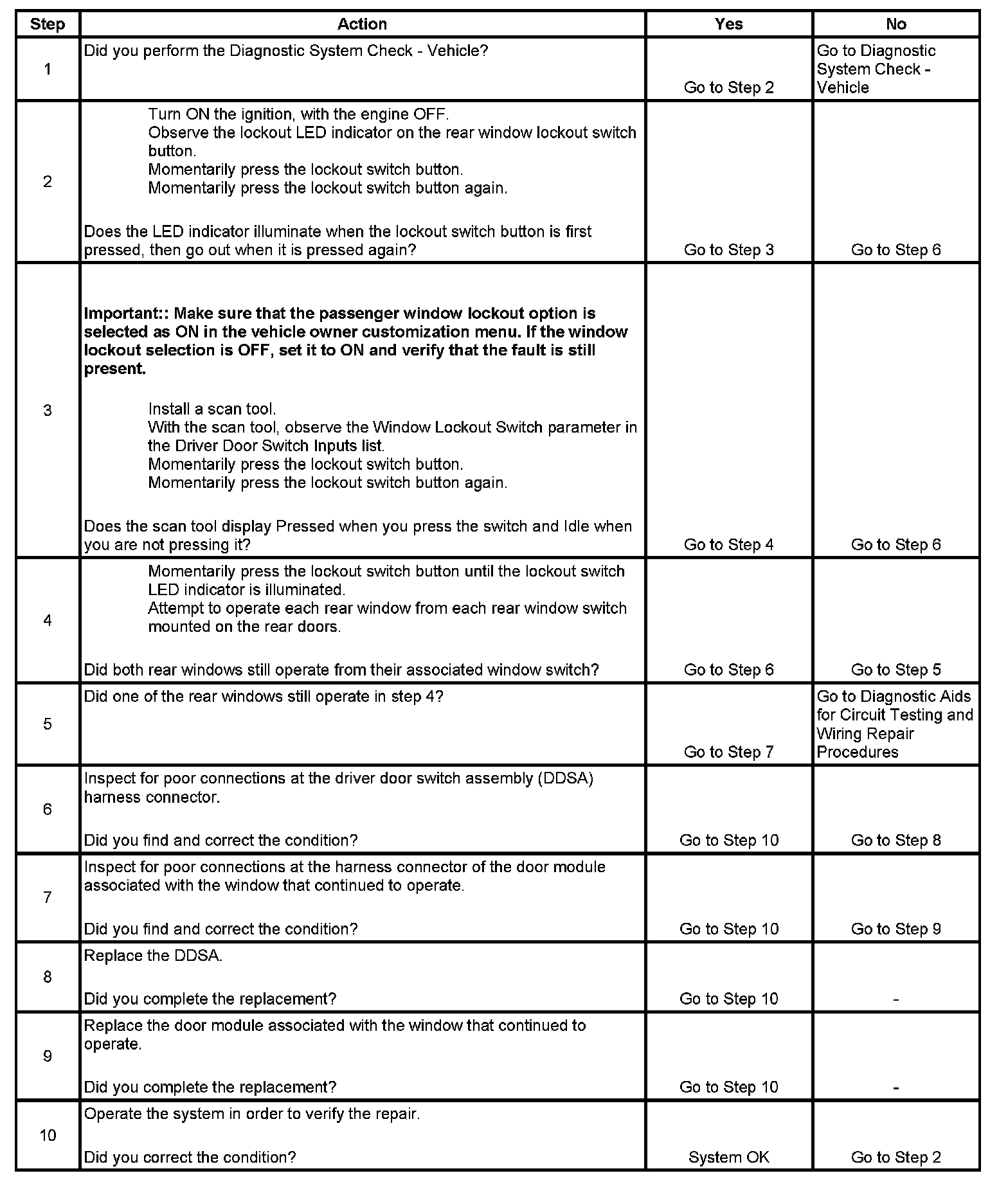

Step 1 - Step 10:




The numbers below refer to the step numbers on the diagnostic table.
2. This step determines if the indicator is operating properly.
3. This step determines if the driver door switch assembly (DDSA) recognizes the lockout switch input.
