Amplifier, Sound System



Entertainment/Communication Connector End Views

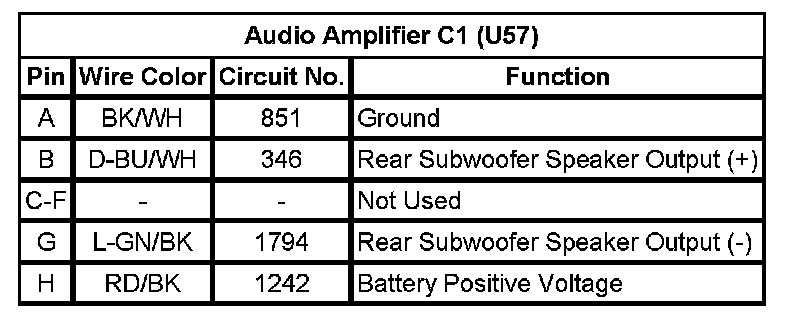

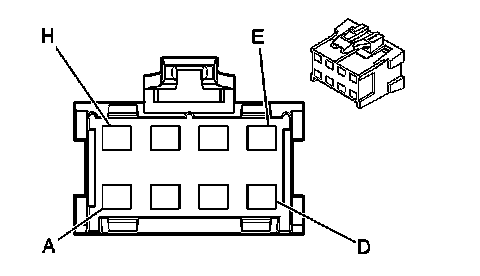

Audio Amplifier C1 (U57)

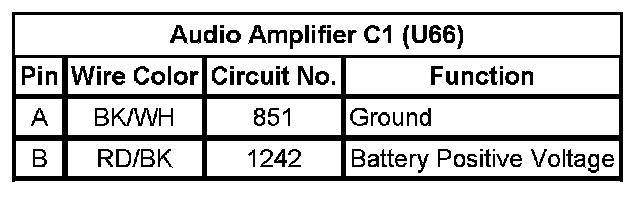

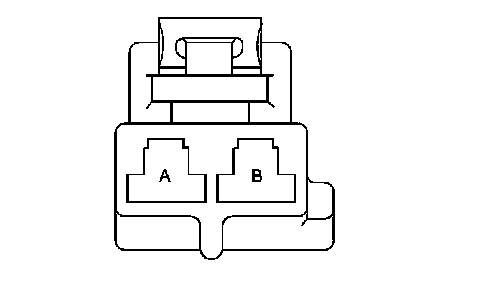

Audio Amplifier C1 (U66)

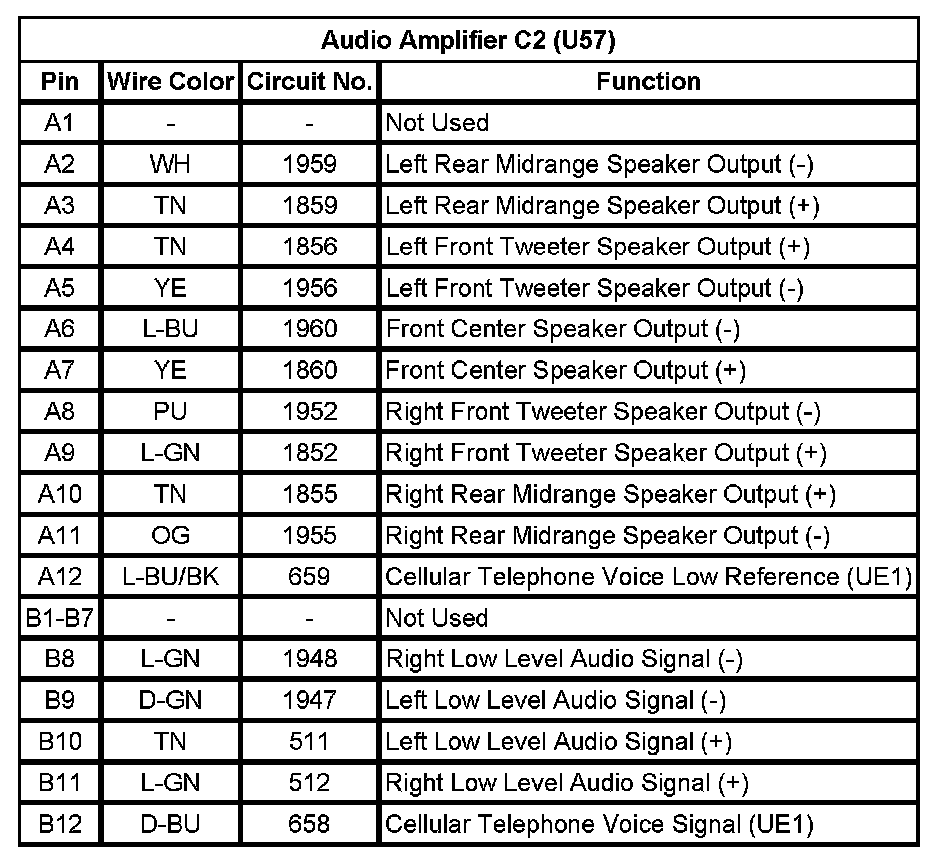

Audio Amplifier C2 (U57)

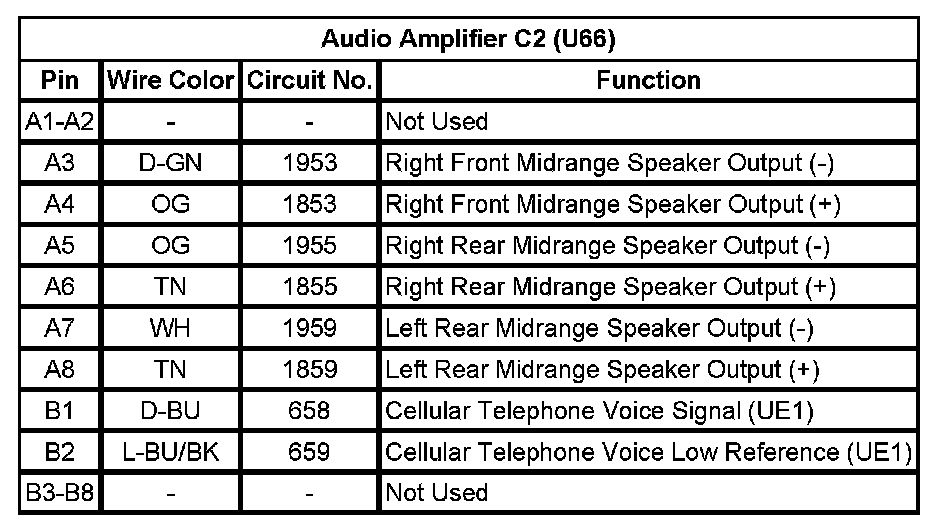

Audio Amplifier C2 (U66)

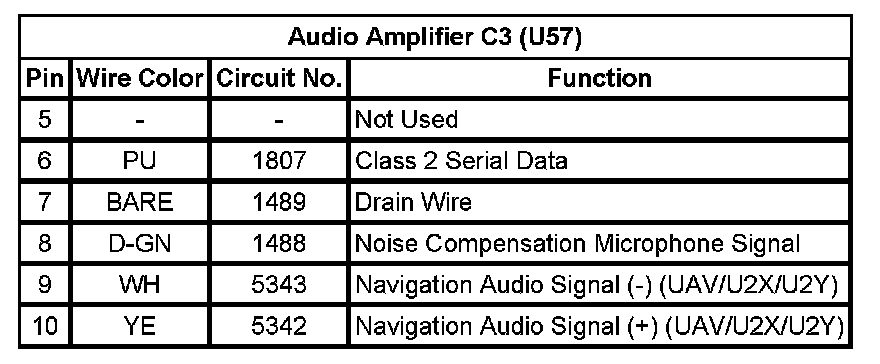

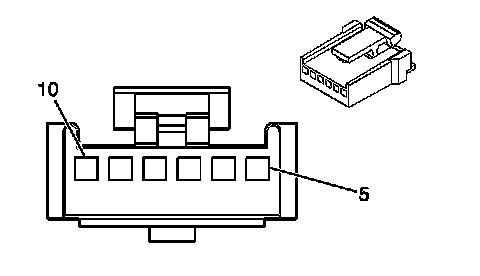

Audio Amplifier C3 (U57)

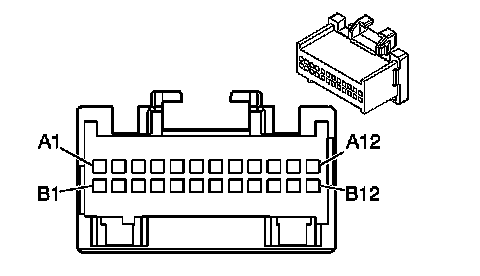

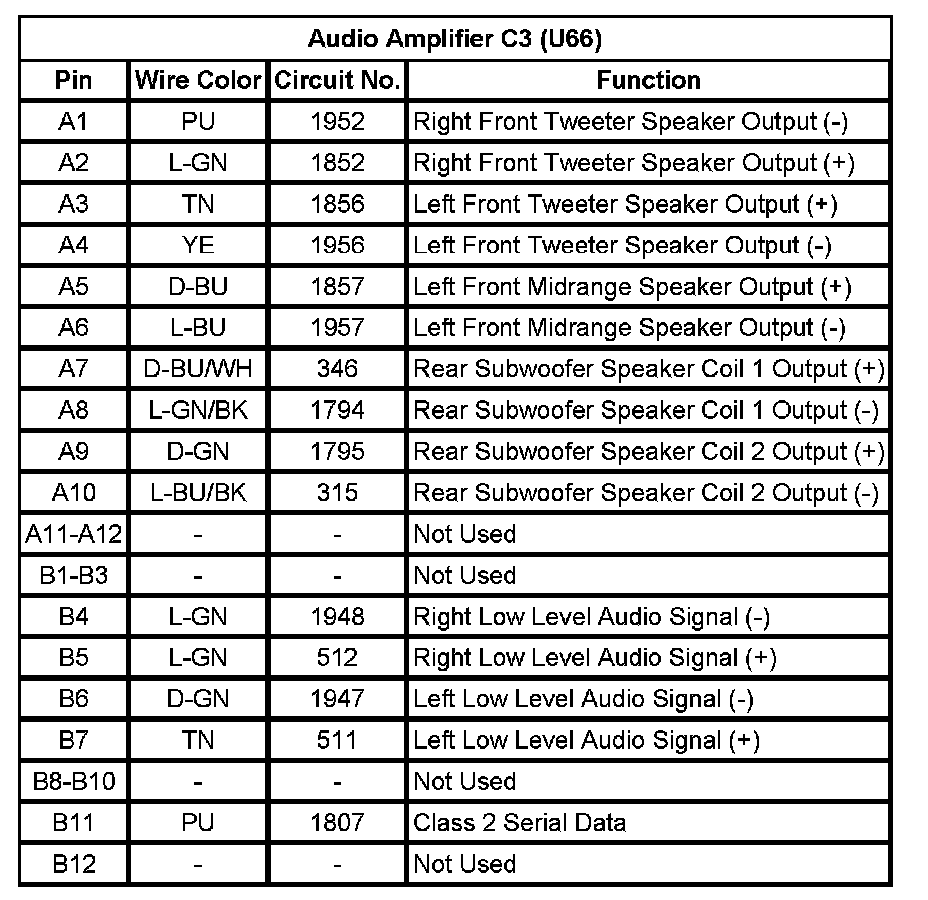

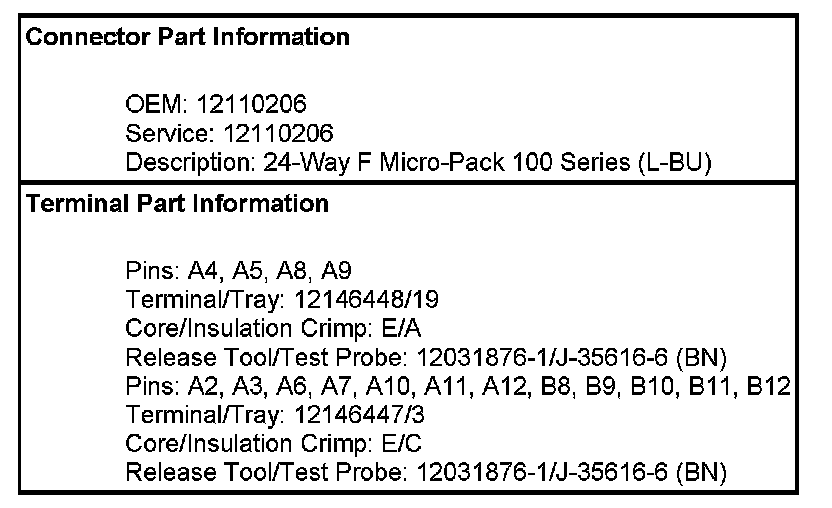

Audio Amplifier C3 (U66)
