Left Rear Fuse Block
Electrical Center Identification Views

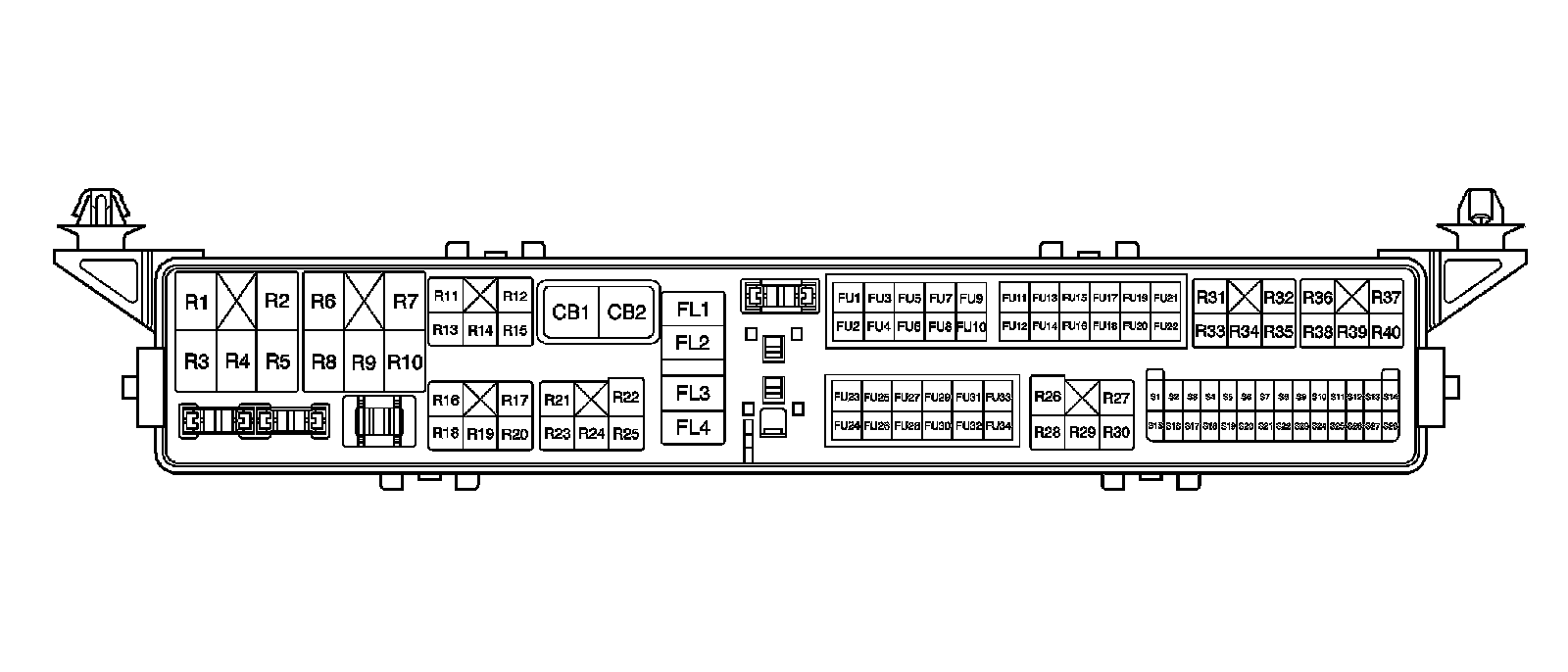

Fuse Block - Left Rear Top View

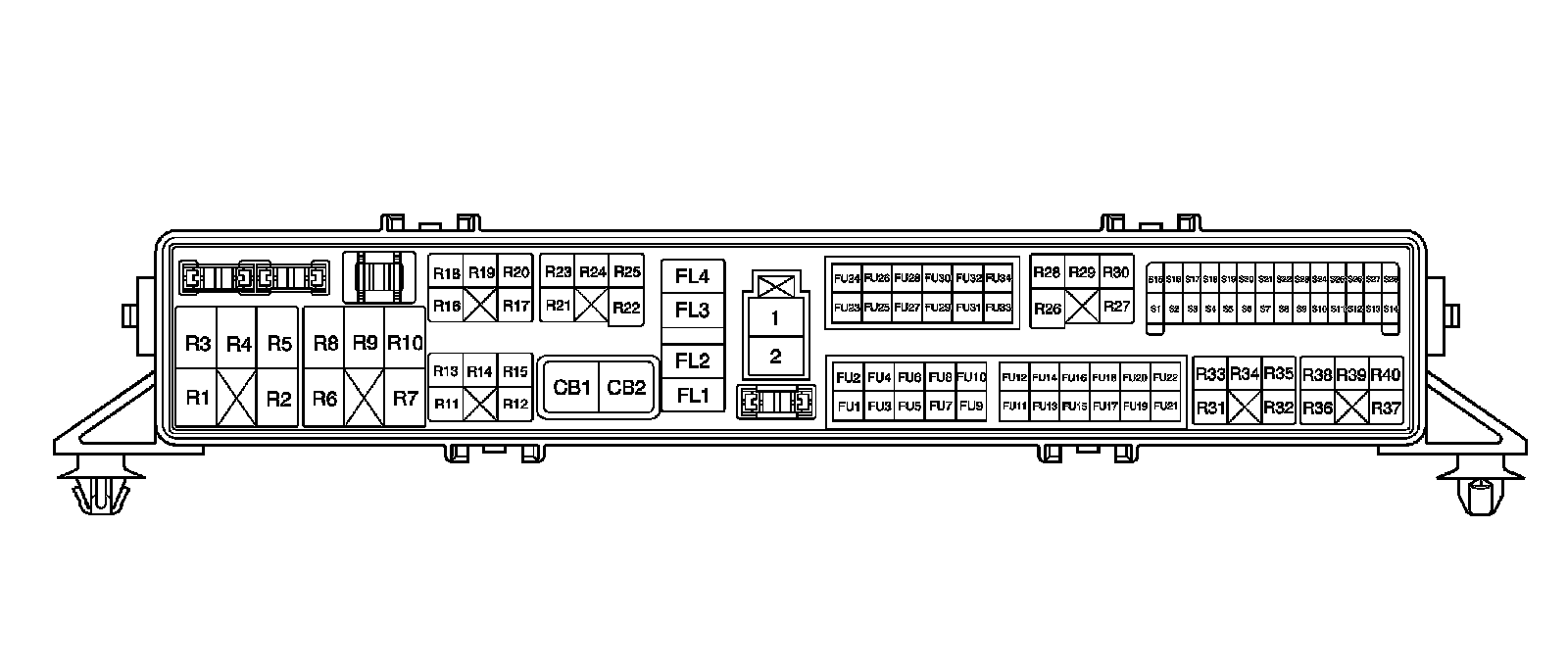

Fuse Block - Left Rear Bottom View

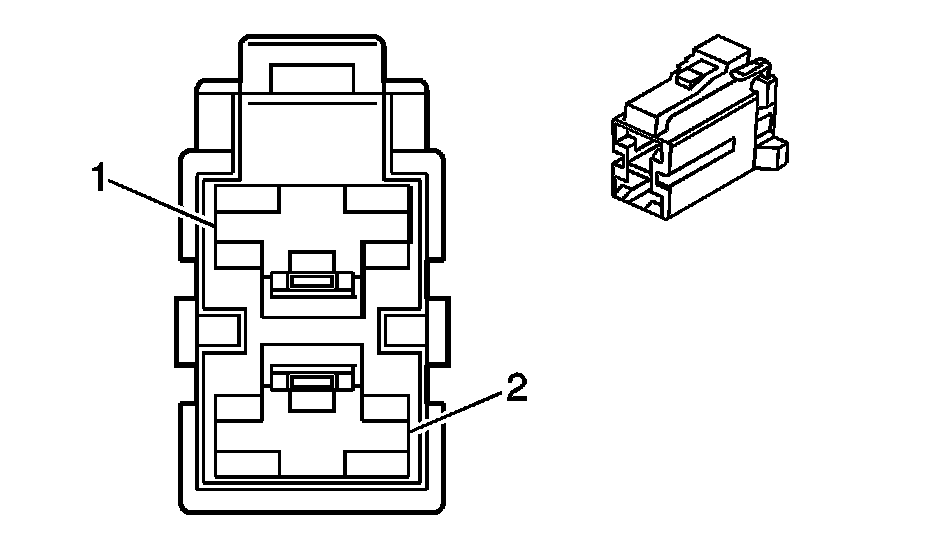

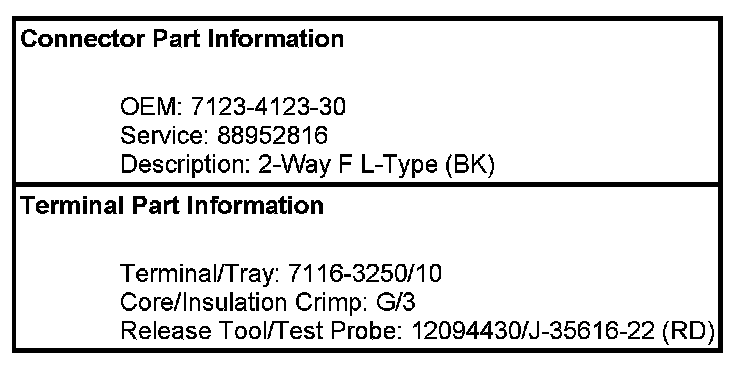

Fuse Block - Left Rear C1
Fuse Block - Left Rear

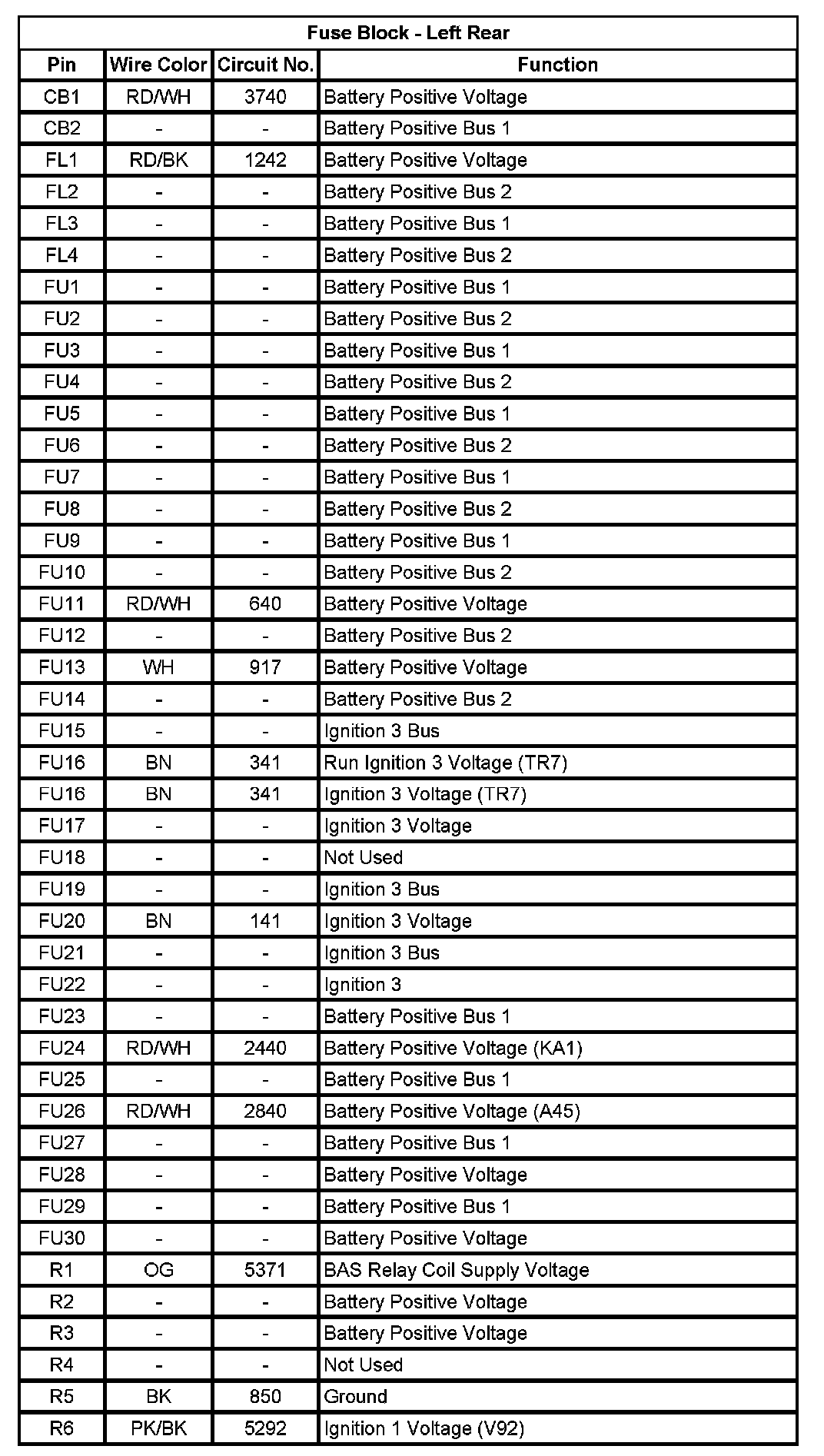

Fuse Block - Left Rear (Pin CB1 To R6):

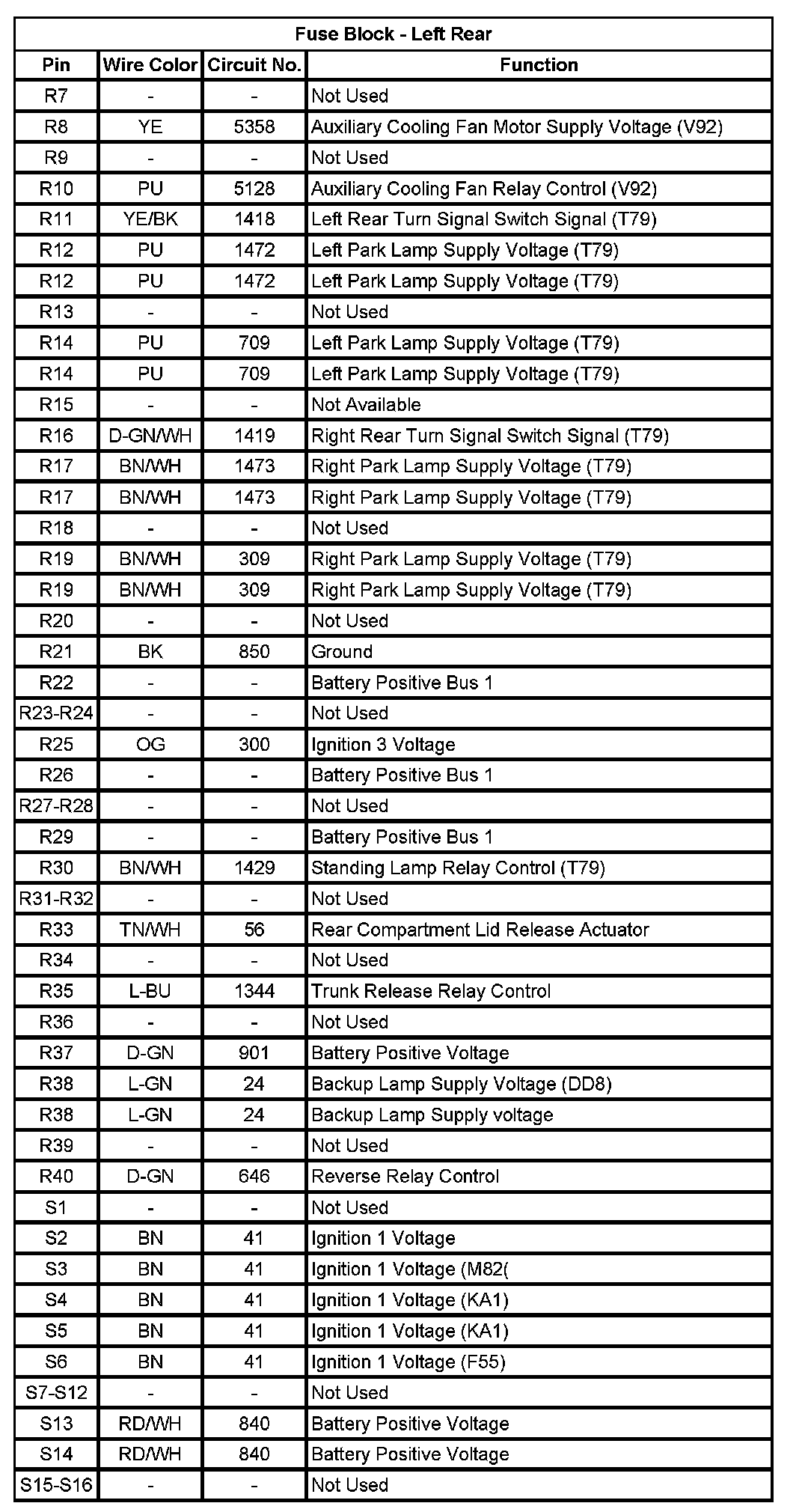

Fuse Block - Left Rear (Pin R7 To S16):

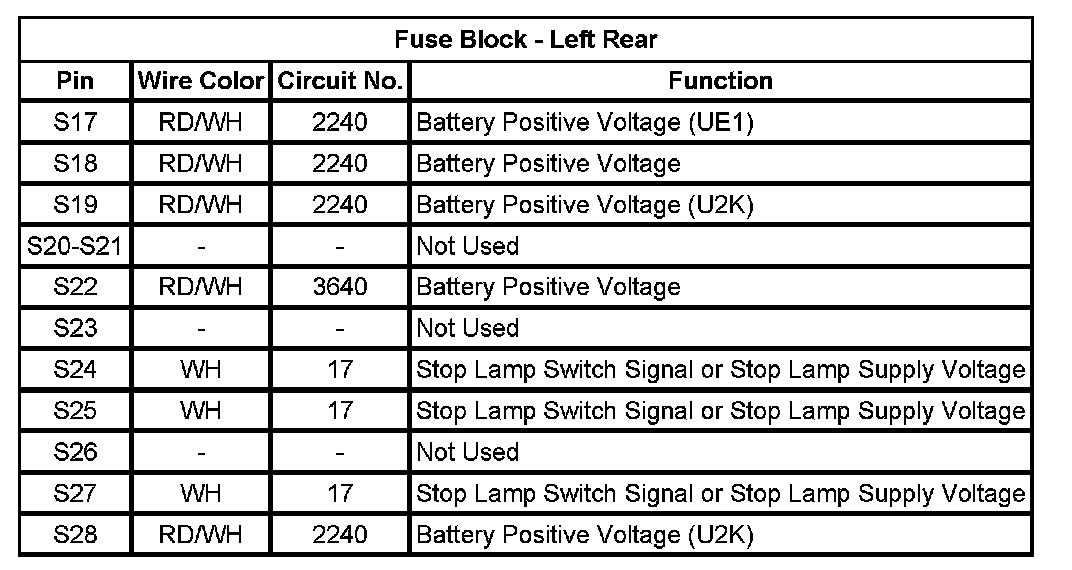

Fuse Block - Left Rear (Pin S17 To S28):
