Ignition Lock

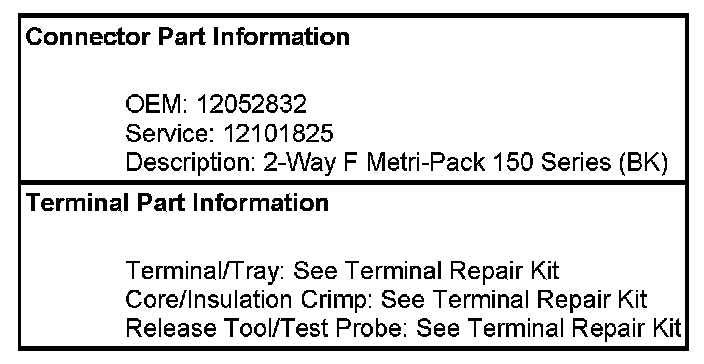

Secondary/Configurable Connector End Views

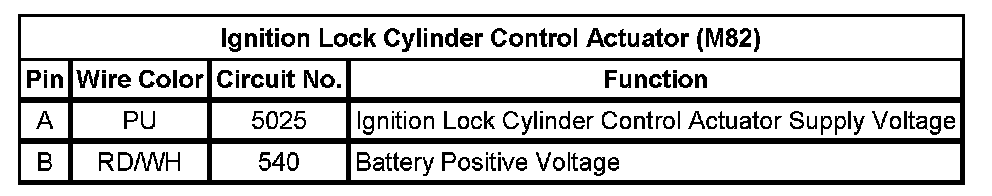

Ignition Lock Cylinder Control Actuator (M82)

A/T Shift Lock Control Solenoid:
