Window Systems Connector End Views



Window Systems Connector End Views

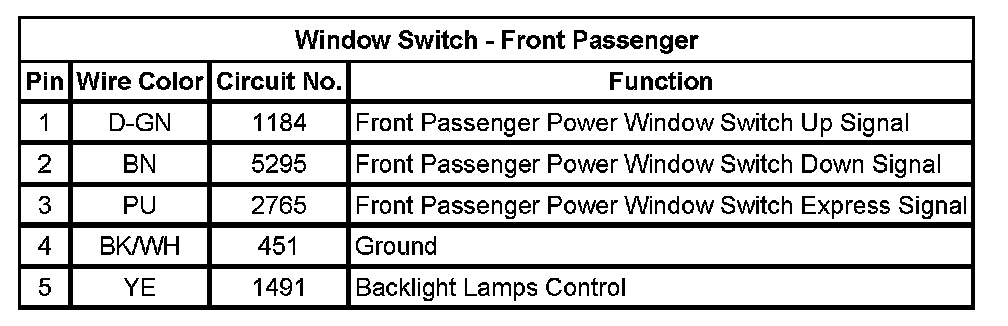

Window Switch - Front Passenger

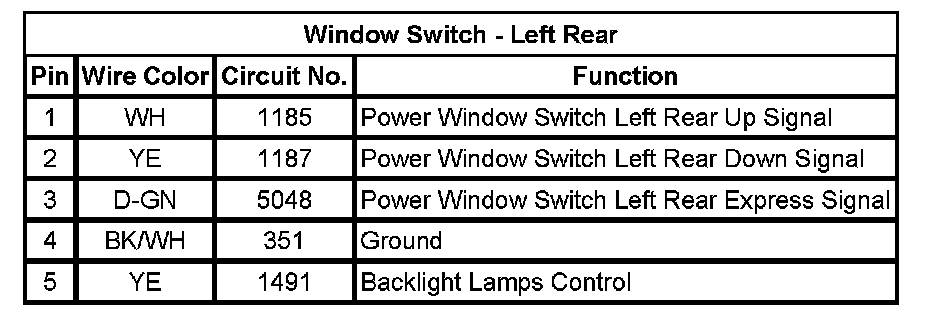

Window Switch - Left Rear

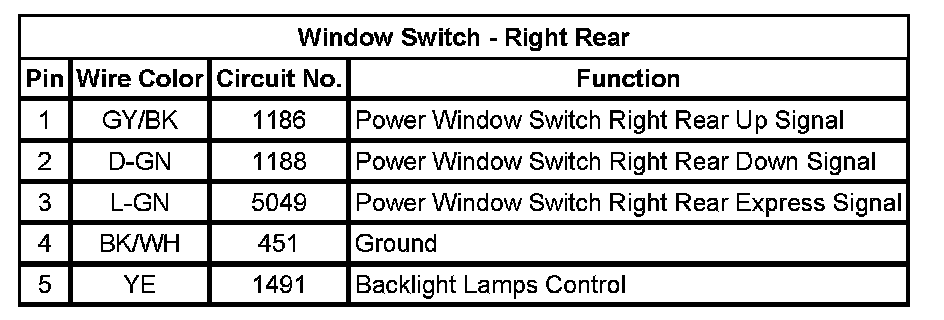

Window Switch - Right Rear
