Combination Switch



Cruise Control Connector End Views

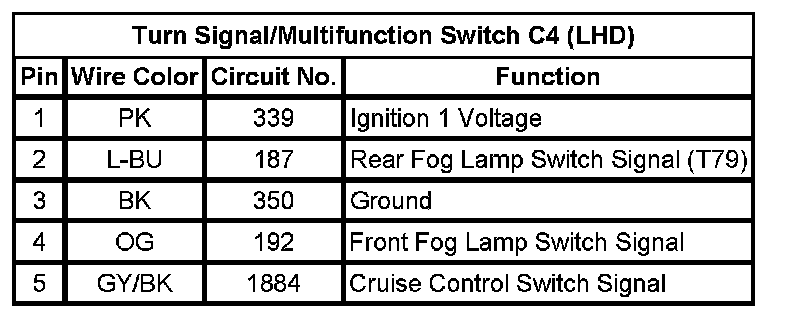

Turn Signal/Multifunction Switch C4 (LHD)

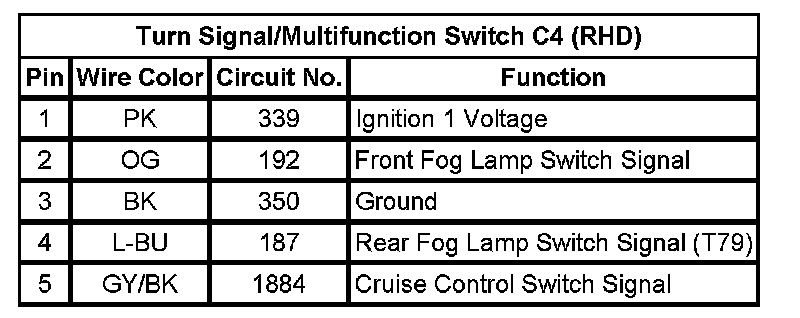

Turn Signal/Multifunction Switch C4 (RHD)
