Ground Views

Power and Grounding Component Views

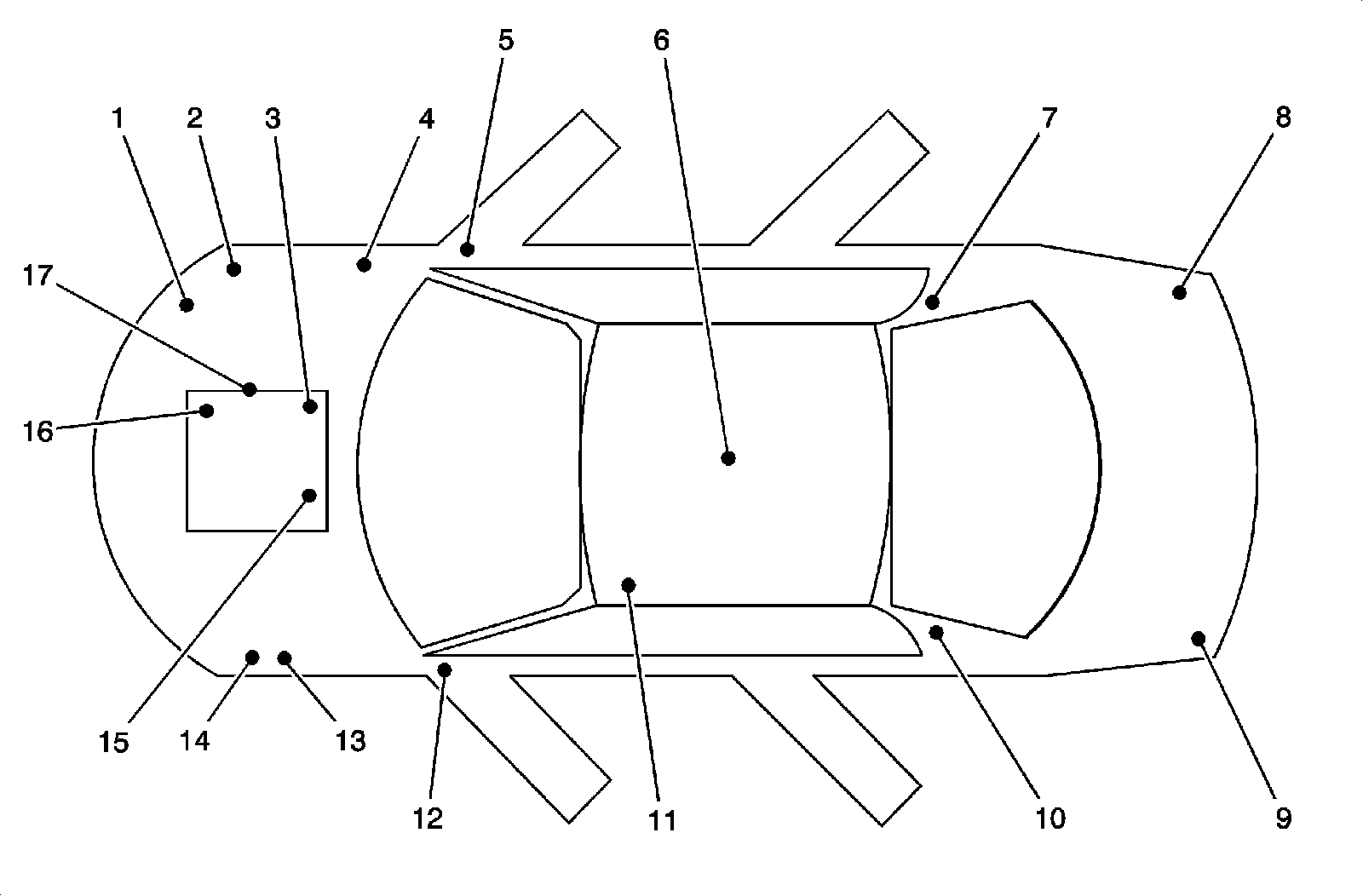

Ground Locations




1 - G104
2 - G110
3 - G130 (LP1/LY7), G142 (LS2)
4 - G105 (LHD)
5 - G201
6 - G306
7 - G303
8 - G401
9 - G402
10 - G304
11 - G307
12 - G200
13 - G101
14 - G105 (RHD)
15 - G131 (LP1/LY7), G141 (LS2), G140 (LS2)
16 - G132 (LP1/LY7)
17 - G133 (LP1/LY7)
