Air Flow Meter/Sensor: Locations



Engine Controls Component Views

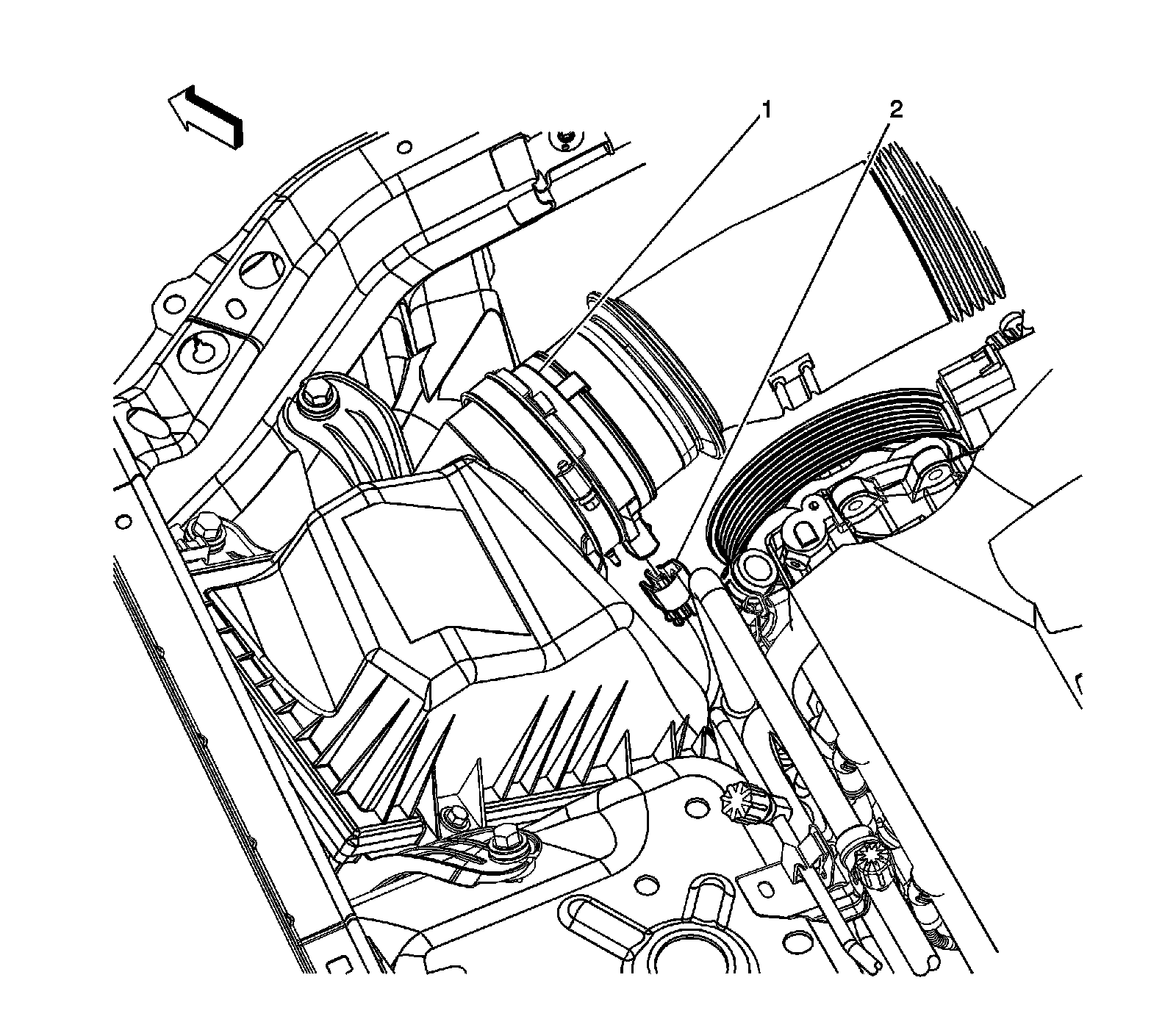

MAF and IAT Sensors - 6.0L (LS2)




1 - Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensors
2 - Mass Air Flow (MAF) Connector
