Coolant Temperature Sensor/Switch (For Computer): Locations

Engine Controls Component Views

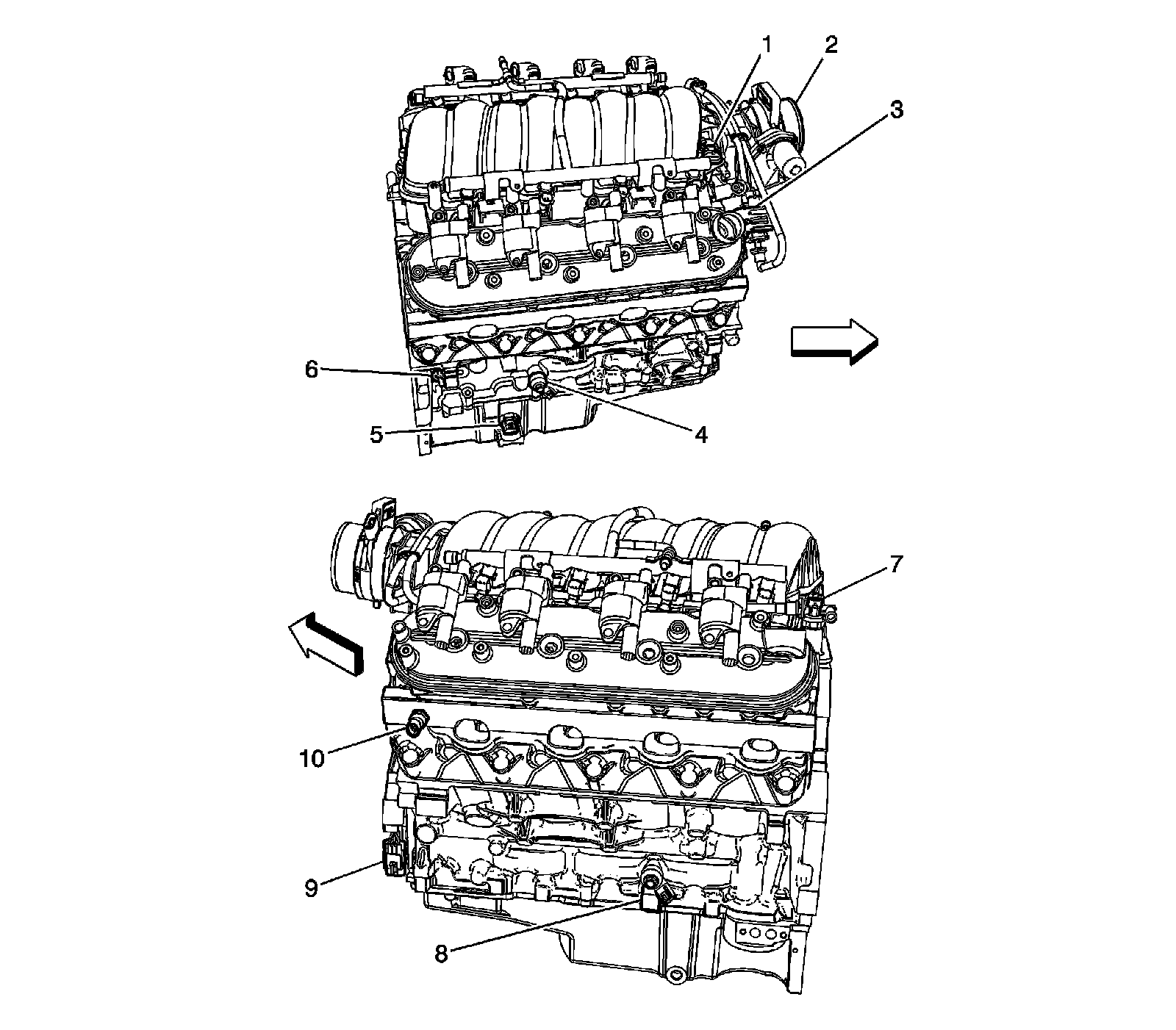

Engine Components




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body Assembly
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) 2
5 - Engine Oil Level Switch
6 - Crankcase Position (CKP) Sensor
7 - Engine Oil Pressure (EOP) Sensor
8 - Knock Sensor (KS) 1
9 - Camshaft Position (CMP) Sensor
10 - Engine Coolant Temperature (ECT) Sensor

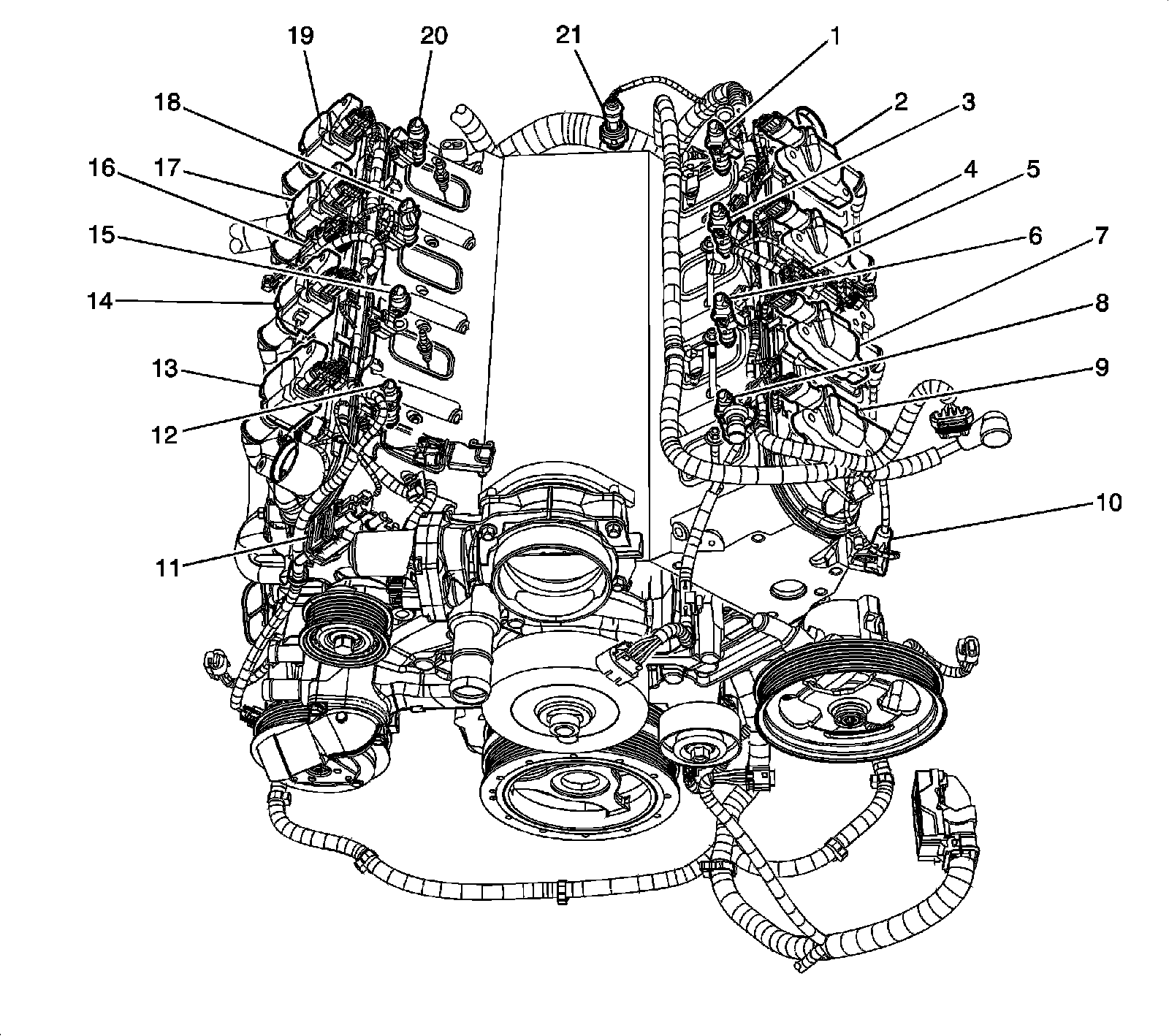

Engine Components




1 - Fuel Injector 7
2 - Ignition Coil 7
3 - Fuel Injector 5
4 - Ignition Coil 5
5 - C131
6 - Fuel Injector 3
7 - Ignition Coil 3
8 - Fuel Injector 1
9 - Ignition Coil 1
10 - Engine Coolant Temperature (ECT) Sensor
11 - Canister Purge Solenoid
12 - Fuel Injector 2
13 - Ignition Coil 2
14 - Ignition Coil 4
15 - Fuel Injector 4
16 - C132
17 - Ignition Coil 6
18 - Fuel Injector 6
19 - Ignition Coil 8
20 - Fuel Injector 8
21 - Engine Oil Pressure (EOP) Sensor
