Shift Lock Control Component Views

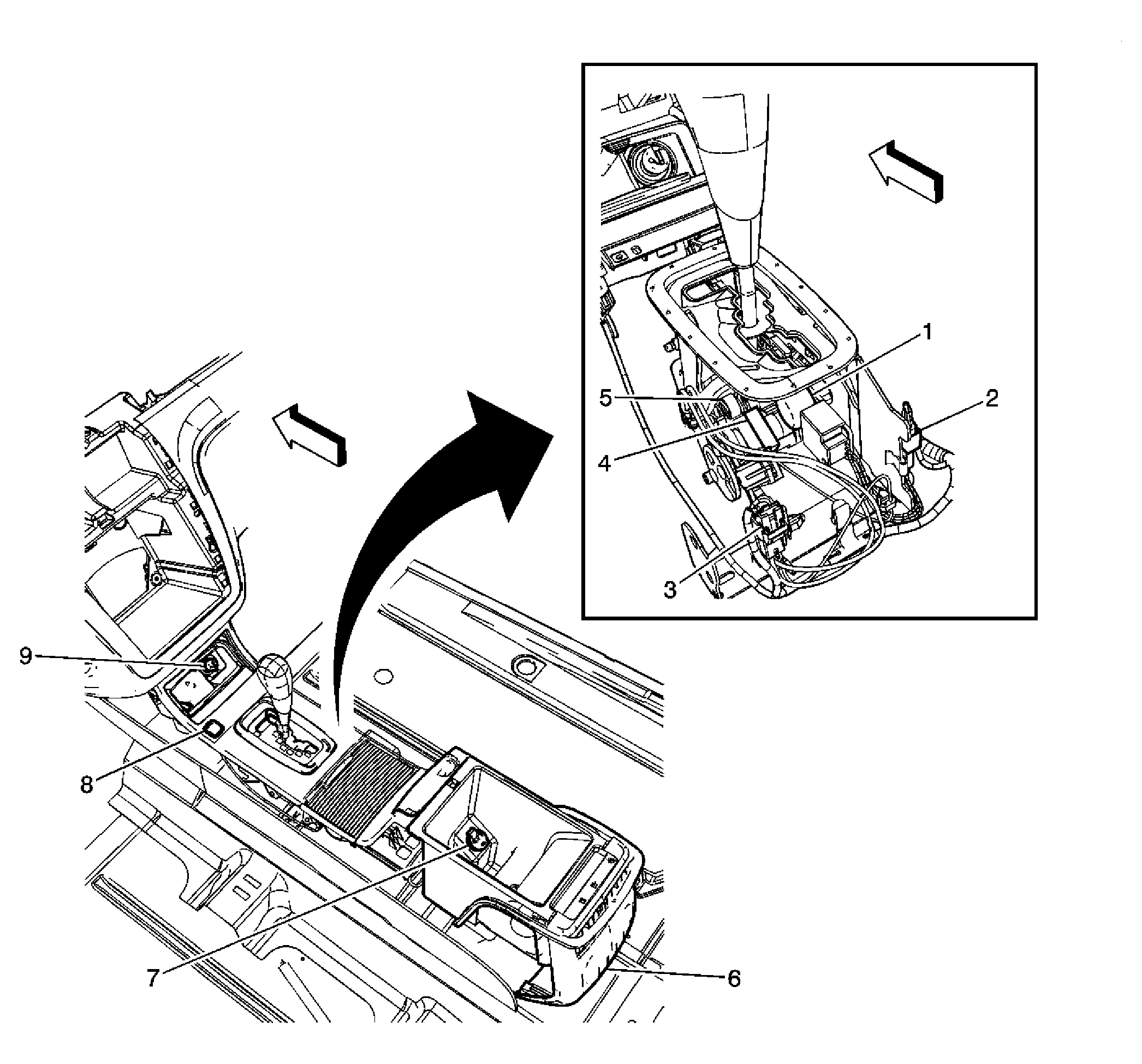

| Callout | Component Name |
|---|---|
| 1 | A/T Shift Lock Control Solenoid |
| 2 | Reverse Lockout Solenoid C1 (AQ9) |
| 3 | Reverse Lockout Solenoid |
| 4 | Reverse Lockout Solenoid C2 (AQ9) |
| 5 | Shifter Lamp |
| 6 | HVAC Control Module - Auxiliary (CJ4) |
| 7 | Auxiliary Power Outlet - Console (AQ9) |
| 8 | Traction Control Switch |
| 9 | Cigar Lighter |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Traction Control Switch (AQ9) |
| 3 | Ignition Lock Cylinder Solenoid (AQ9) |
| 4 | Ignition Key Alarm Switch |
| 5 | Theft Deterrent Module (TDM) |
| 6 | Ignition Switch |
| 7 | Inflatable Restraint Steering Wheel Module Coil |
| 8 | Steering Angle Sensor (JL4) |
| 9 | Telescoping Actuator (N37) |
| 10 | Tilt Actuator (N37) |
| 11 | Tilt/Telescope Switch (N37) |
