Acceleration/Deceleration Sensor

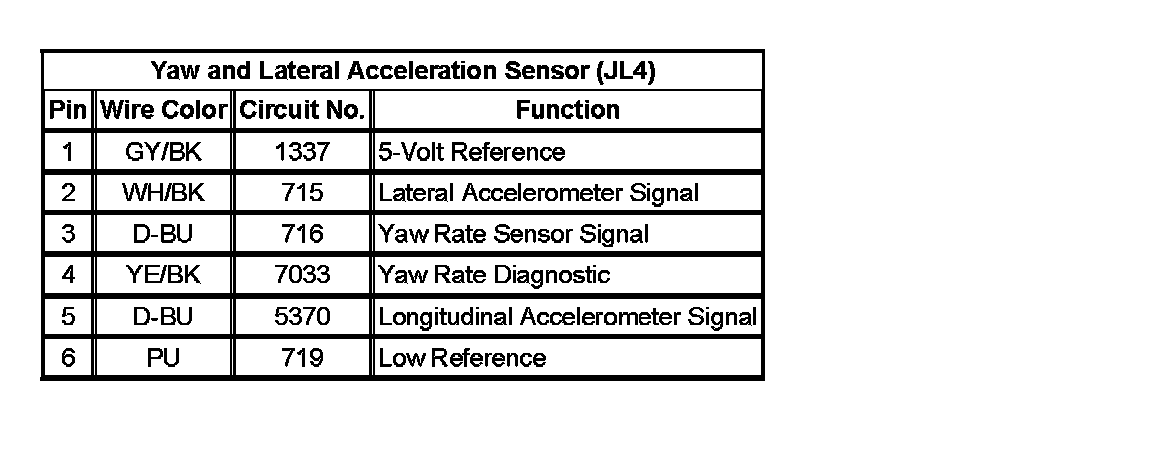

Yaw and Lateral Acceleration Sensor (JL4)







Yaw And Lateral Acceleration Sensor (JL4):
