Control Assembly, HVAC



HVAC Connector End Views

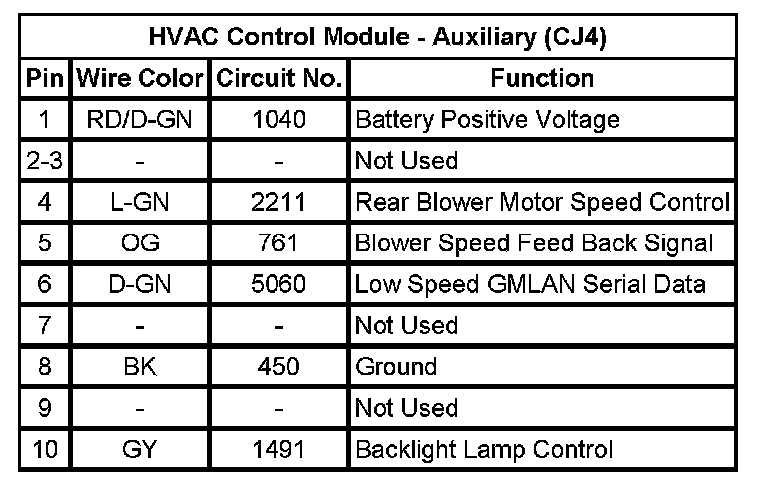

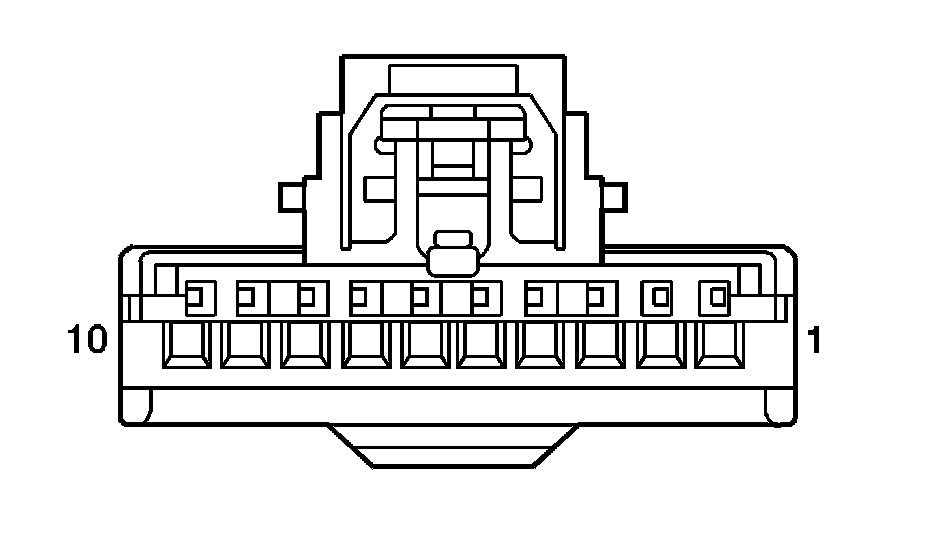

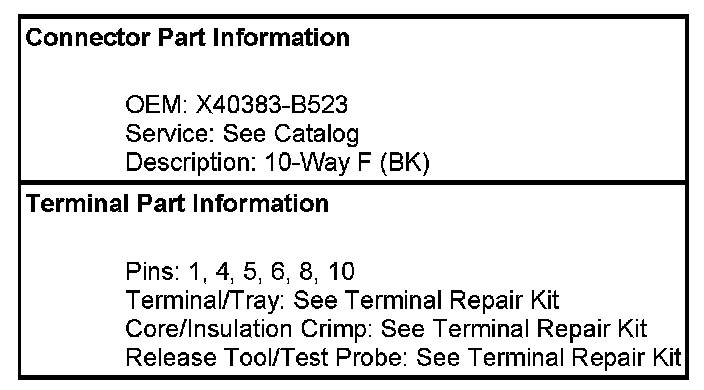

HVAC Control Module - Auxiliary (CJ4)

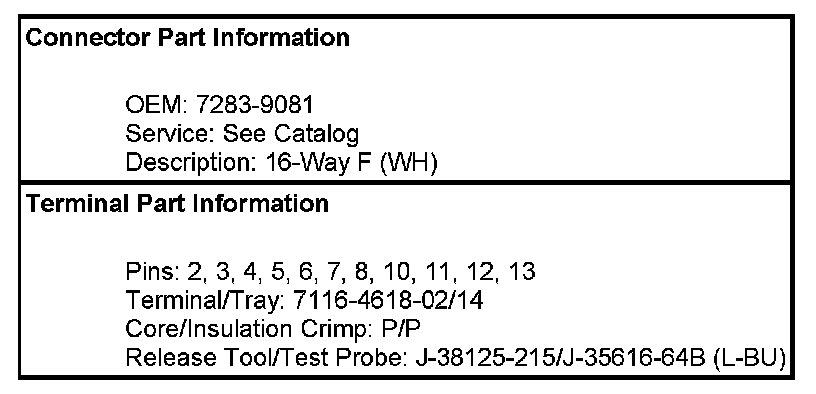

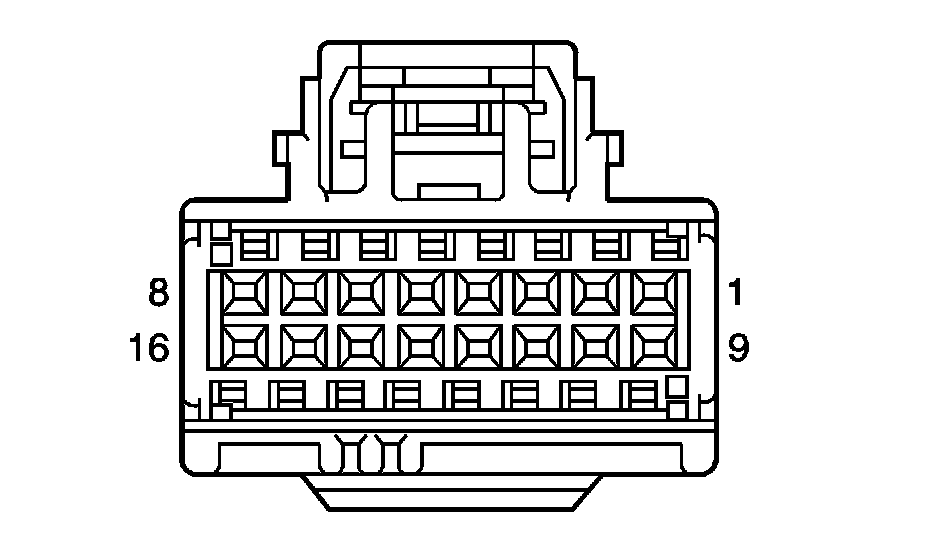

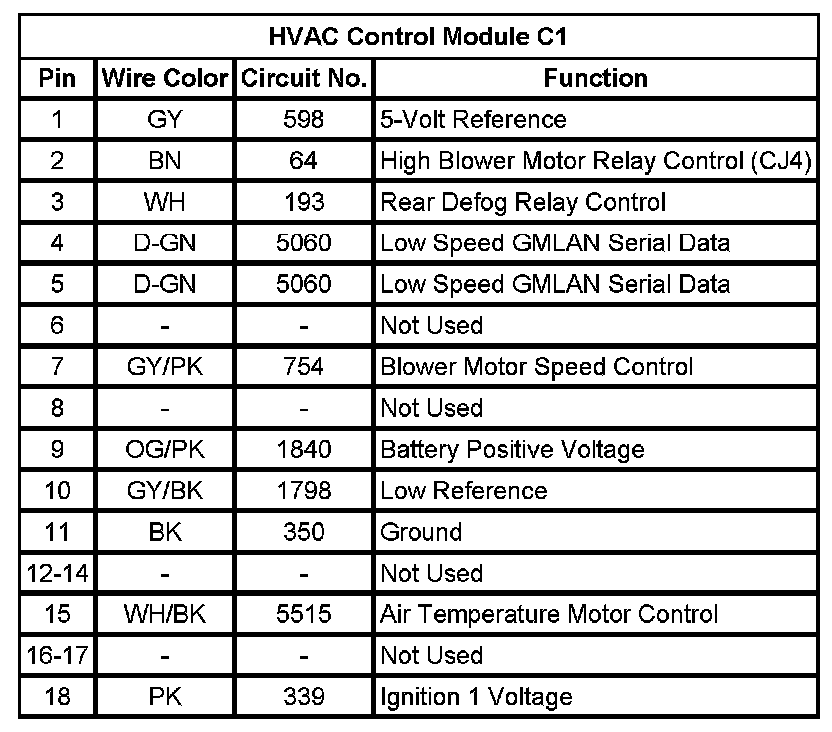

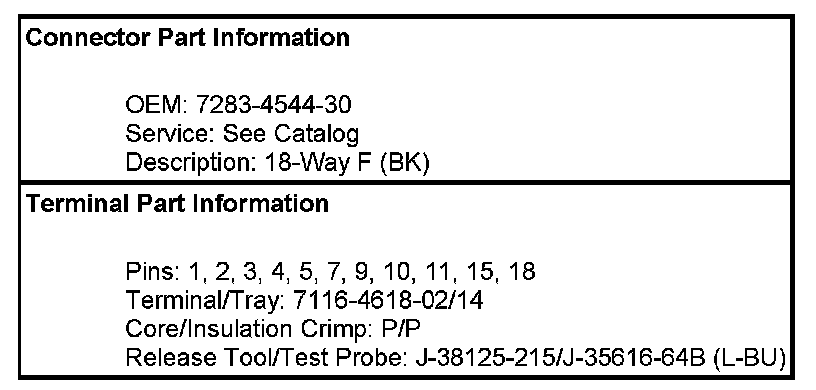

HVAC Control Module C1

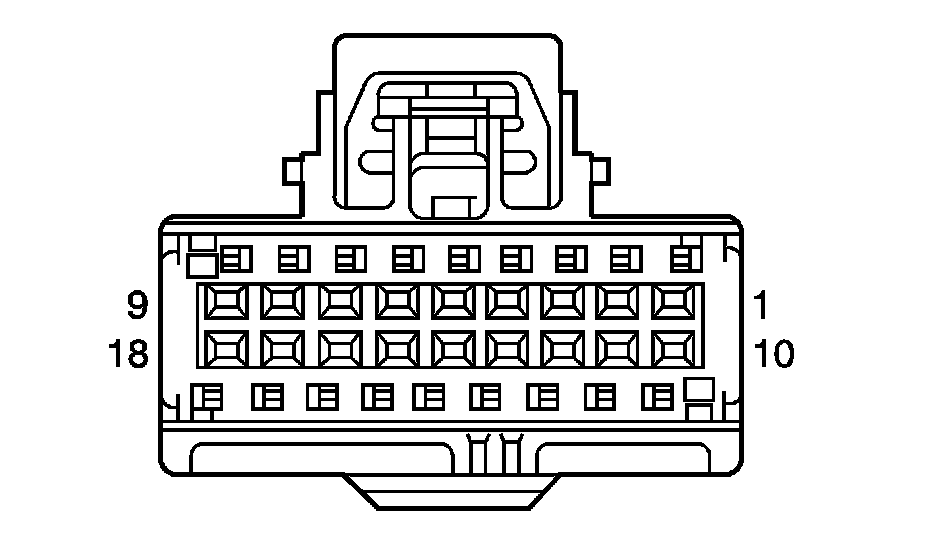

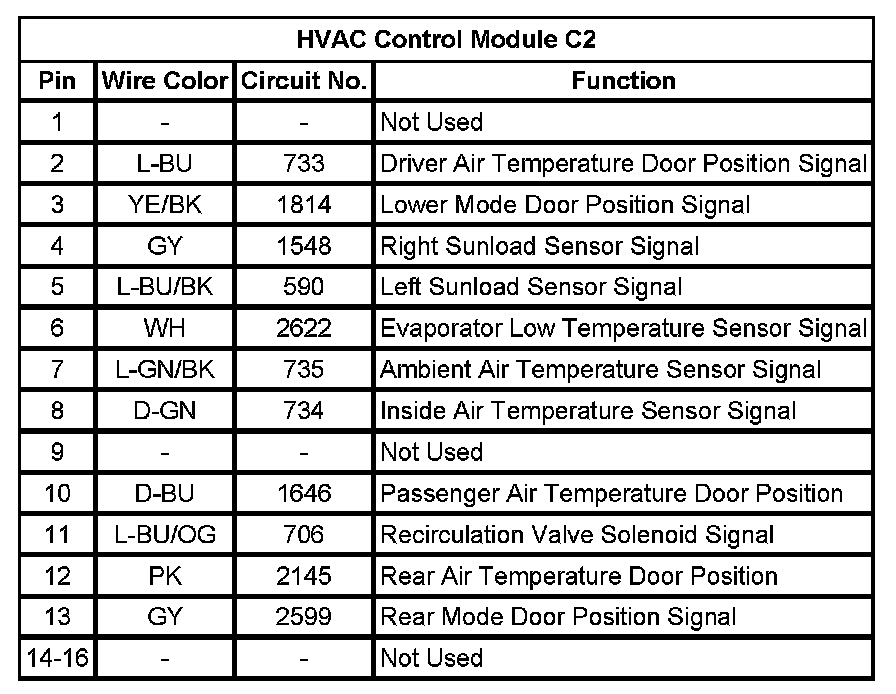

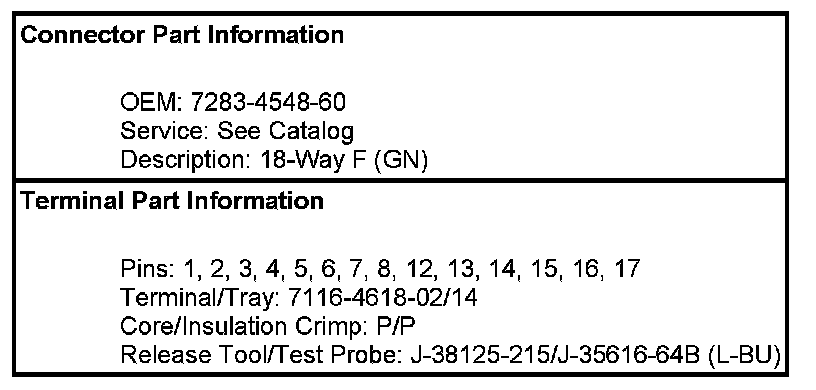

HVAC Control Module C2

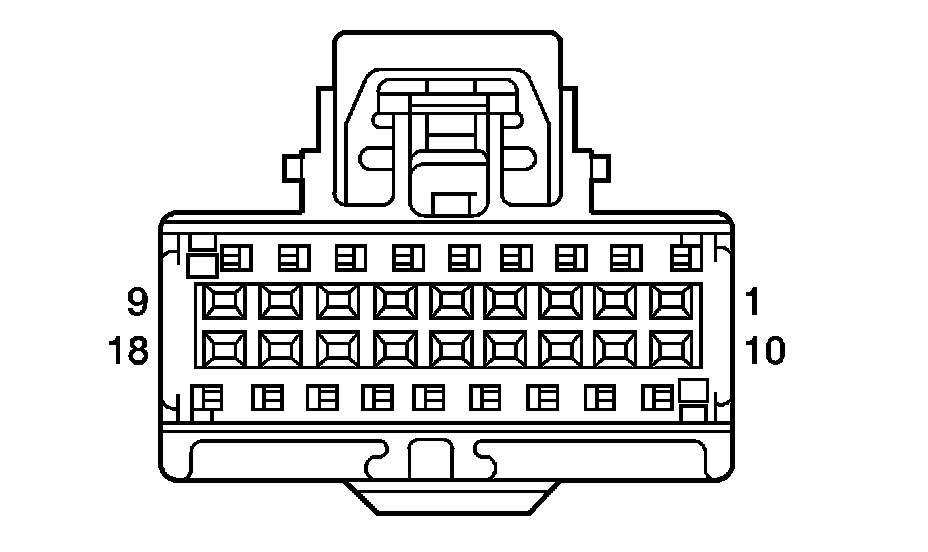

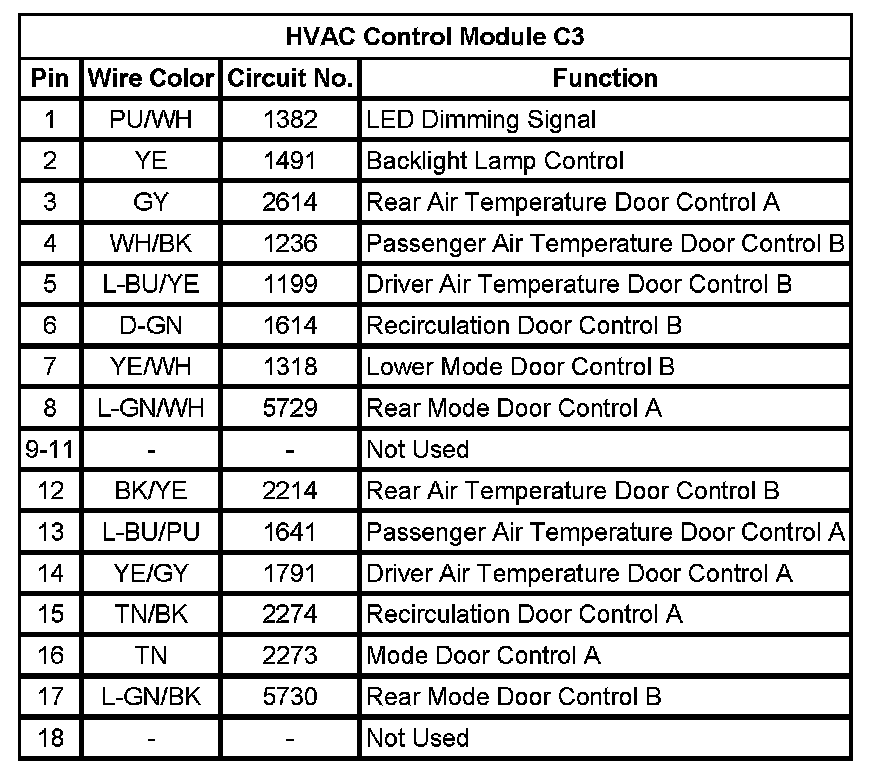

HVAC Control Module C3
