Ignition Control Module

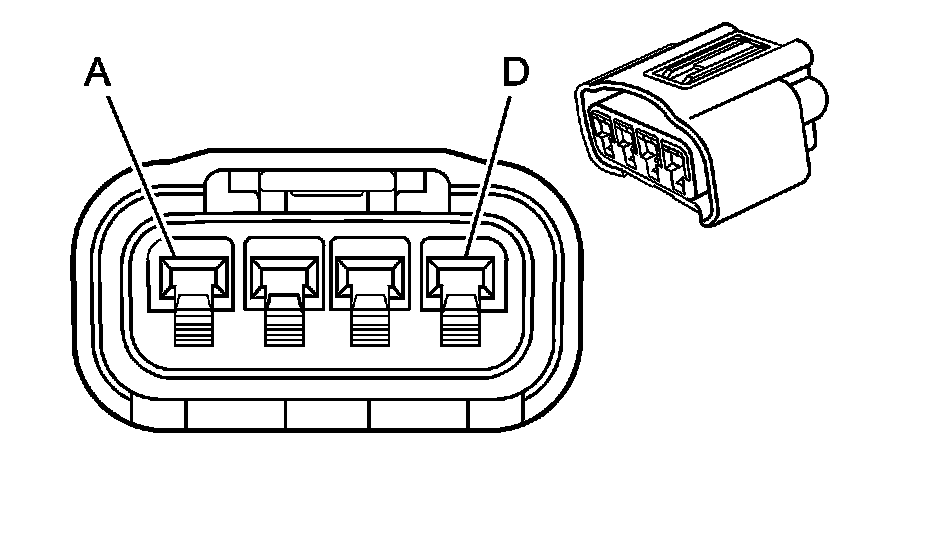

Engine Controls Connector End Views

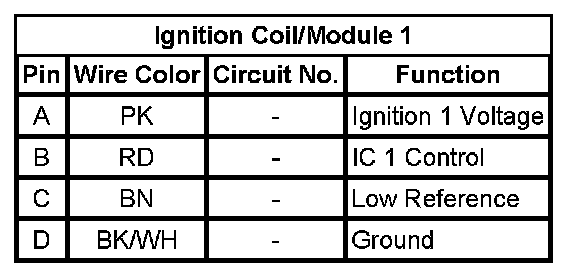

Ignition Coil/Module 1

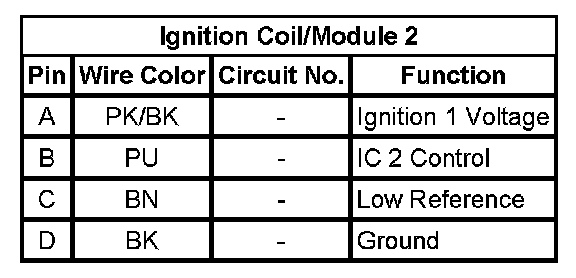

Ignition Coil/Module 2

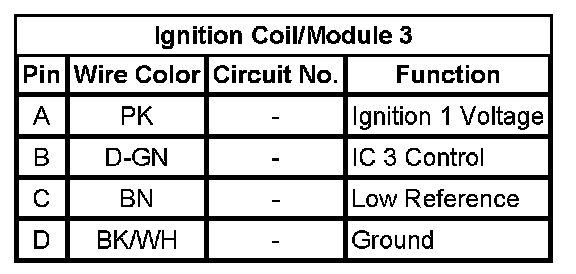

Ignition Coil/Module 3

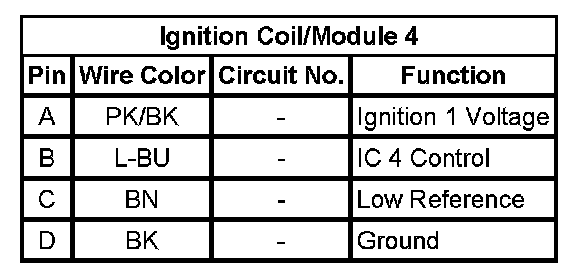

Ignition Coil/Module 4












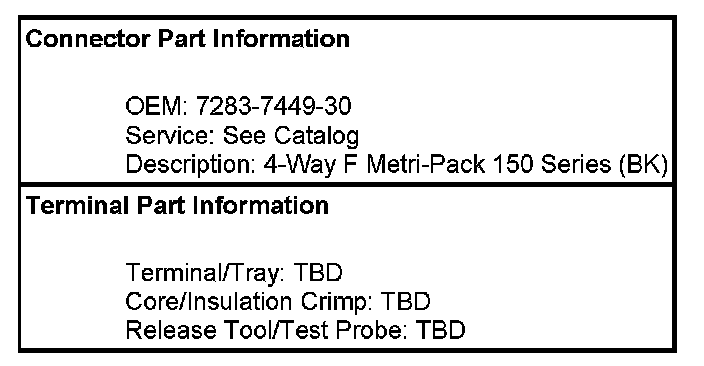

Ignition Coil/Module 5

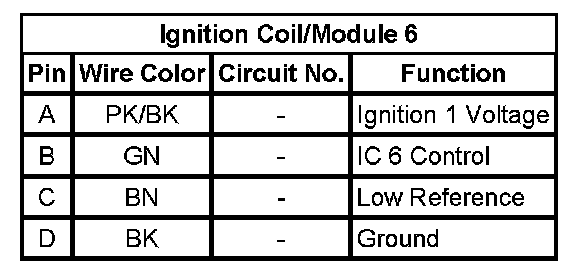

Ignition Coil/Module 6

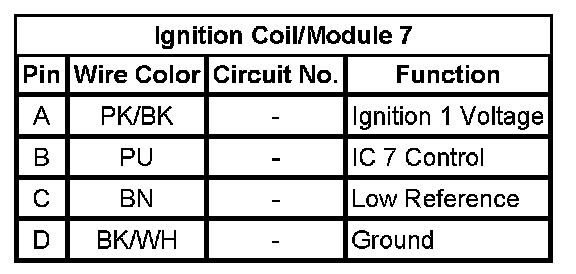

Ignition Coil/Module 7

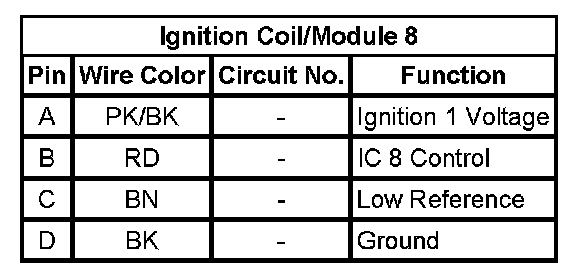

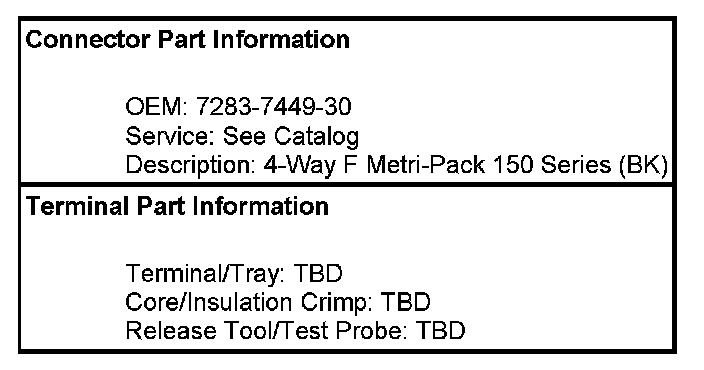

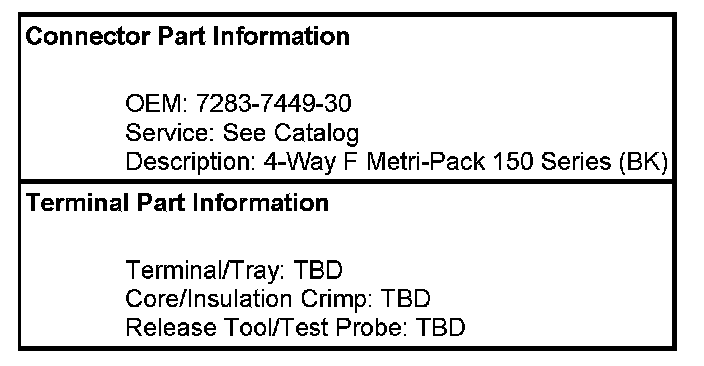

Ignition Coil/Module 8
