Sunroof / Moonroof Module



Sunroof Connector End Views

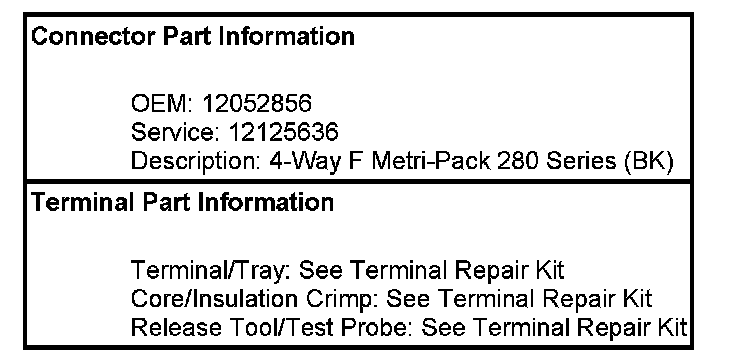

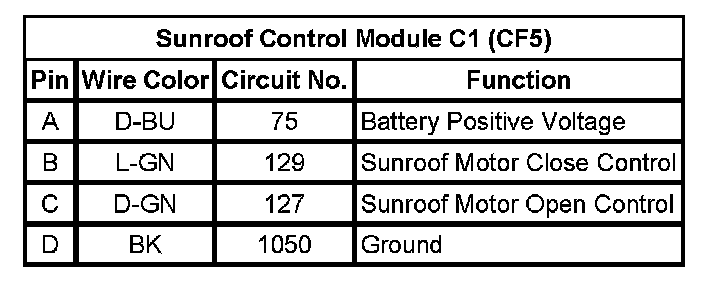

Sunroof Control Module C1 (CF5)

Transfer Case Shift Control Module - C3:

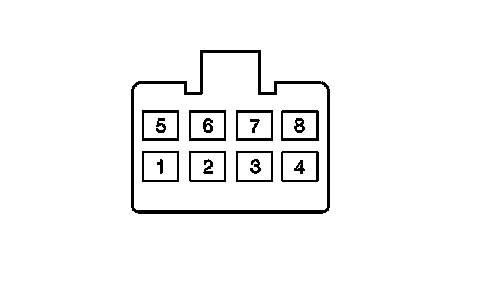

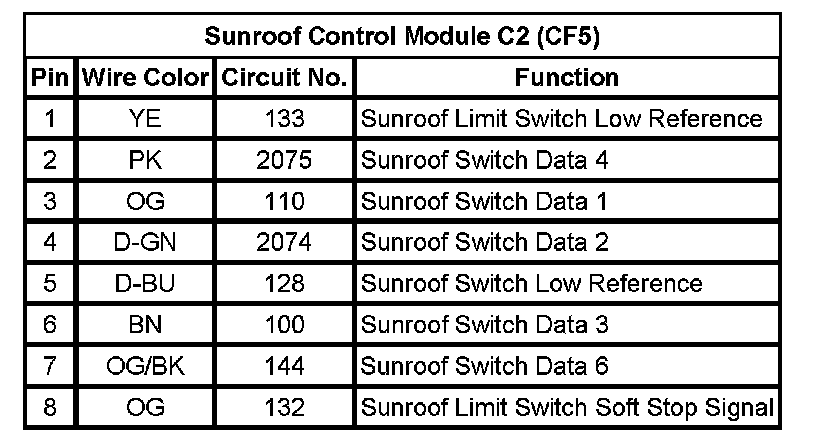

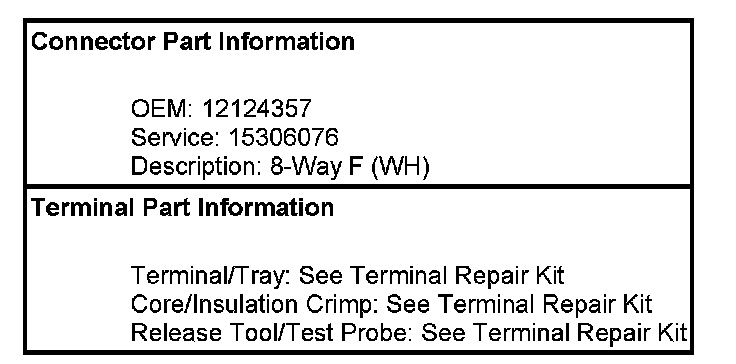

Sunroof Control Module C2 (CF5)
