HVAC Control Assembly Replacement



HVAC Control Assembly Replacement

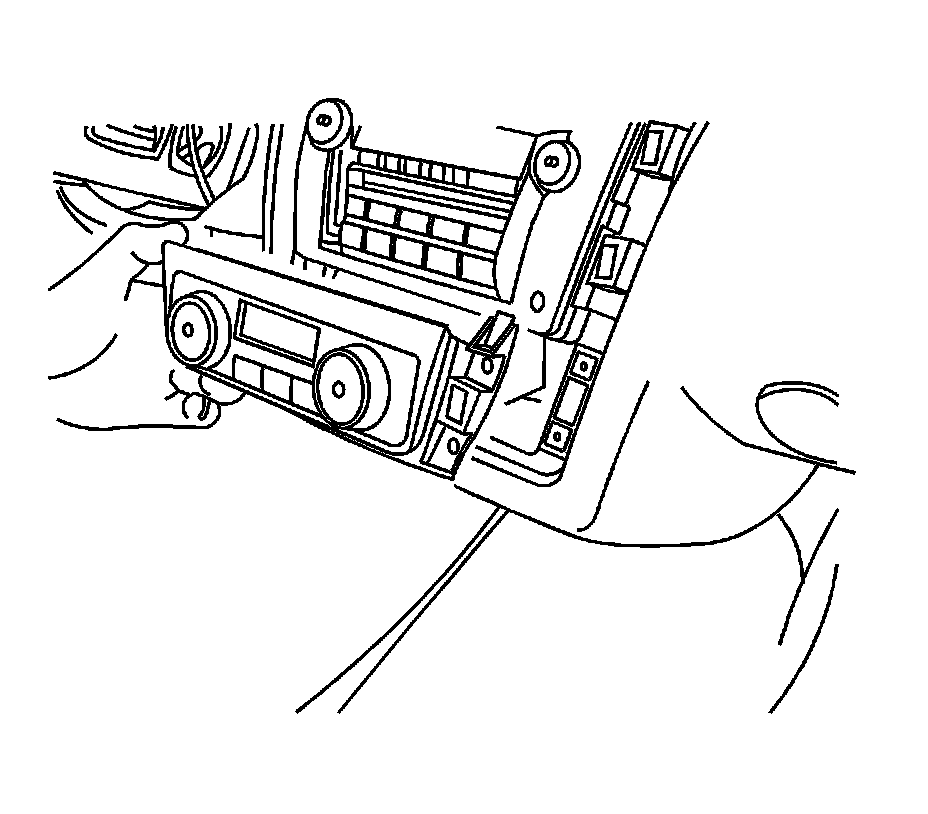

Removal Procedure




1. Remove the instrument panel (I/P) accessory trim plate.
2. Remove the HVAC control module assembly screws.
3. Disconnect the electrical connectors from the HVAC control module assembly.

Installation Procedure




1. Connect the electrical connectors to the HVAC control module assembly.
2. Install the HVAC control module assembly into the I/P.

Notice: Refer to Fastener Notice.

3. Install the HVAC control module assembly screws.

Tighten the screws to 1.9 N.m (17 lb in).

4. Install the I/P accessory trim plate.
5. Refer to Control Module References for replacement and setup information.
