Control Module HVAC: Diagrams

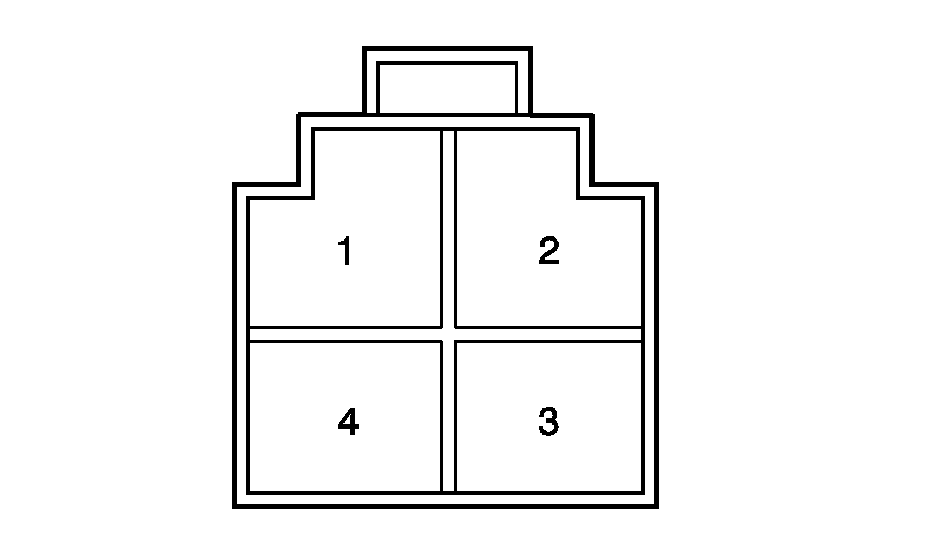

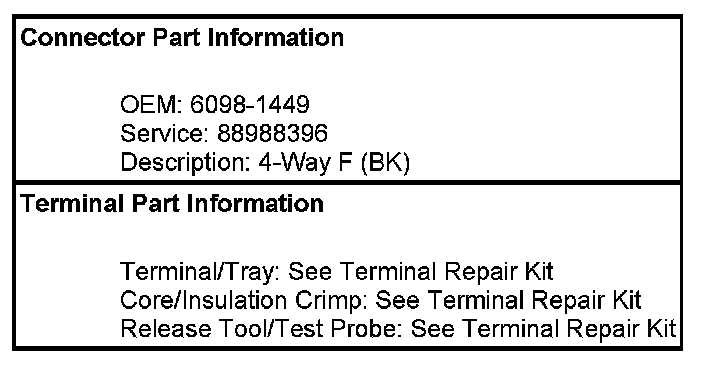

HVAC Connector End Views

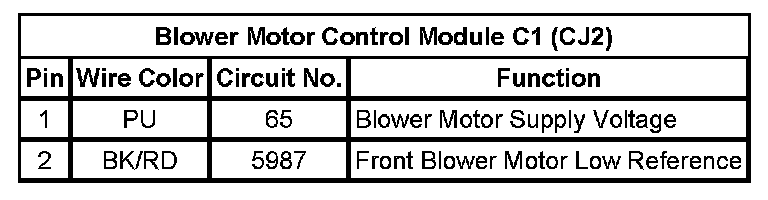

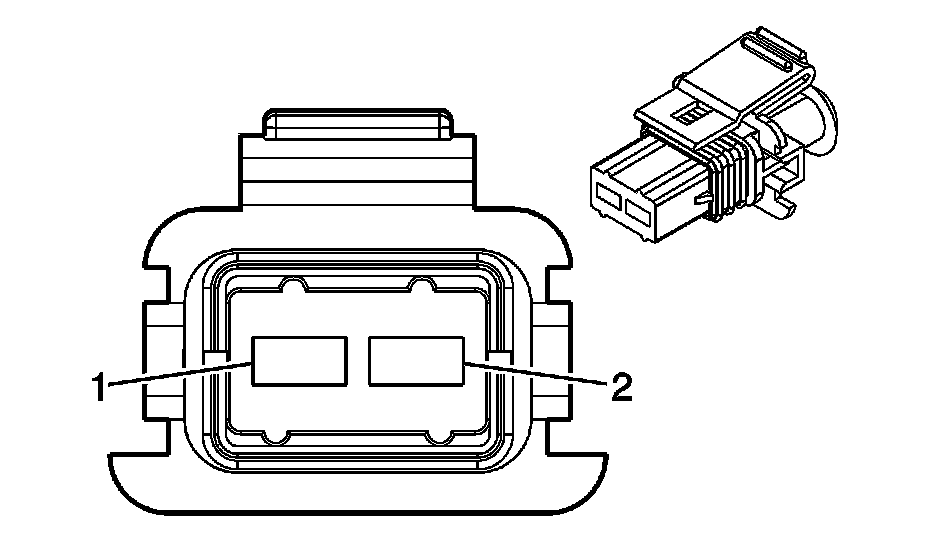

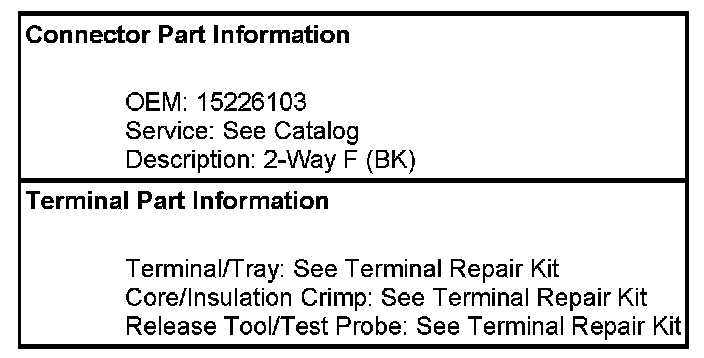

Blower Motor Control Module C1 (CJ2)

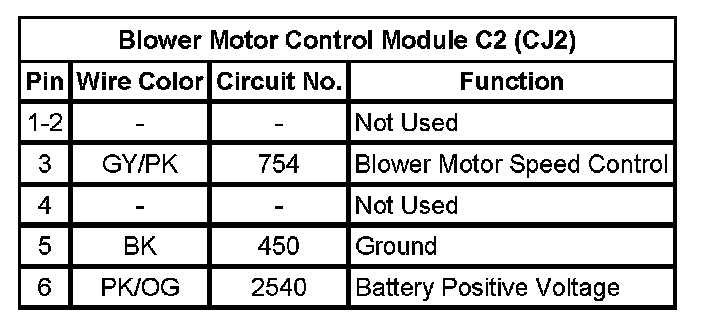

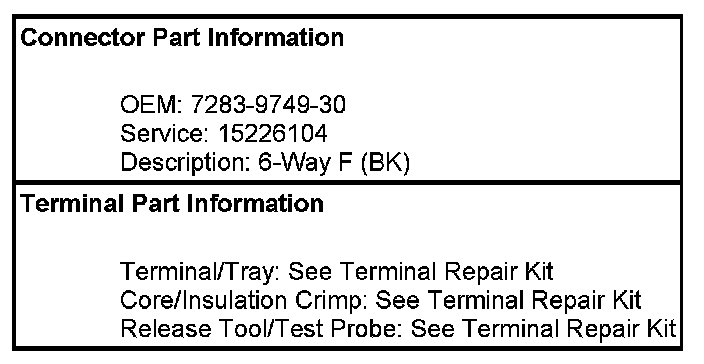

Blower Motor Control Module C2 (CJ2)

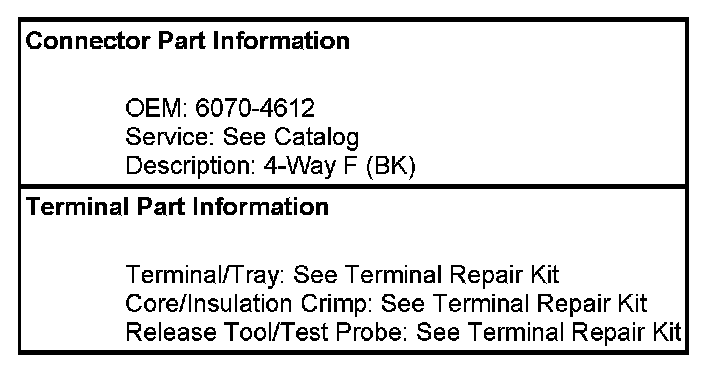

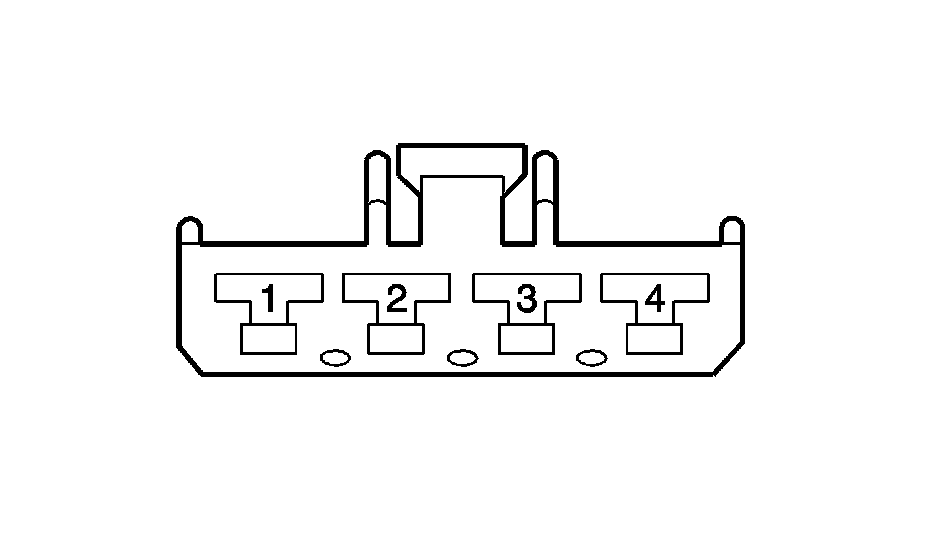

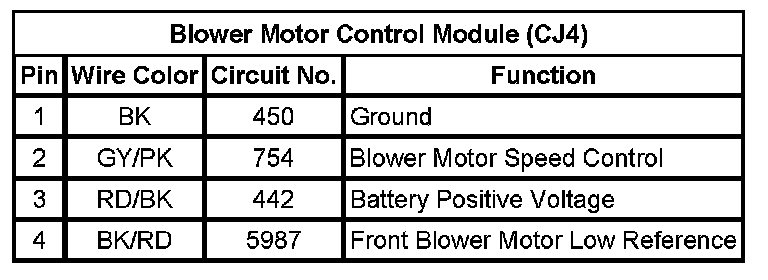

Blower Motor Control Module (CJ4)

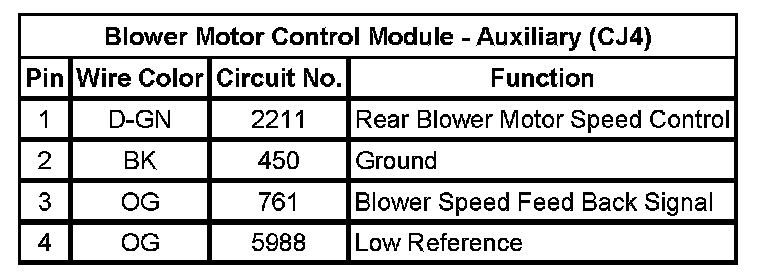

Blower Motor Control Module - Auxiliary (CJ4)
