Instrument Panel Views

Harness Routing Views

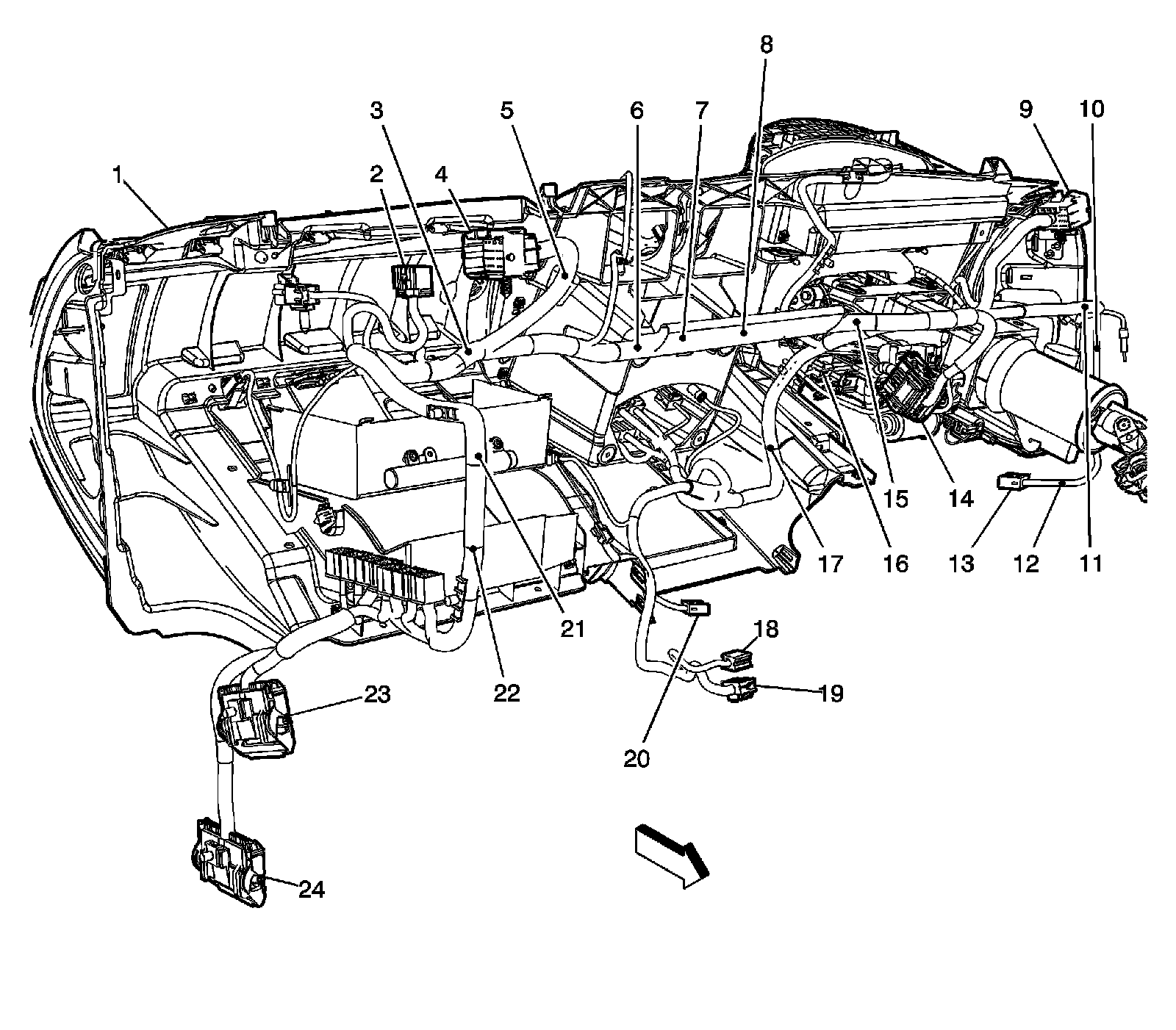

I/P Harness - Behind the I/P Carrier




1 - I/P Trim
2 - C208
3 - S206
4 - C200
5 - S222
6 - S202
7 - S212
8 - S210
9 - C201
10 - S207
11 - S223
12 - S208
13 - Data Link Connector (DLC)
14 - C203
15 - S200
16 - C316
17 - S213
18 - C204
19 - C202
20 - C219
21 - S211
22 - S214
23 - C325
24 - C326
