Data Link Connector: Locations

Data Communication Component Views

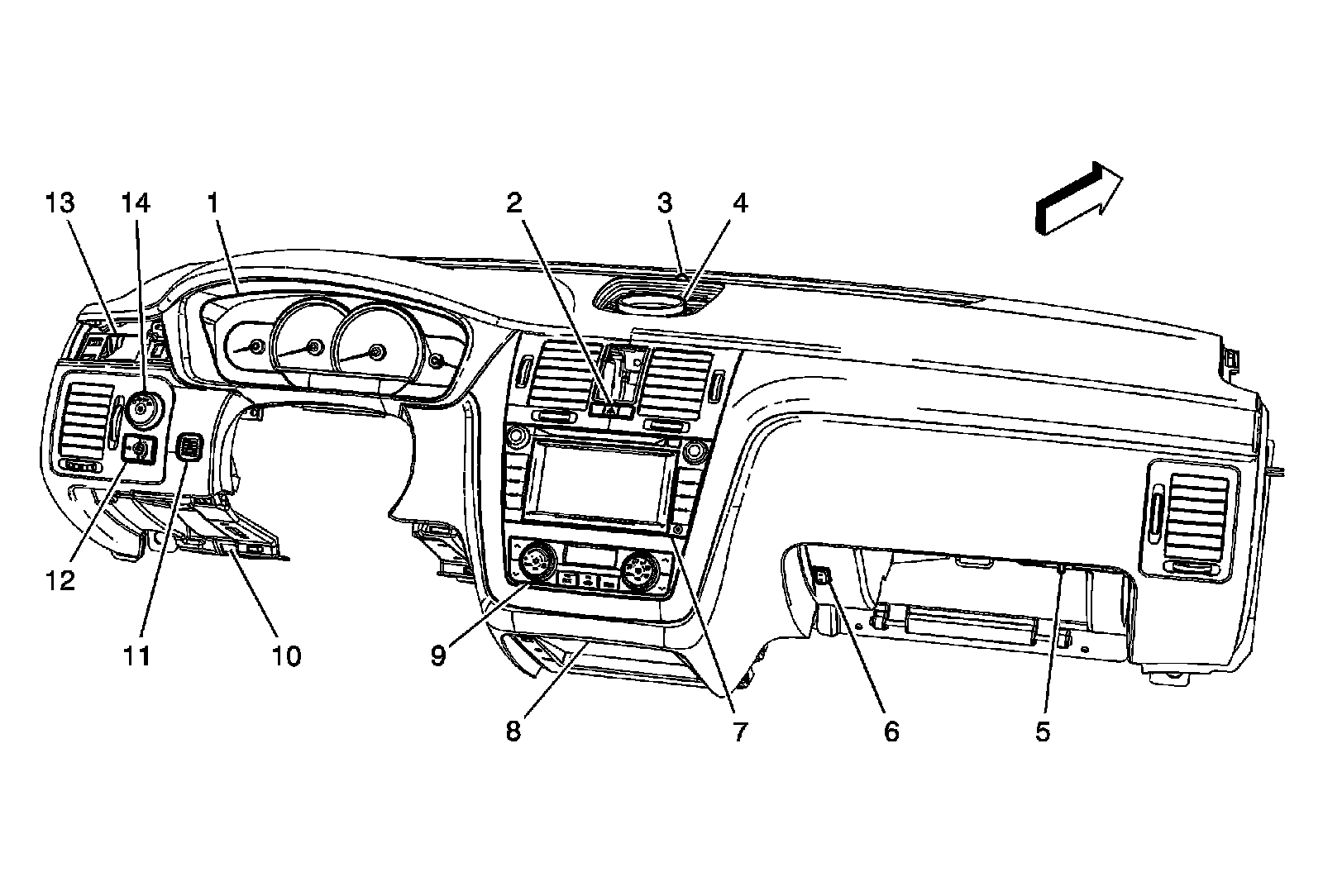

I/P Components




1 - Instrument Panel Cluster (IPC)
2 - Hazard Switch
3 - Sunload Twilight System
4 - Speaker - Front Center (U57)
5 - I/P Compartment Switch/Lamp
6 - Valet Switch
7 - Radio/Navigation Unit (U3Q)
8 - Ashtray Lamp
9 - HVAC Control Module
10 - Data Link Connector (DLC)
11 - Air Temperature Sensor - Inside
12 - Rear Compartment Lid Release Switch
13 - Driver Information Center (DIC) Switch
14 - Headlamp Switch
