Fuel Level Sensor Wiring Harness Replacement

Fuel Level Sensor Wiring Harness Replacement

Removal Procedure




1. Remove the fuel tank.

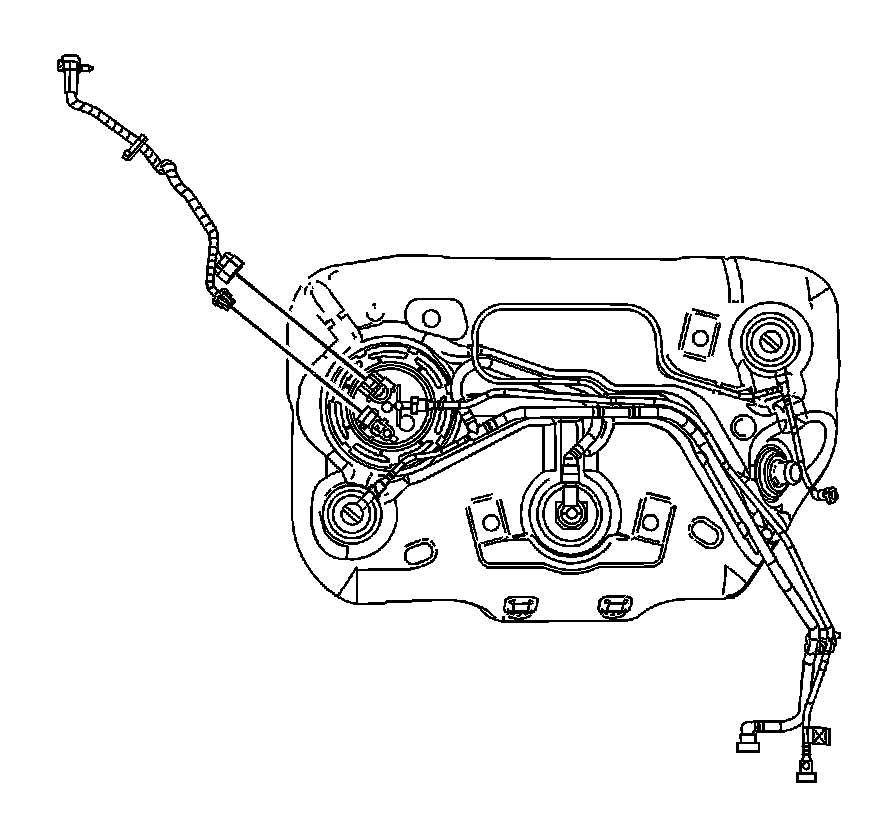

2. Disconnect the fuel level sensor wiring harness electrical connectors from the pressure sensor and module.
3. Remove the fuel level sensor wiring harness.

Installation Procedure




1. Install the fuel level sensor wiring harness.
2. Connect the fuel level sensor wiring harness electrical connectors to the pressure sensor and module.
3. Install the fuel tank.
