System Specifications

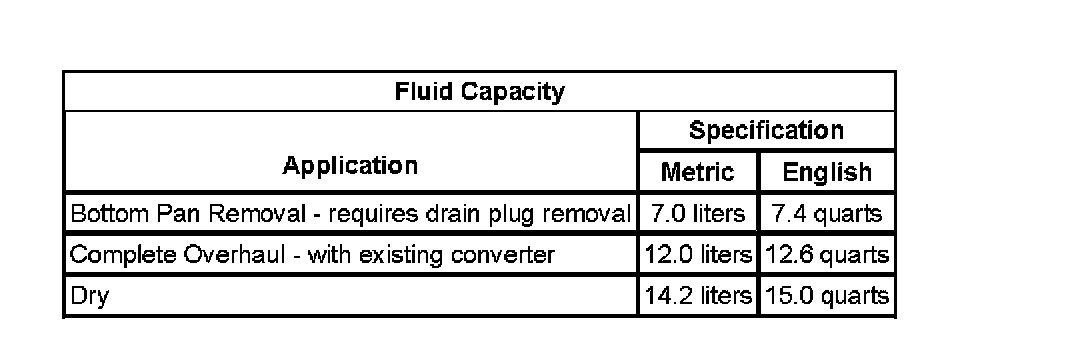

Fluid Capacity Specifications

Fluid Capacity Specifications:

AUTOMATIC TRANSAXLE FLUID CAPACITY

BOTTOM PAN REMOVAL
Requires drain plug removal 7.0 liters (7.4 quarts)

COMPLETE OVERHAUL
With existing converter 12.0 liters (12.6 quarts)
Dry 14.2 liters (15.0 quarts)

NOTE: All capacities are approximate. When adding, be sure to fill to the approximate level. Recheck fluid level after filling.
