System Specifications

Primary Camshaft Drive Chain)
Tensioner Bolt 25 N.m (18 lb ft)
Secondary Camshaft Drive Chain)
Tensioner Bolt 25 N.m (18 lb ft)

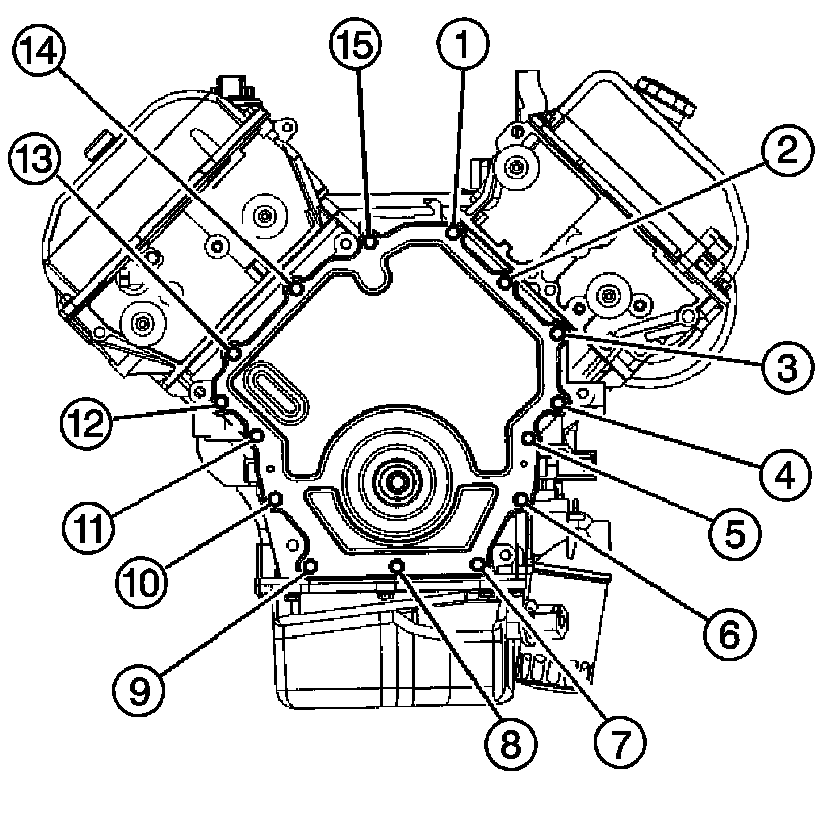

Engine Front Cover Bolt - In Sequence 10 N.m (89 lb in)

Crankshaft Balancer Bolt
First Pass 50 N.m (37 lb ft
Final Pass +150 degrees
