Window Systems Component Views

Fig 1: Driver Door

GM1714202

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Memory/Heated Seat Switch (AN3 Except KB6) / Memory Seat Switch (KB6)
4	Driver Door Switch (DDS)
5	Speaker - LF Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) - LF (ASF)
8	Door Latch Assembly - Driver

Fig 2: Passenger Door

GM1714232

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Passenger Door Switch (PDS)
3	Door Latch Assembly - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) - RF (ASF)
5	Speaker - RF Door
6	Window Motor - Passenger
7	Heated Seat Switch (KA6)

Fig 3: LR Door

GM1732576

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Motor - LR
3	Window Switch - LR
4	Speaker - LR Door
5	Inflatable Restraint Side Impact Sensor (SIS) - LR (ASF)
6	Door Latch Assembly - LR

Fig 4: RR Door

GM1714215

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR
2	Door Frame
3	Inflatable Restraint Side Impact Sensor (SIS) - RR (ASF)
4	Speaker - RR Door
5	Window Motor - RR

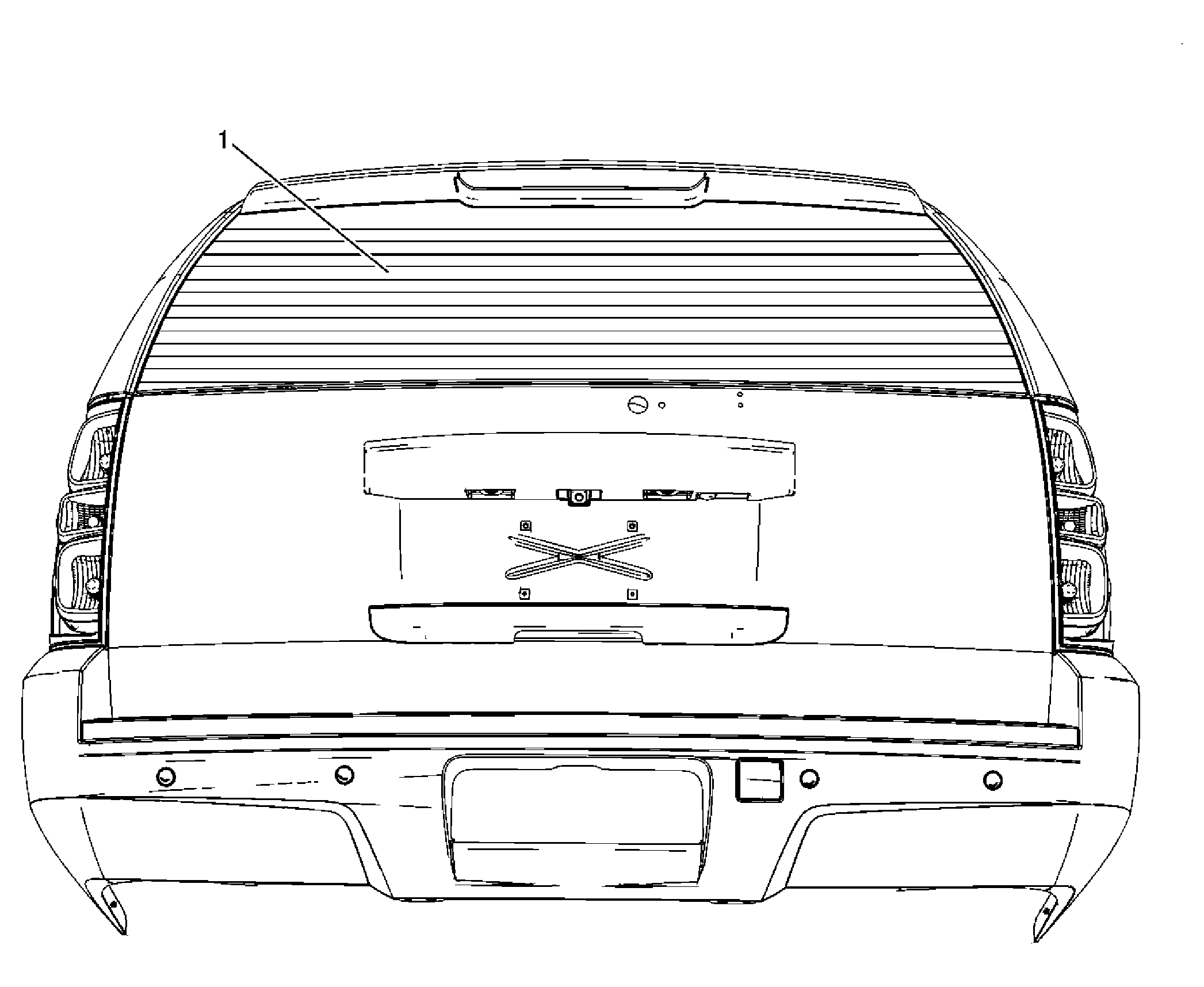

Fig 5: Defogger Grid (E52)

GM1819698

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defogger Grid

Fig 6: Above the Rear Window (Except E52)

GM1776405

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defogger Grid
2	Information Center Telltale Assembly (UD7)
3	Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
