Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)

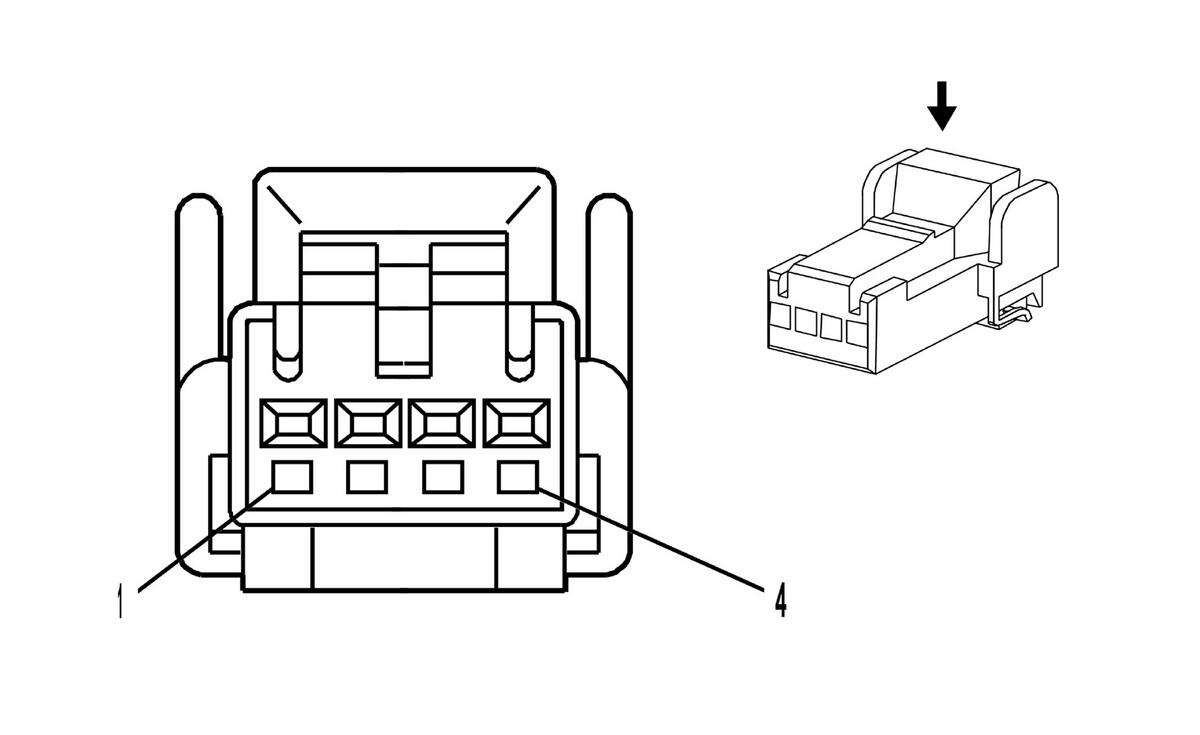

Fig 1: Remote Control Door Lock Receiver (RCDLR) (AP3/AP8) Connector End View
GM1673483Courtesy of GENERAL MOTORS CORP.
Remote Control Door Lock Receiver (RCDLR) (AP3/AP8) Connector Parts Information

Connector Part Information
  • OEM: 15462684
  • Service: 88988745
  • Description: 4-Way F ILAG5 Series (GN)
Terminal Part Information
  • Terminal/Tray: IL-AG5-C1-5000 /20
  • Core/Insulation Crimp: K/K
  • Release Tool/Test Probe: J-38125-211/J-35616-64B (L-BU)
Remote Control Door Lock Receiver (RCDLR) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 RD/WH 1140 Battery Positive Voltage
2 D-GN 5060 Low Speed GMLAN Serial Data
3 - - Not Used
4 BK/WH 2751 Low Reference
