Mirror Component Views

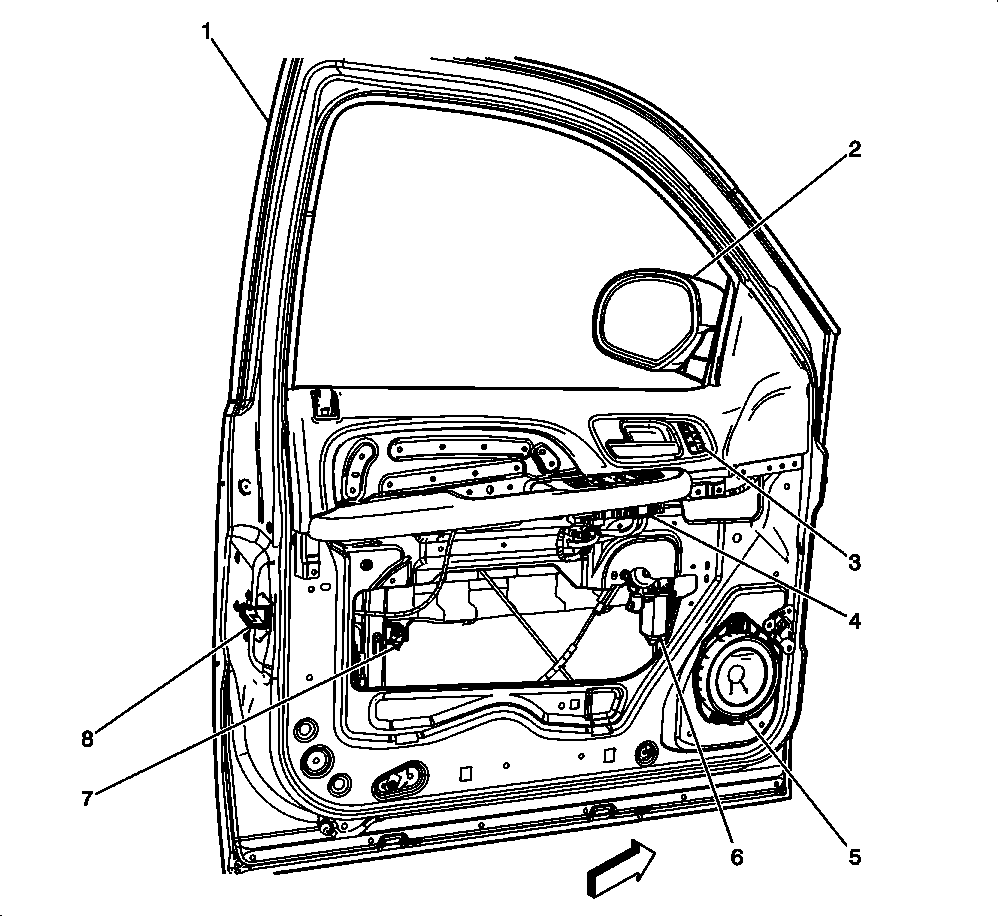

| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Outside Rearview Mirror - Driver |
| 3 | Memory/Heated Seat Switch (AN3 Except KB6) / Memory Seat Switch (KB6) |
| 4 | Driver Door Switch (DDS) |
| 5 | Speaker - LF Door |
| 6 | Window Motor - Driver |
| 7 | Inflatable Restraint Side Impact Sensor (SIS) - LF (ASF) |
| 8 | Door Latch Assembly - Driver |

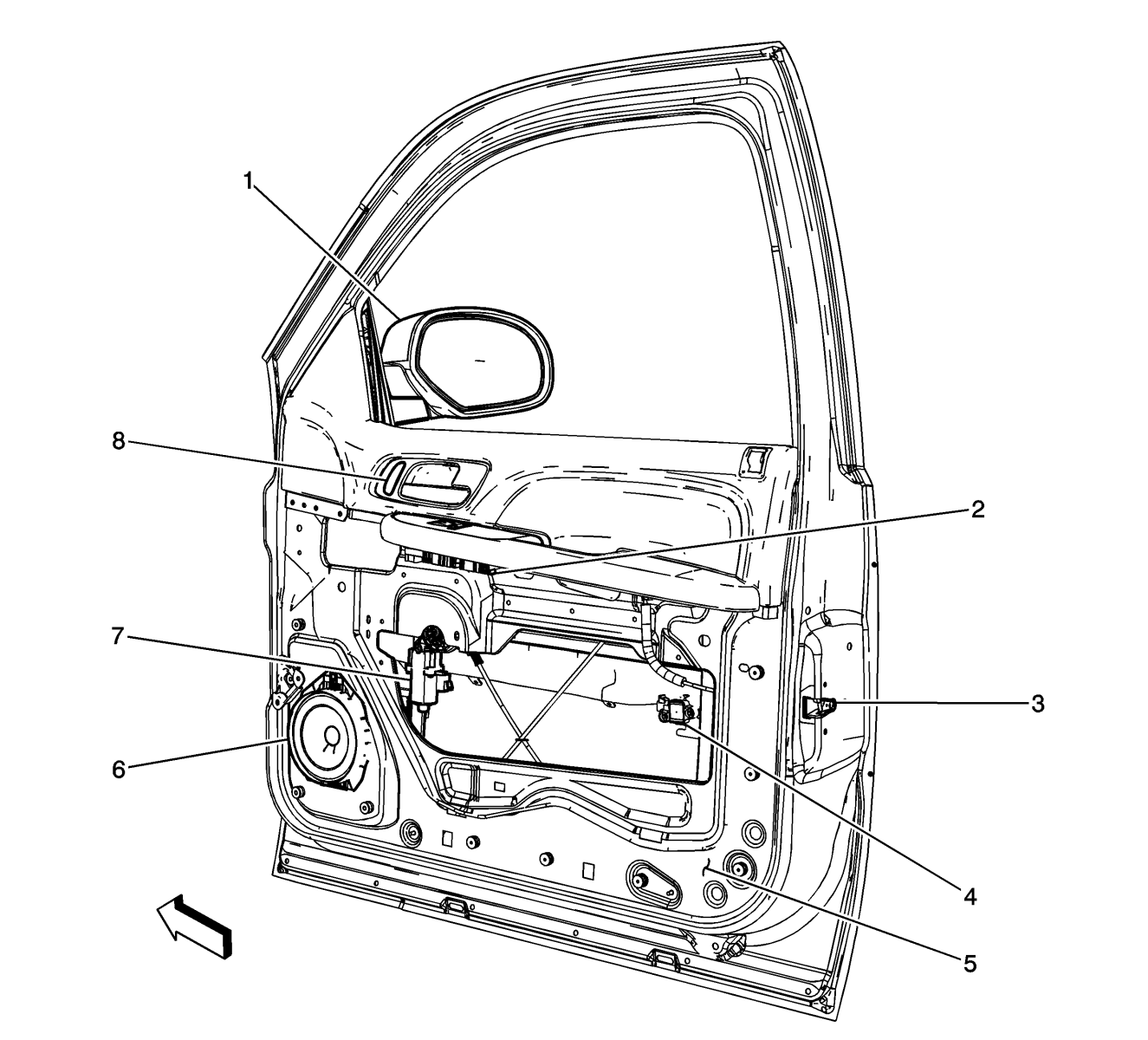

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Passenger Door Switch (PDS) |
| 3 | Door Latch Assembly - Passenger |
| 4 | Inflatable Restraint Side Impact Sensor (SIS) - RF (ASF) |
| 5 | Speaker - RF Door |
| 6 | Window Motor - Passenger |
| 7 | Heated Seat Switch (KA6) |
| Callout | Component Name |
|---|---|
| 1 | Sunroof Switch (CF5) |
| 2 | Courtesy/Reading Lamps - Second Row |
| 3 | Power Liftgate Switch (E61) |
| 4 | Folding Seat Switch - Front (ARS) |
| 5 | Garage Door Opener (UG1) |
| 6 | Onstar Button Assembly (UE1) |
| 7 | Inside Rearview Mirror (ISRVM) |
| 8 | Inflatable Restraint Passenger Air Bag ON/OFF Indicator |
| 9 | Courtesy/Reading Lamp - Front |
| 10 | Inside Air Temperature Sensor - Front (CJ2) |
