Mirror Face Replacement

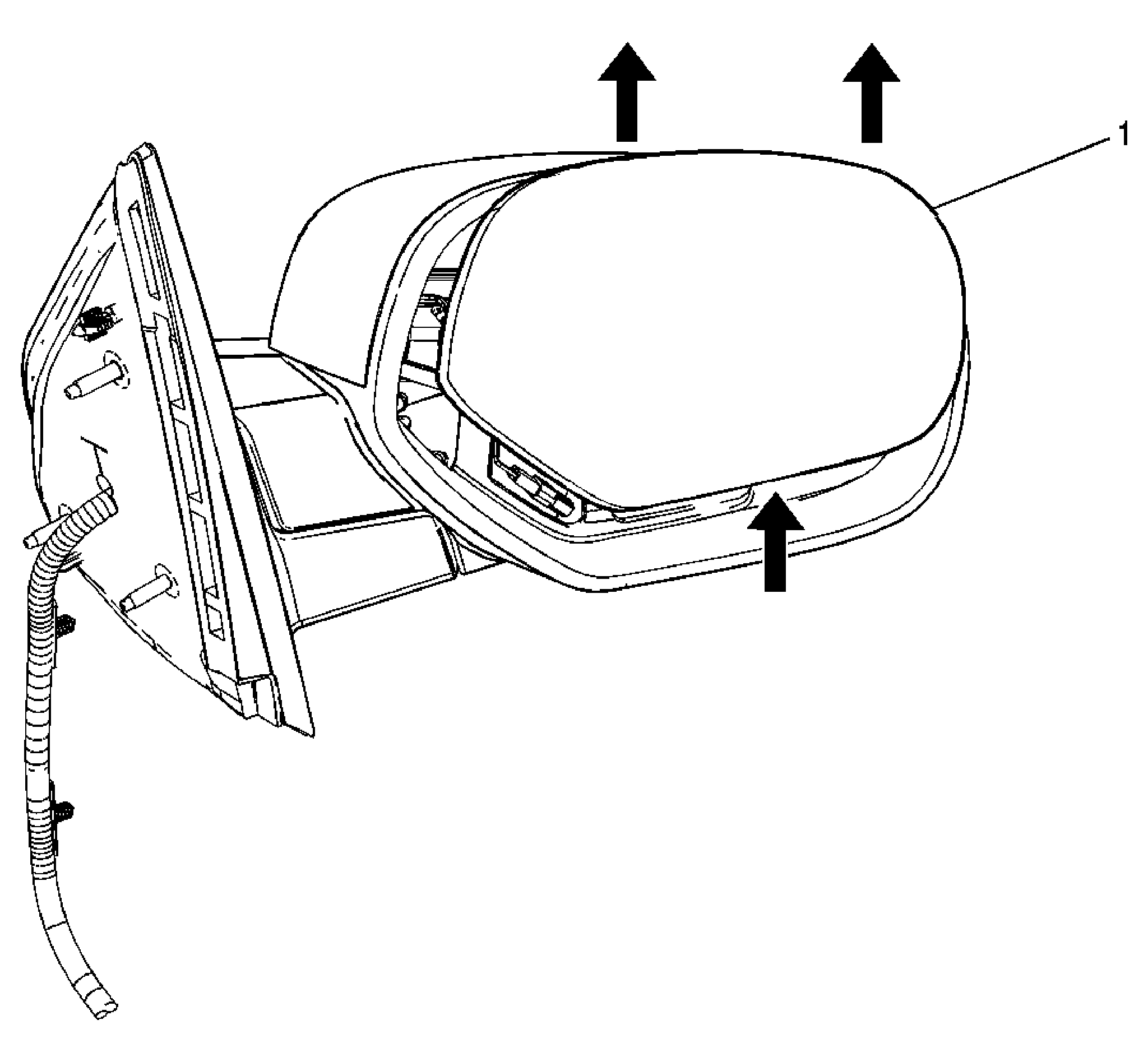

Fig 1: View Of Outside Rearview Mirror Face
GM1730647Courtesy of GENERAL MOTORS CORP.
Mirror Face Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Outside Rearview Mirror Face
Tip:
  1. Tilt the mirror face outward at the bottom.
  2. With a twisting motion push upward on the bottom of the mirror face and pull forward until it releases from the rearview mirror motor.
  3. Disconnect the electrical connectors.
