Motor Replacement - Power Mirror

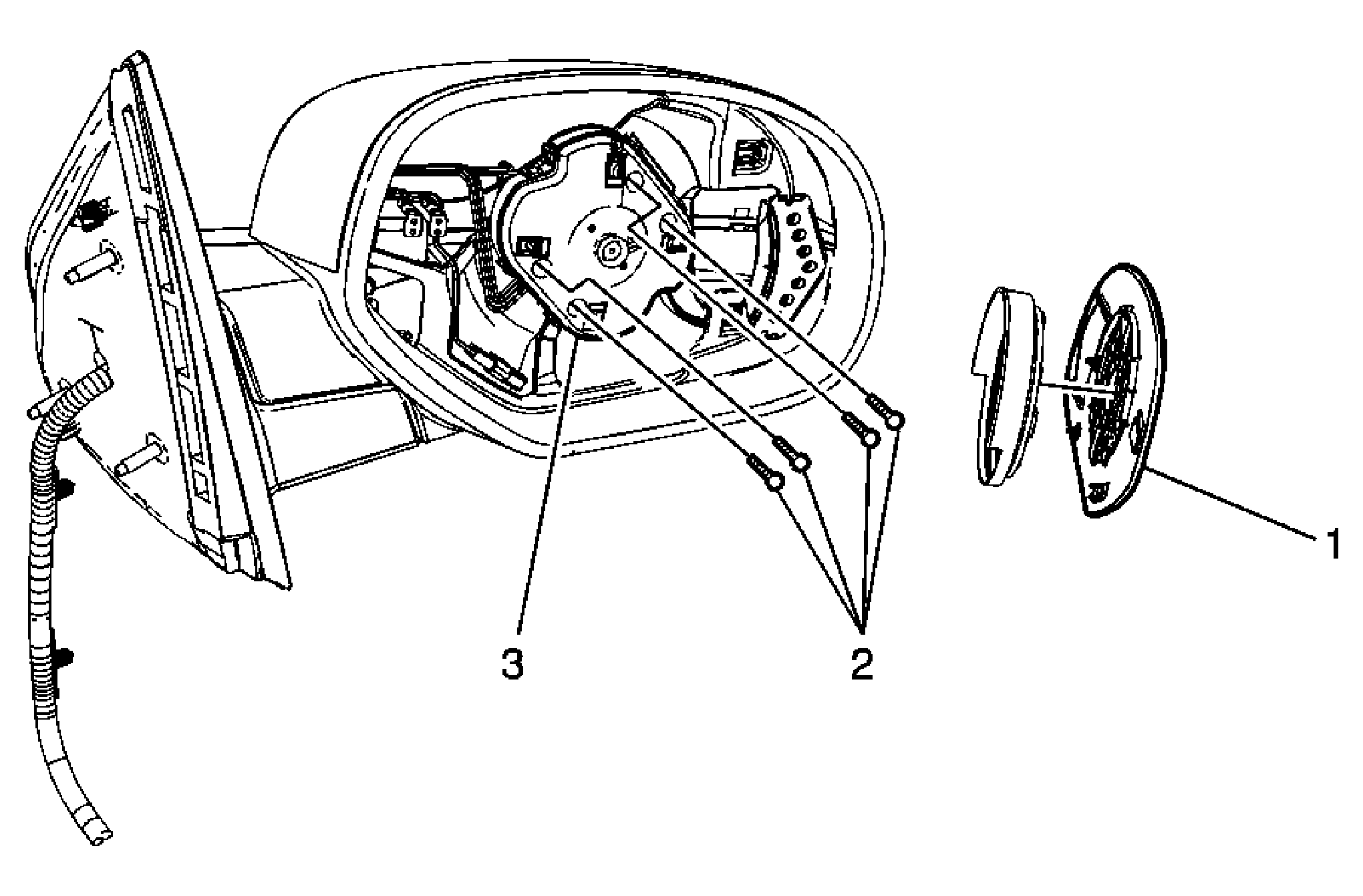

Fig 1: View Of Outside Rearview Mirror Motor & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Face Tip: Tip the mirror face outward at the bottom. With a twisting motion push upward on the bottom of the mirror face and pull rearward until it releases from the rearview mirror motor. Disconnect the electrical connectors.
2	Outside Rearview Mirror Motor Screws (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Outside Rearview Mirror Motor Tip: Gently press the mirror back into the adjuster mechanism with the palm of the hand on the center of the glass until it locks into place.
