Brake Booster Vacuum Sensor

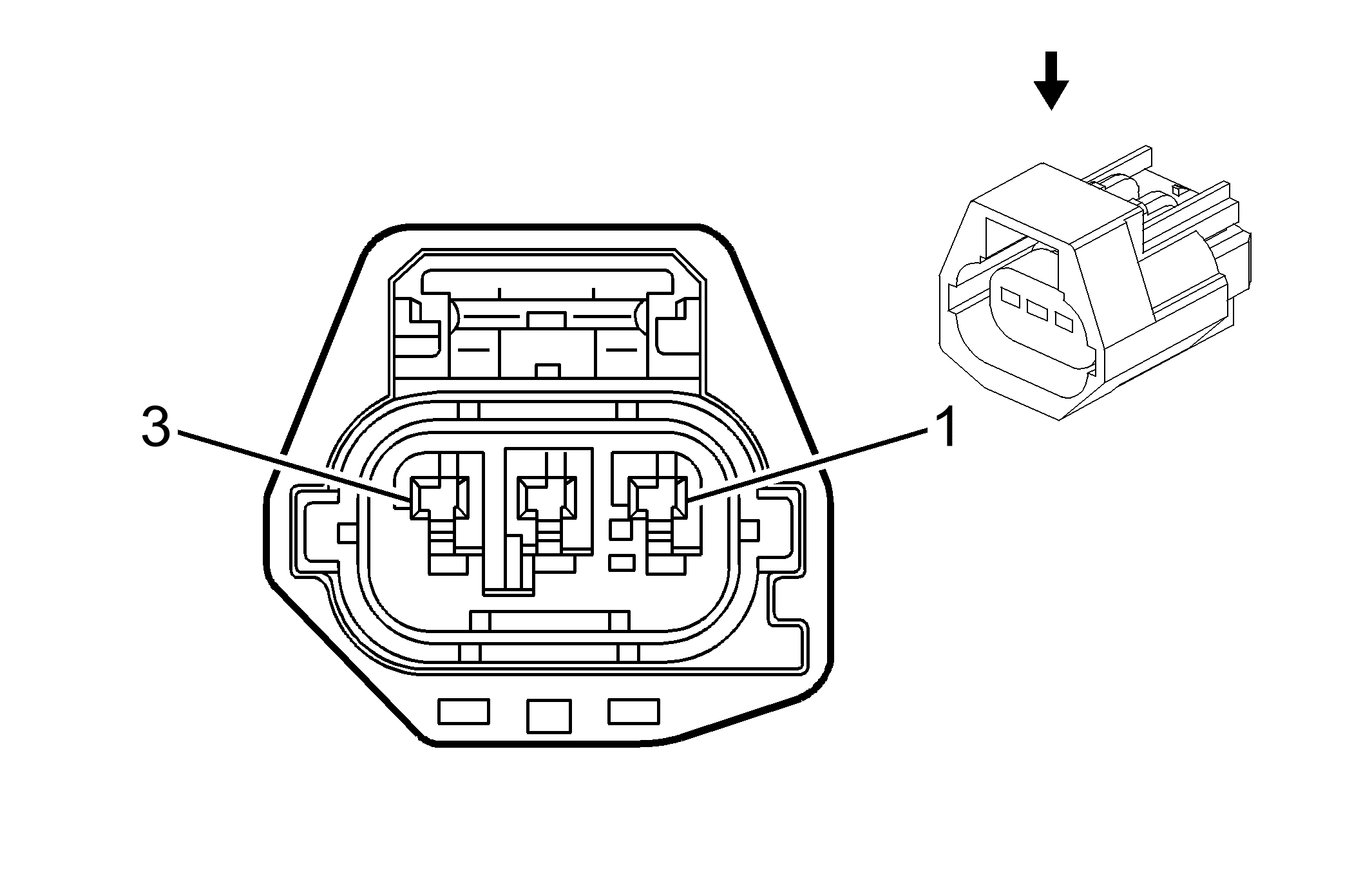

Fig 1: Brake Booster Vacuum Sensor Connector End View
GM1710995Courtesy of GENERAL MOTORS CORP.
Brake Booster Vacuum Sensor Connector Parts Information

Connector Part Information
  • OEM: 10769084
  • Service: 19115666
  • Description: 3-Way F 3P 1.5mm YESC Series (GY)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
Brake Booster Vacuum Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 OG 6030 Brake Vacuum Sensor Signal
2 YE/BK 6032 Low Reference
3 GY 6044 5-Volt Reference
