Installation Procedure

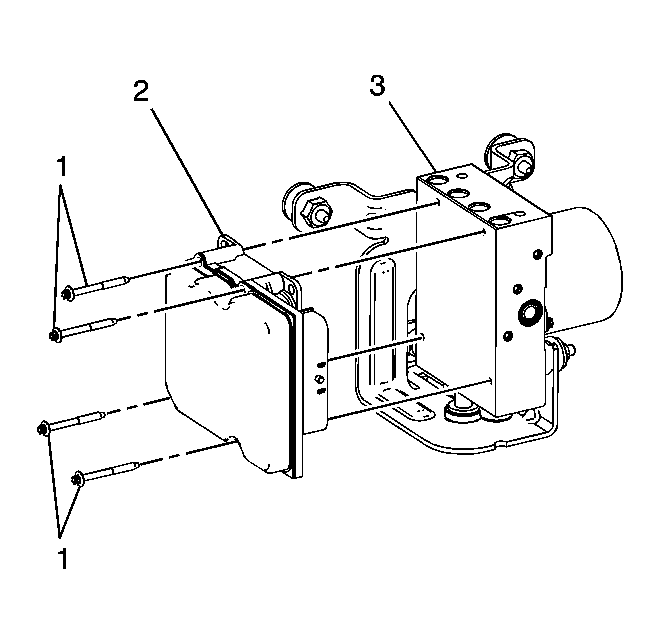

    Fig 1: View Of EBCM, BPMV & Screws
    GM1702891Courtesy of GENERAL MOTORS CORP.
  1. Position the gasket to the BPMV (3).
  2. Position the EBCM (2) to the BPMV (3).
    3. IMPORTANT: Make sure the EBCM is properly aligned to the BPMV, including the brake pressure switch. Do not force the components together.
  3. Push the EBCM squarely onto the BPMV.
    4. NOTE: Refer to Fastener Notice .
  4. Install 4 new EBCM to BPMV screws (1).

    Tighten:  Tighten the screws in a X pattern to 3 N.m (27 lb in).

  5. Connect the EBCM electrical connector.
  6. If installing a replacement EBCM, program the replacement EBCM. Refer to Control Module References .
  7. Bleed the BPMV. Refer to Antilock Brake System Automated Bleed Procedure (W/JL4)  or Antilock Brake System Automated Bleed Procedure (W/O JL4) .
