Installation Procedure

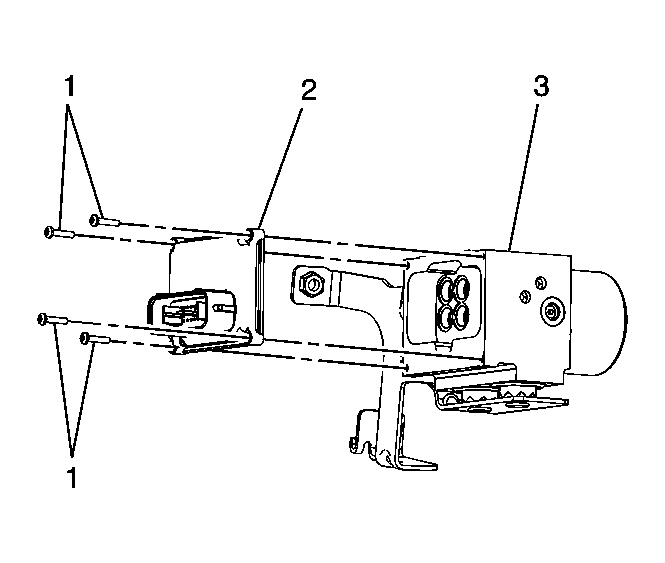

Fig 1: View Of EBCM, BPMV & Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install 4 new EBCM to BPMV screws (1).
Tighten: Tighten the screws in an X pattern to 3 N.m (27 lb in).
Connect the EBCM electrical connector.
If installing a replacement EBCM, program the replacement EBCM. Refer to Control Module References .
Bleed the BPMV. Refer to Antilock Brake System Automated Bleed Procedure (W/JL4) or Antilock Brake System Automated Bleed Procedure (W/O JL4) .
