Yaw Rate Sensor/Lateral Accelerometer Replacement

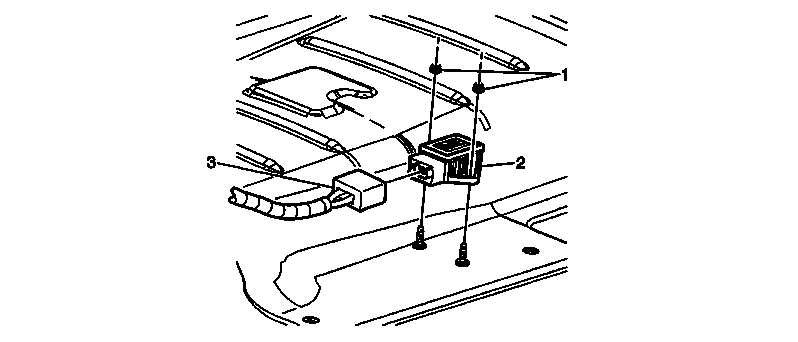

Fig 1: View Of Yaw Sensor, Electrical Connector & Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the passenger seat. Refer to Front Seat Replacement - Bucket .
1	Yaw Sensor Retaining Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 7 N.m (62 lb in) Tip: Pull back the carpet to gain access to the yaw sensor.
2	Yaw Sensor
3	Yaw Sensor Electrical Connector
