Installation Procedure

    Fig 1: View Of Generator Bracket & Bolts (4.8L, 5.3L & 6.0L)
    GM847280Courtesy of GENERAL MOTORS CORP.
  1. Position the generator bracket to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the generator bracket bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

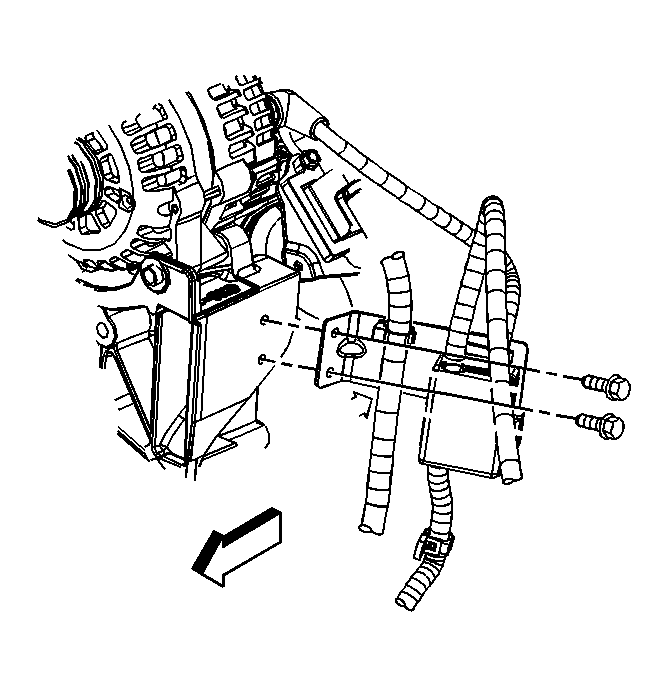

    3. Fig 2: View Of Battery Cable Junction Block Bracket & Bolts
    GM759636Courtesy of GENERAL MOTORS CORP.
  3. Position the engine wiring harness clip to the generator bracket and install the engine harness clip bolt.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  4. Install the power steering pump. Refer to Power Steering Pump Replacement (4.8L, 5.3L, 6.0L, and 6.2L) .
  5. Install the generator. Refer to Generator Replacement .
