Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

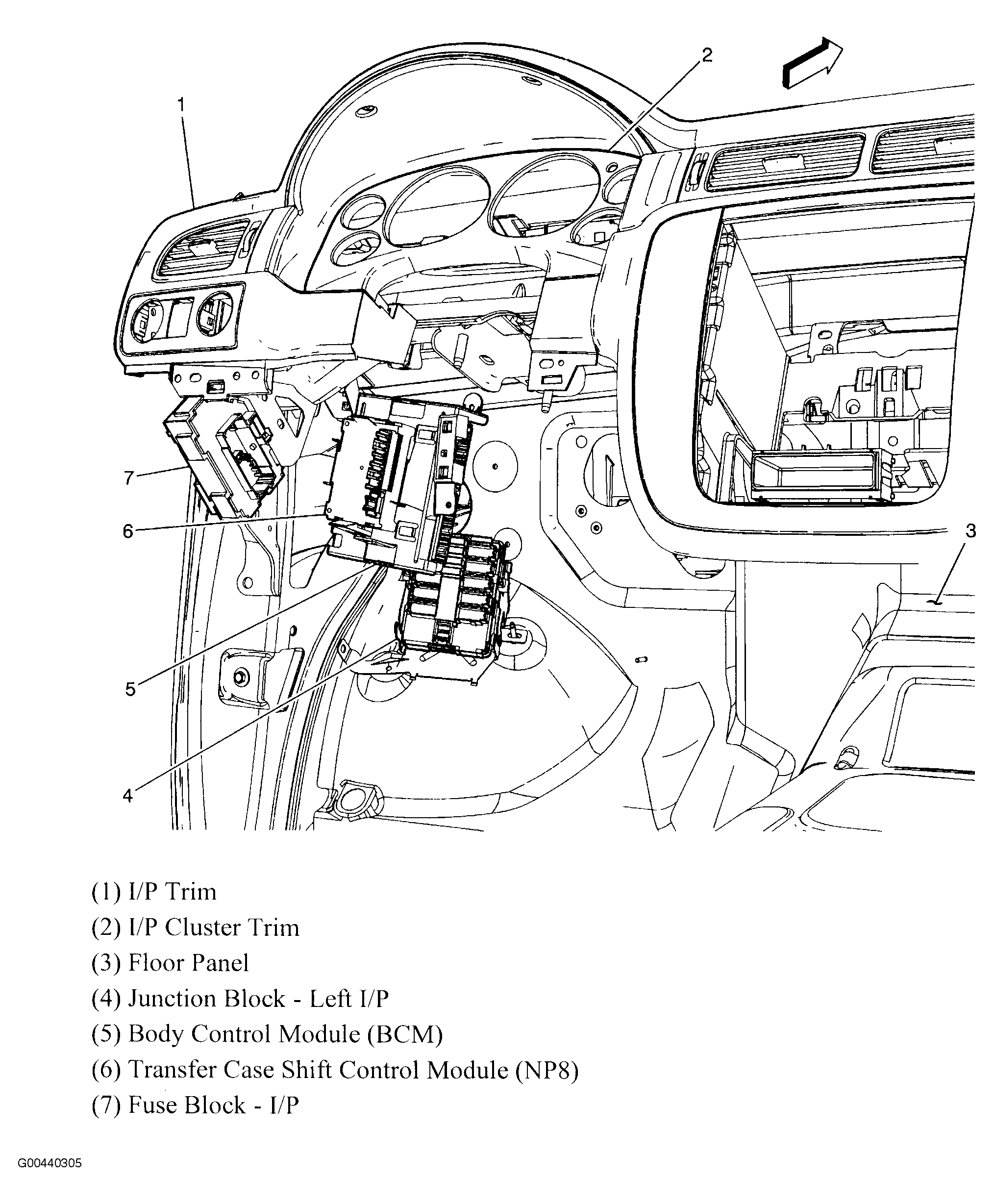

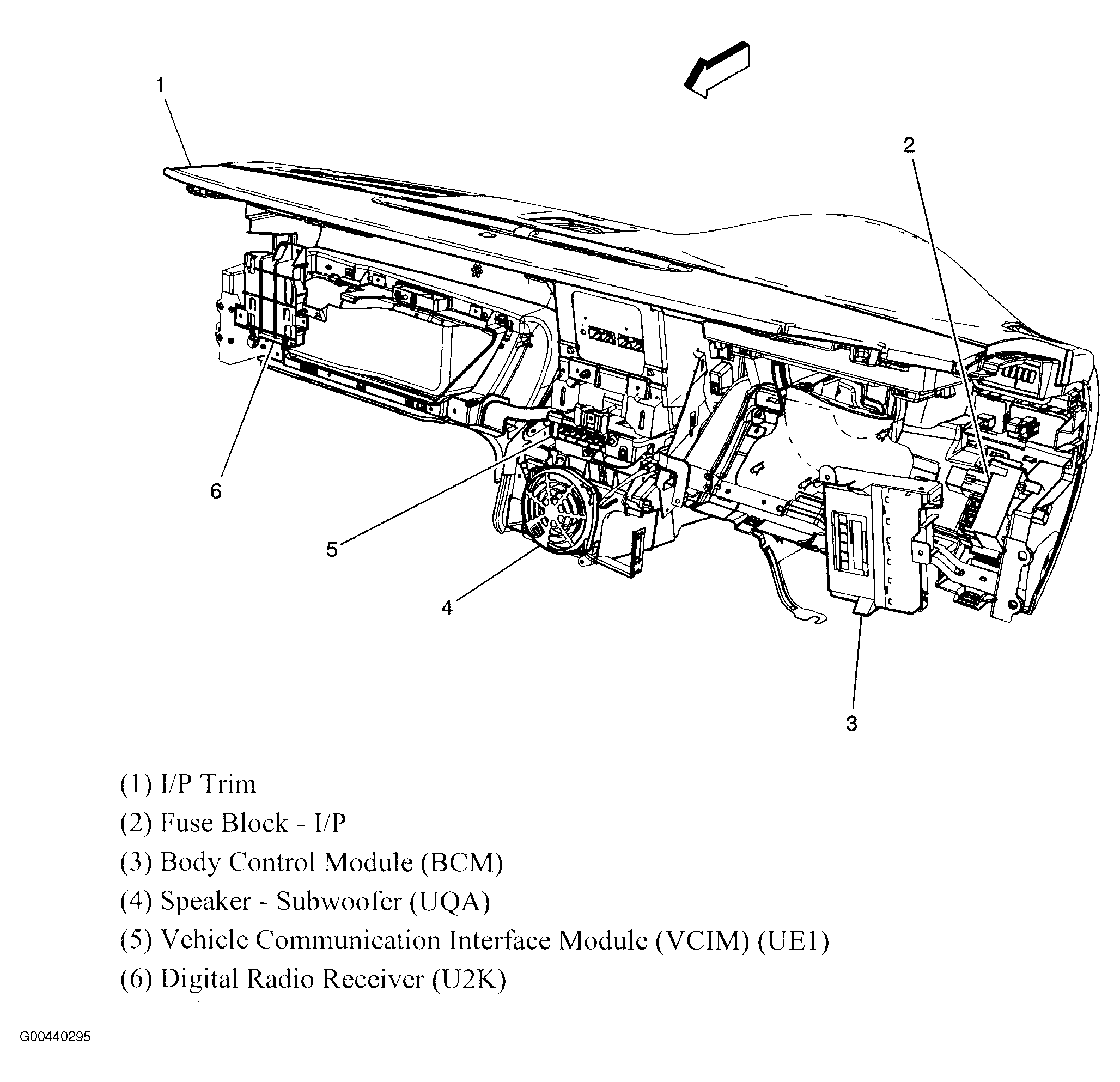

| Fuse Block - I/P | Behind lower left end of dash. See Figure. |

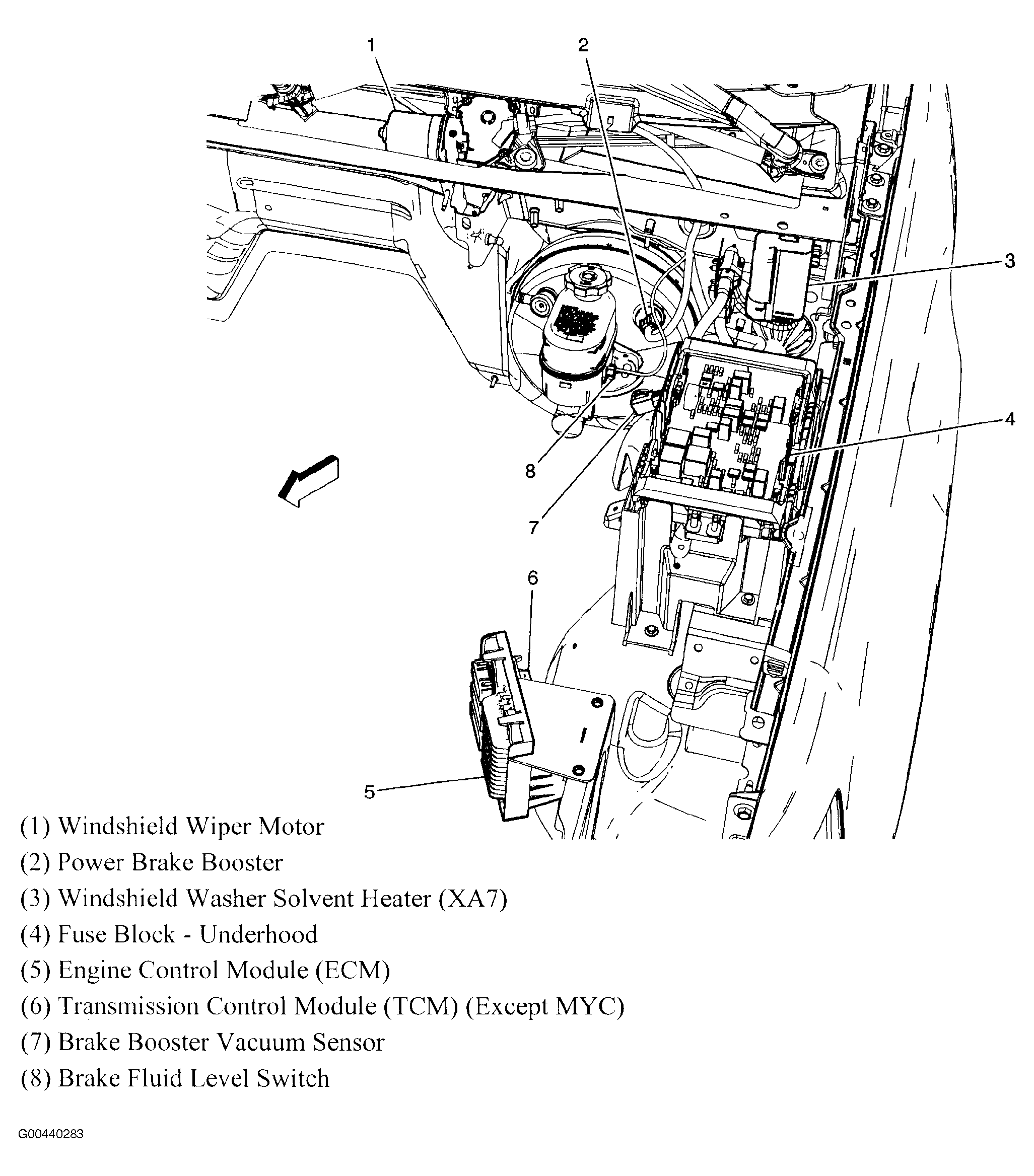

| Fuse Block - Underhood | Left side of engine compartment. See Figure. |

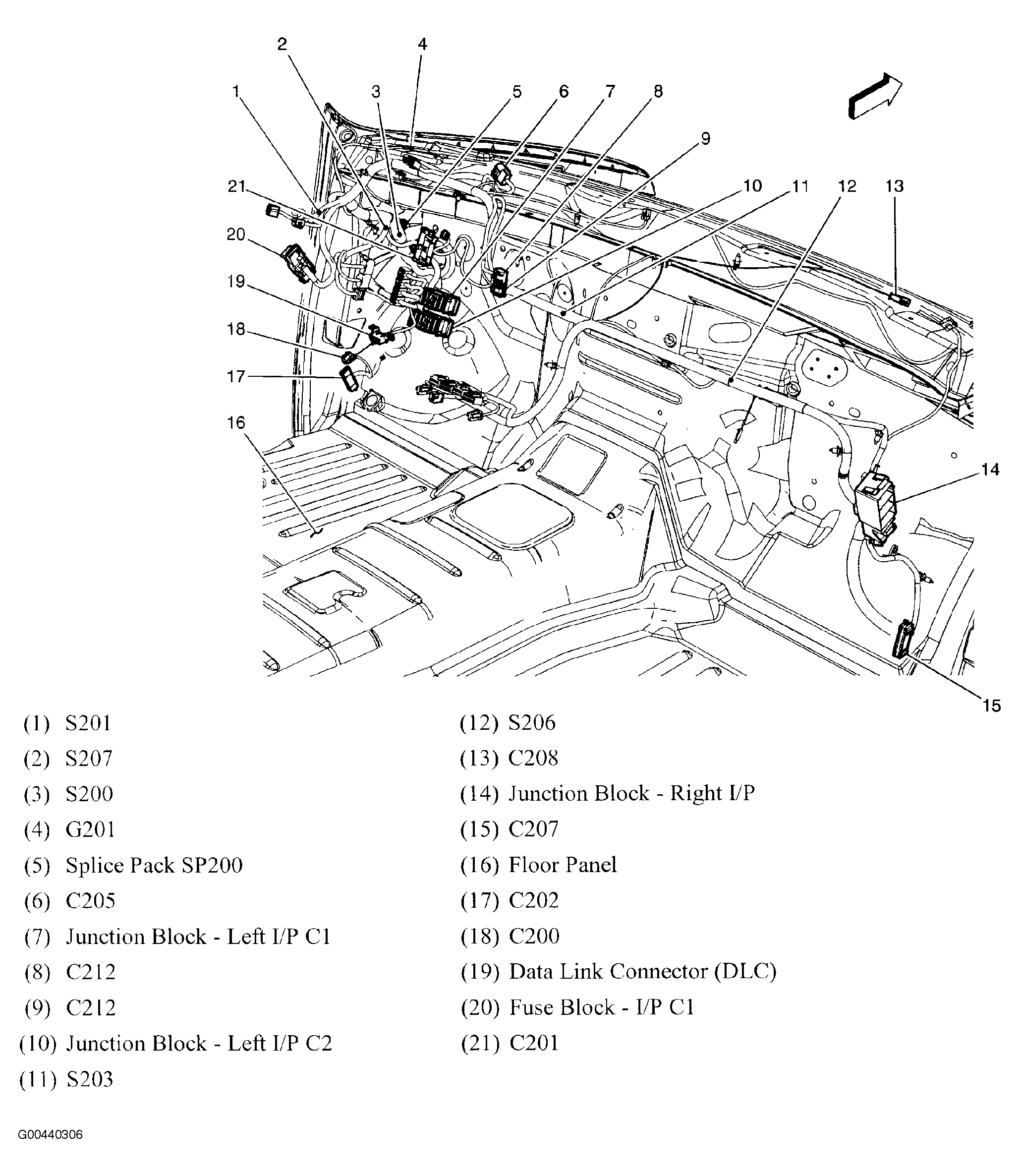

| Junction Block - Left I/P | Below left end of dash. See Figure. |
| Junction Block - Right I/P | Below right end of dash. See Figure. |
