Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

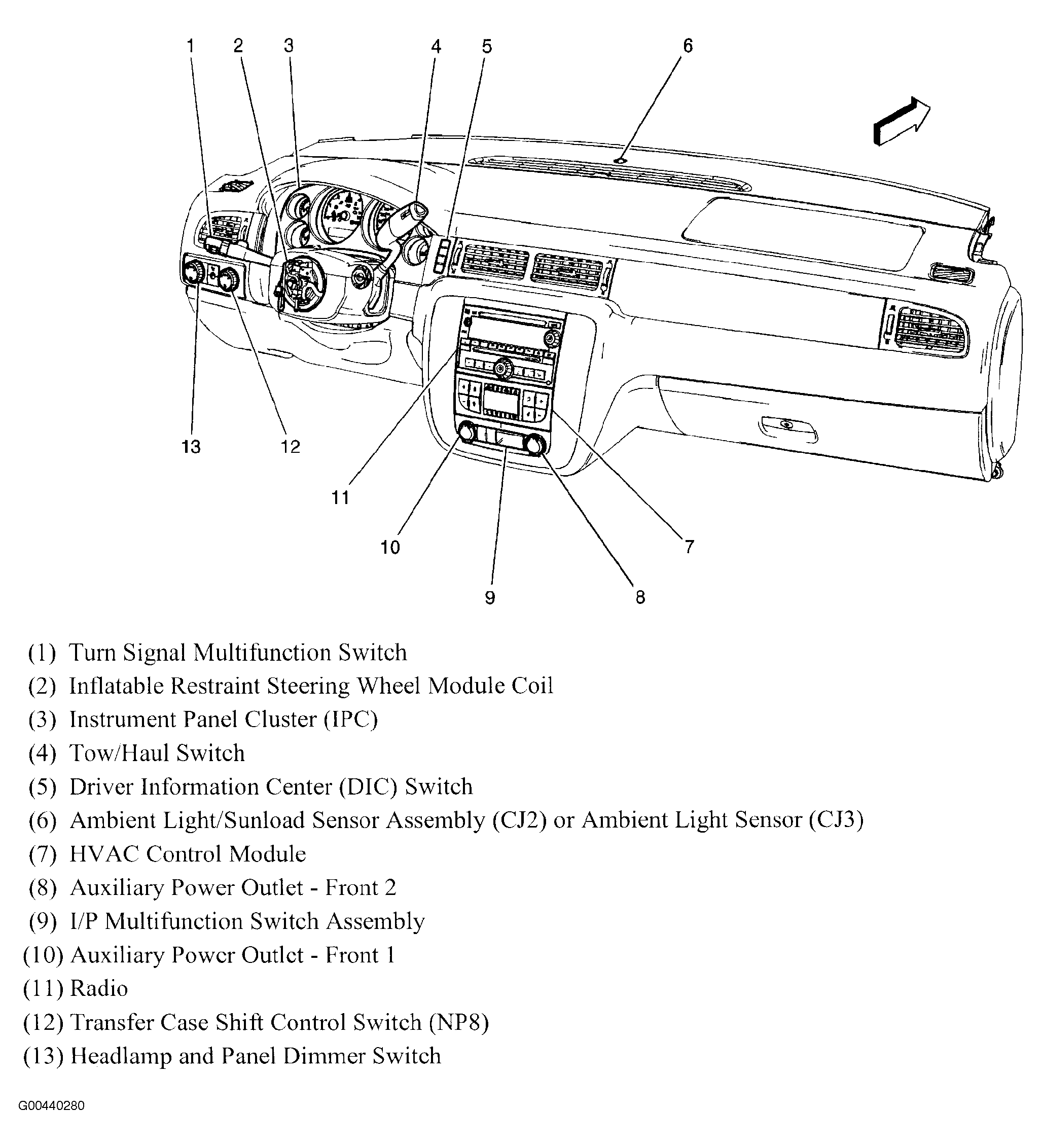

Fig 1: Front Of Dash (Except Tahoe & Escalade)
Courtesy of GENERAL MOTORS CORP.

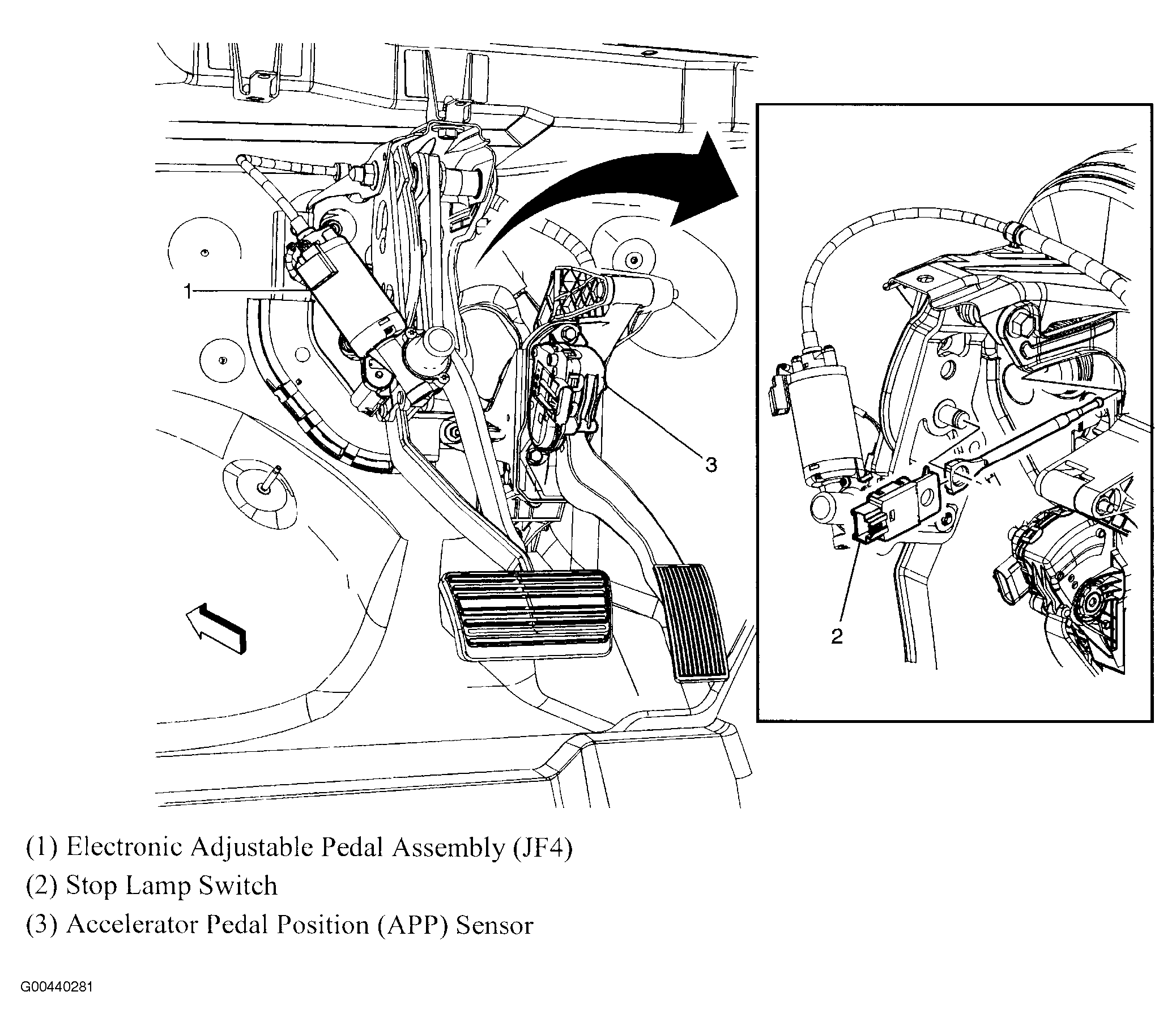

Fig 2: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

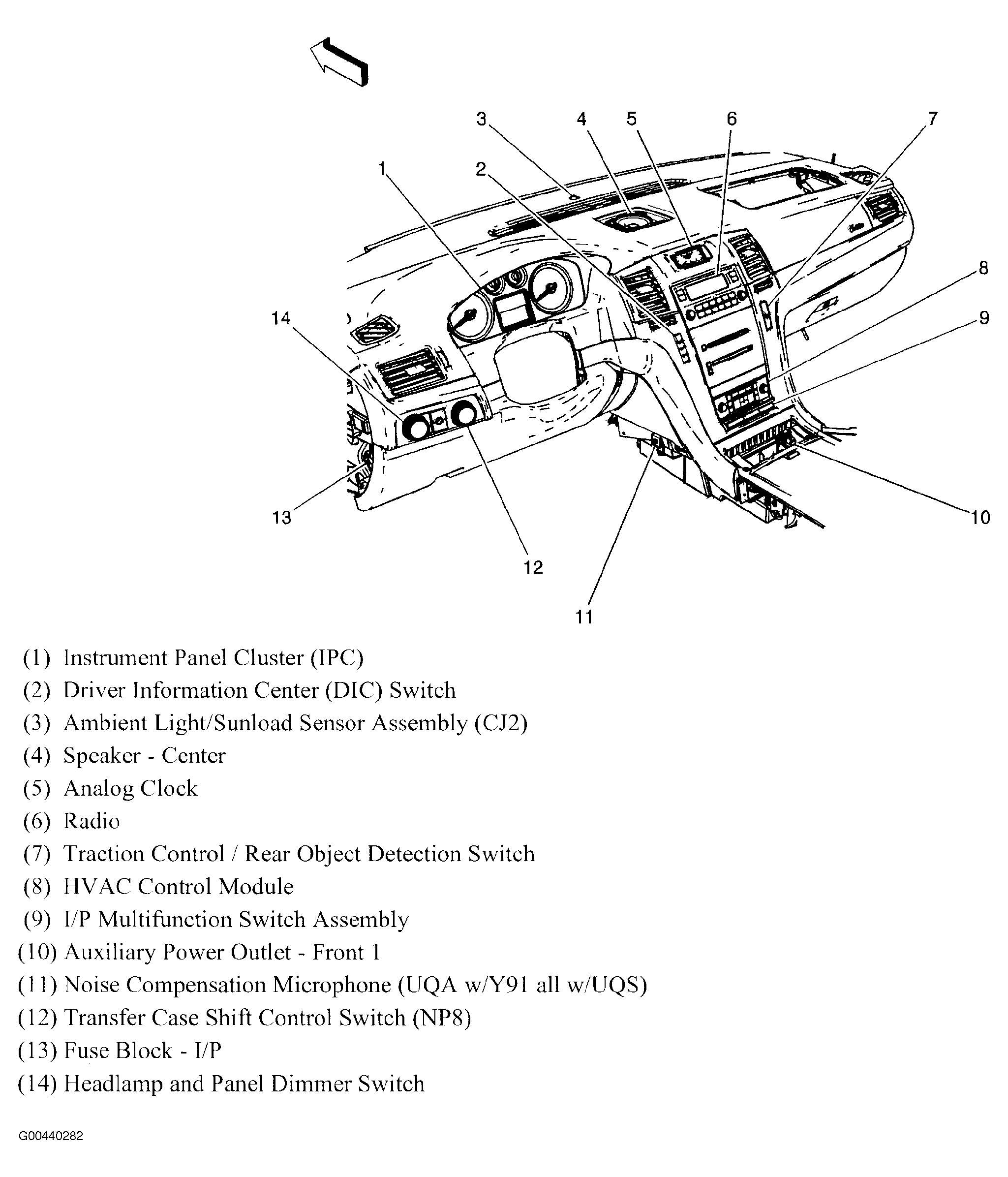

Fig 3: Front Of Dash (Tahoe & Escalade)
Courtesy of GENERAL MOTORS CORP.

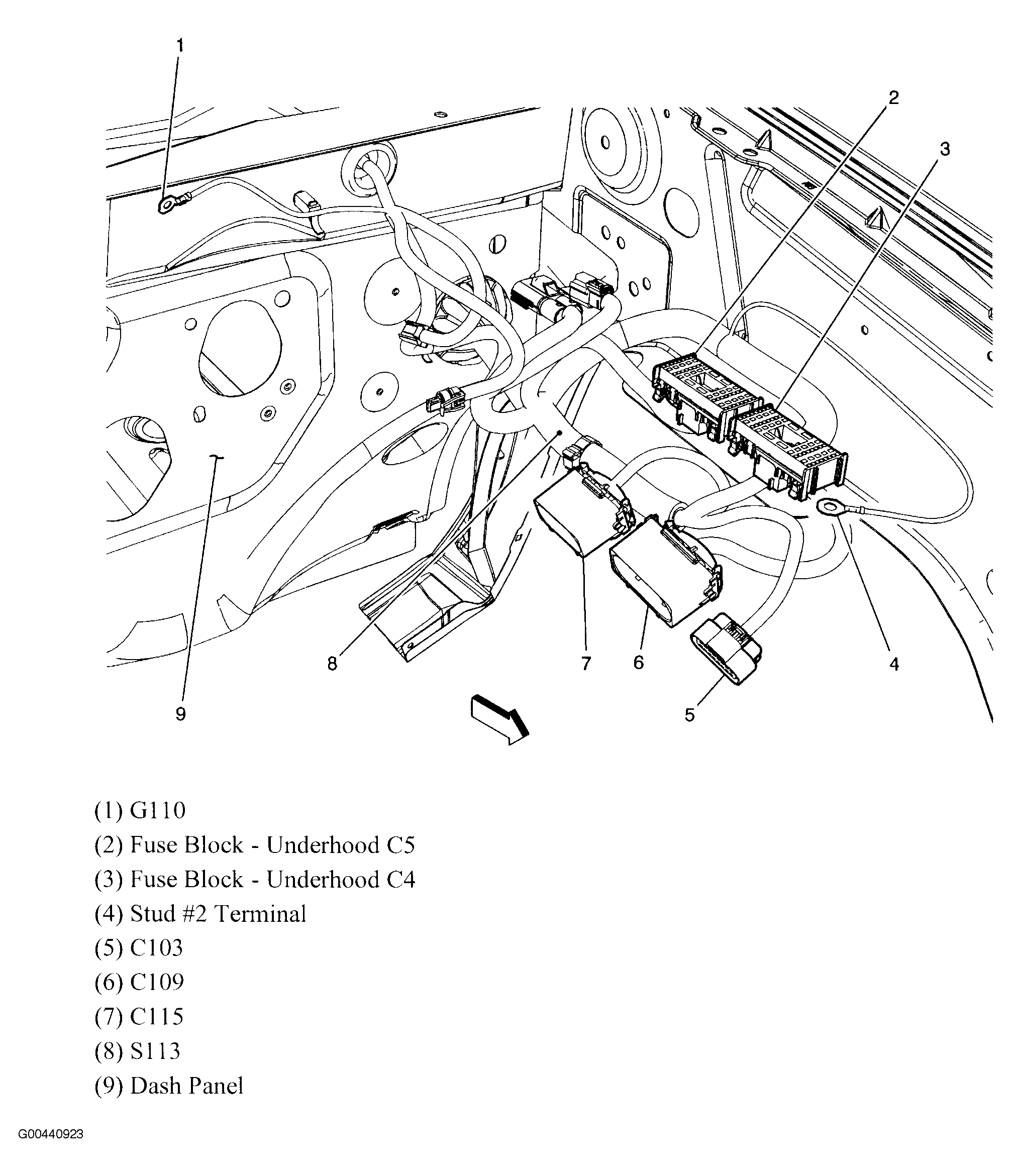

Fig 4: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

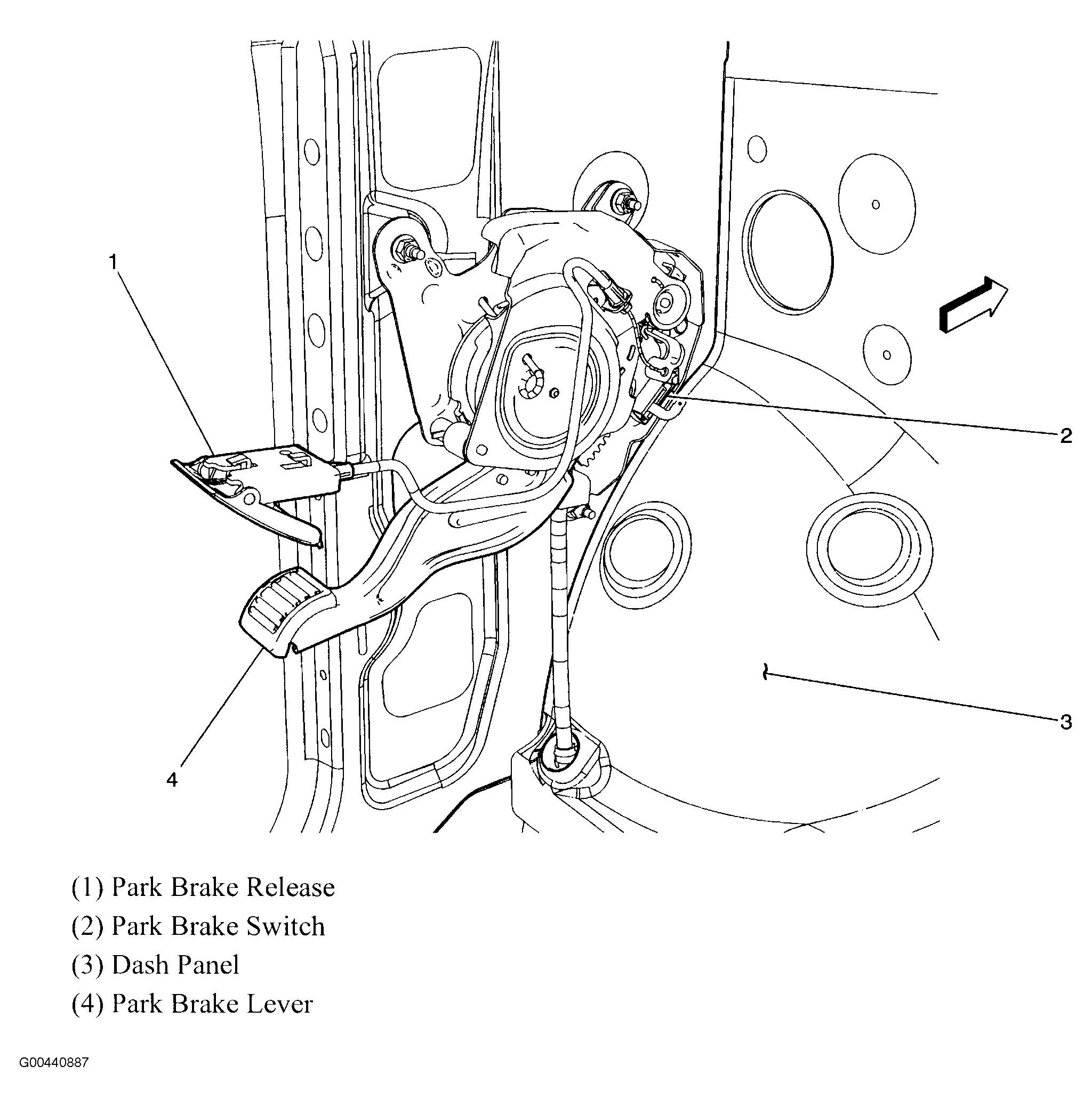

Fig 5: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 6: Right Front Floor Of Vehicle
Courtesy of GENERAL MOTORS CORP.

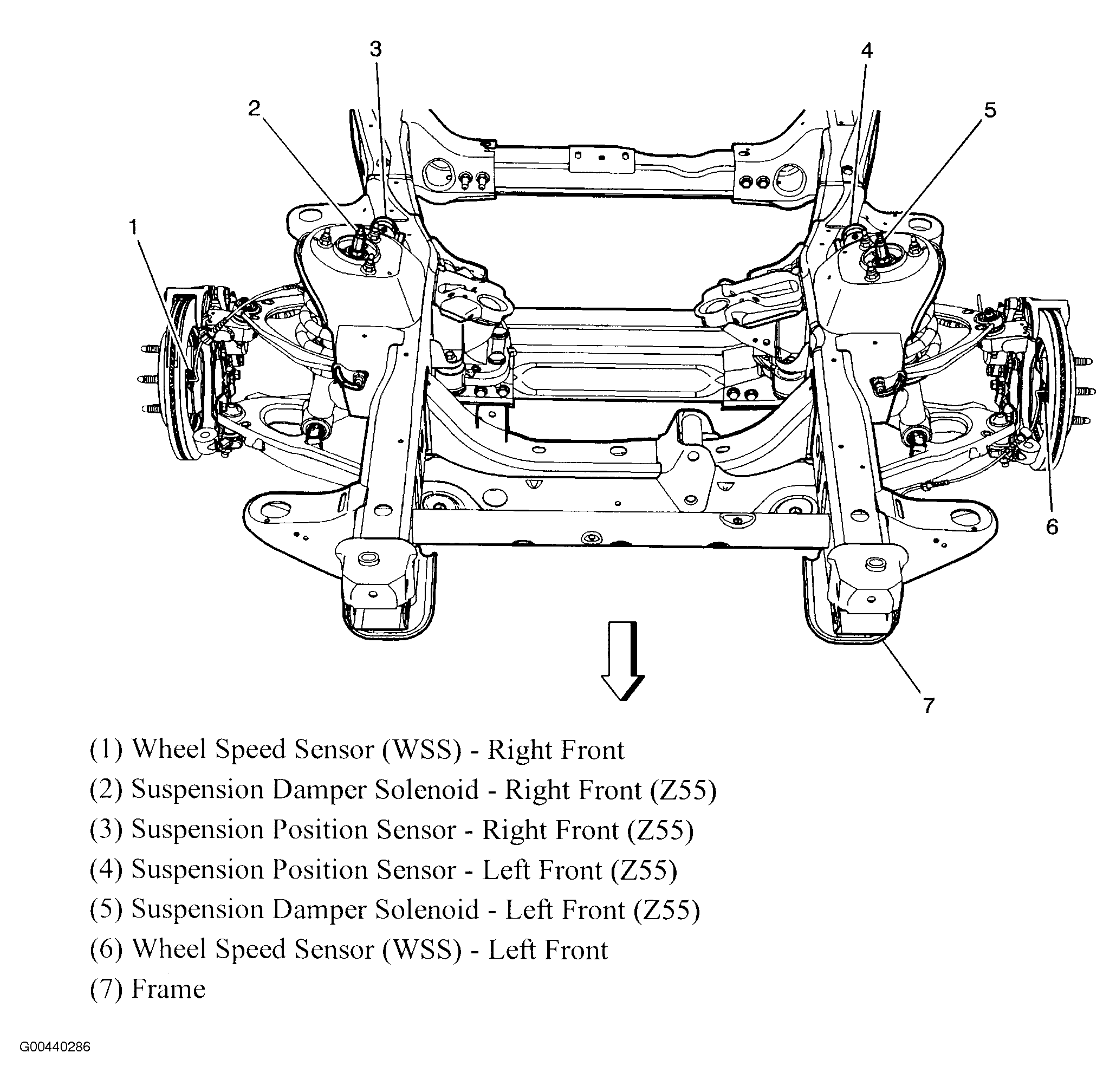

Fig 7: Front Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 8: Left Rear Frame Rail
Courtesy of GENERAL MOTORS CORP.

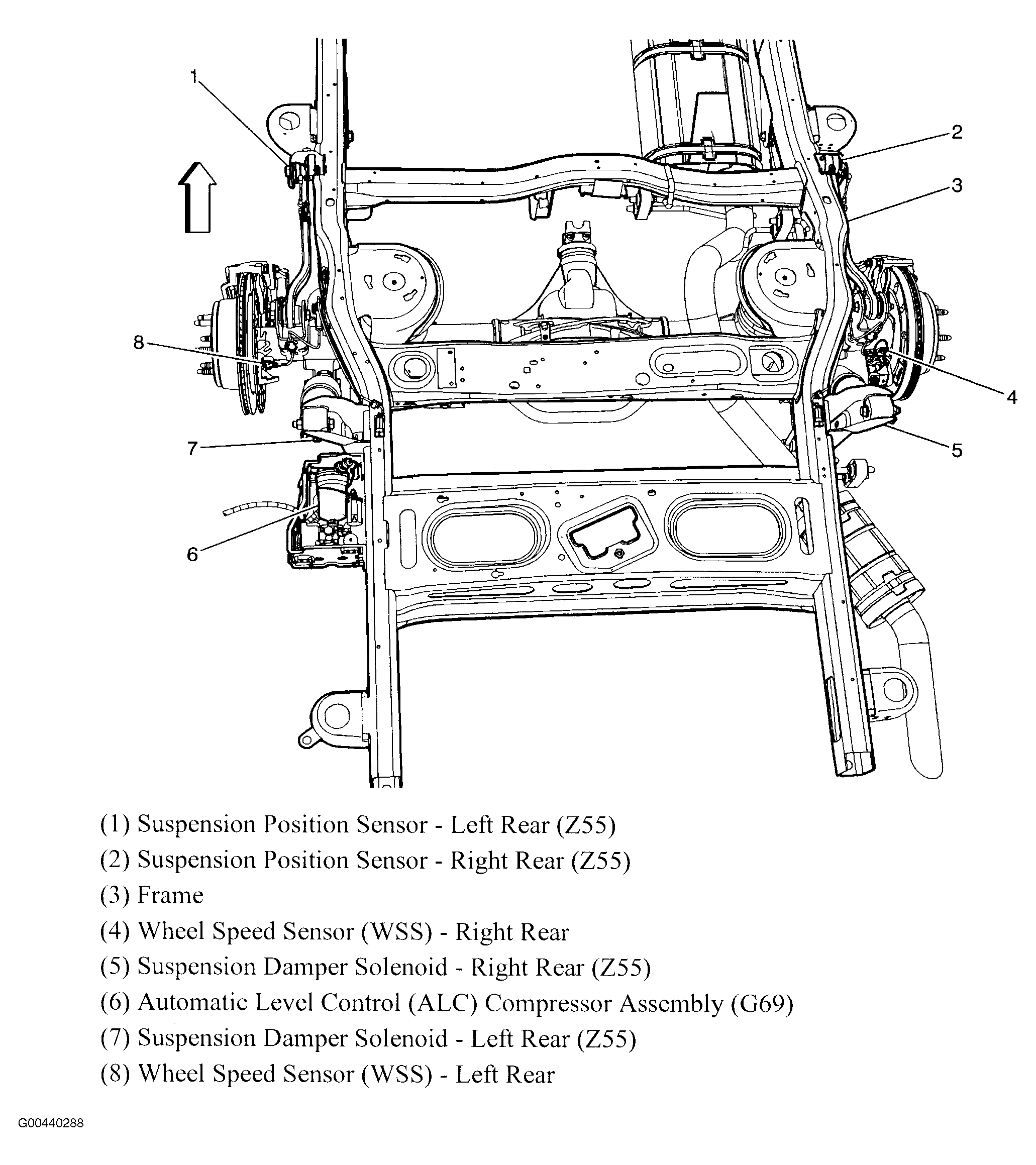

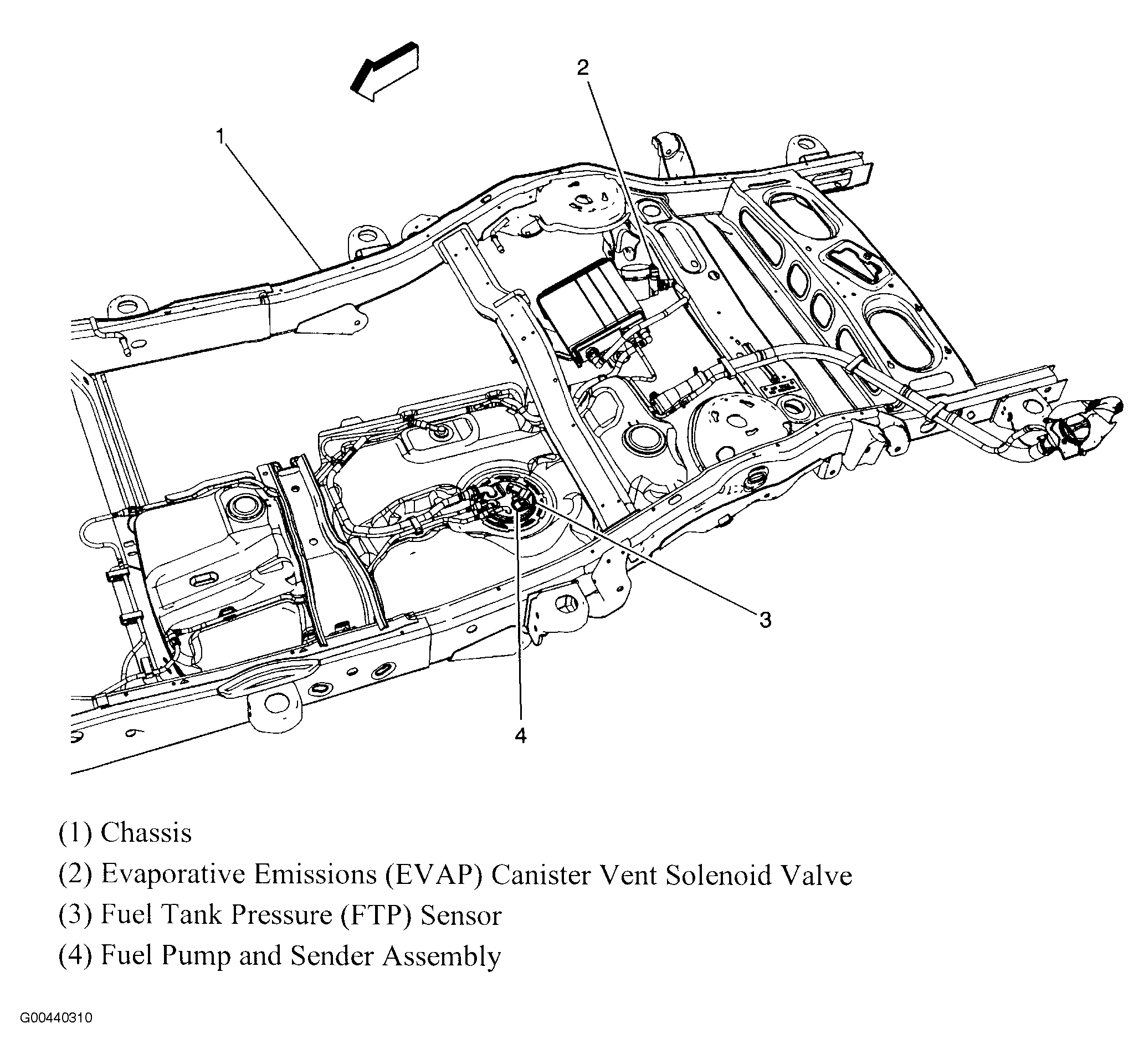

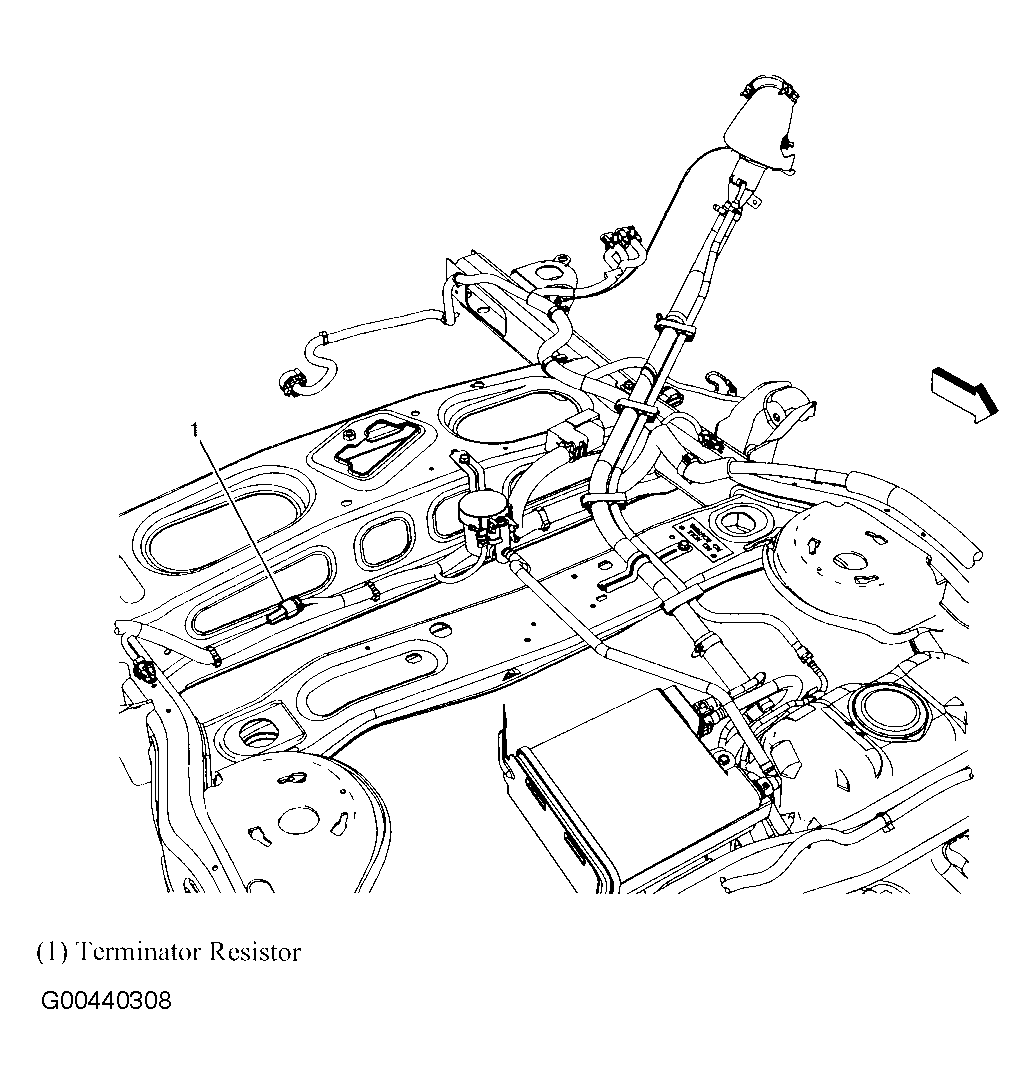

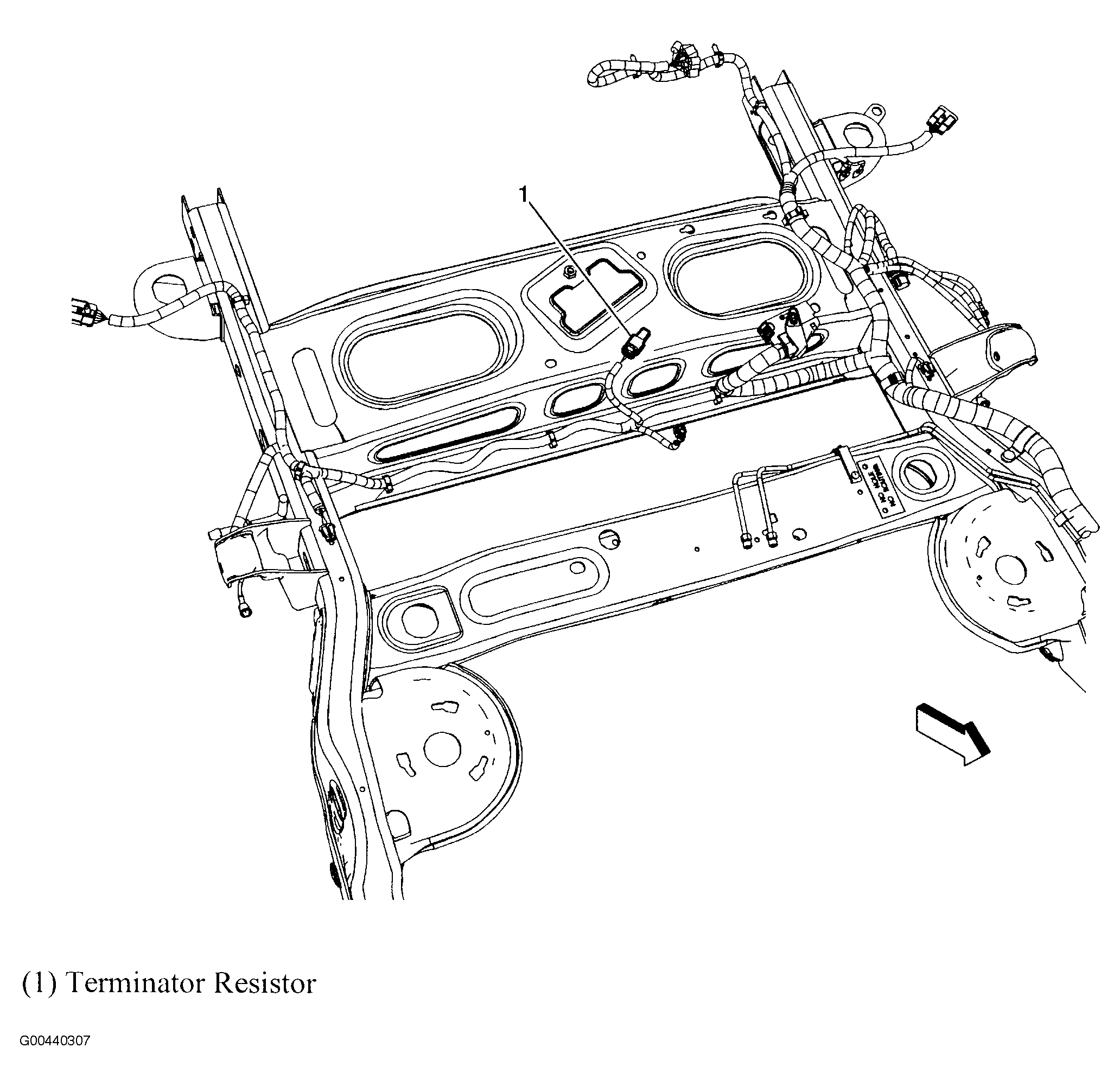

Fig 9: Rear Chassis
Courtesy of GENERAL MOTORS CORP.

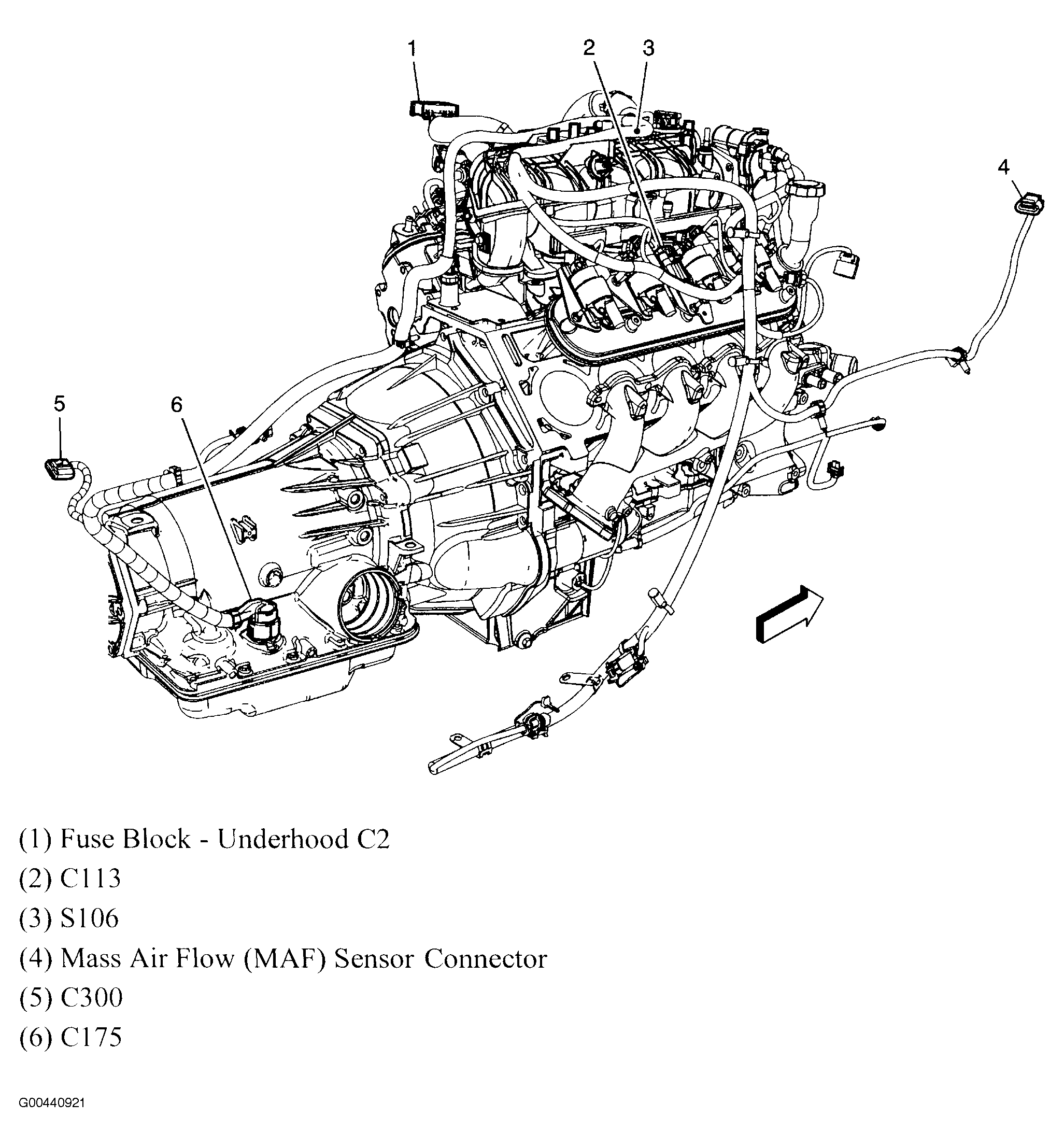

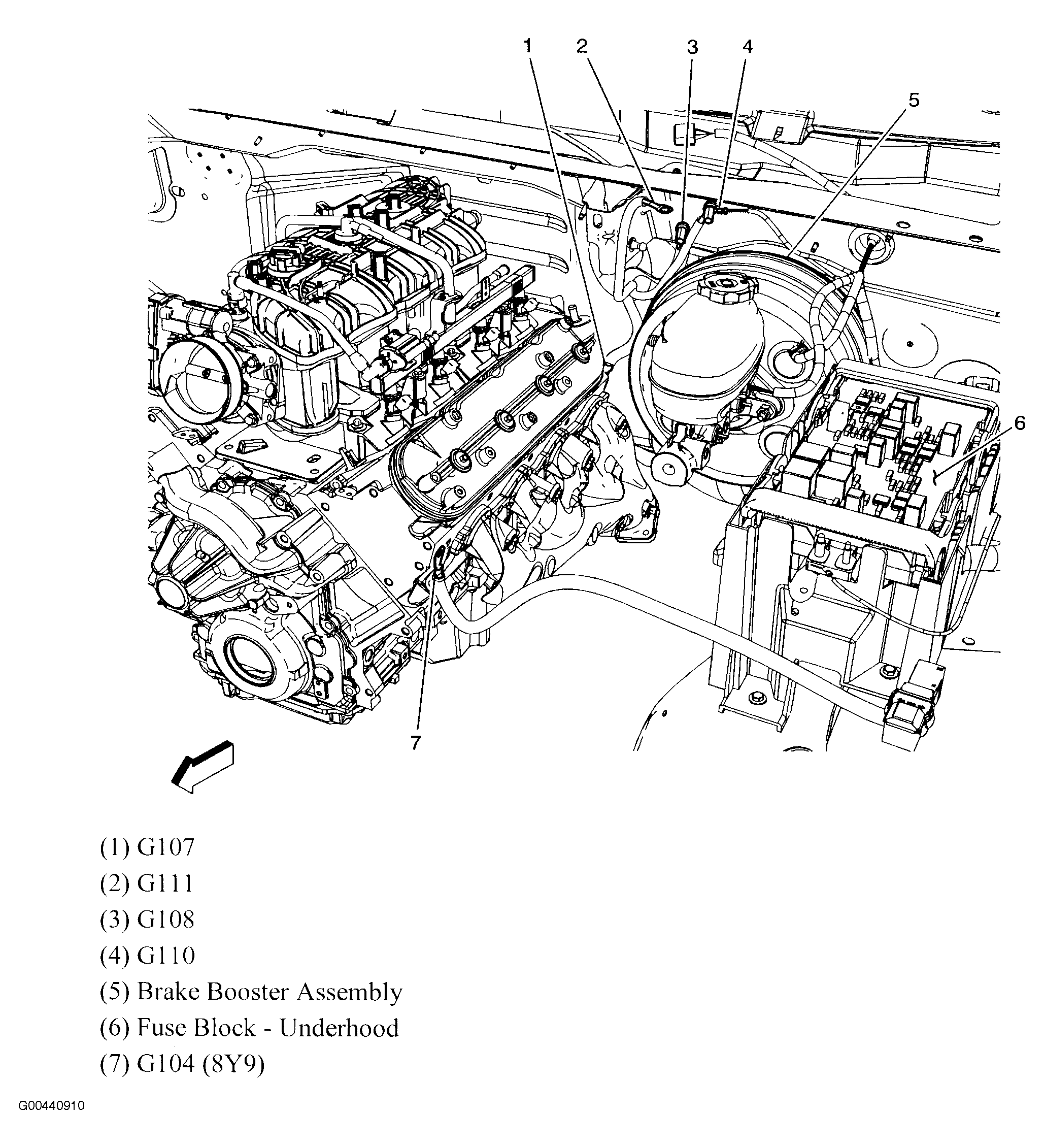

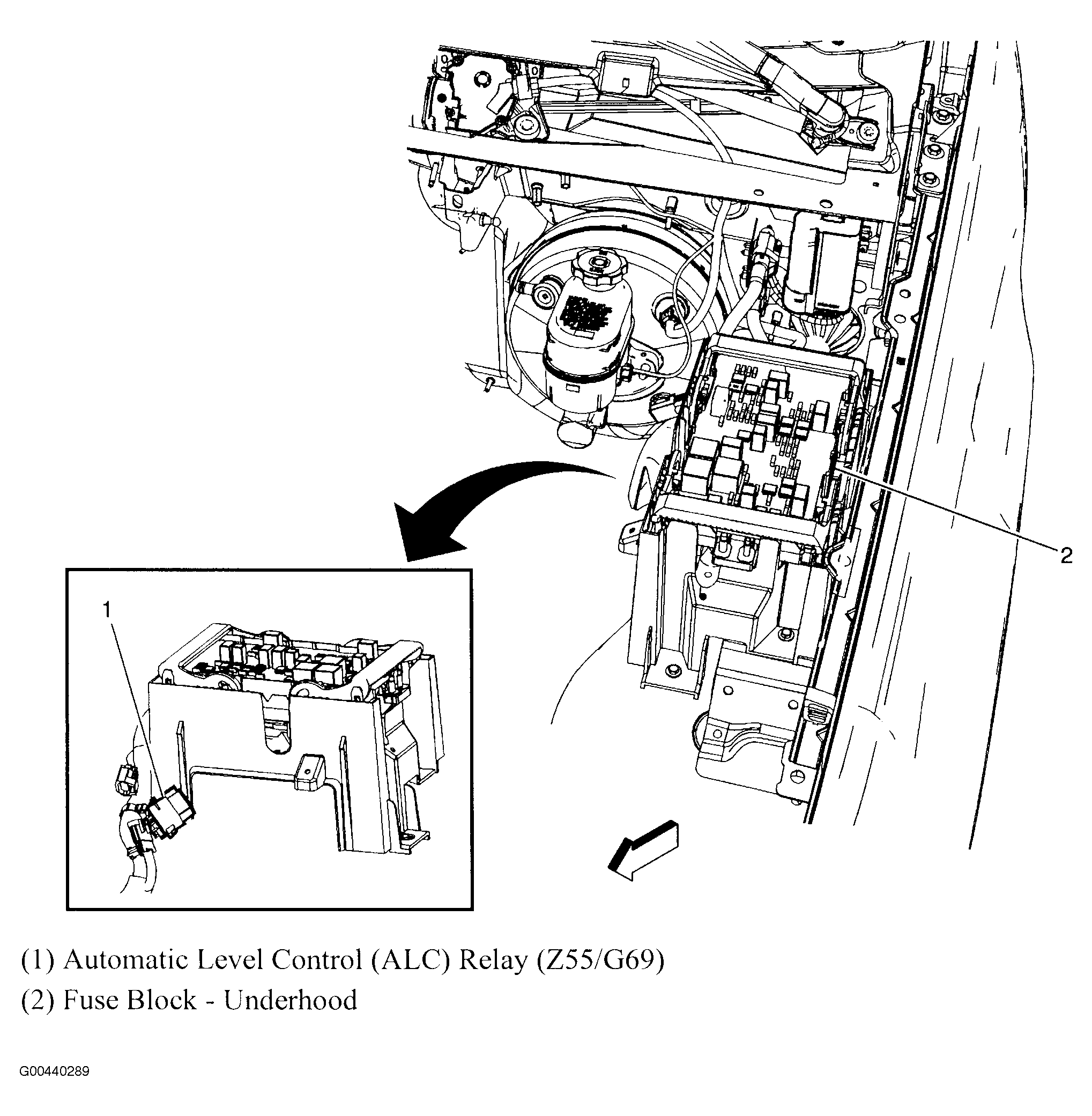

Fig 10: Left Rear Of Engine Compartment

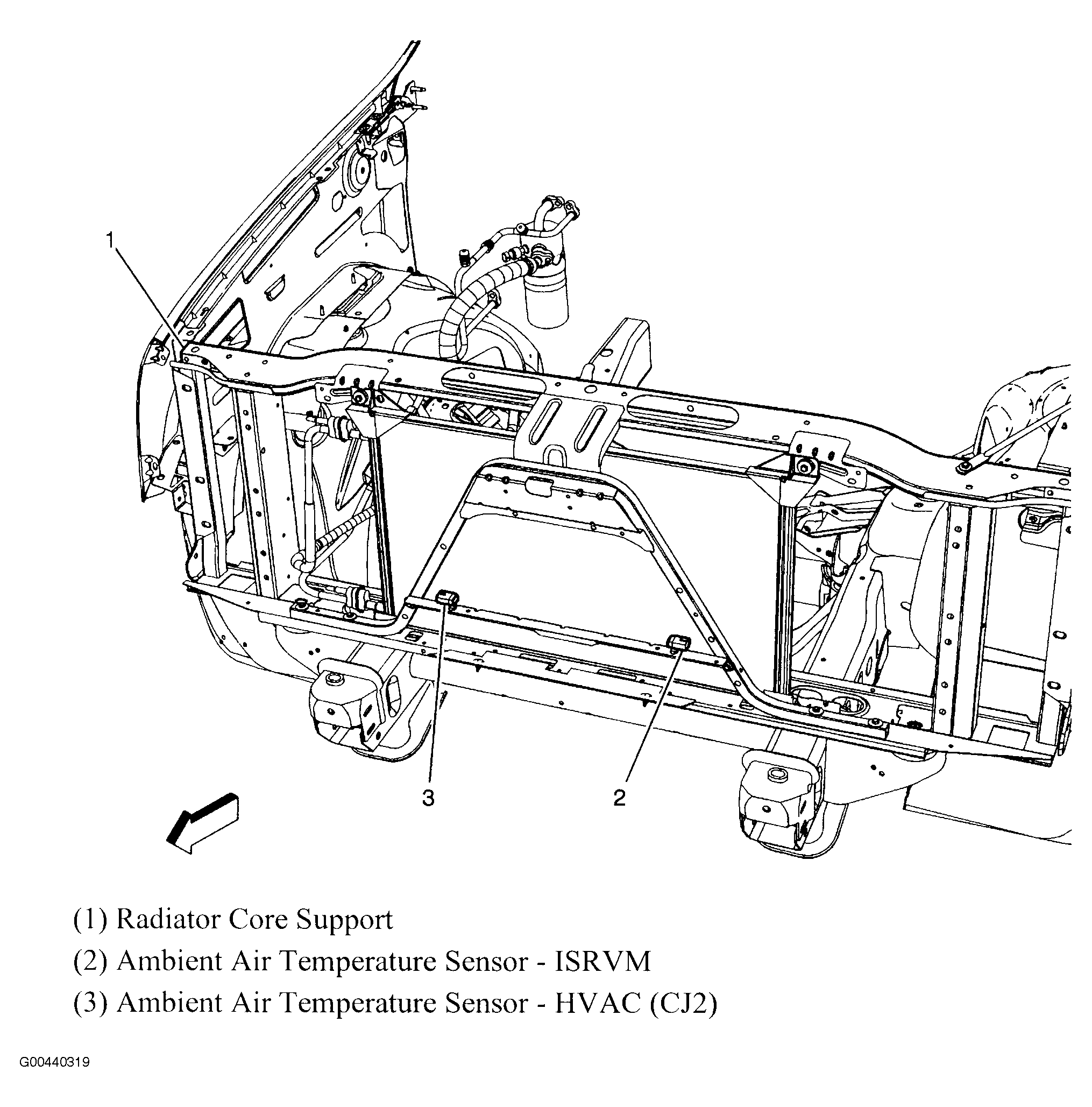

Courtesy of GENERAL MOTORS CORP.

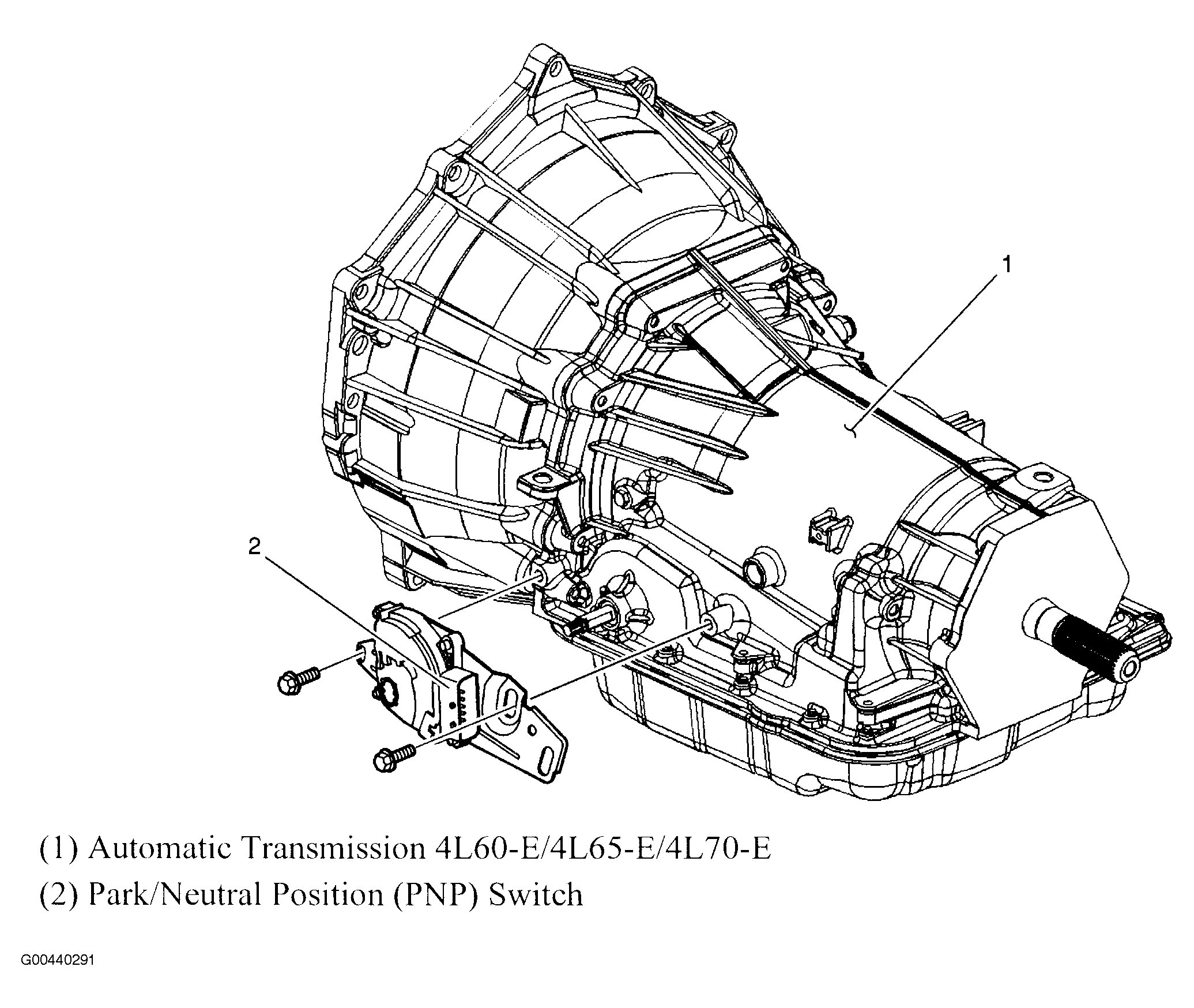

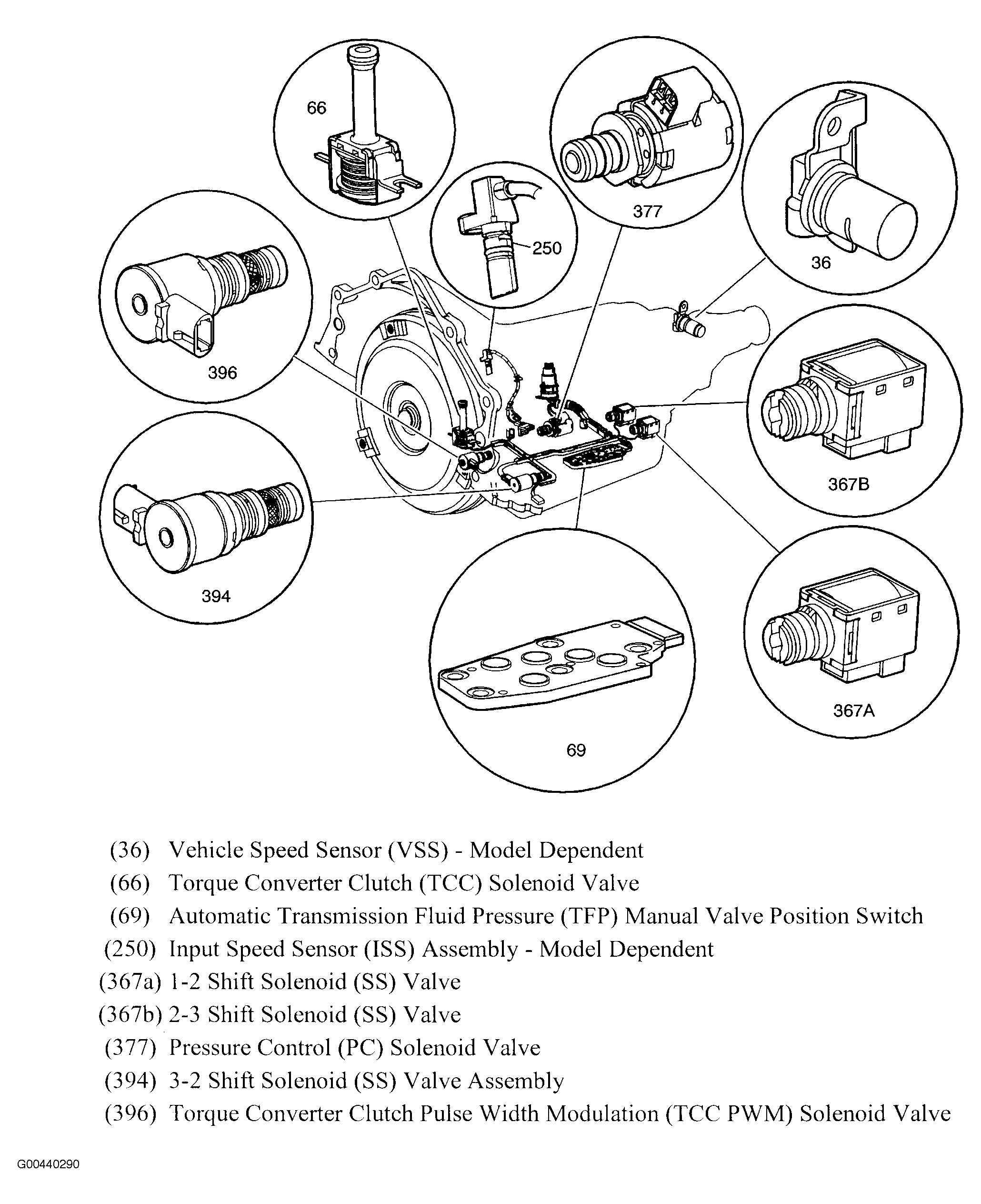

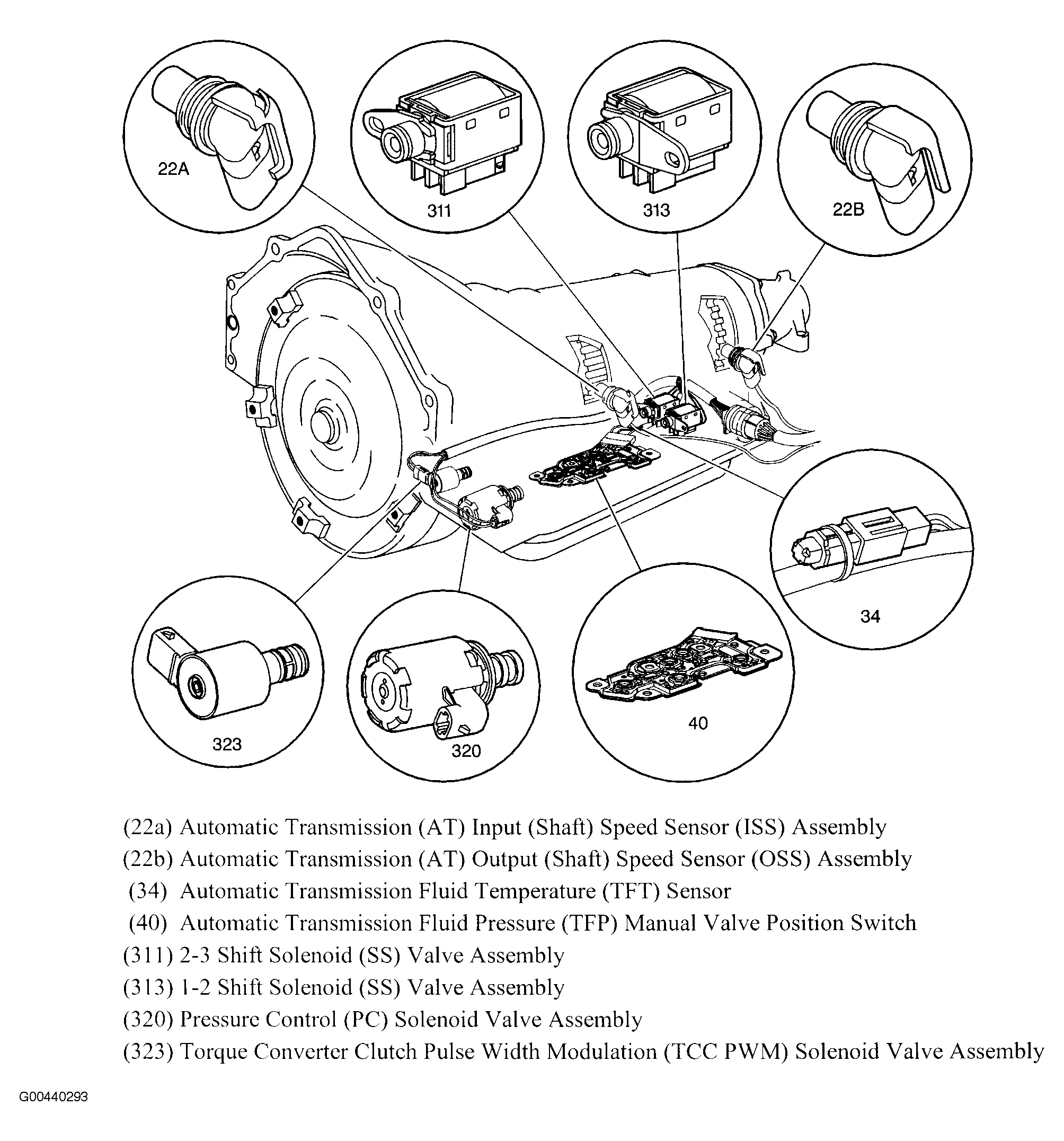

Fig 11: Automatic Transmission (4L60-E / 4L65-E / 4L70-E)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Side Of Automatic Transmission (4L60-E / 4L65-E / 4L70-E)
Courtesy of GENERAL MOTORS CORP.

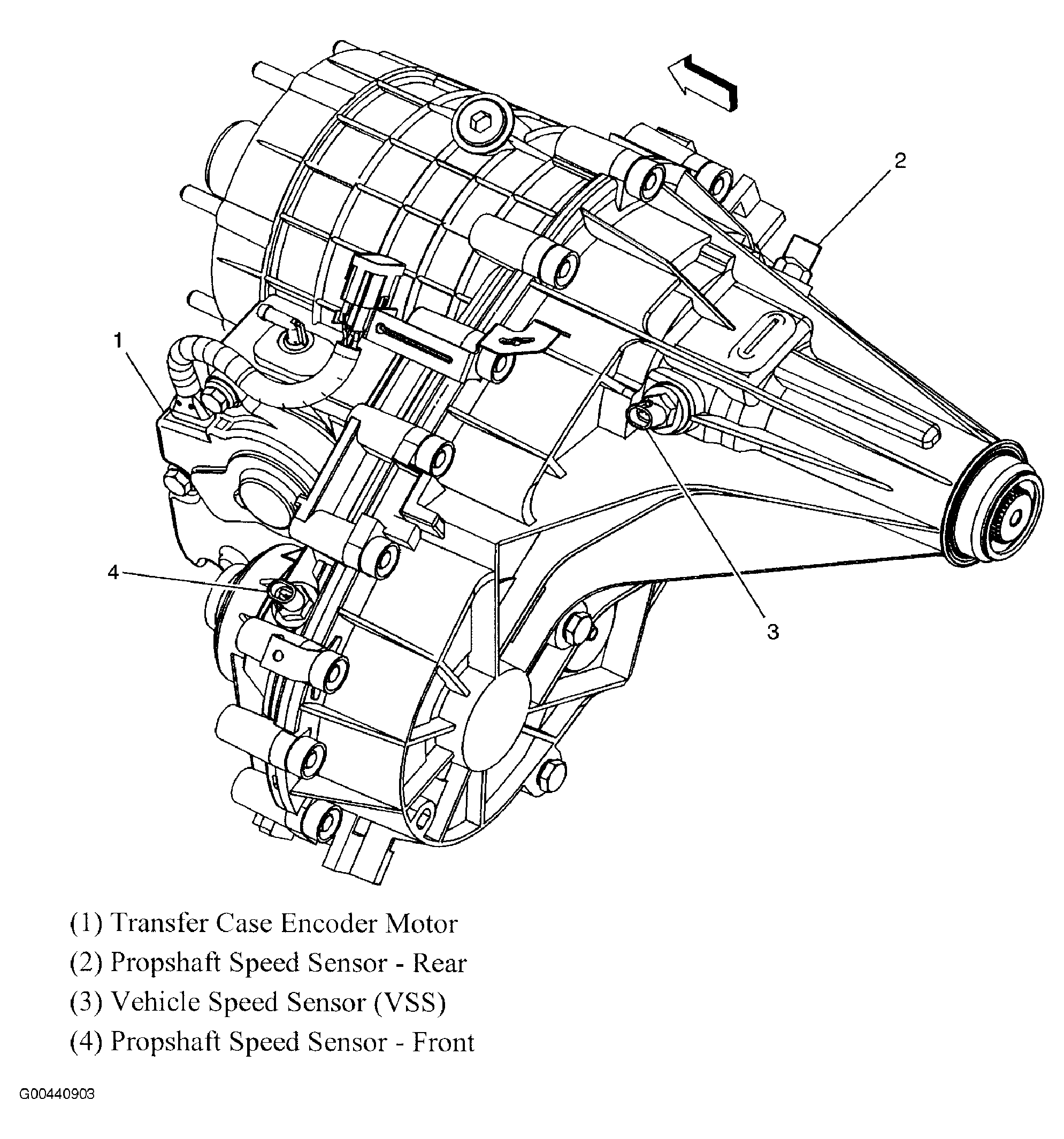

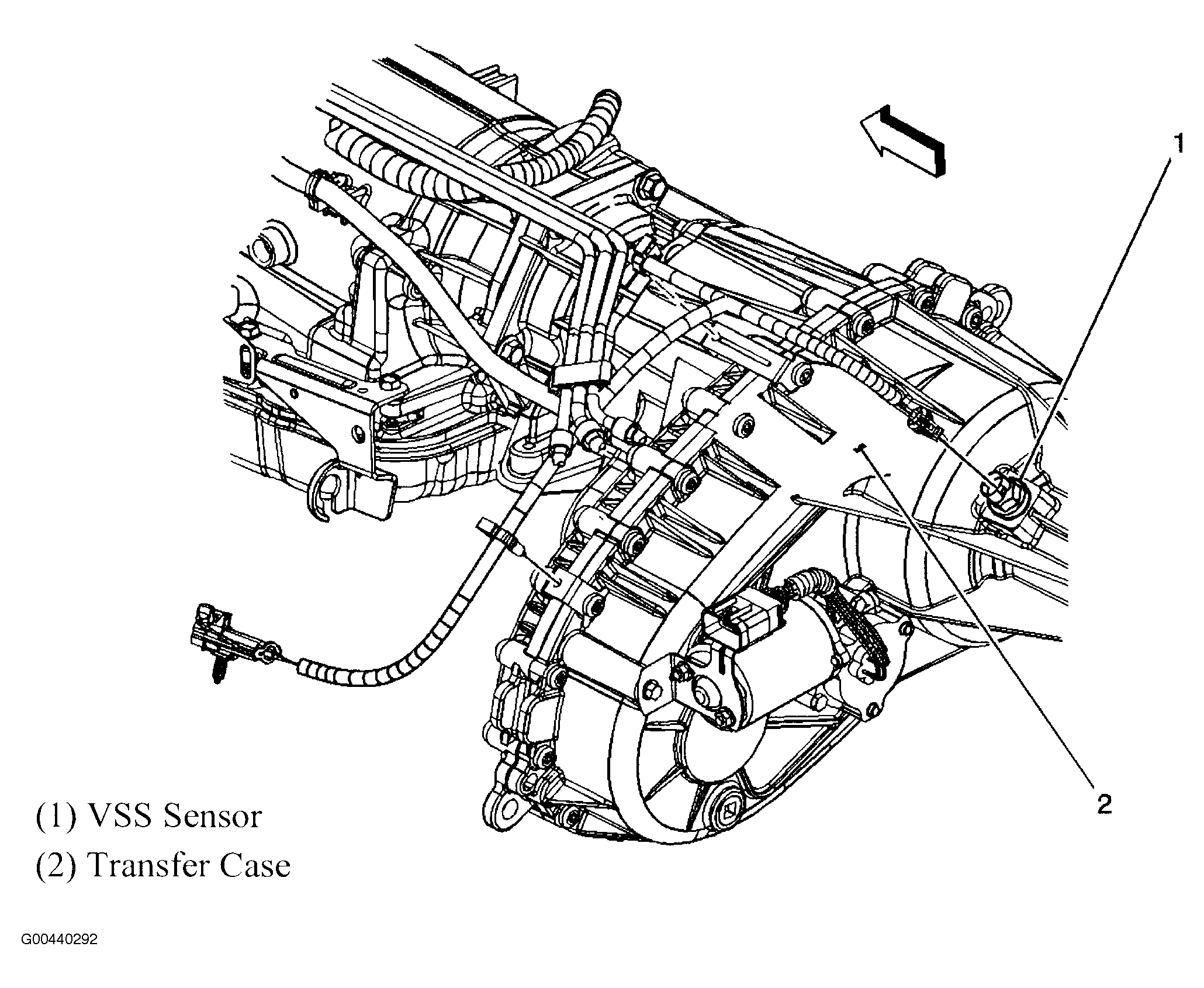

Fig 13: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 14: Automatic Transmission (4L80-E / 4L85-E)
Courtesy of GENERAL MOTORS CORP.

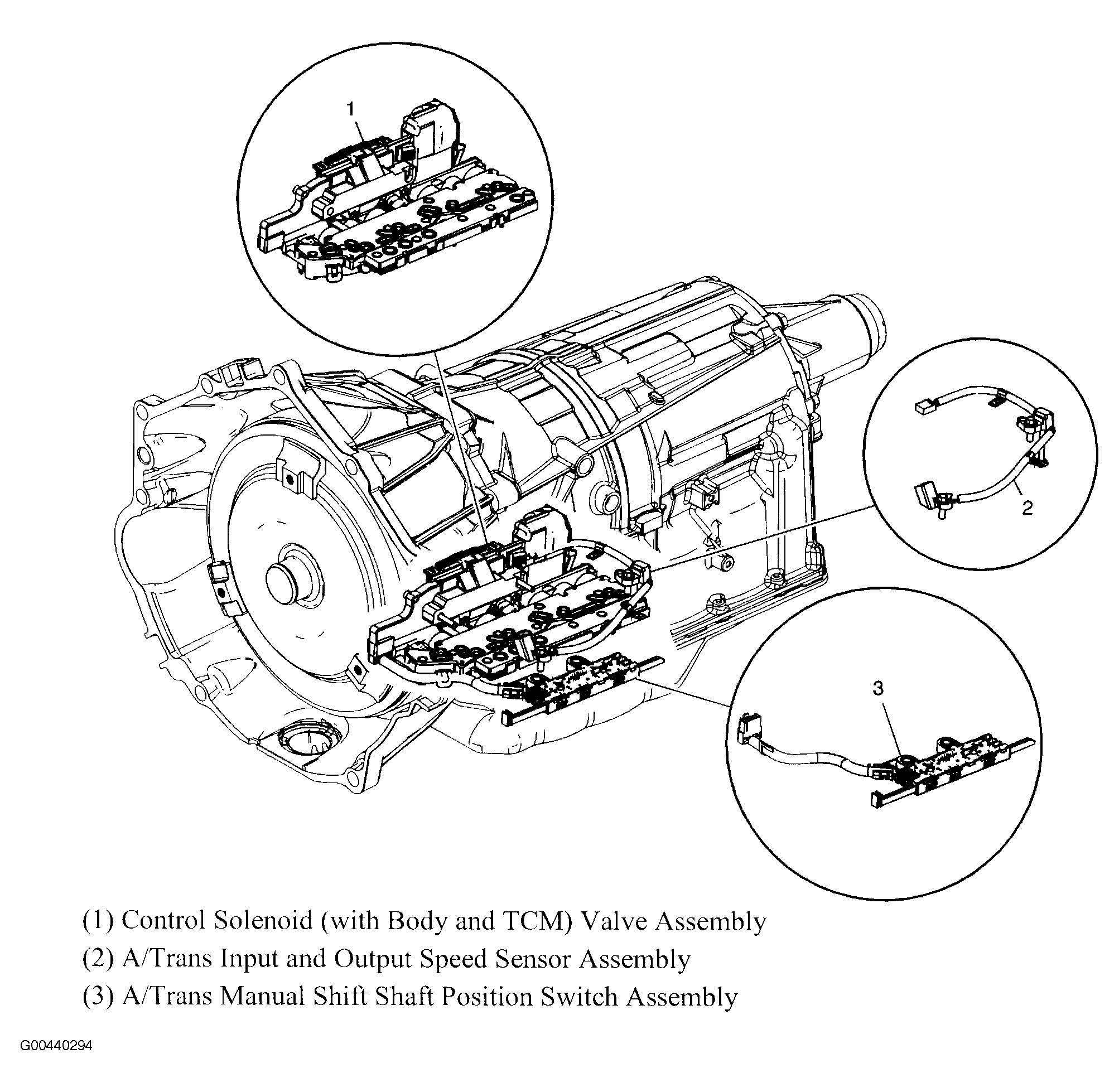

Fig 15: Automatic Transmission (6L50 / 6L80 / 6L90)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.

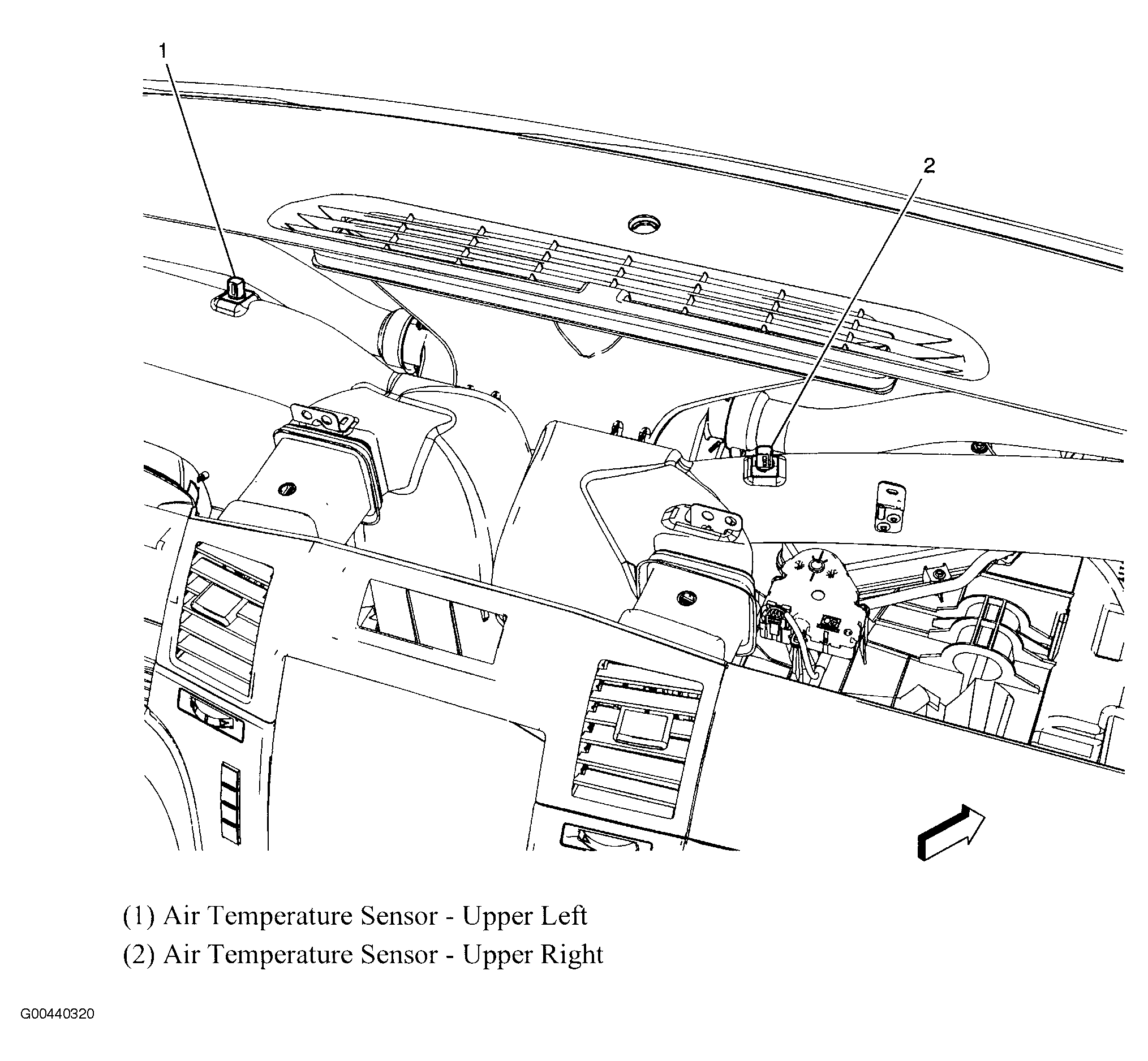

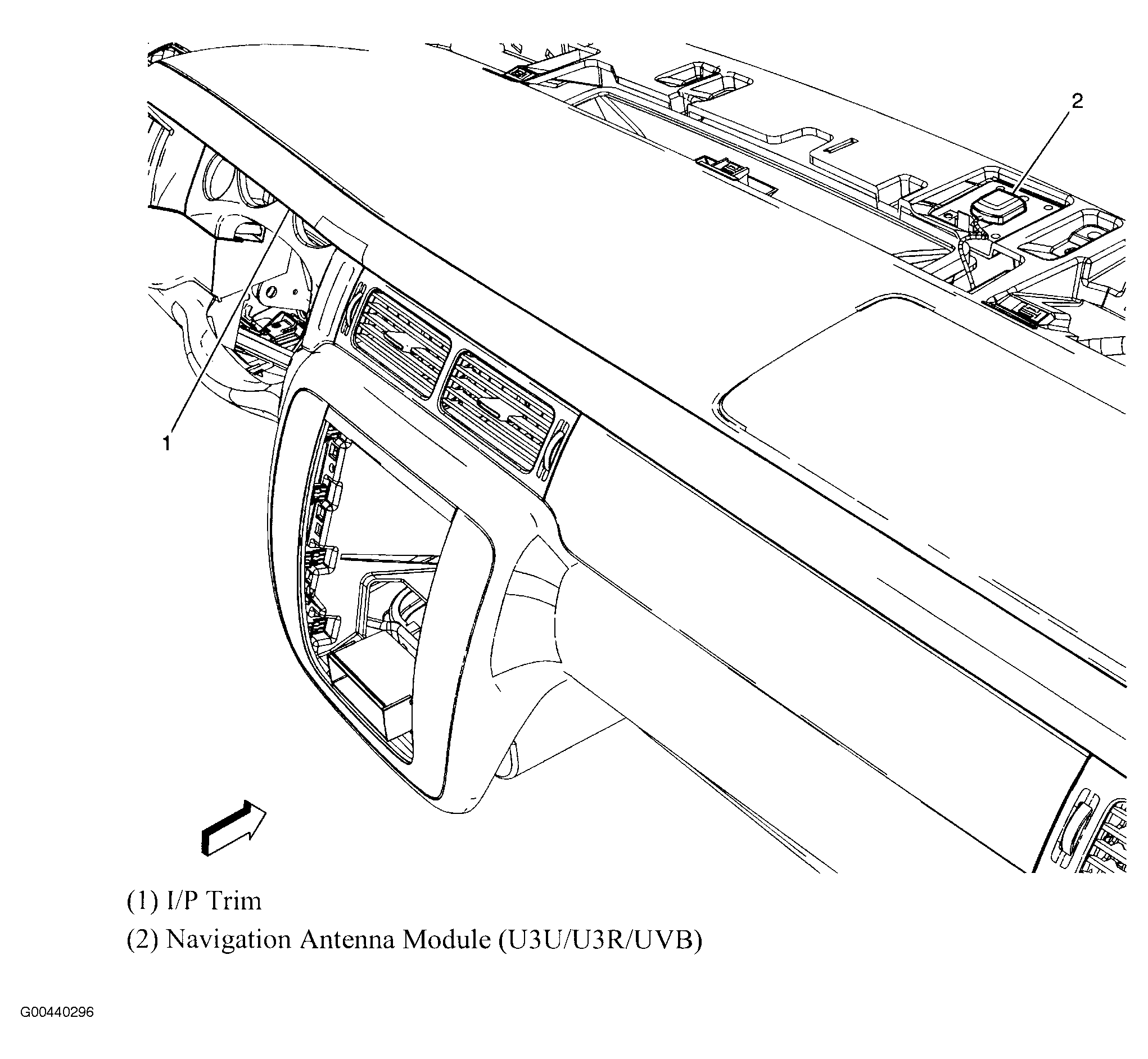

Fig 17: Top Of Dash
Courtesy of GENERAL MOTORS CORP.

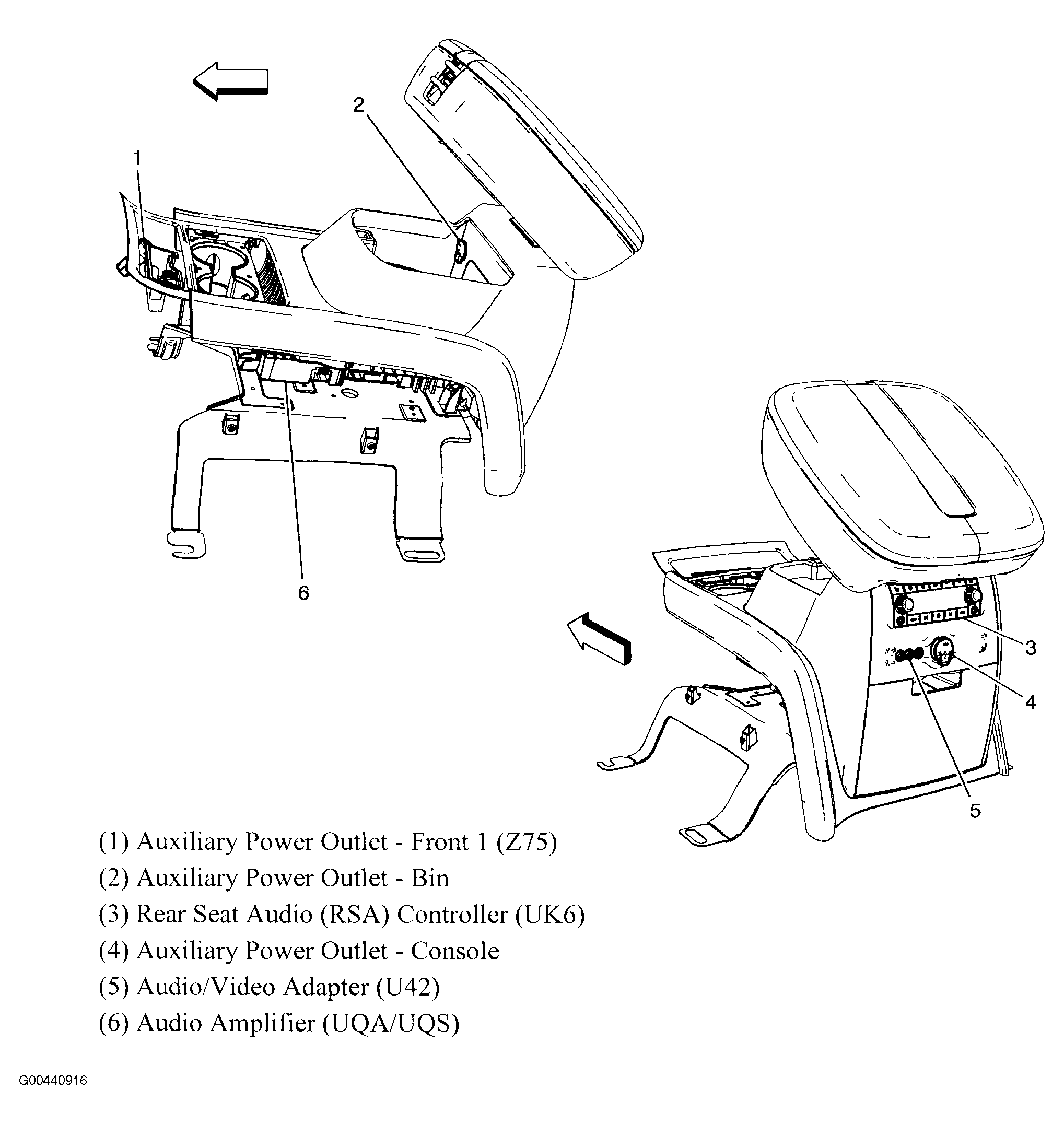

Fig 18: Left Front Floor & Center Console
Courtesy of GENERAL MOTORS CORP.

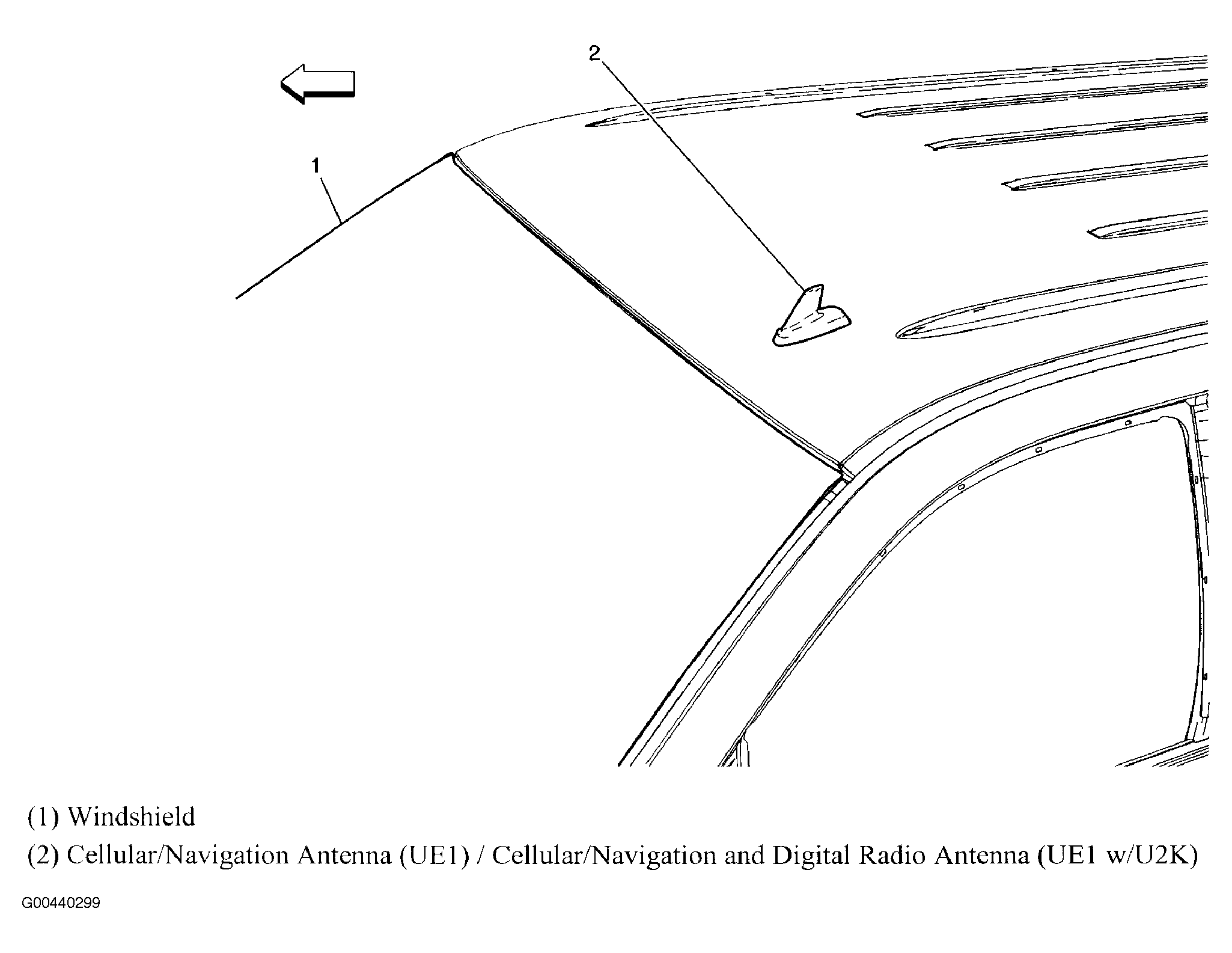

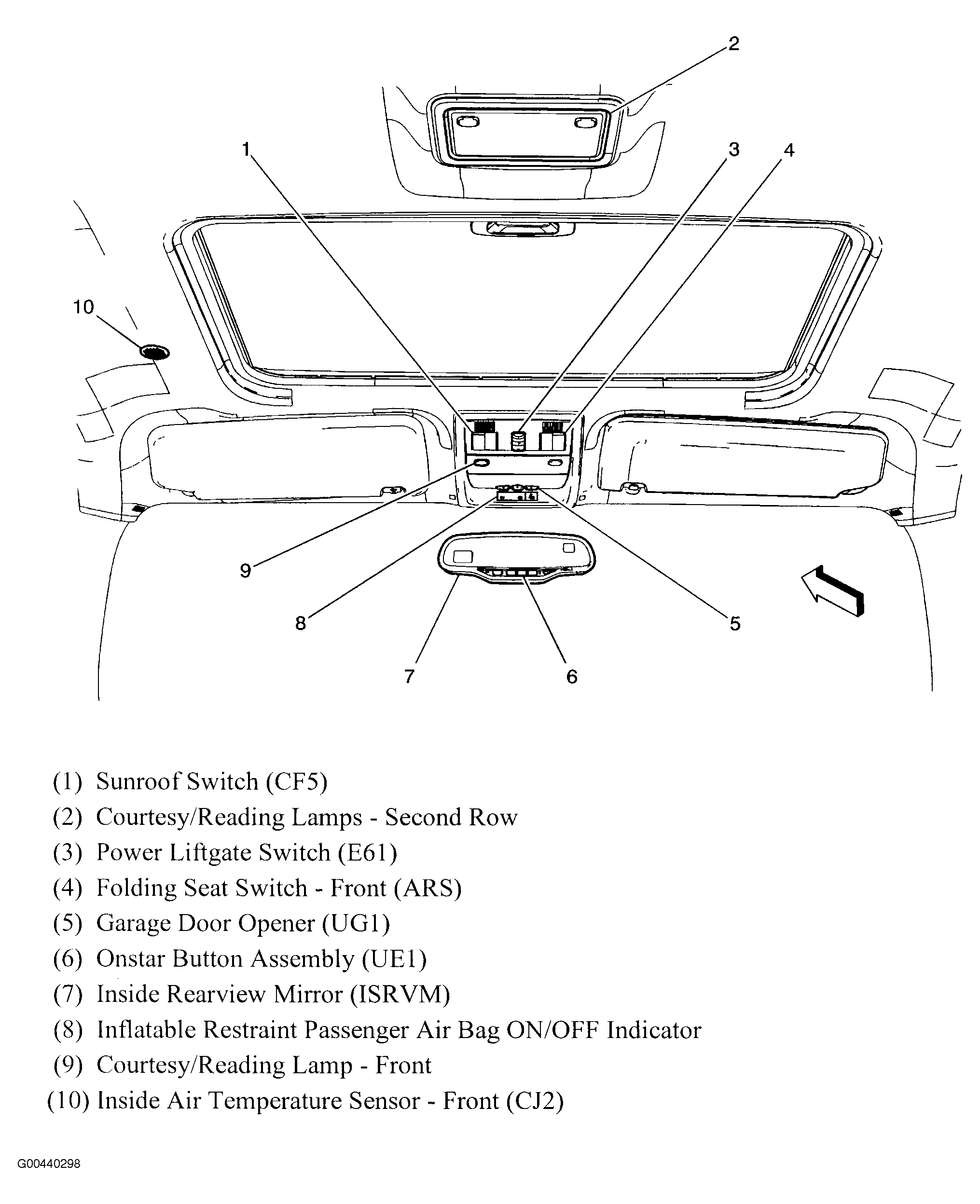

Fig 19: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Front Of Roof
Courtesy of GENERAL MOTORS CORP.

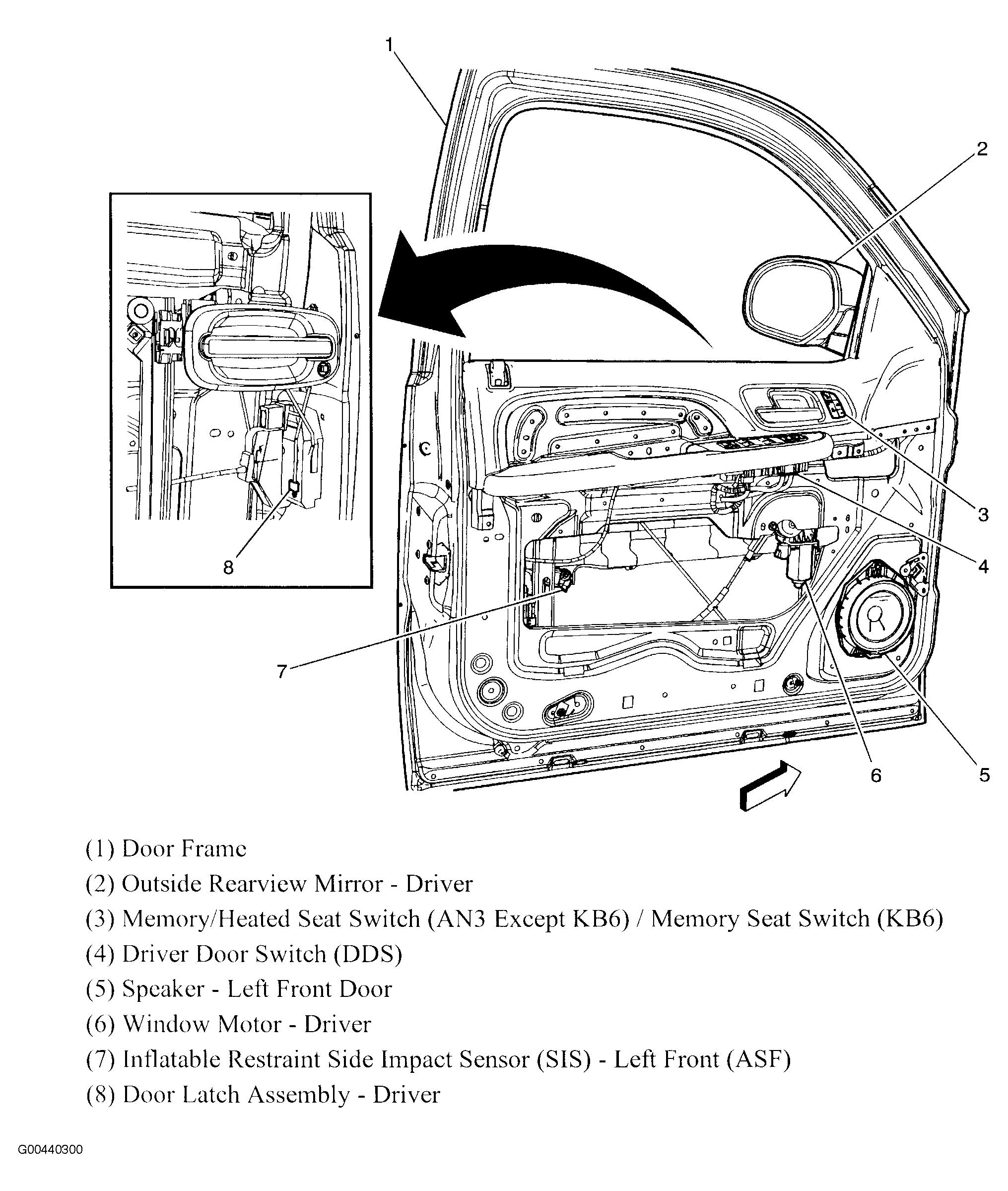

Fig 21: Left Front Door
Courtesy of GENERAL MOTORS CORP.

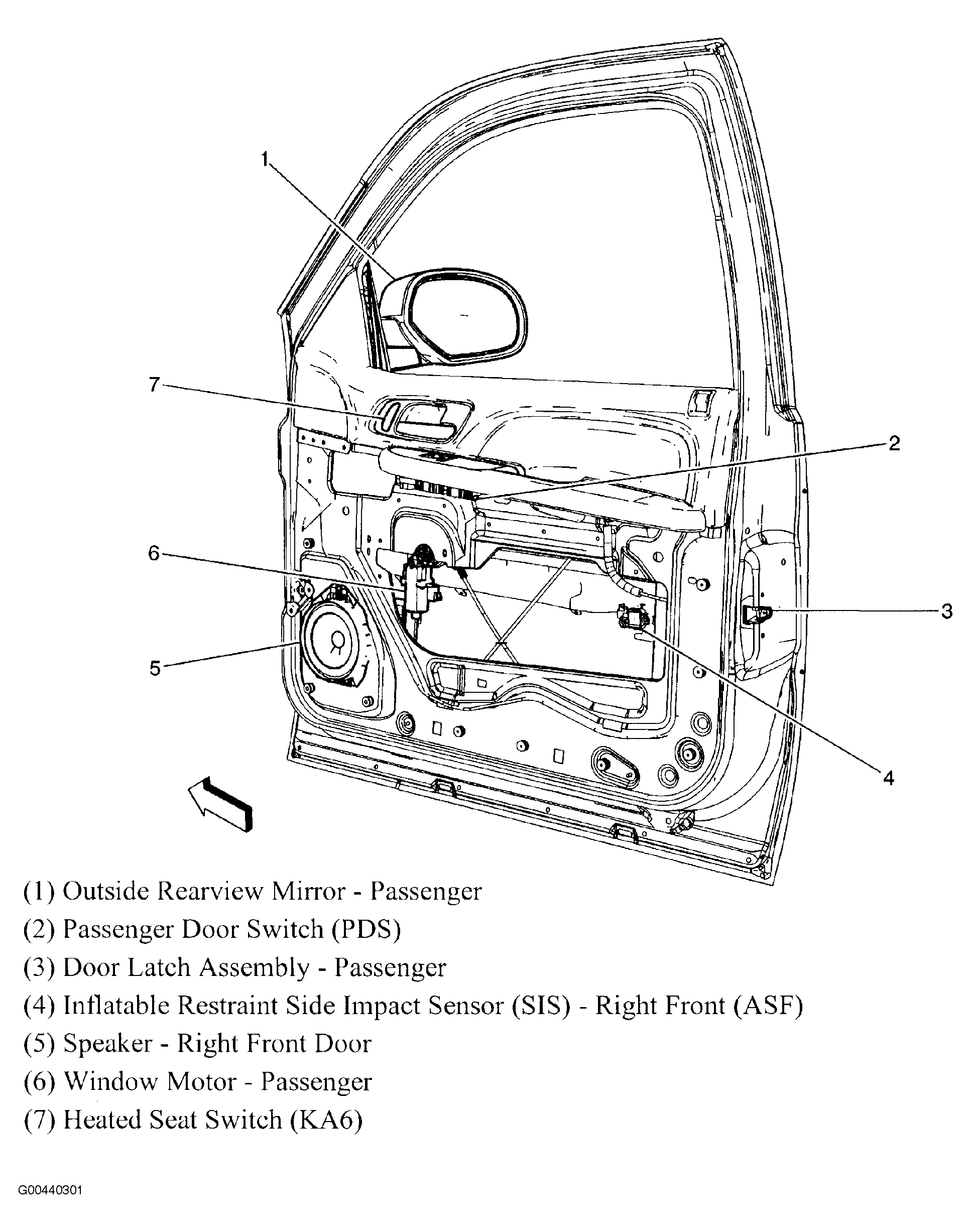

Fig 22: Right Front Door
Courtesy of GENERAL MOTORS CORP.

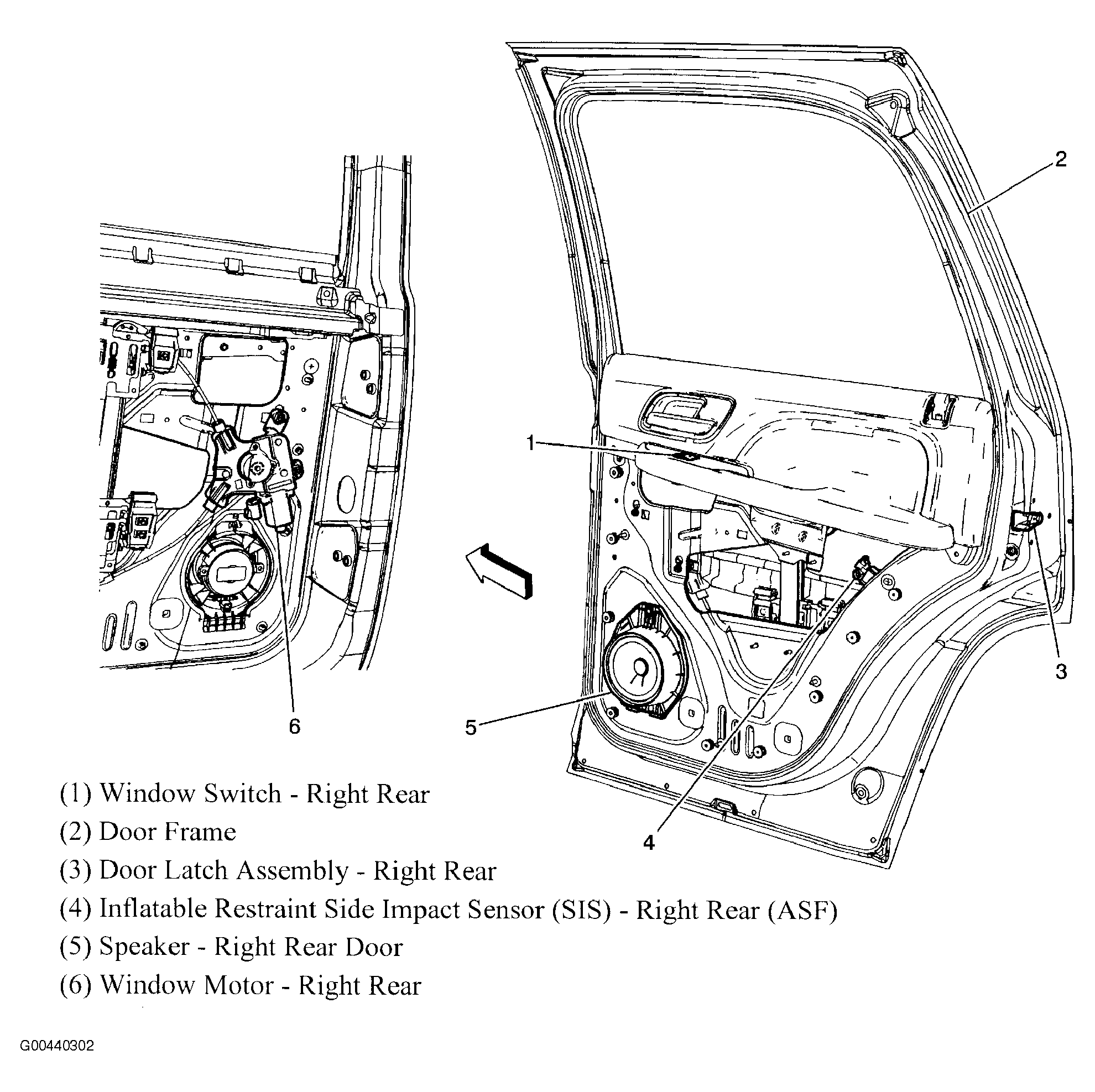

Fig 23: Right Rear Door

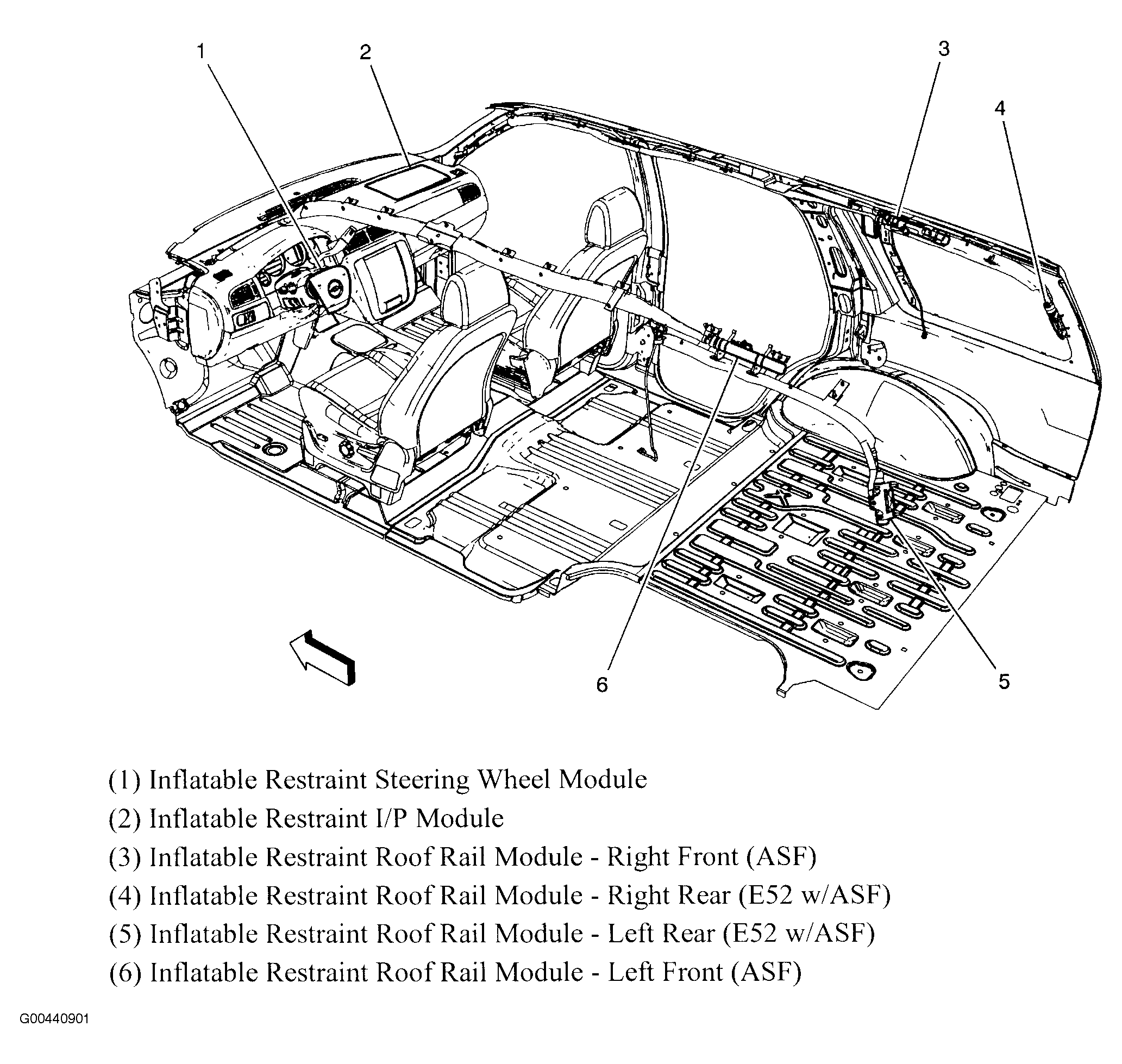

Courtesy of GENERAL MOTORS CORP.
Fig 24: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

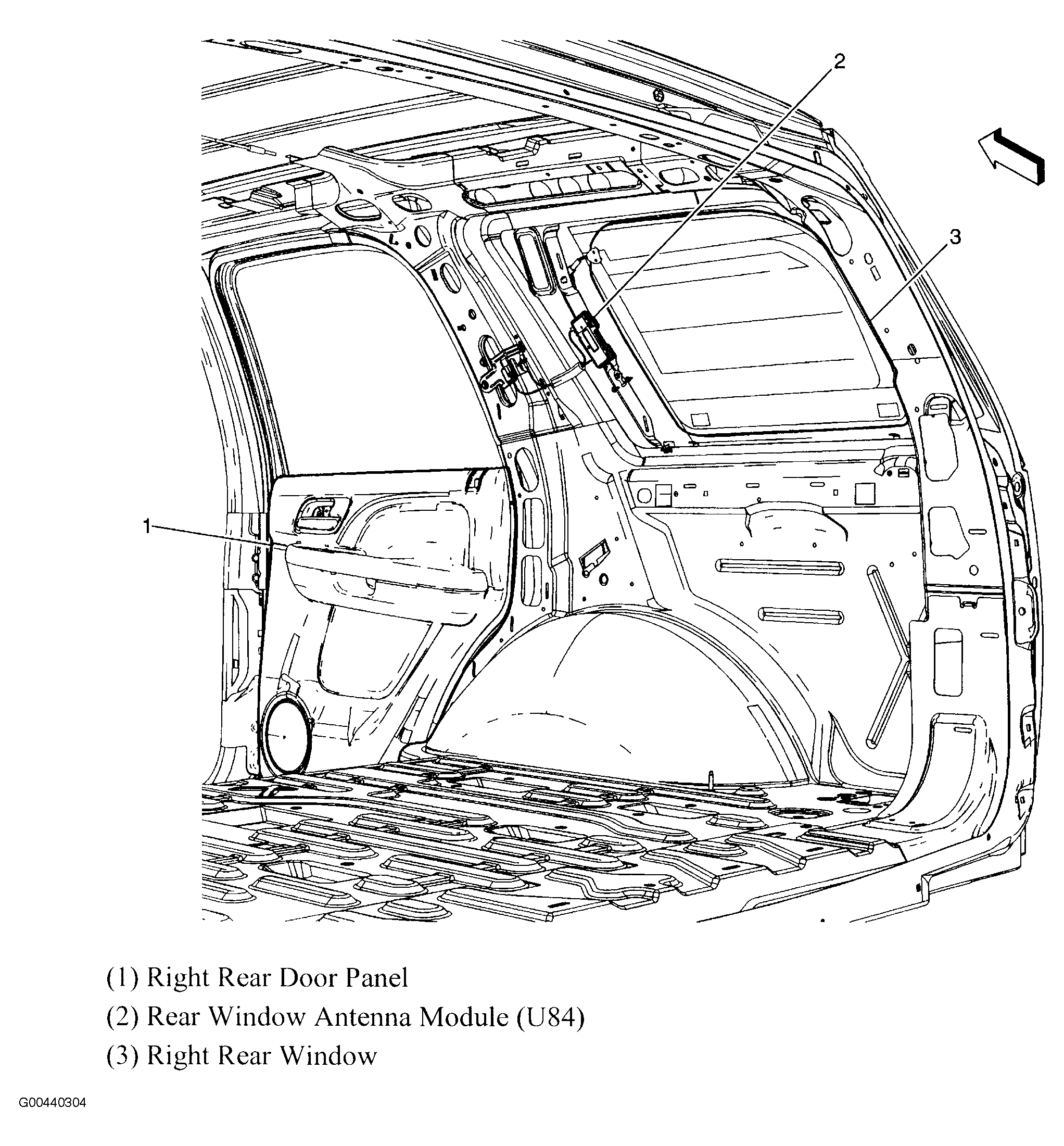

Fig 25: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 26: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 27: Dash & Kick Panels
Courtesy of GENERAL MOTORS CORP.
Fig 28: Rear Chassis (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Rear Chassis (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 31: Rear Chassis (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Rear Chassis (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.

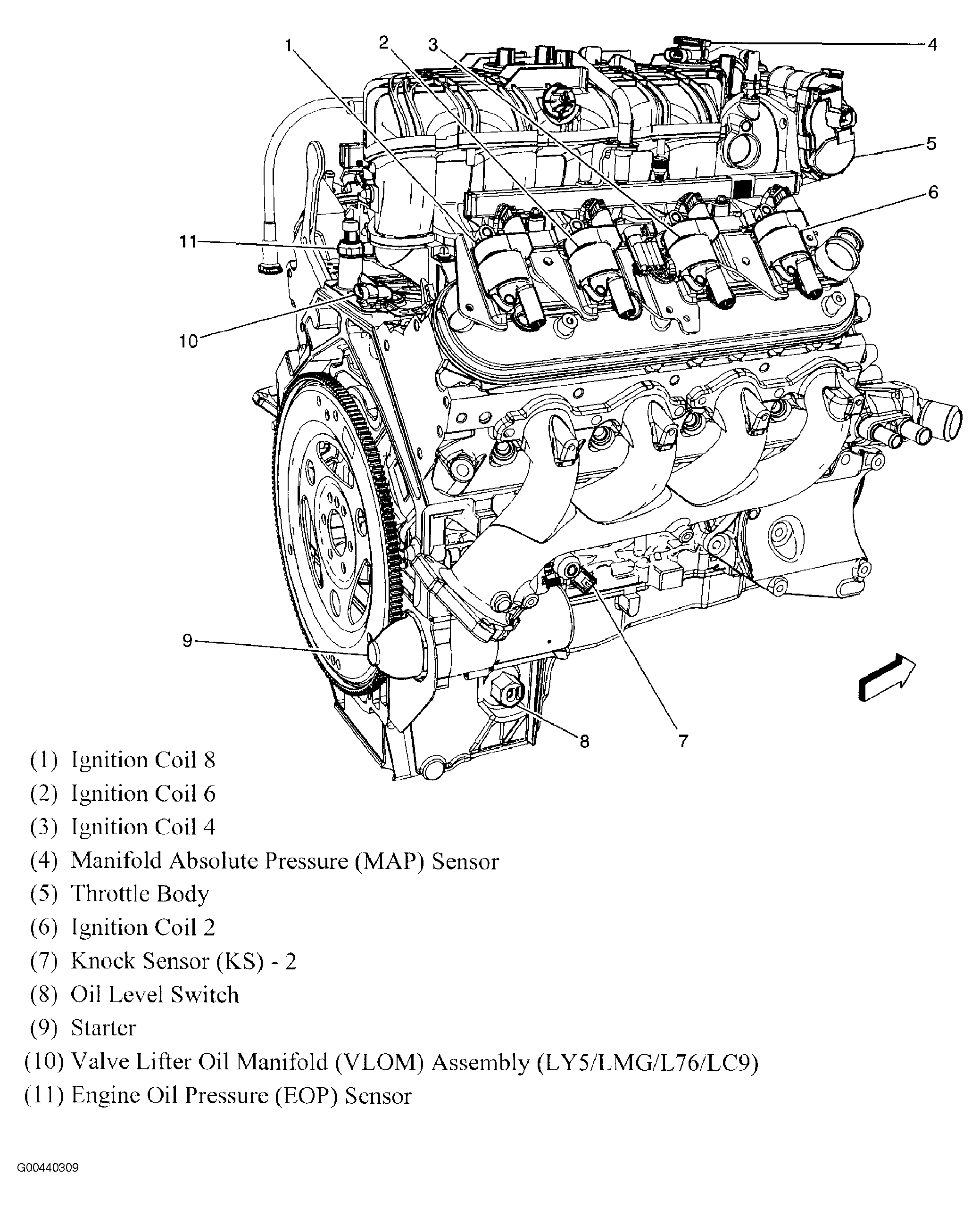

Fig 33: Rear Chassis
Courtesy of GENERAL MOTORS CORP.

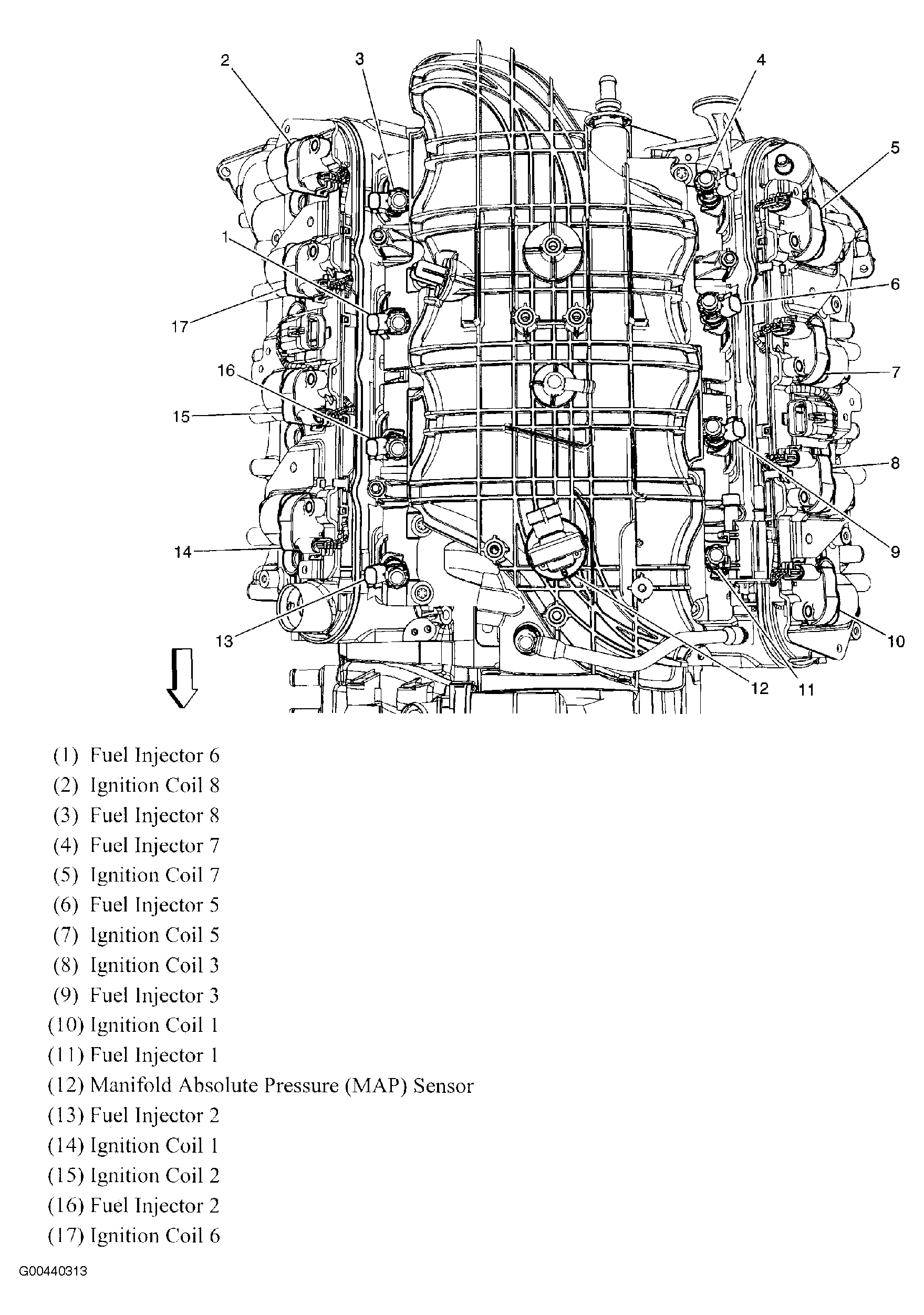

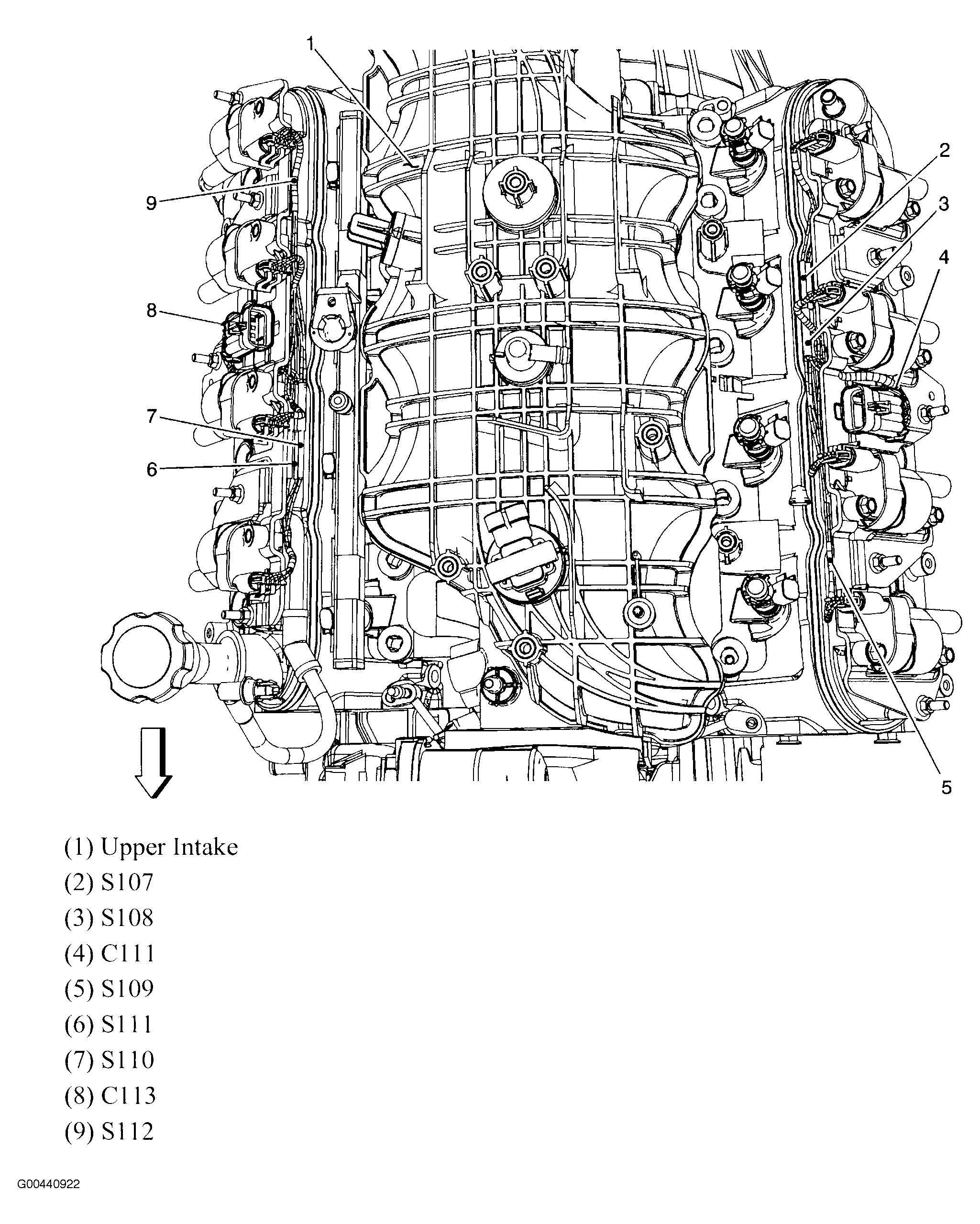

Fig 34: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 35: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

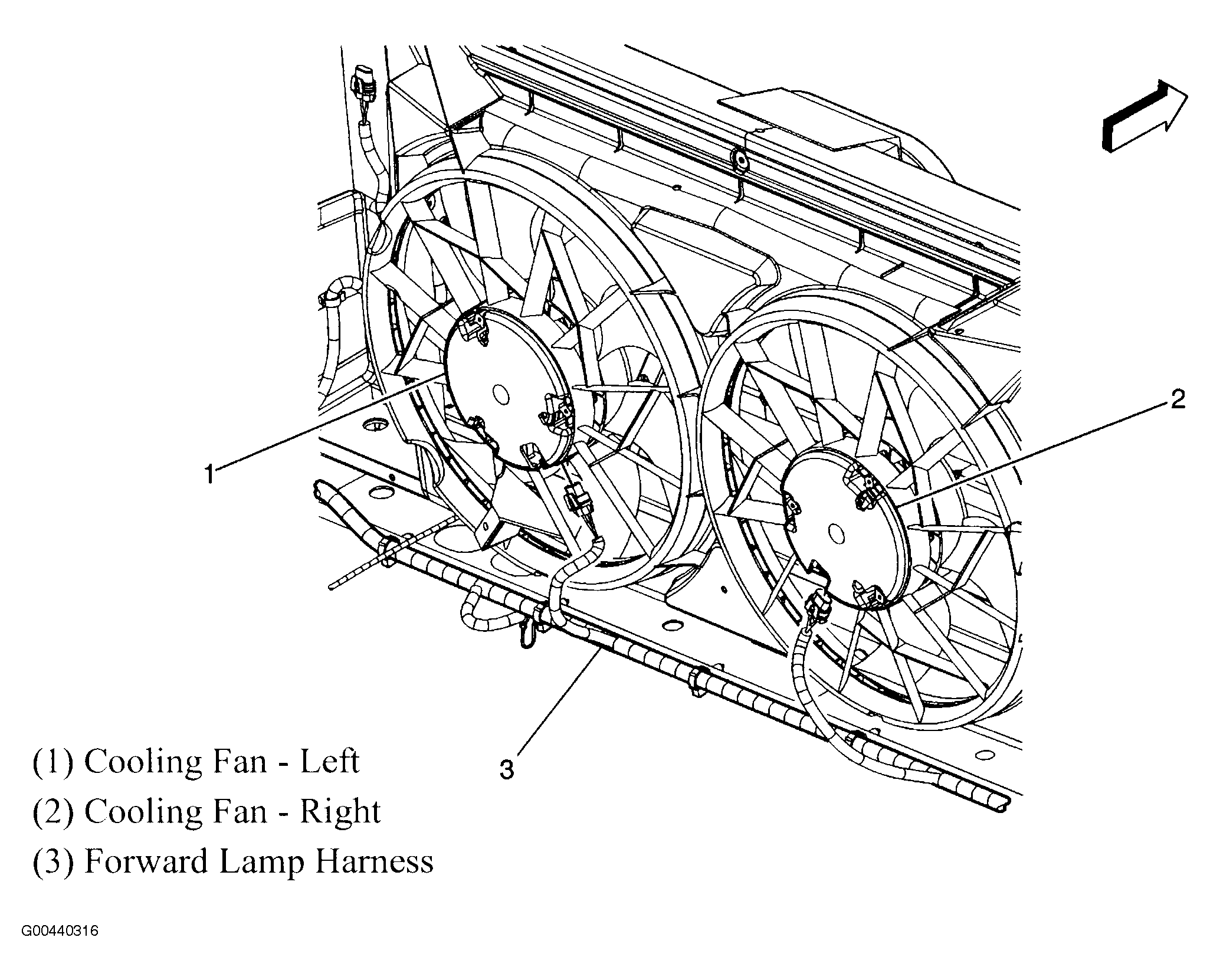

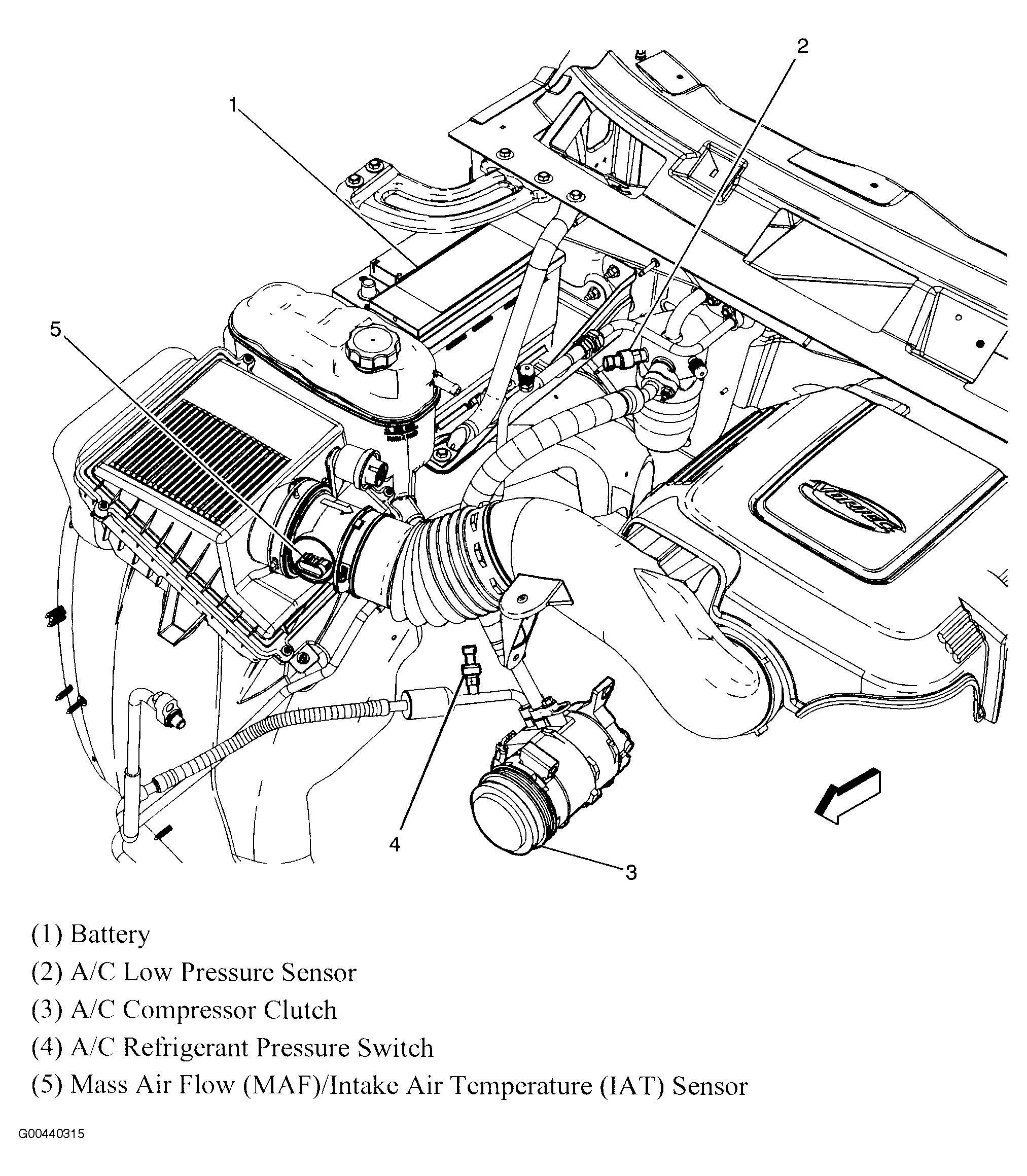

Fig 37: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

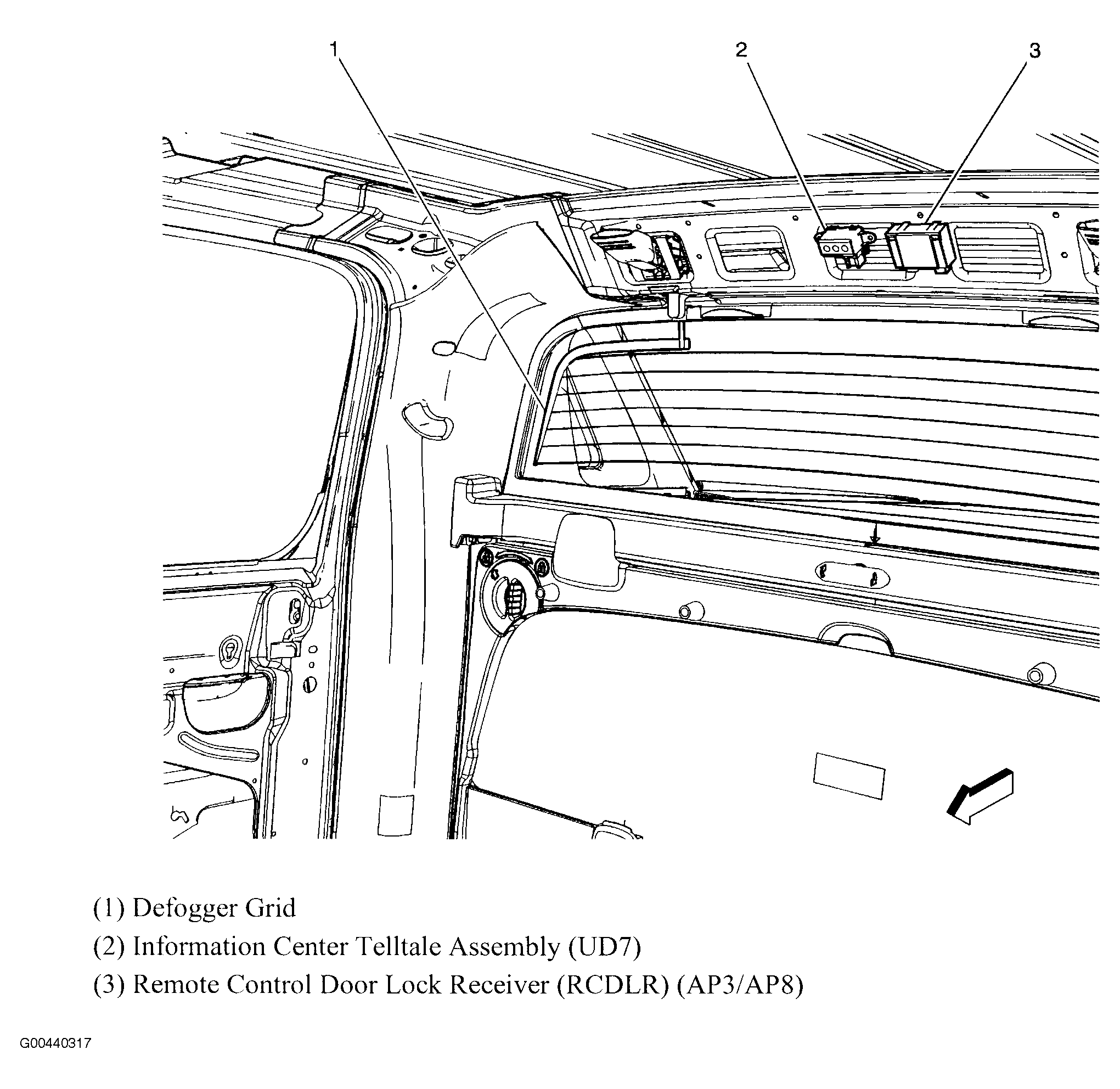

Fig 38: Rear Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 39: Center Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 40: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

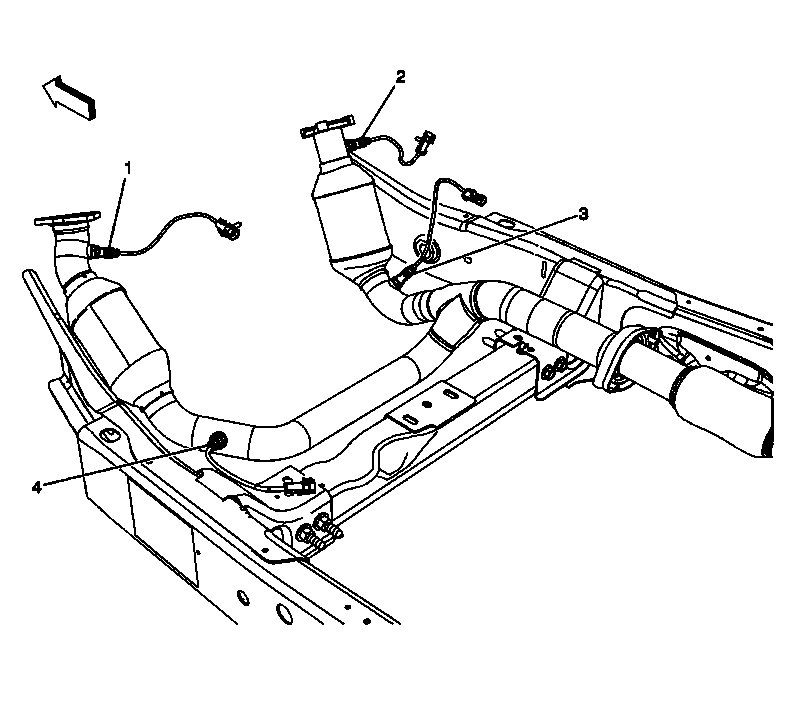

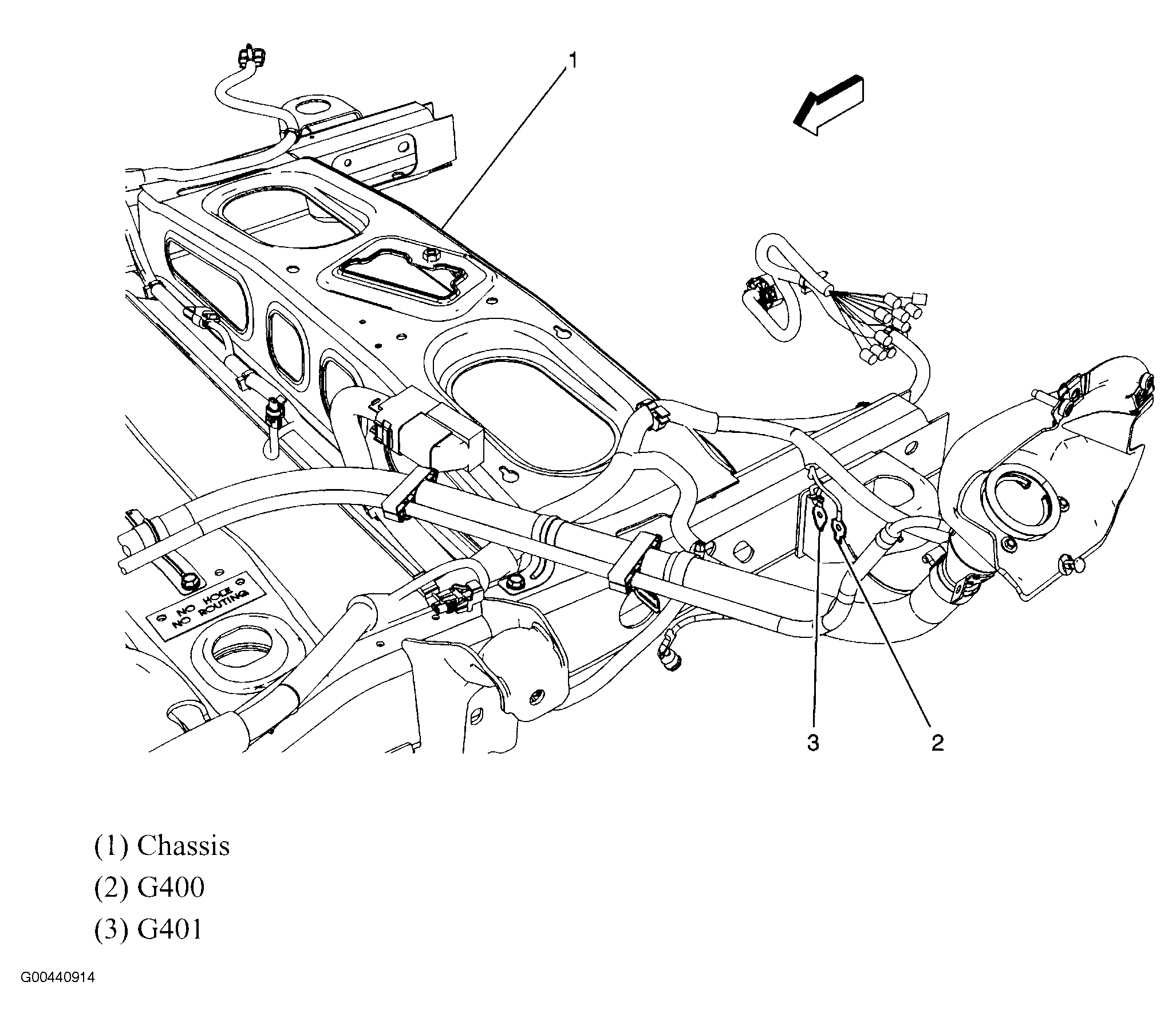

Fig 41: Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 42: Top Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 44: Above Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 45: Rear HVAC Module (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Rear HVAC Module (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 48: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 49: Under Left End Of Dash
Courtesy of GENERAL MOTORS CORP.

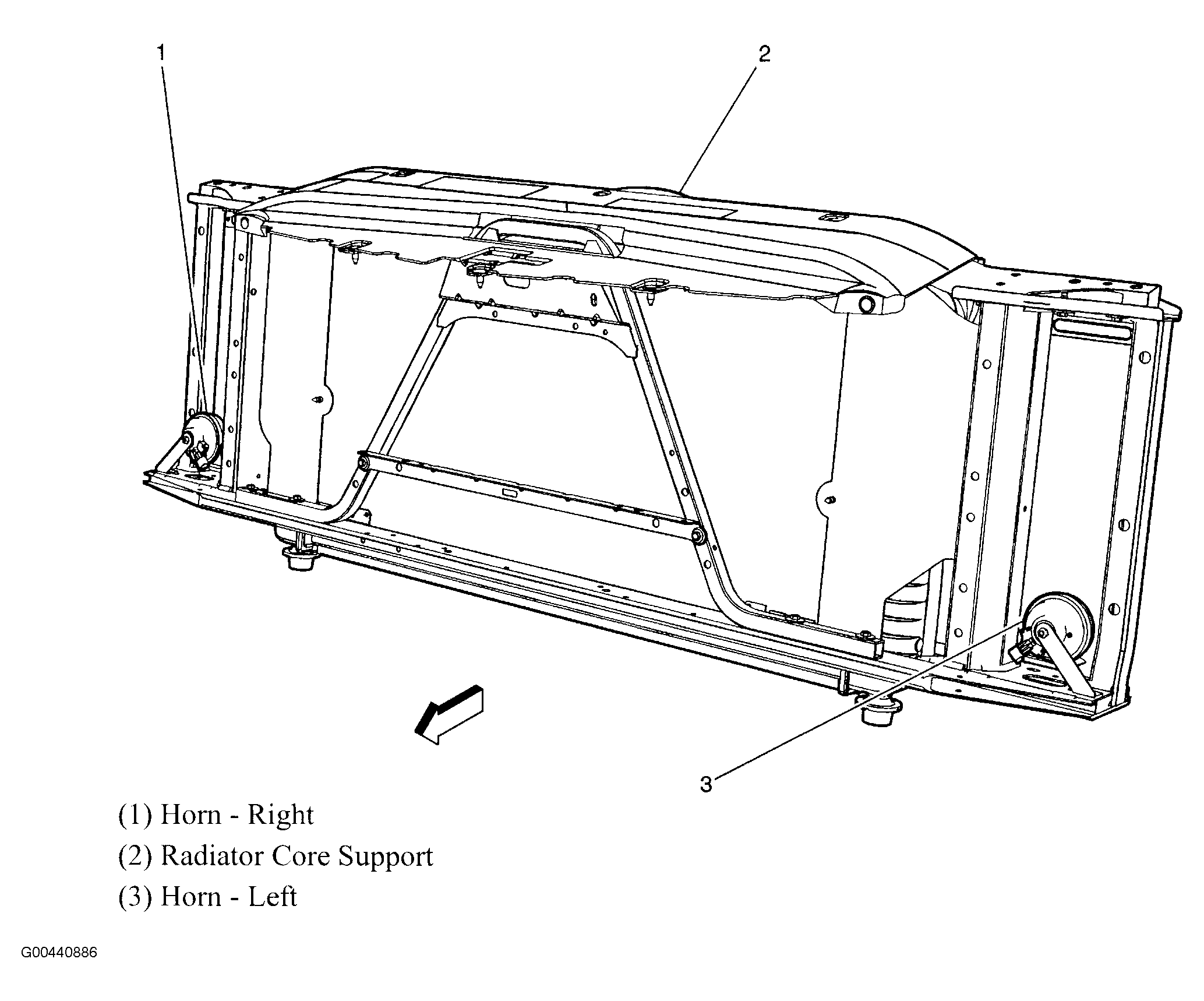

Fig 50: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

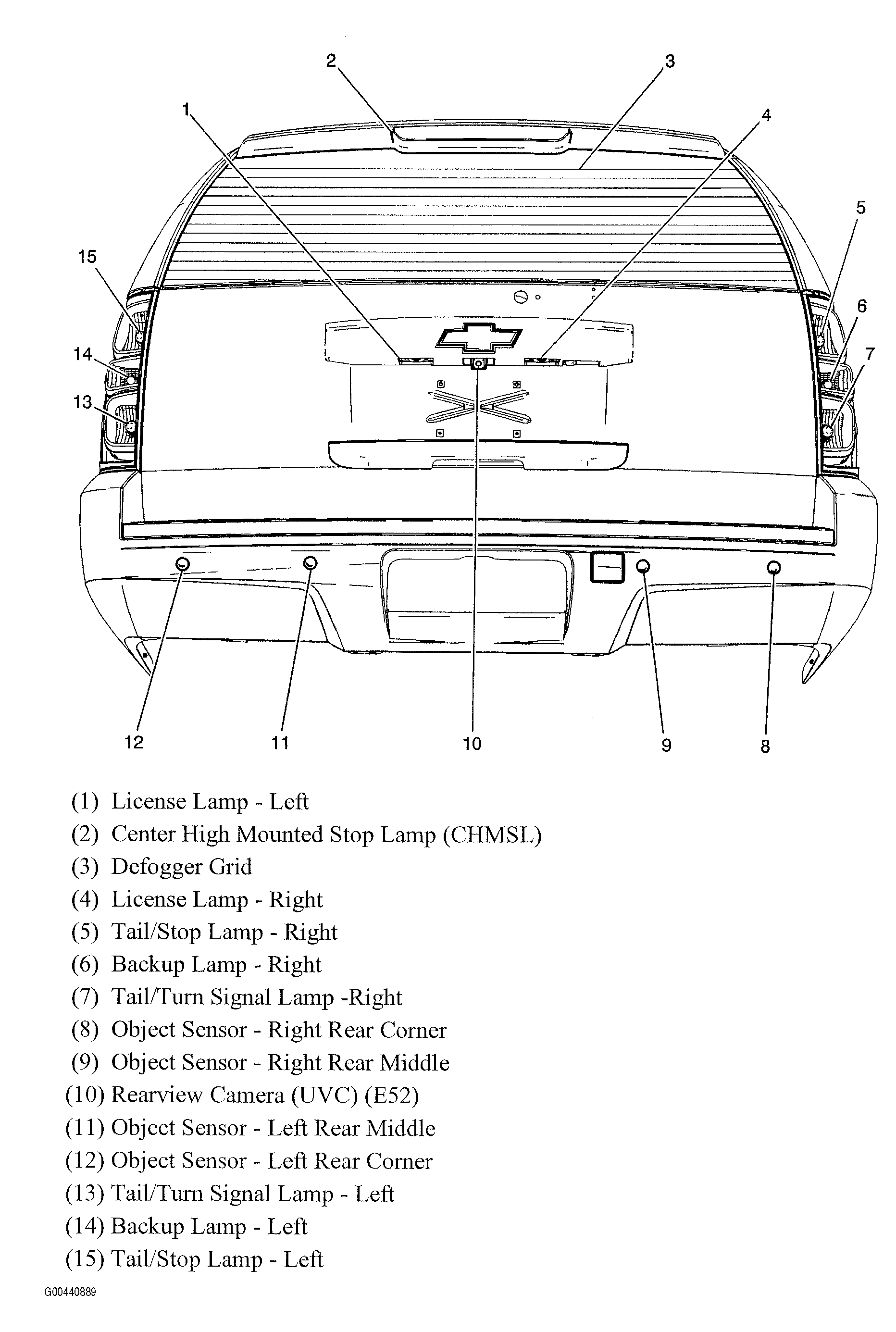

Fig 51: Rear Of Vehicle (Avalanche, Suburban & Tahoe W/One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.

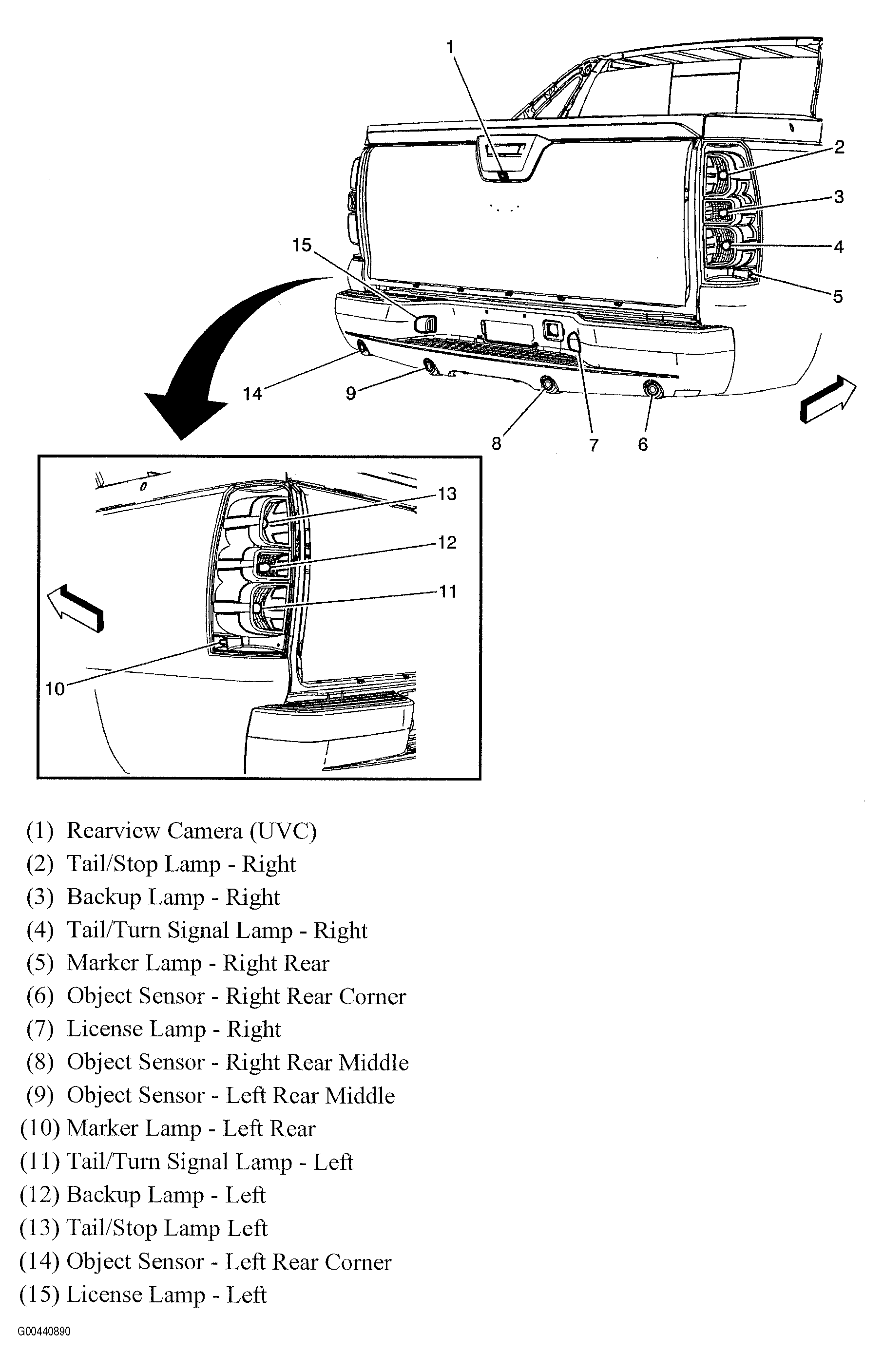

Fig 52: Rear Of Vehicle (Avalanche, Suburban & Tahoe W/Tailgate)
Courtesy of GENERAL MOTORS CORP.

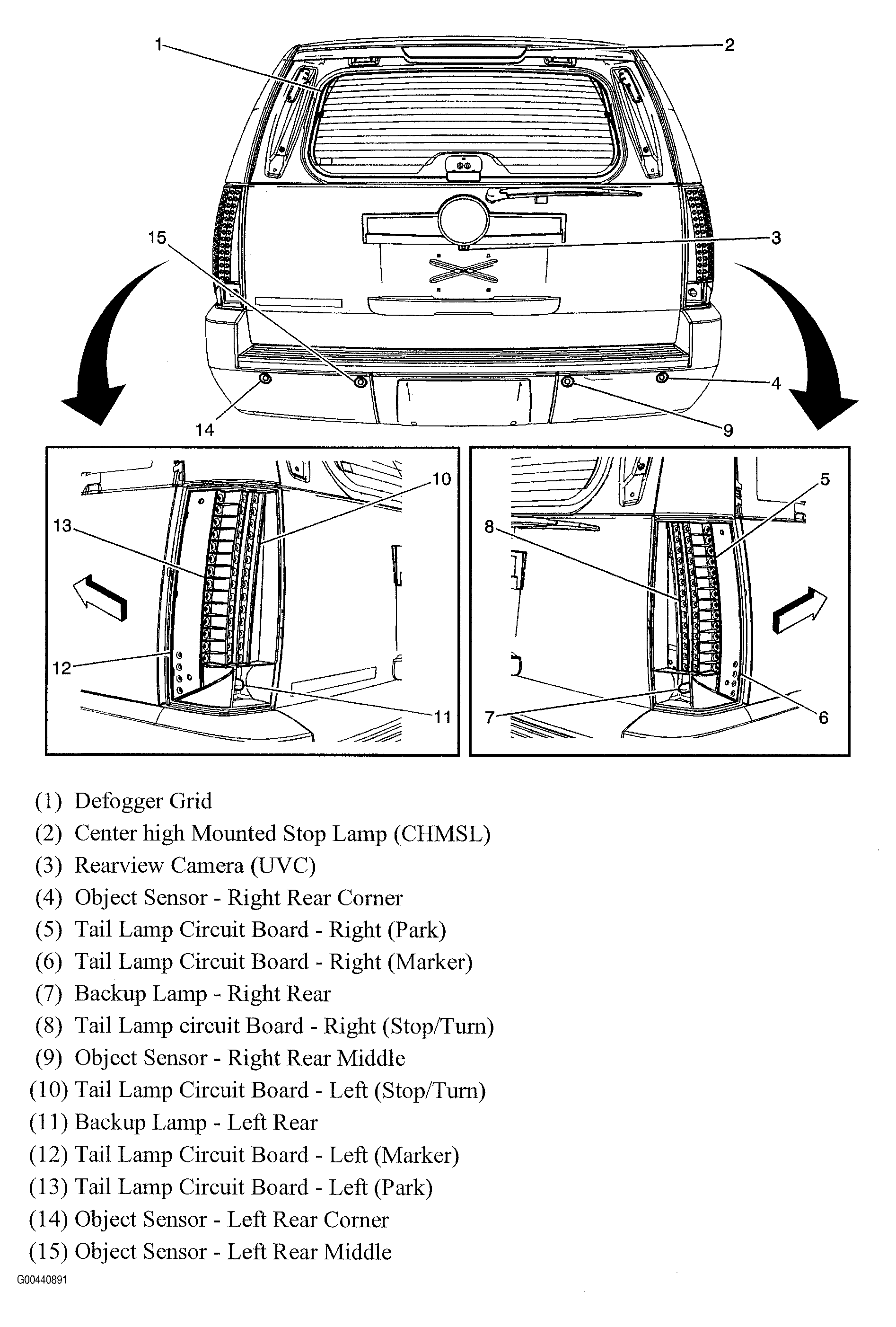

Fig 53: Rear Of Vehicle (Tahoe & Escalade W/One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Rear Of Vehicle (Tahoe & Escalade W/Tailgate)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Rear Of Vehicle (Yukon W/One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.

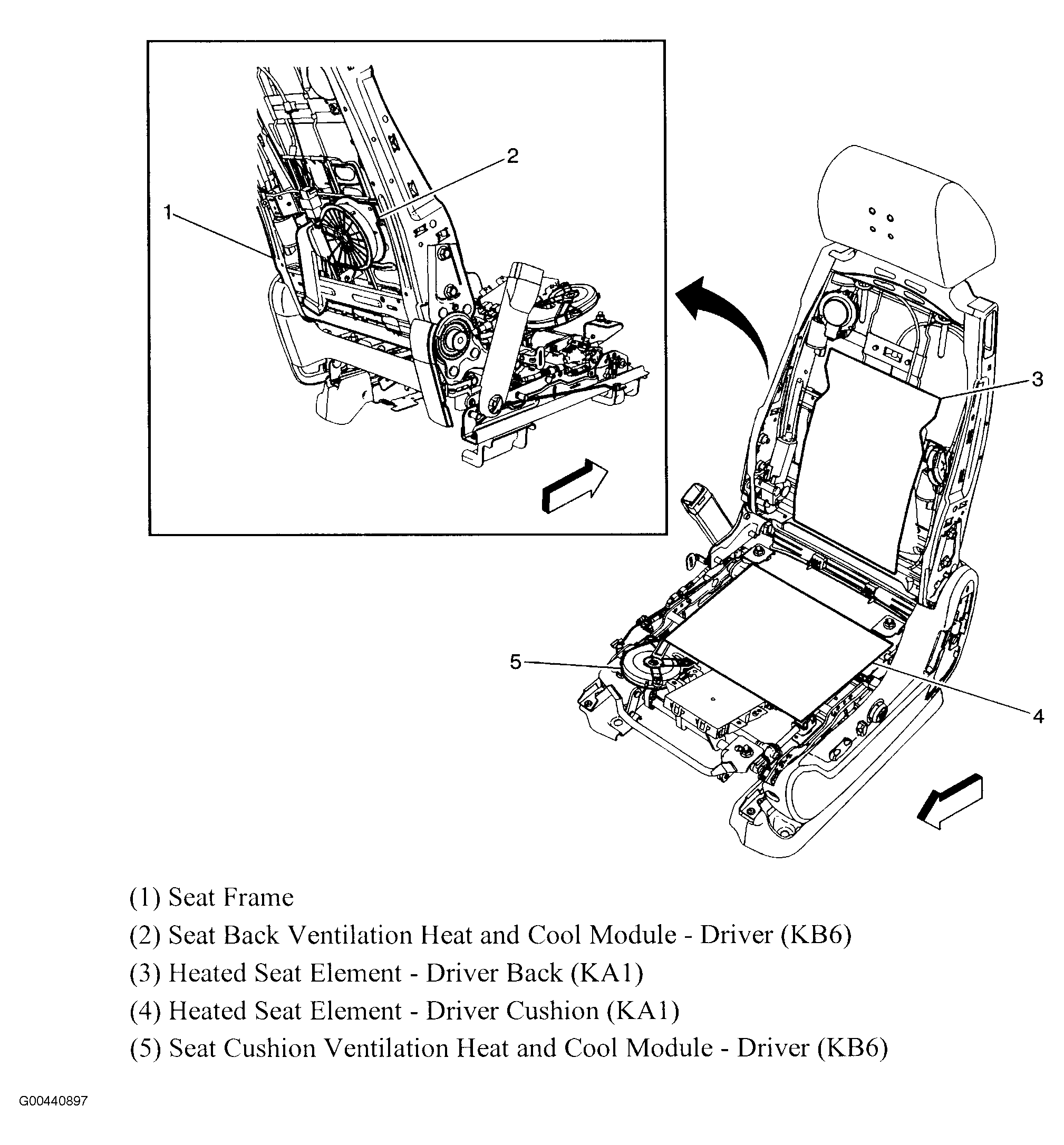

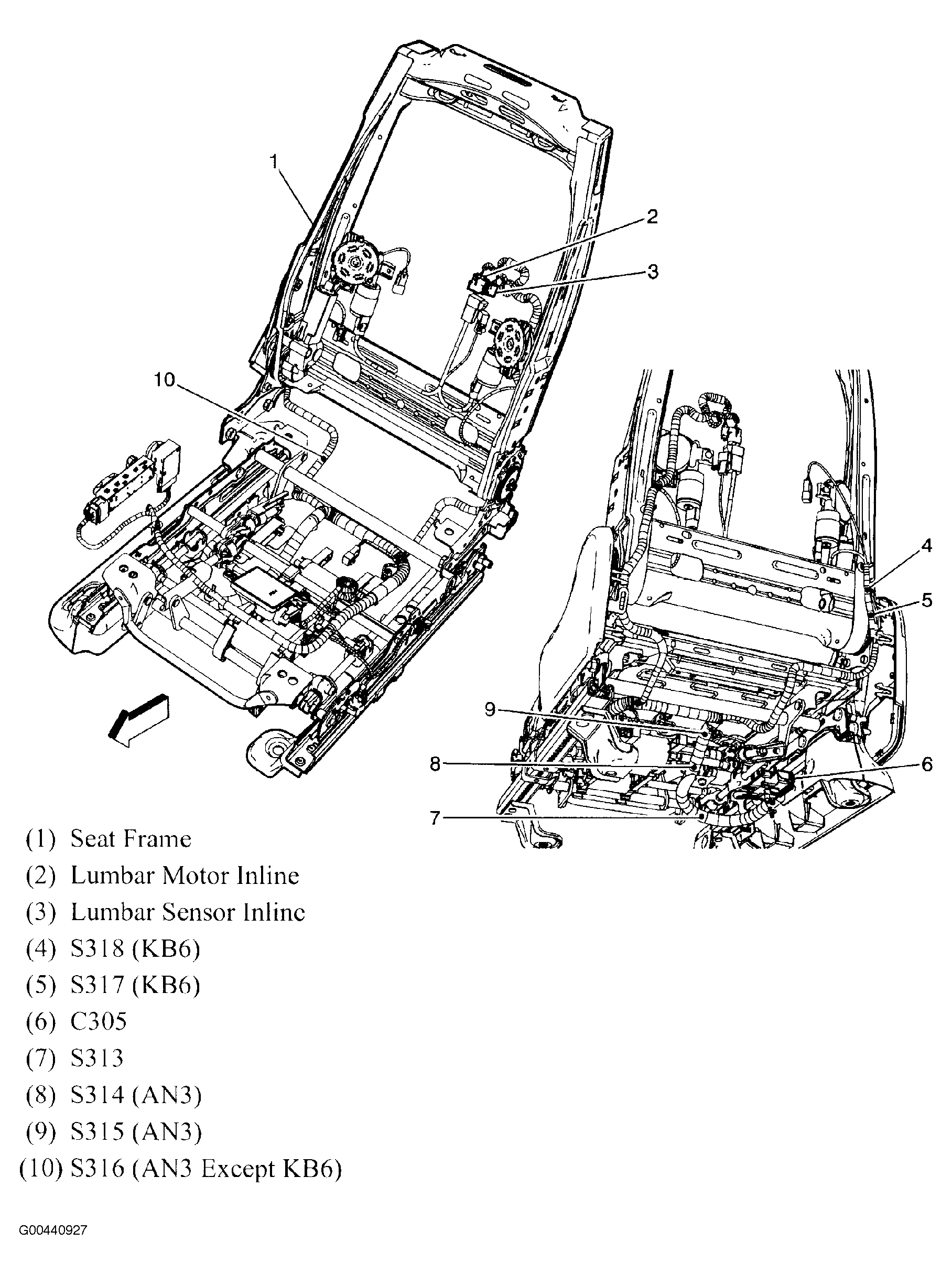

Fig 56: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 57: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

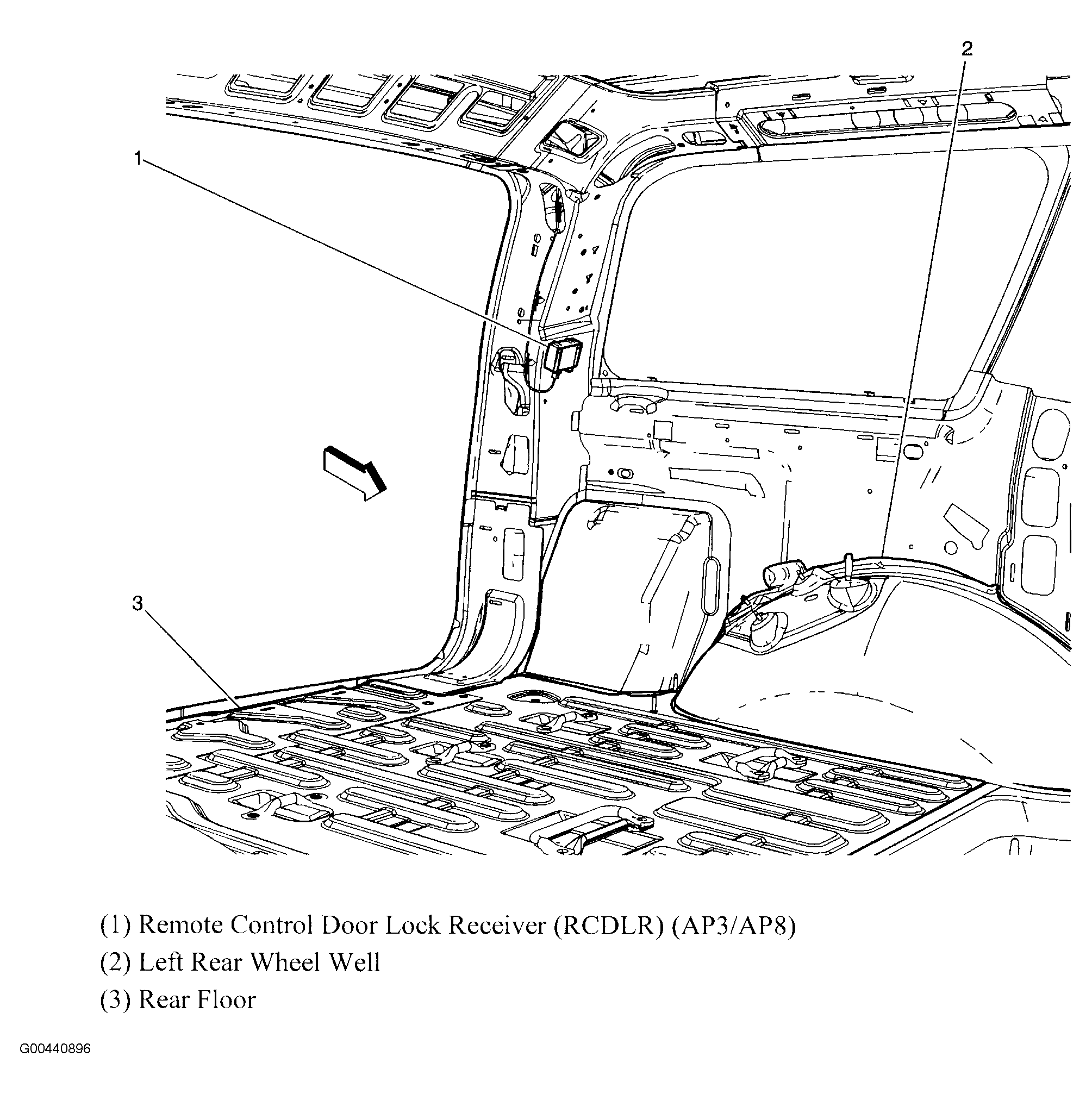

Fig 58: Left "D" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 59: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 60: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 61: Rear Seats
Courtesy of GENERAL MOTORS CORP.

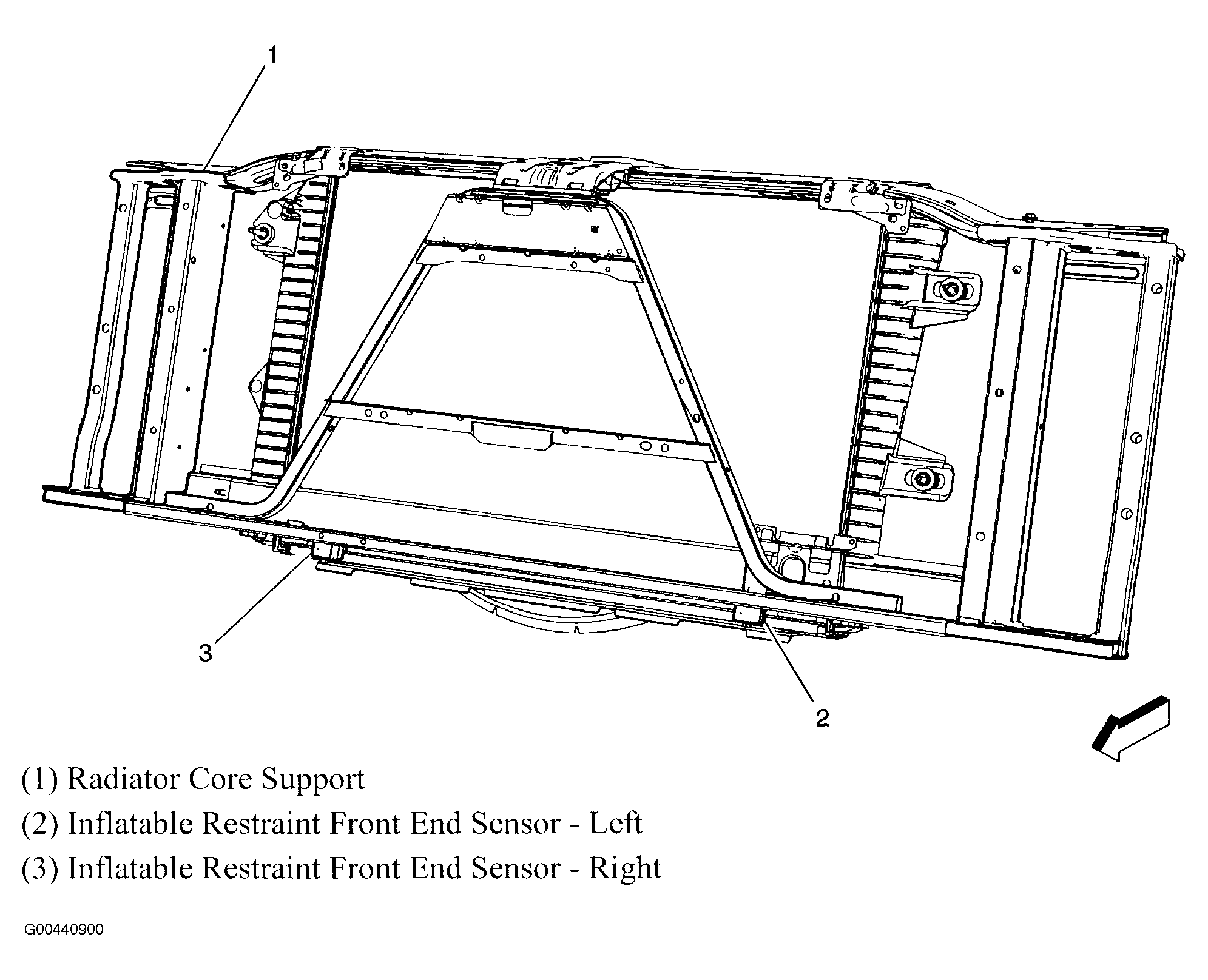

Fig 62: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 63: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

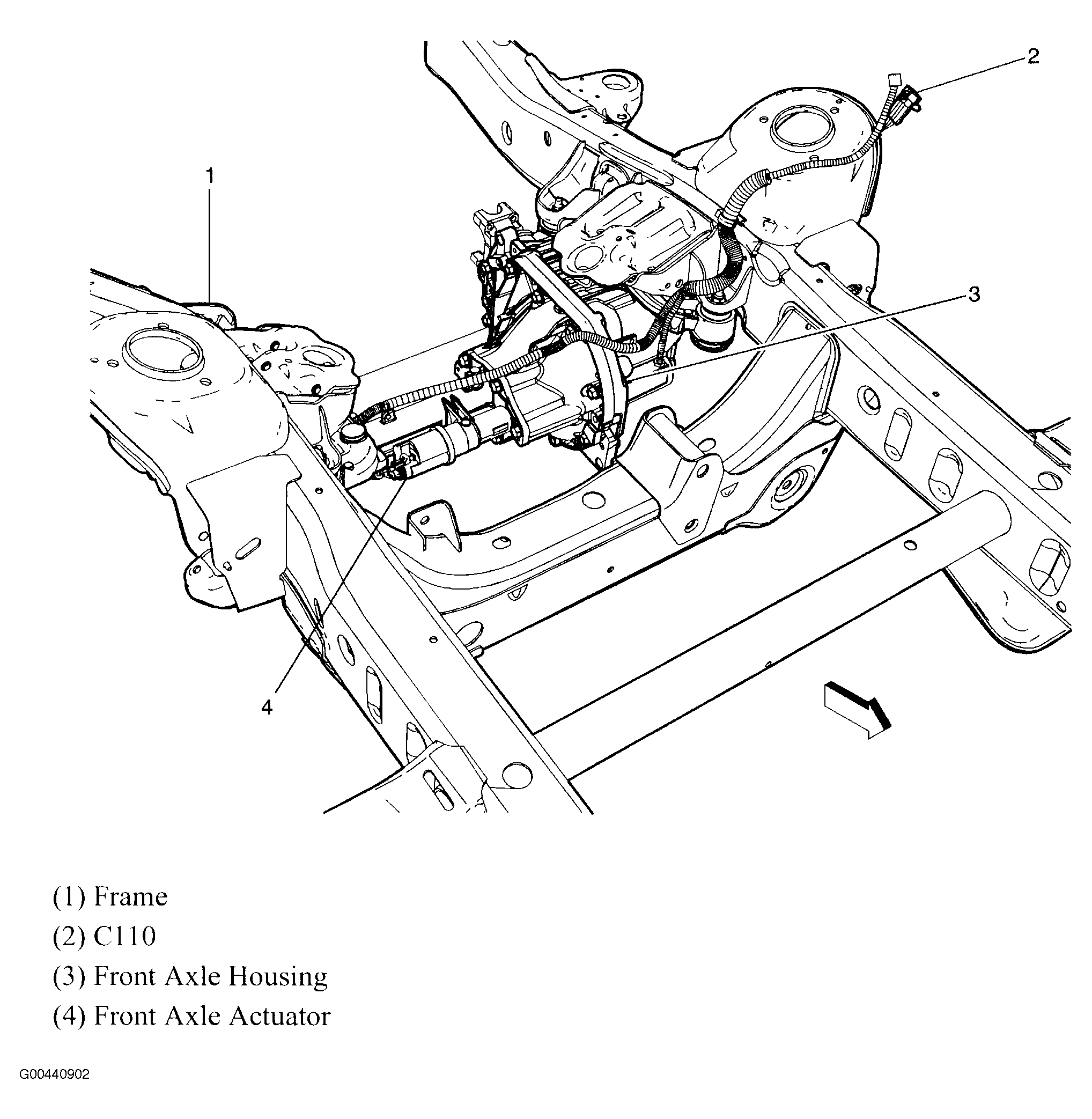

Fig 64: Front Axle
Courtesy of GENERAL MOTORS CORP.
Fig 65: Transfer Case
Courtesy of GENERAL MOTORS CORP.

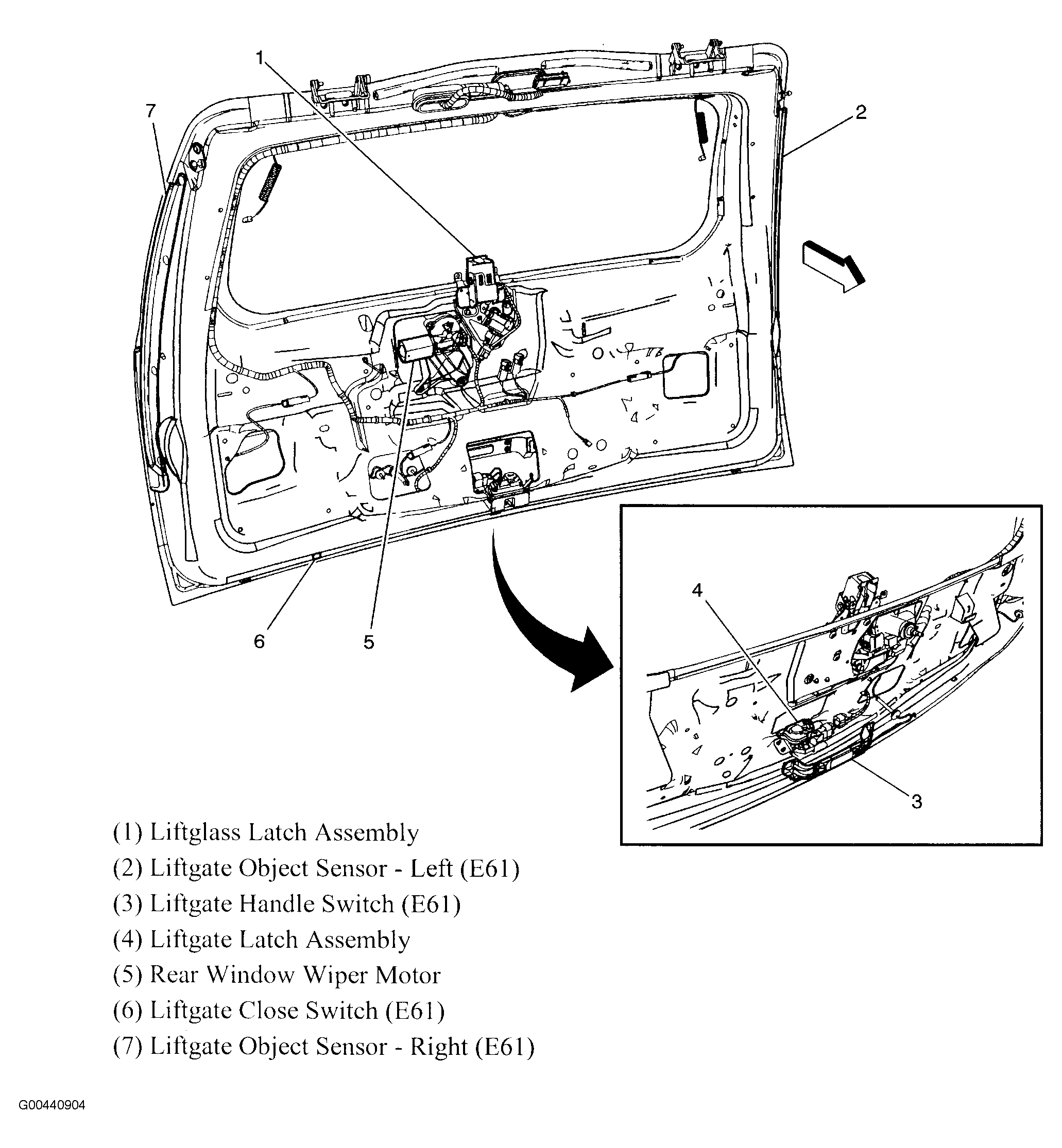

Fig 66: Liftgate (One Piece Liftgate W/Lift Glass)
Courtesy of GENERAL MOTORS CORP.

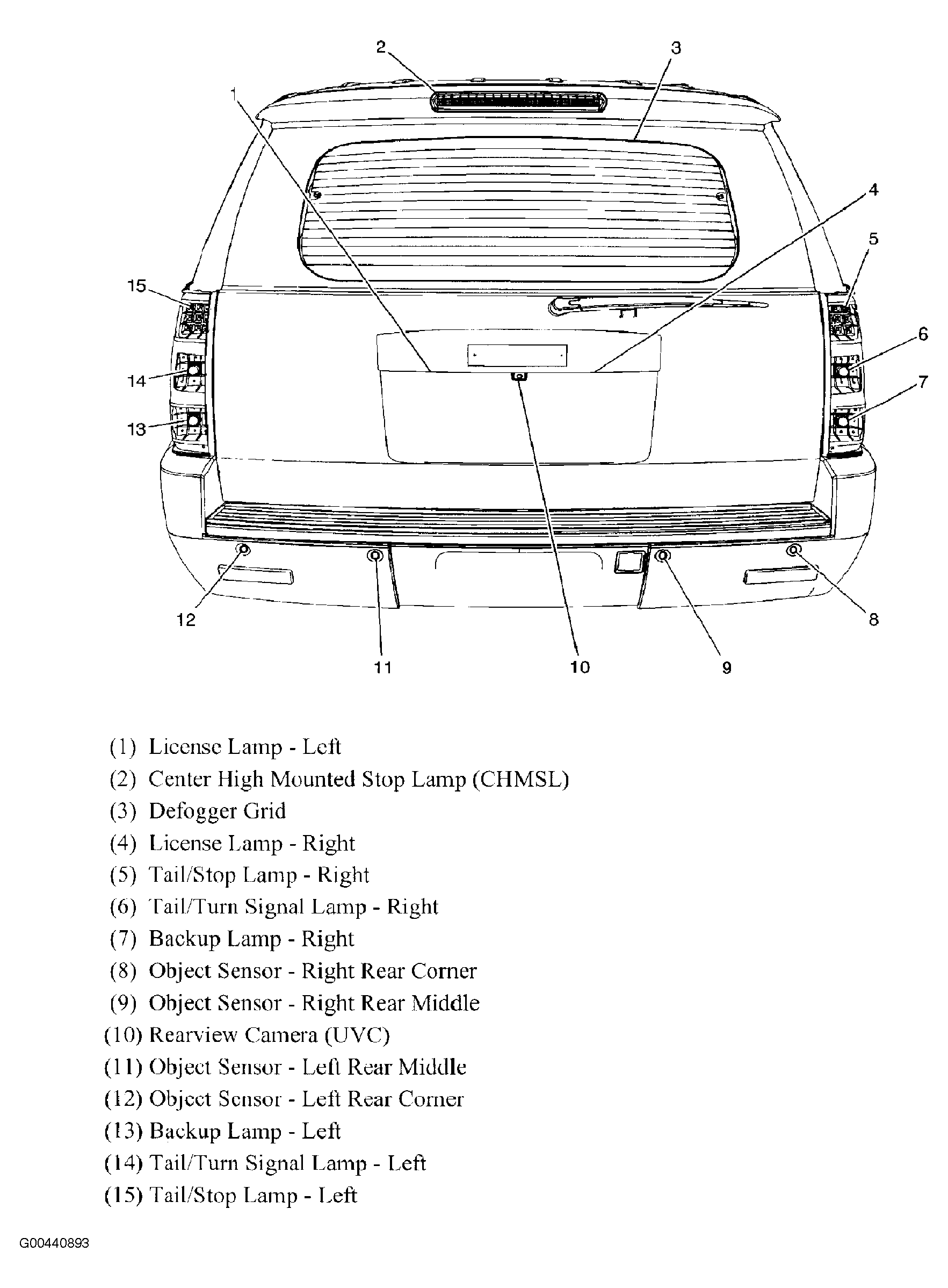

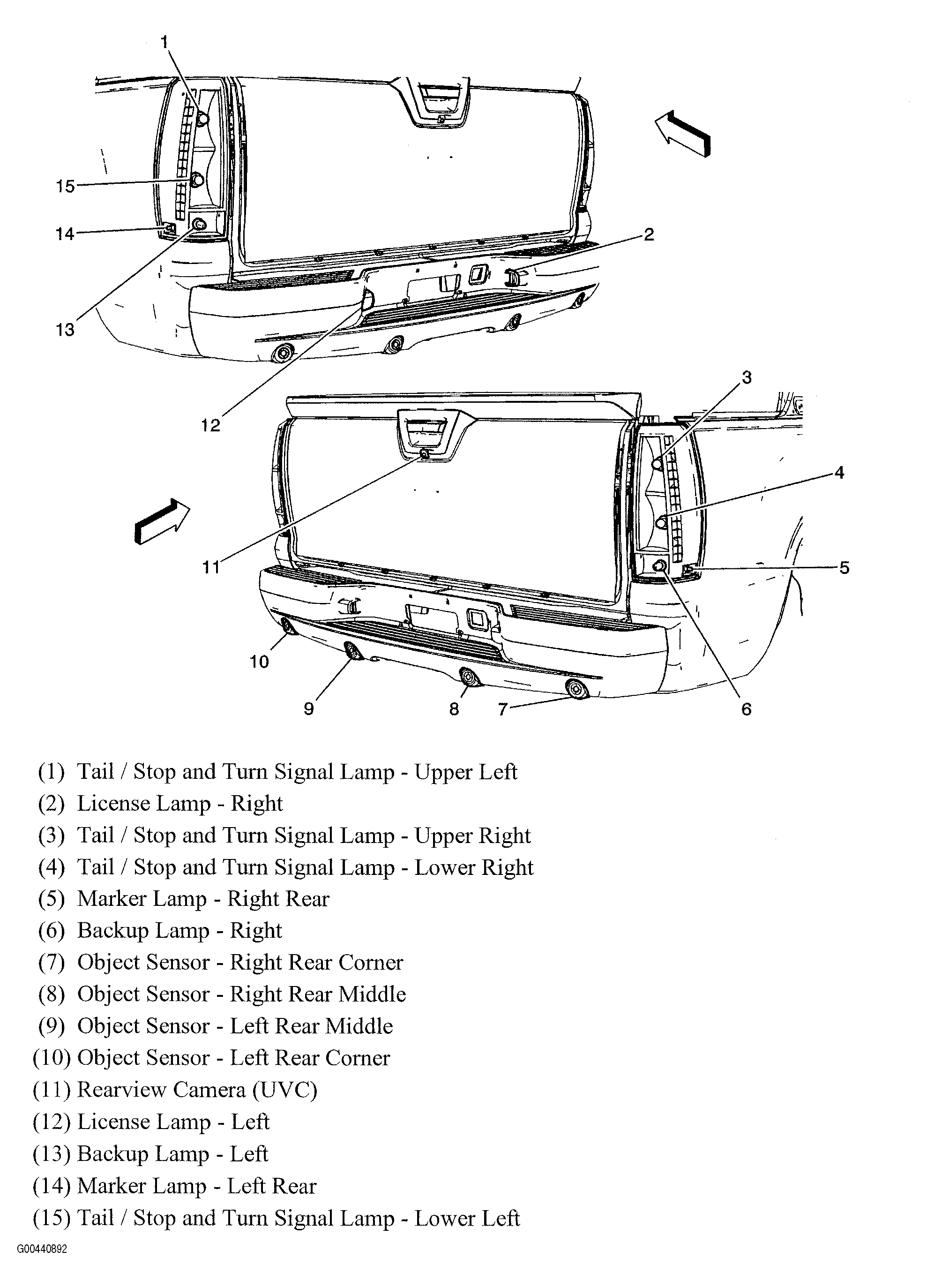

Fig 67: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

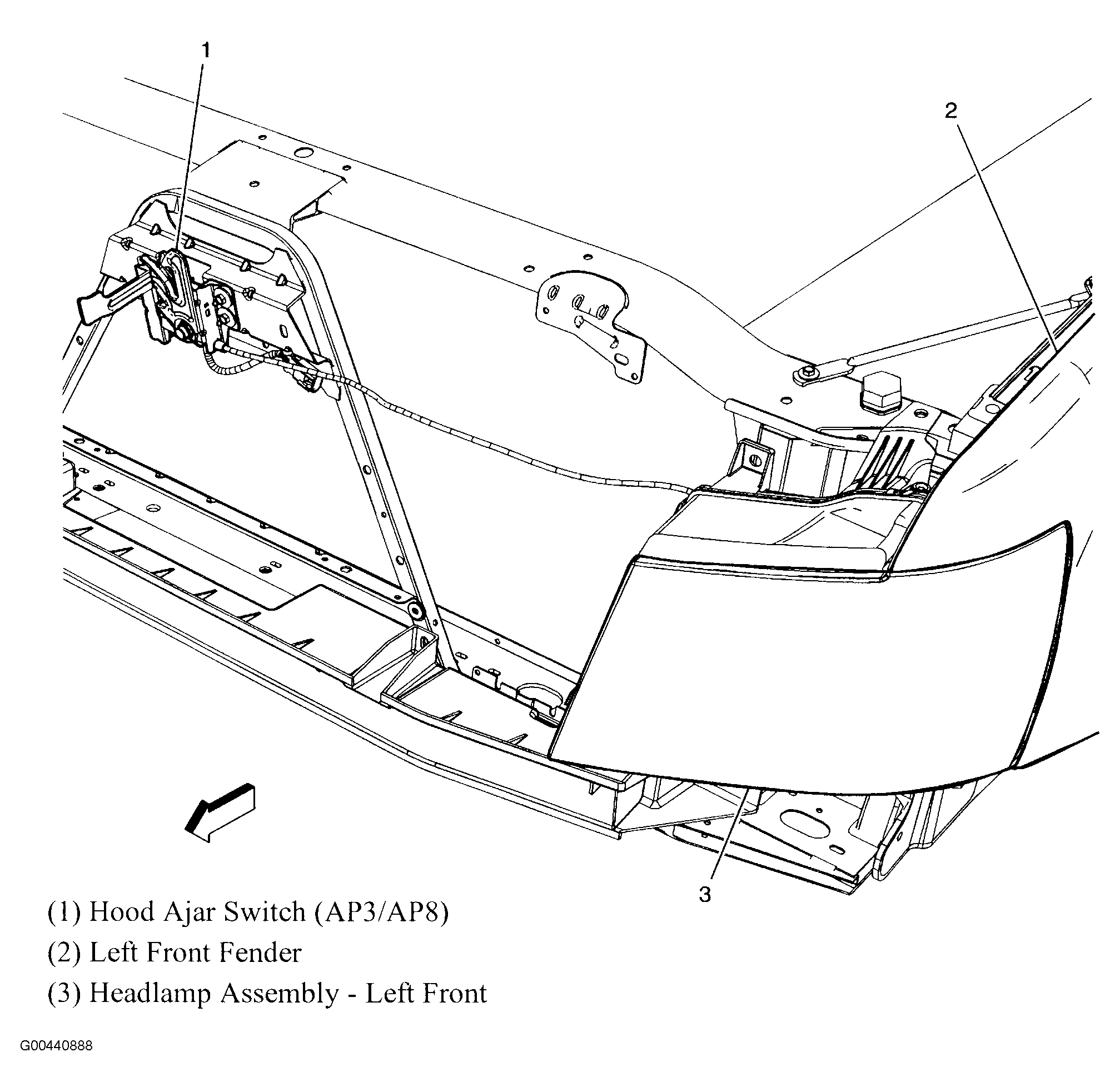

Fig 68: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

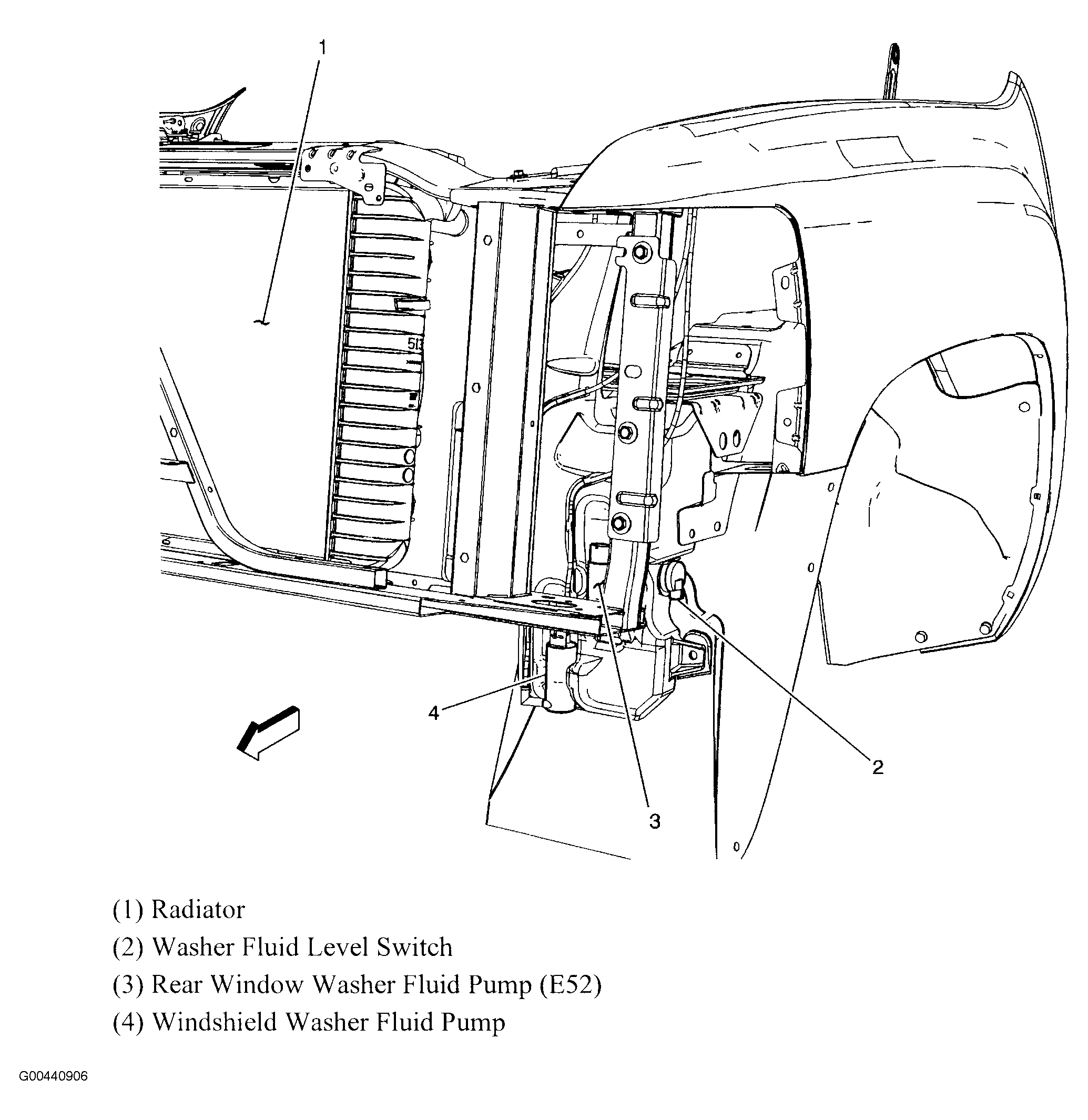

Fig 69: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

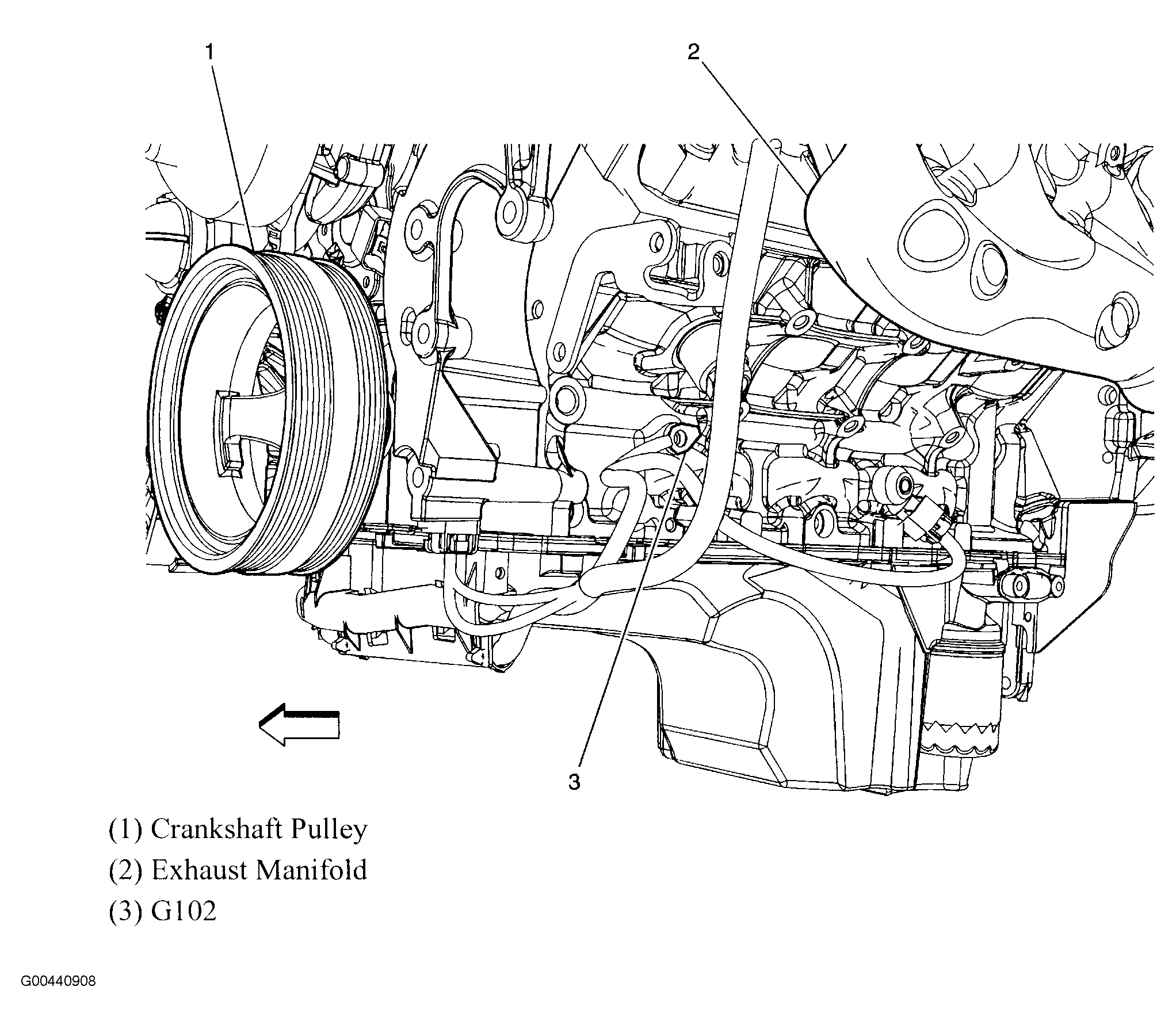

Fig 70: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

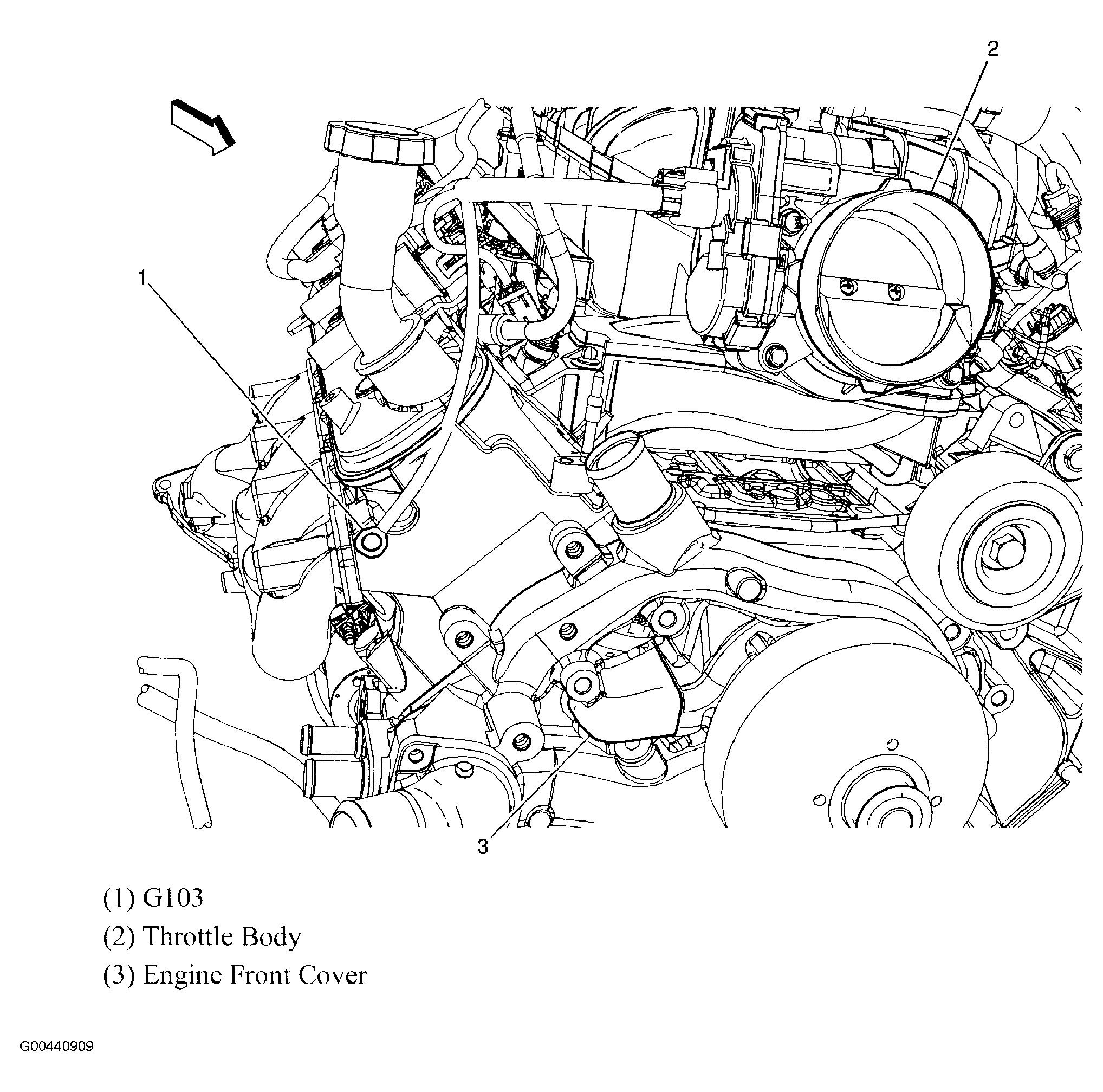

Fig 71: Top Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

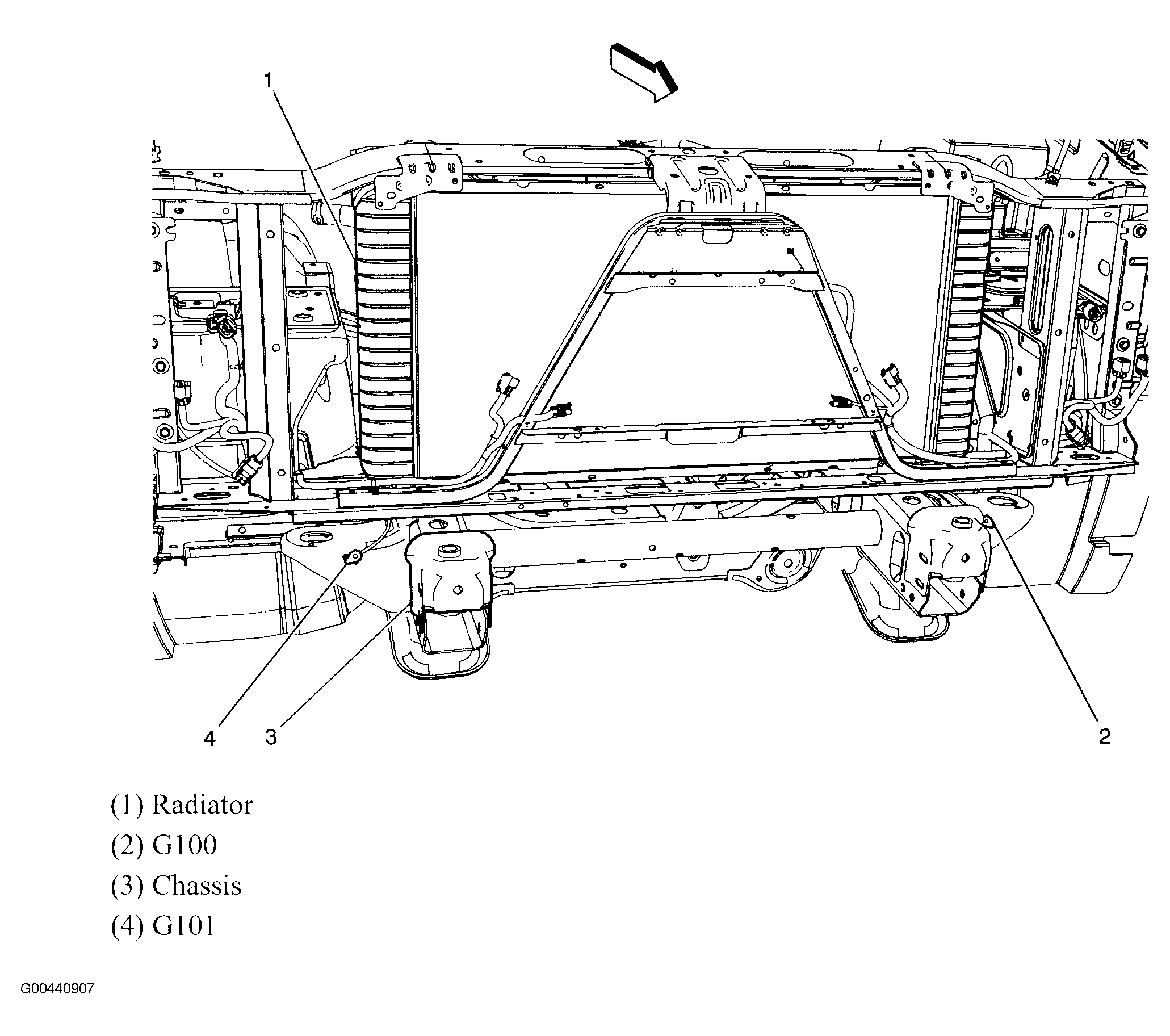

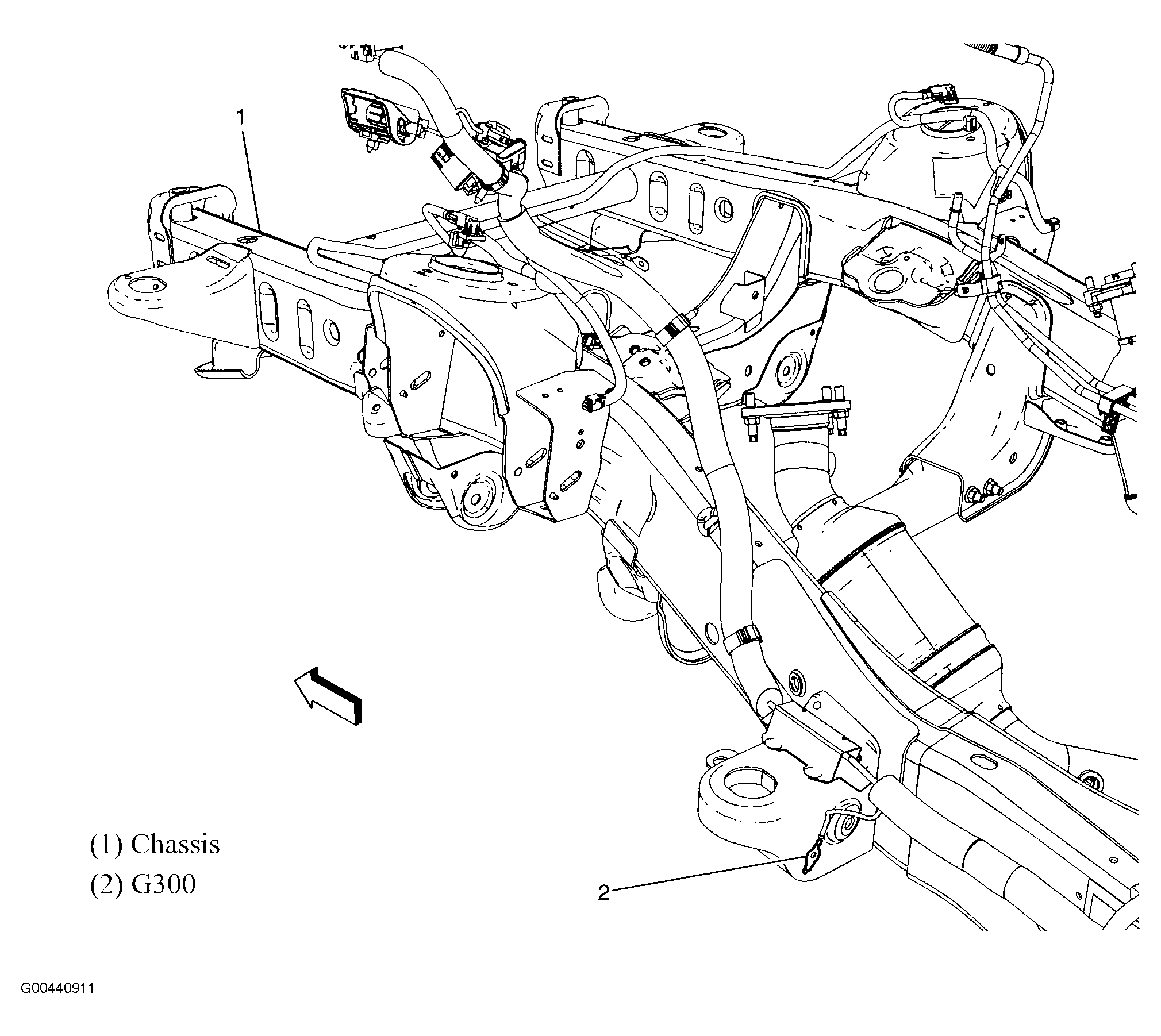

Fig 73: Front Left Side Of Chassis
Courtesy of GENERAL MOTORS CORP.

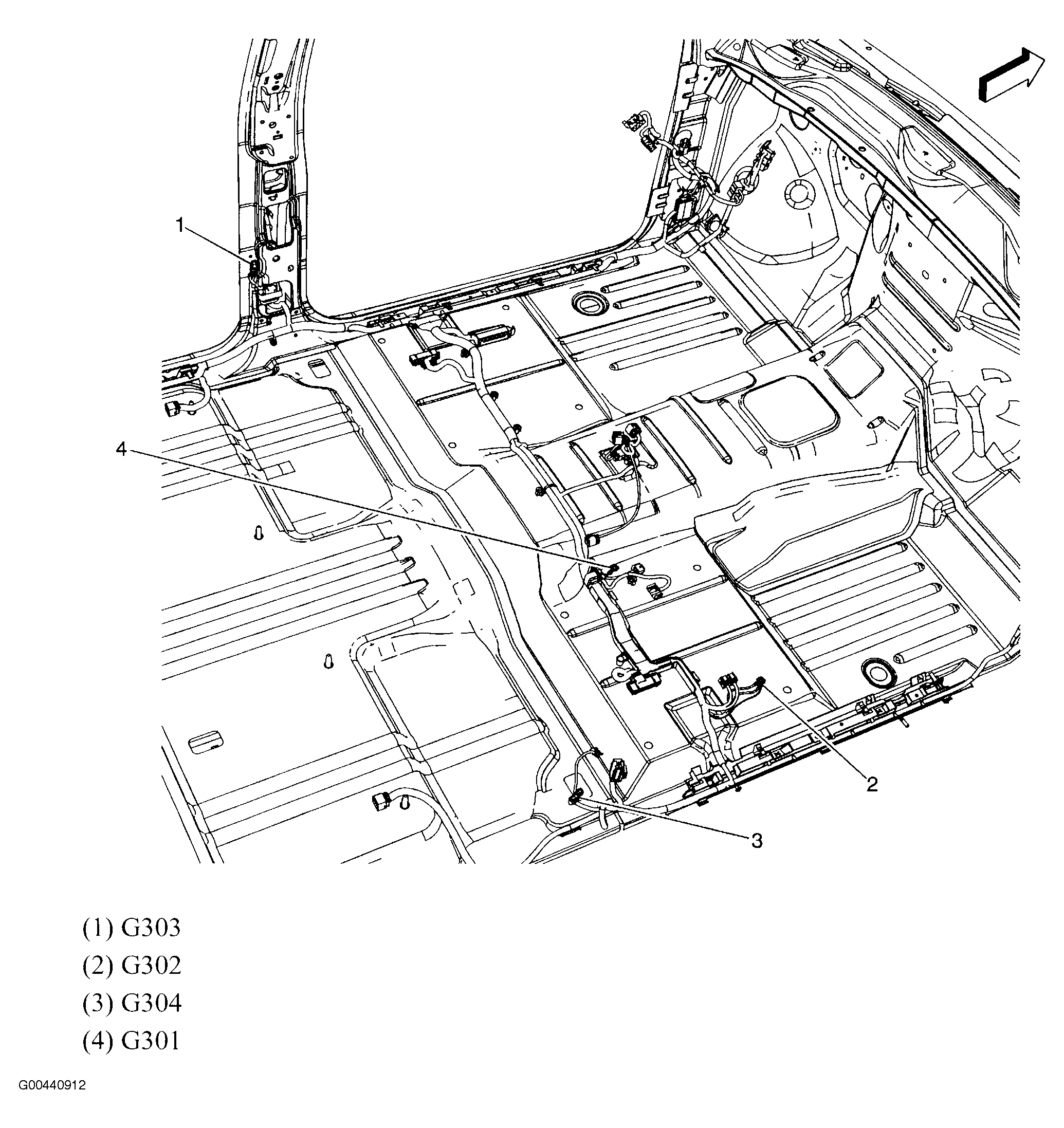

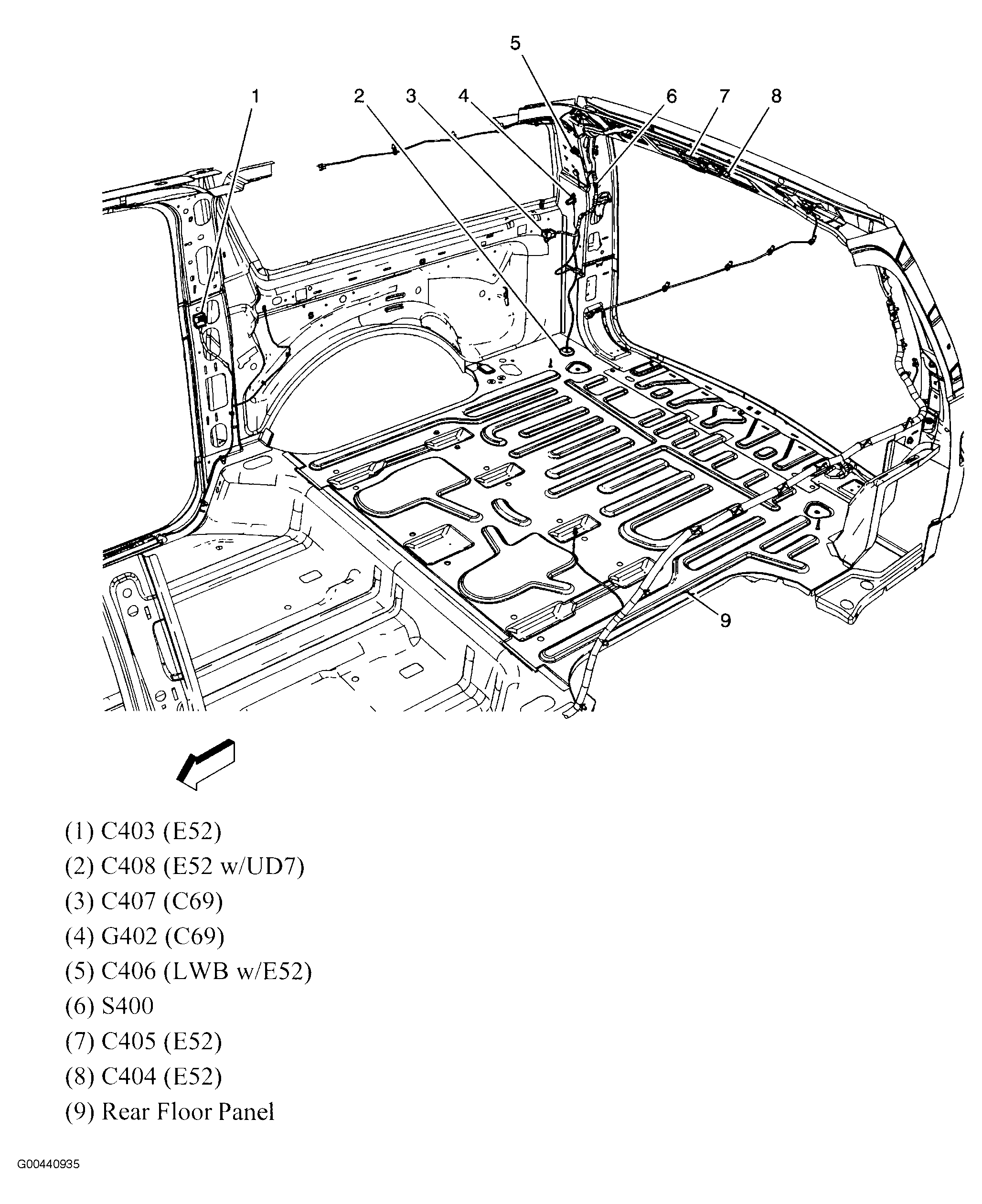

Fig 74: Vehicle Floor
Courtesy of GENERAL MOTORS CORP.

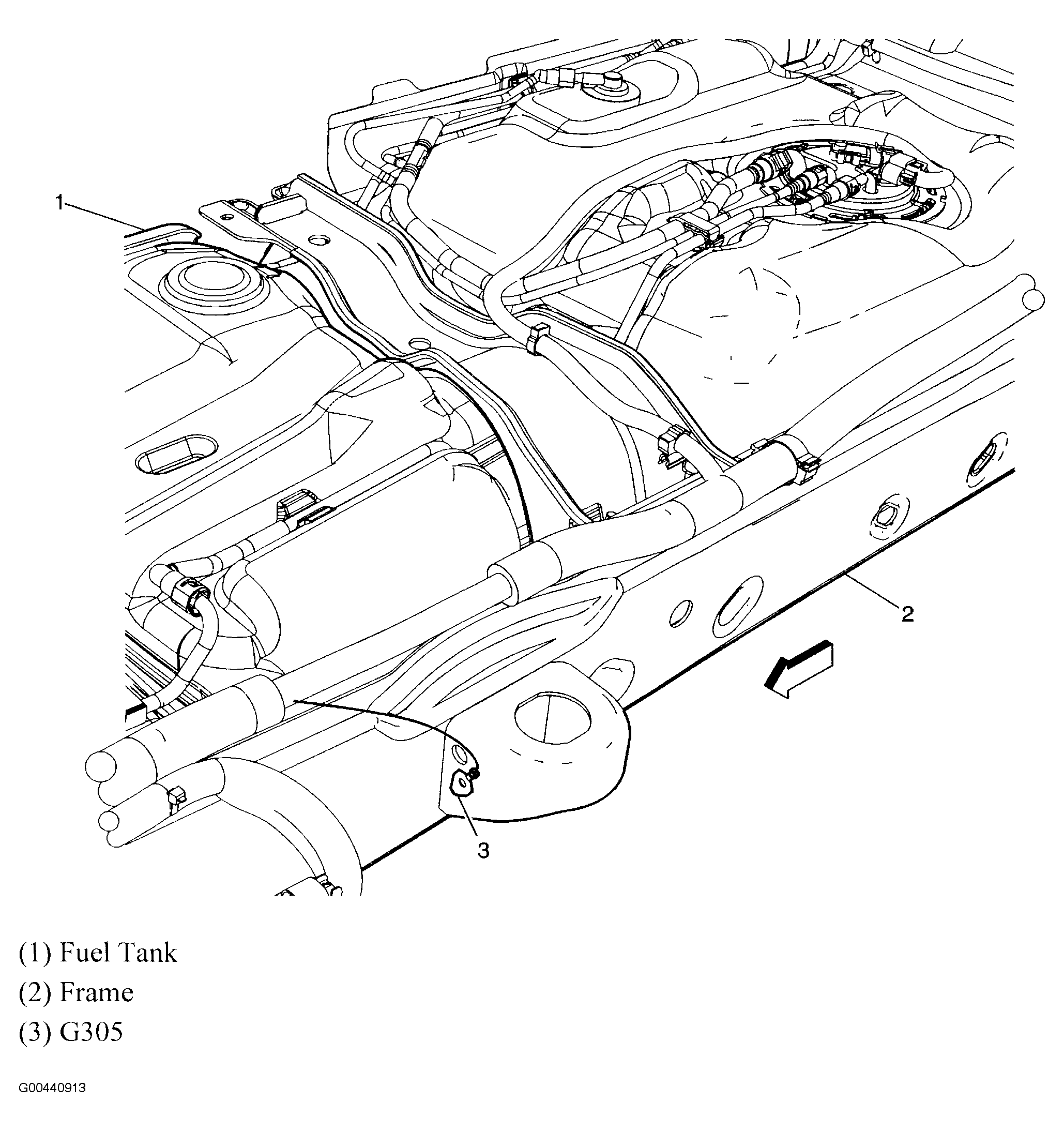

Fig 75: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 76: Rear Chassis
Courtesy of GENERAL MOTORS CORP.

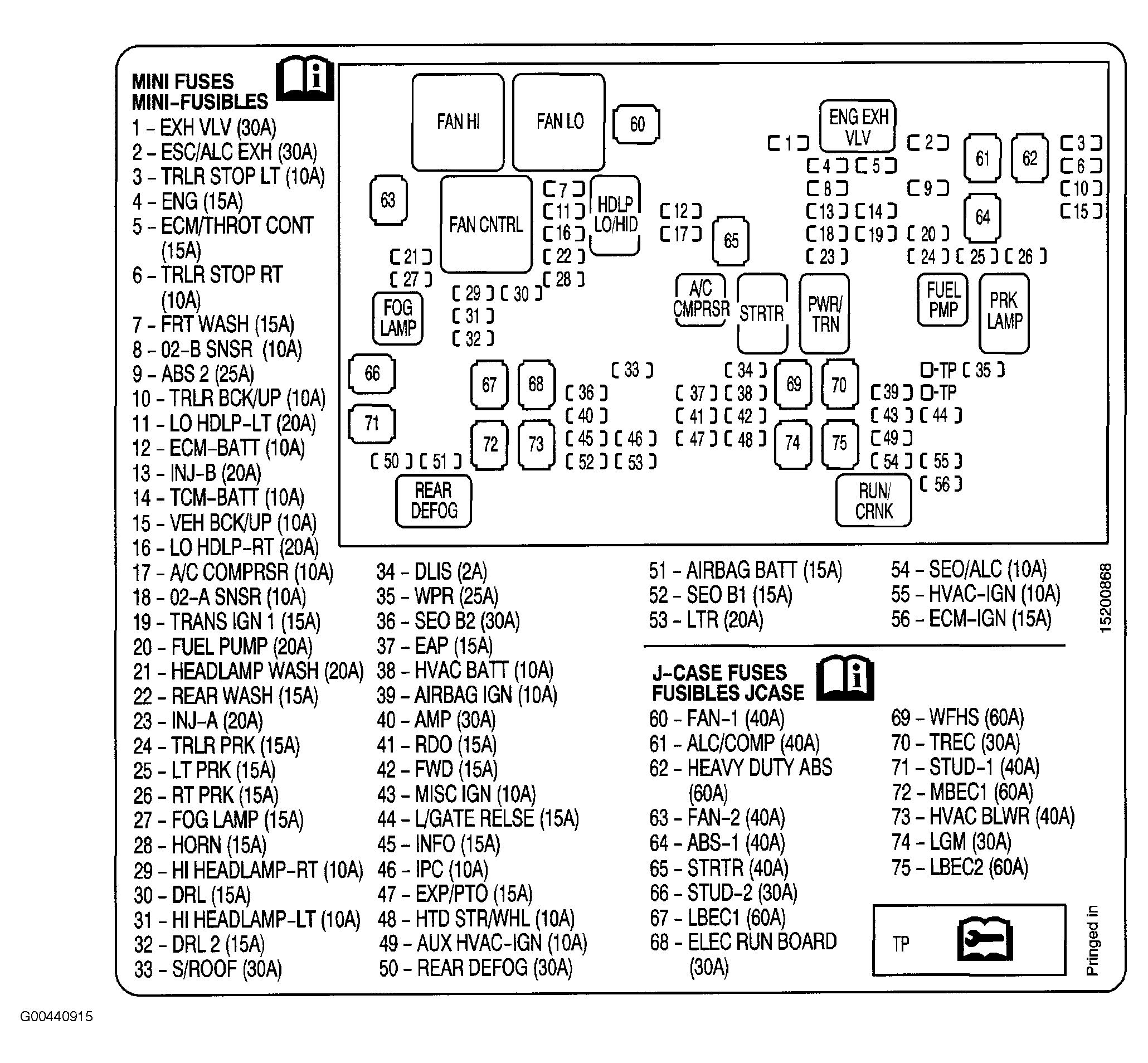

Fig 77: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

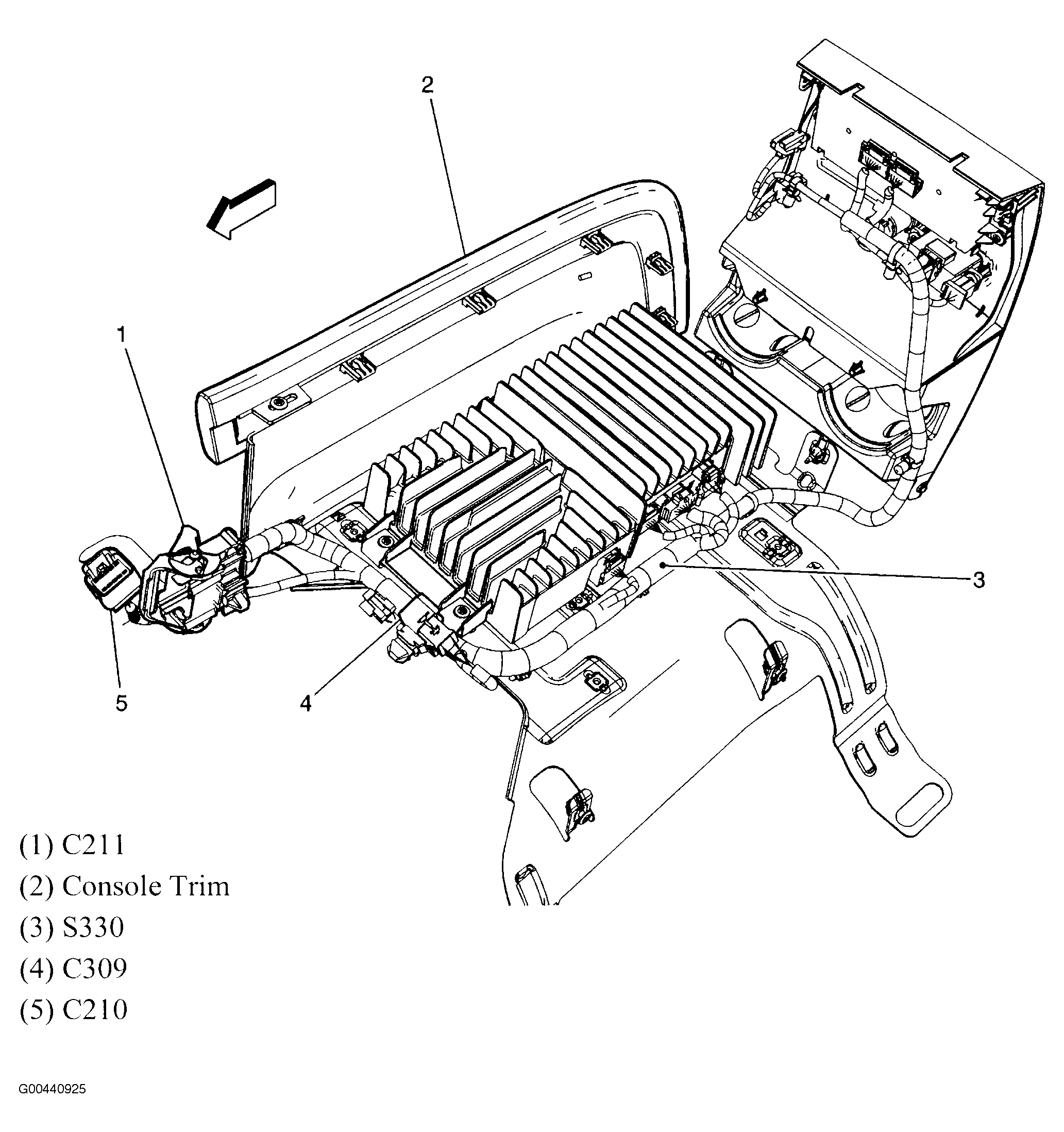

Fig 78: Center Console
Courtesy of GENERAL MOTORS CORP.

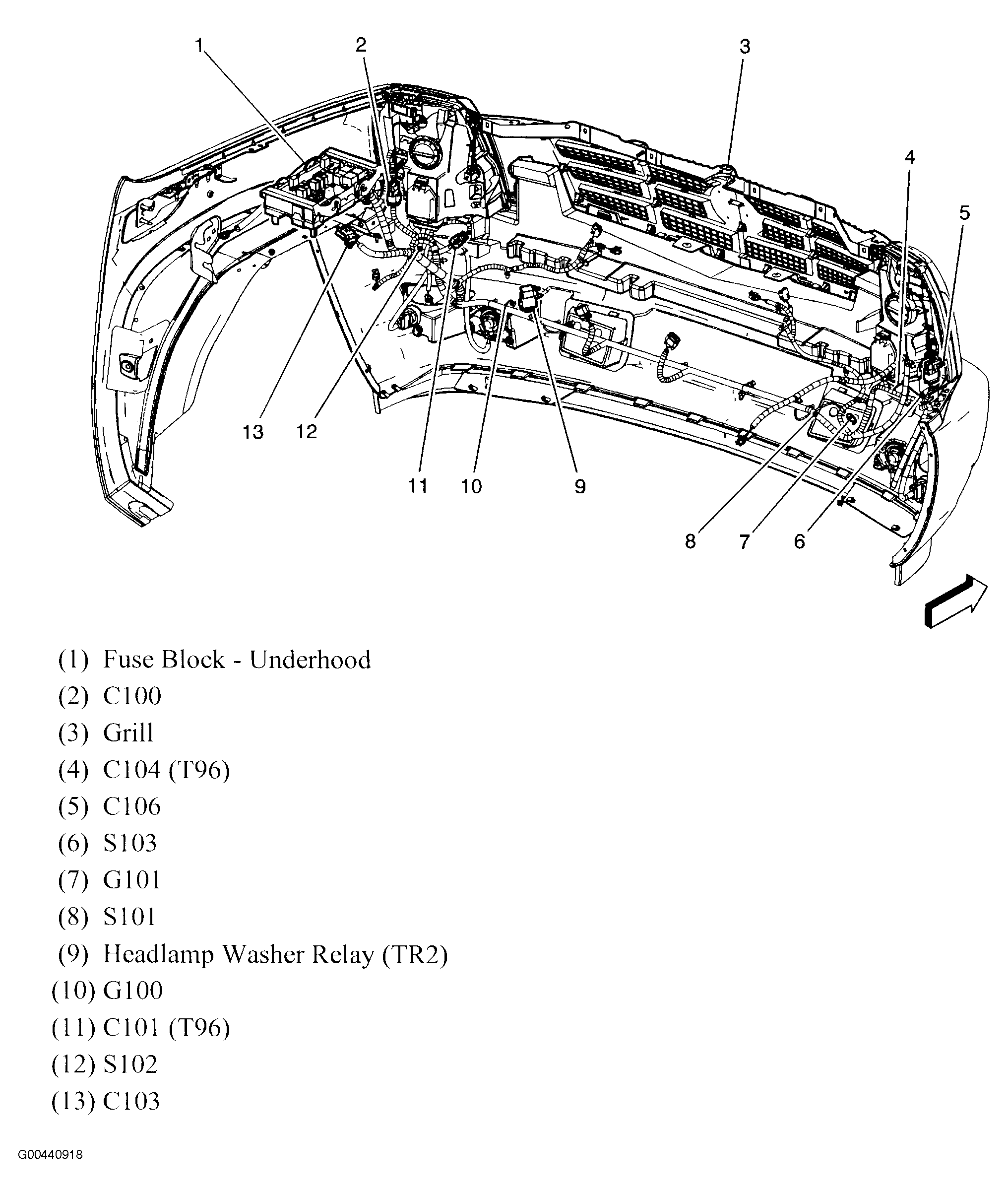

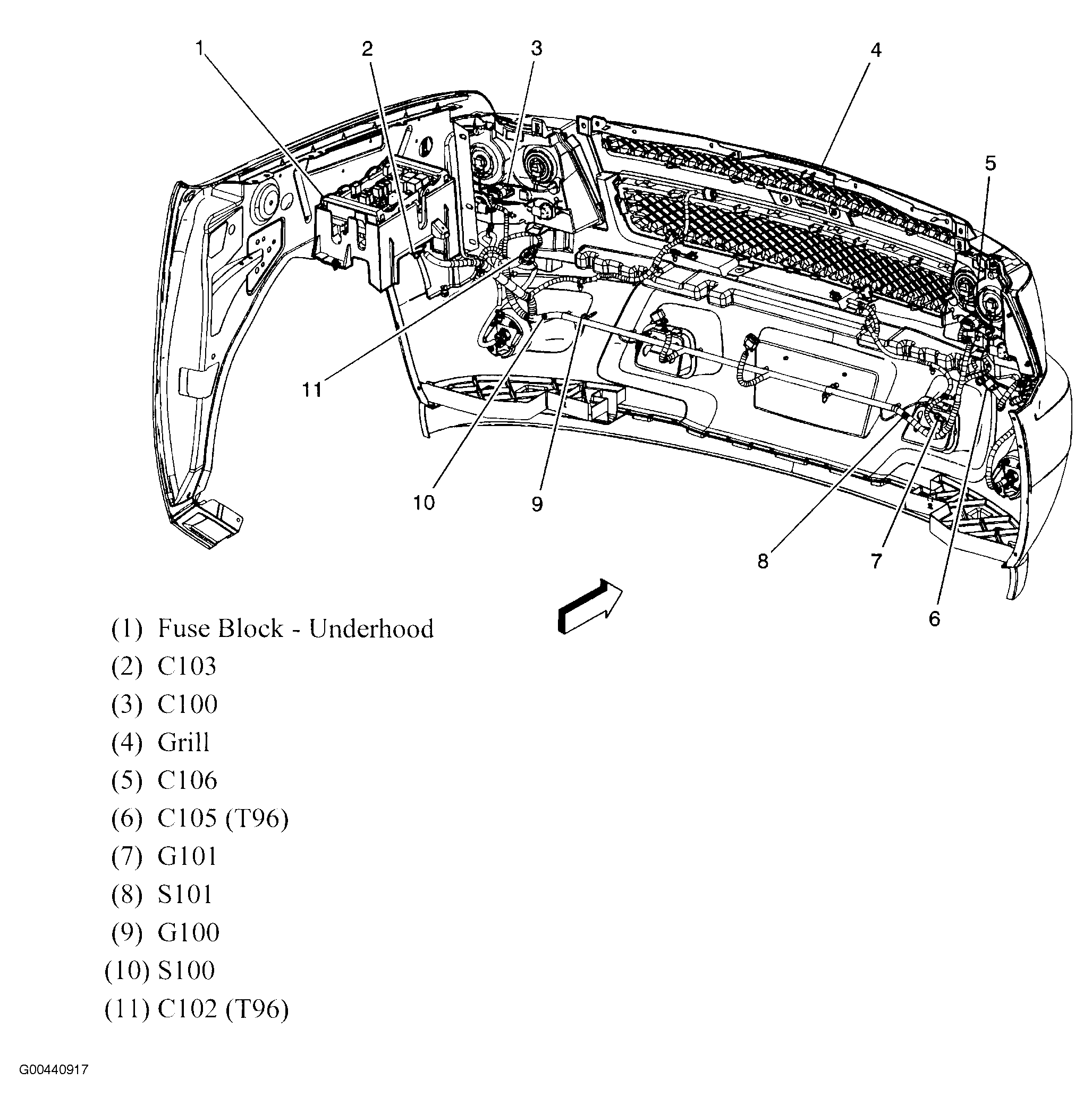

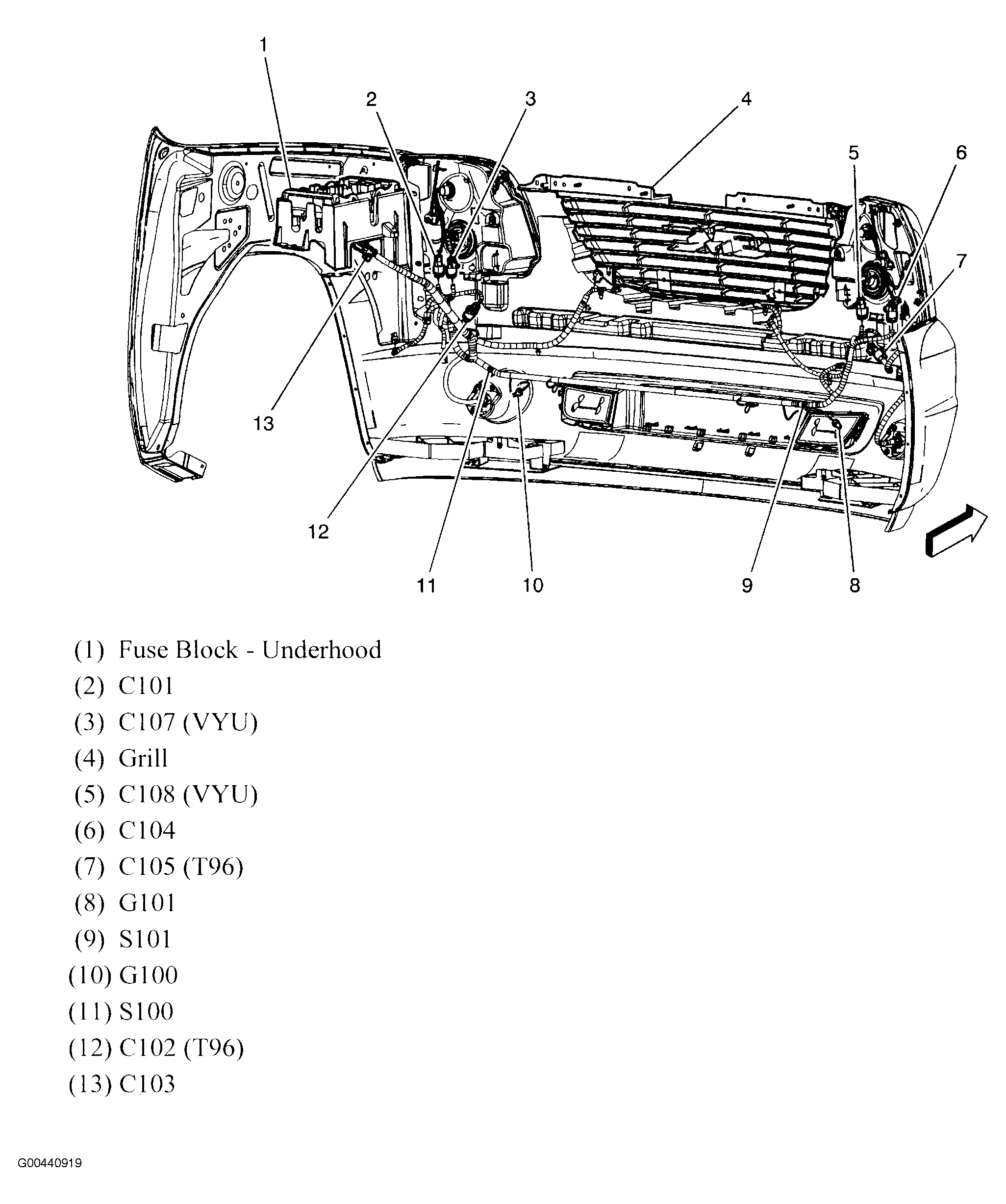

Fig 79: Front Fascia (Avalanche, Suburban & Tahoe)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Front Fascia (Tahoe & Escalade)
Courtesy of GENERAL MOTORS CORP.
Fig 81: Front Fascia (Yukon)
Courtesy of GENERAL MOTORS CORP.

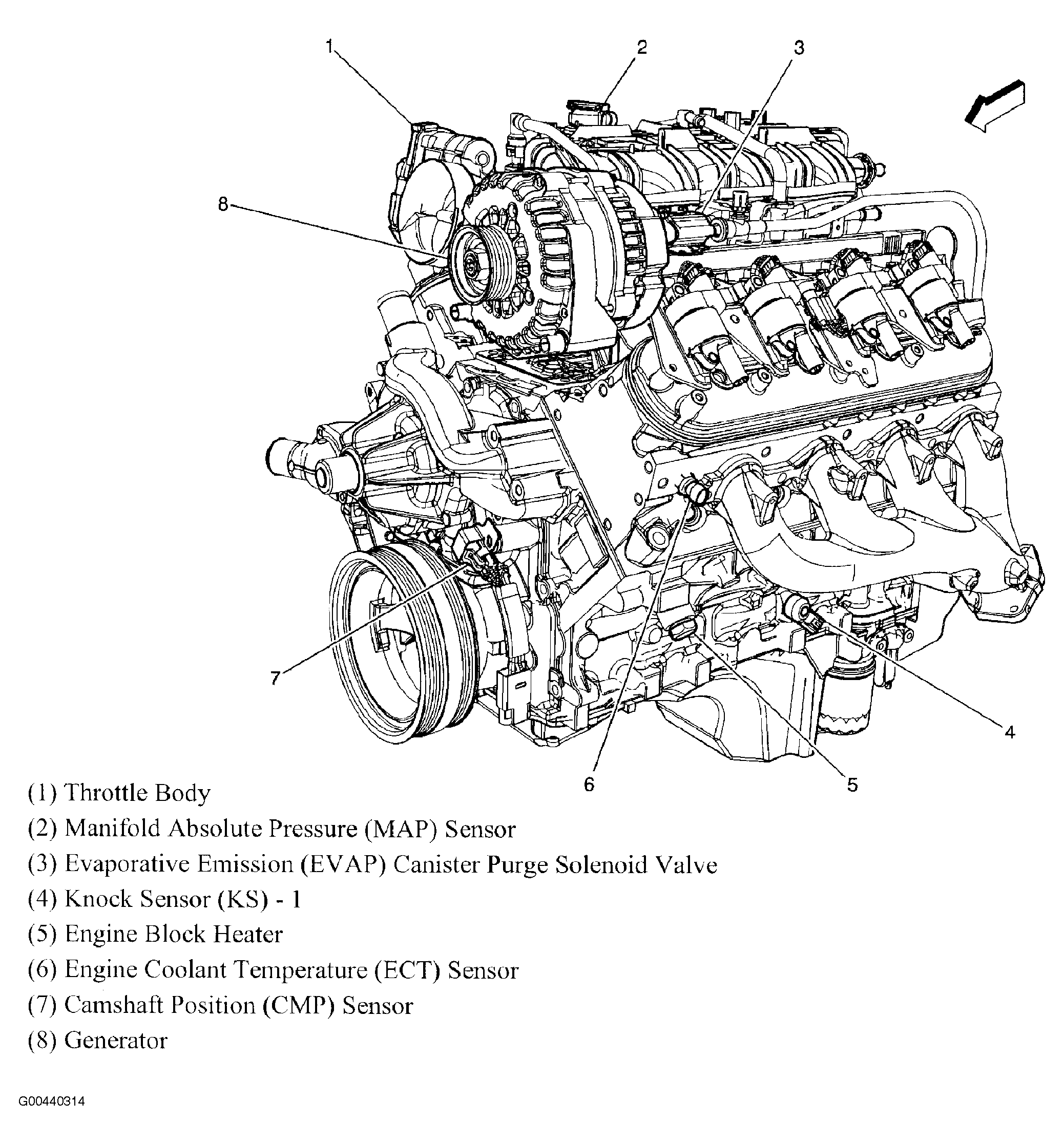

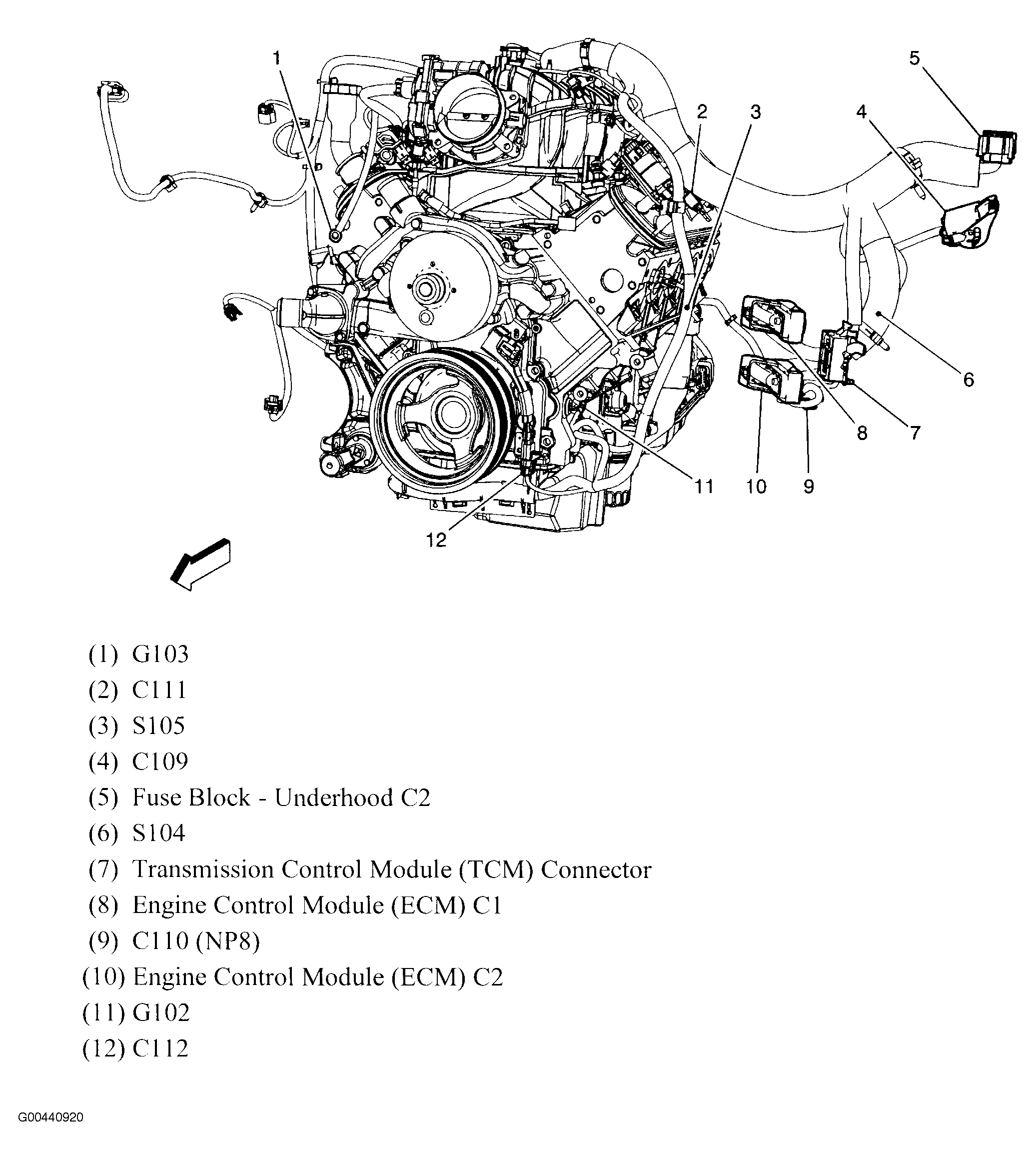

Fig 82: Engine
Courtesy of GENERAL MOTORS CORP.
Fig 83: Engine
Courtesy of GENERAL MOTORS CORP.
Fig 84: Engine
Courtesy of GENERAL MOTORS CORP.
Fig 85: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 86: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 87: Under Center Console
Courtesy of GENERAL MOTORS CORP.

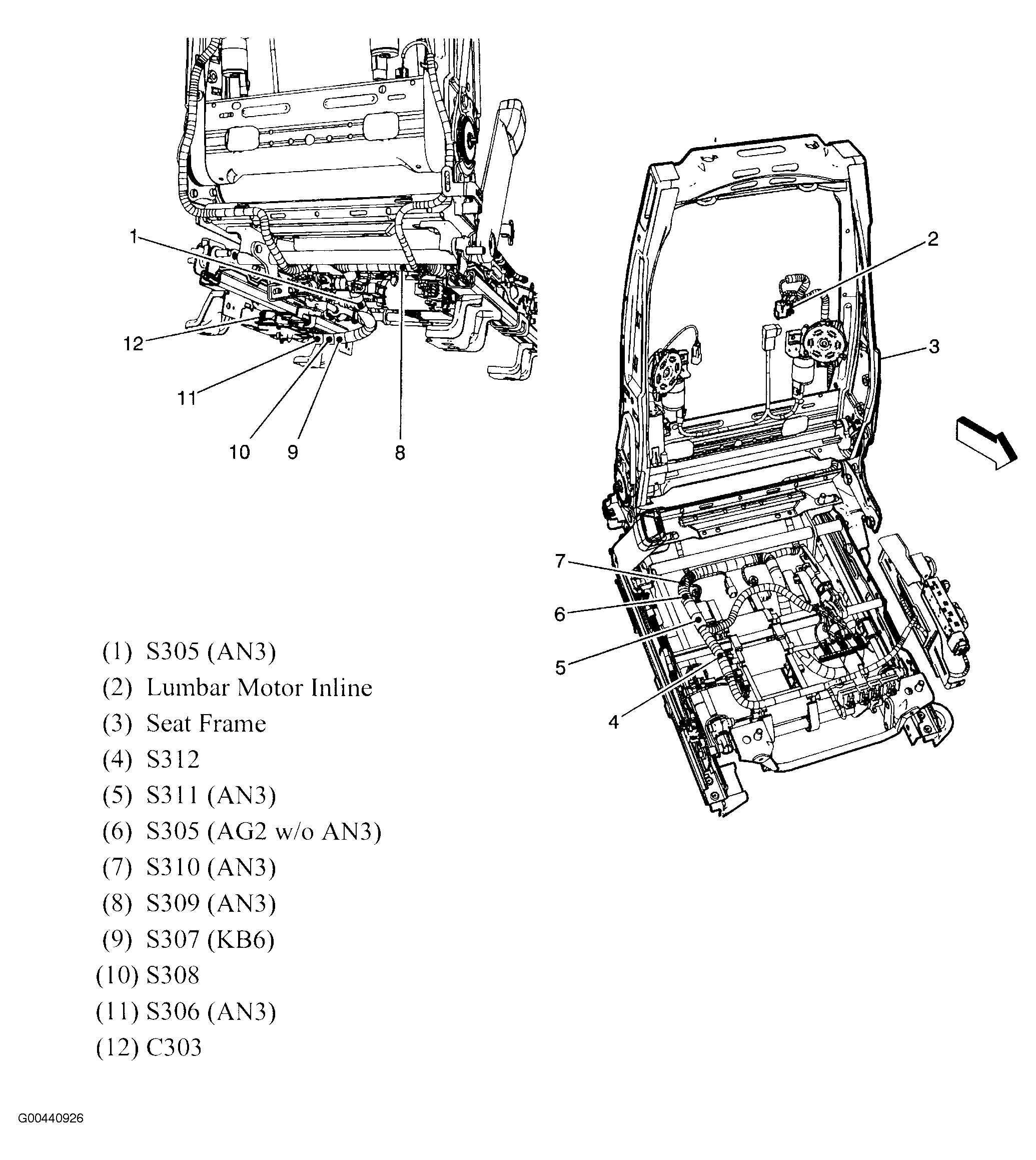

Fig 88: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 89: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

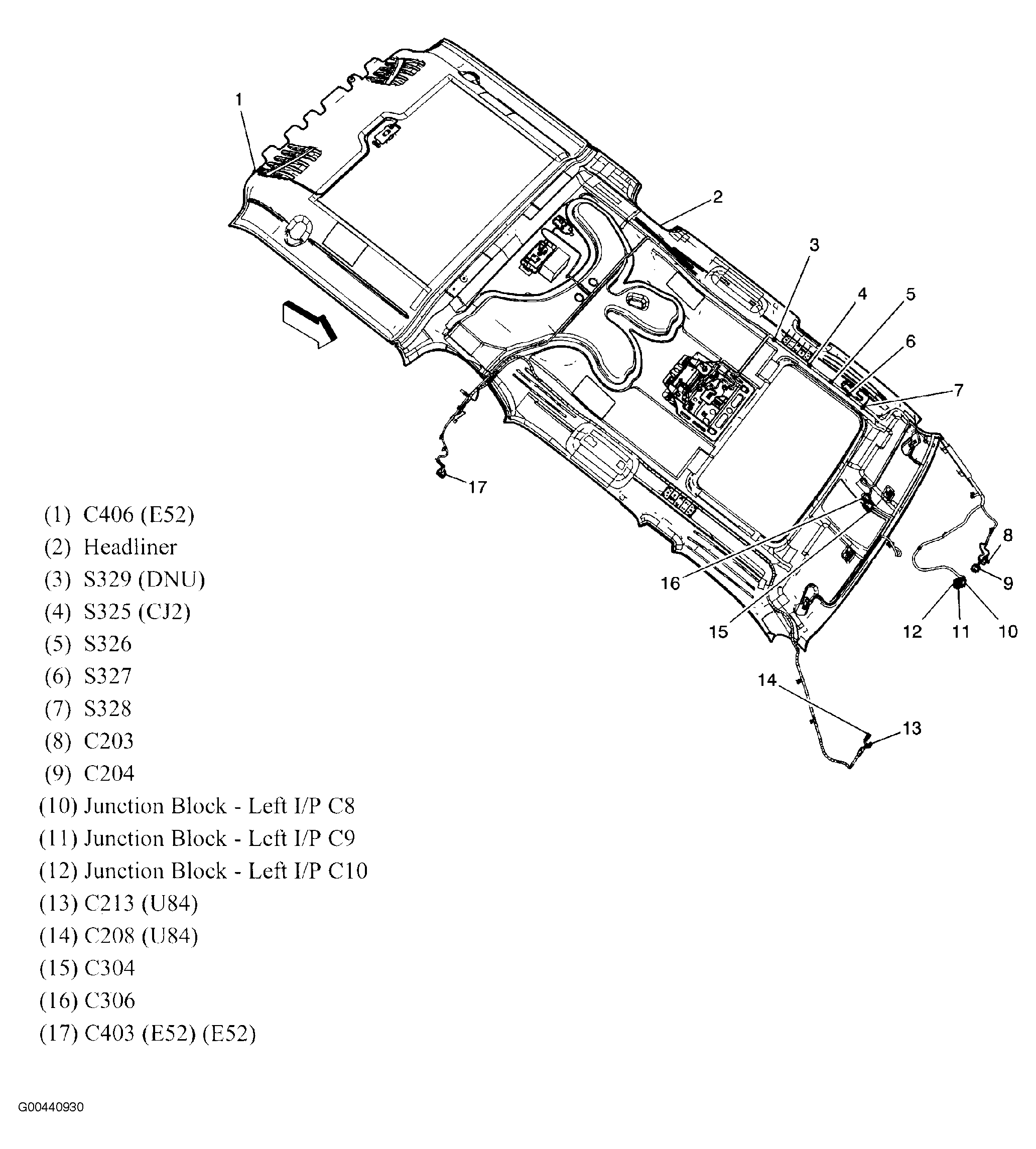

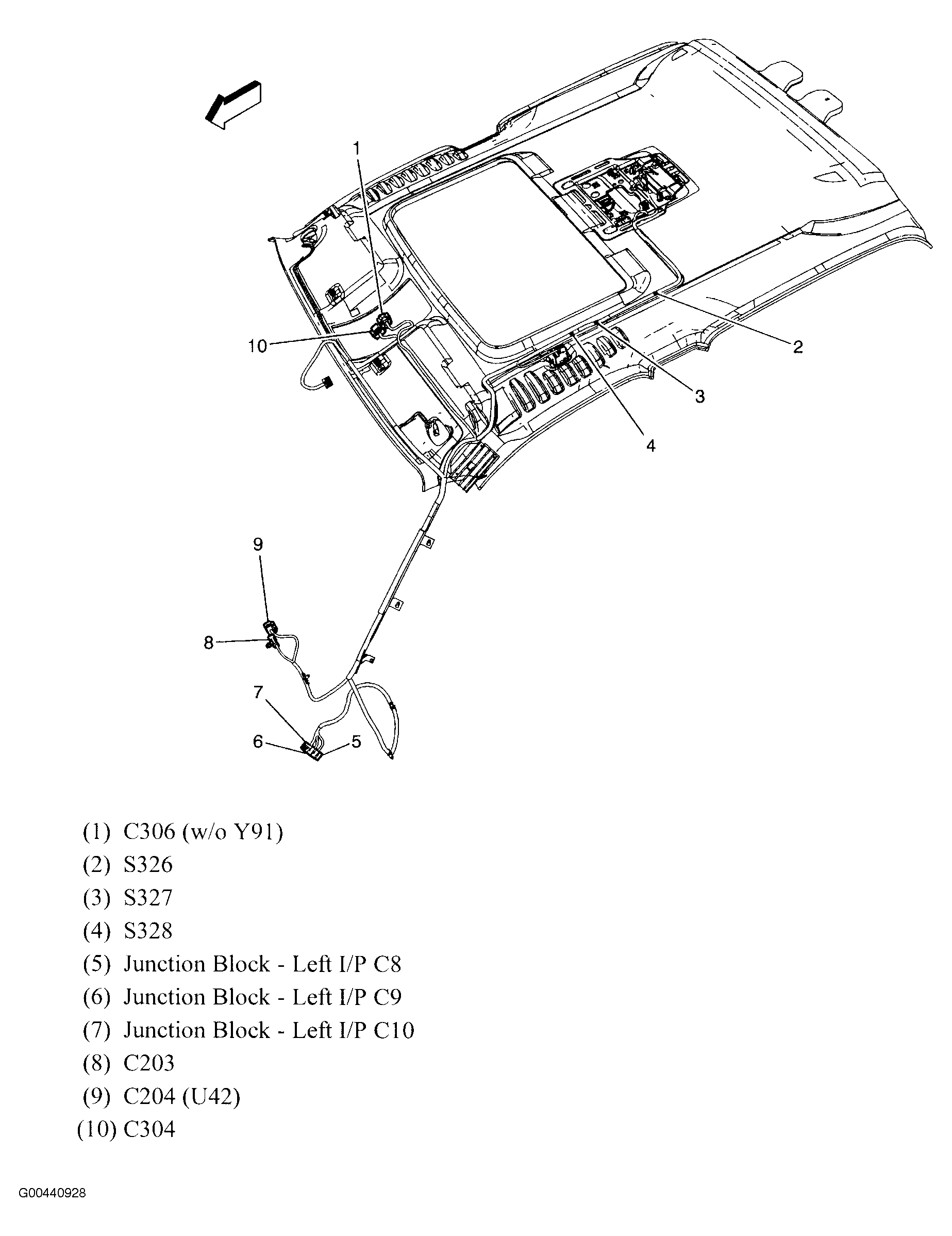

Fig 90: Roof (Except One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 91: Roof (Short Wheel Base - Y91)
Courtesy of GENERAL MOTORS CORP.

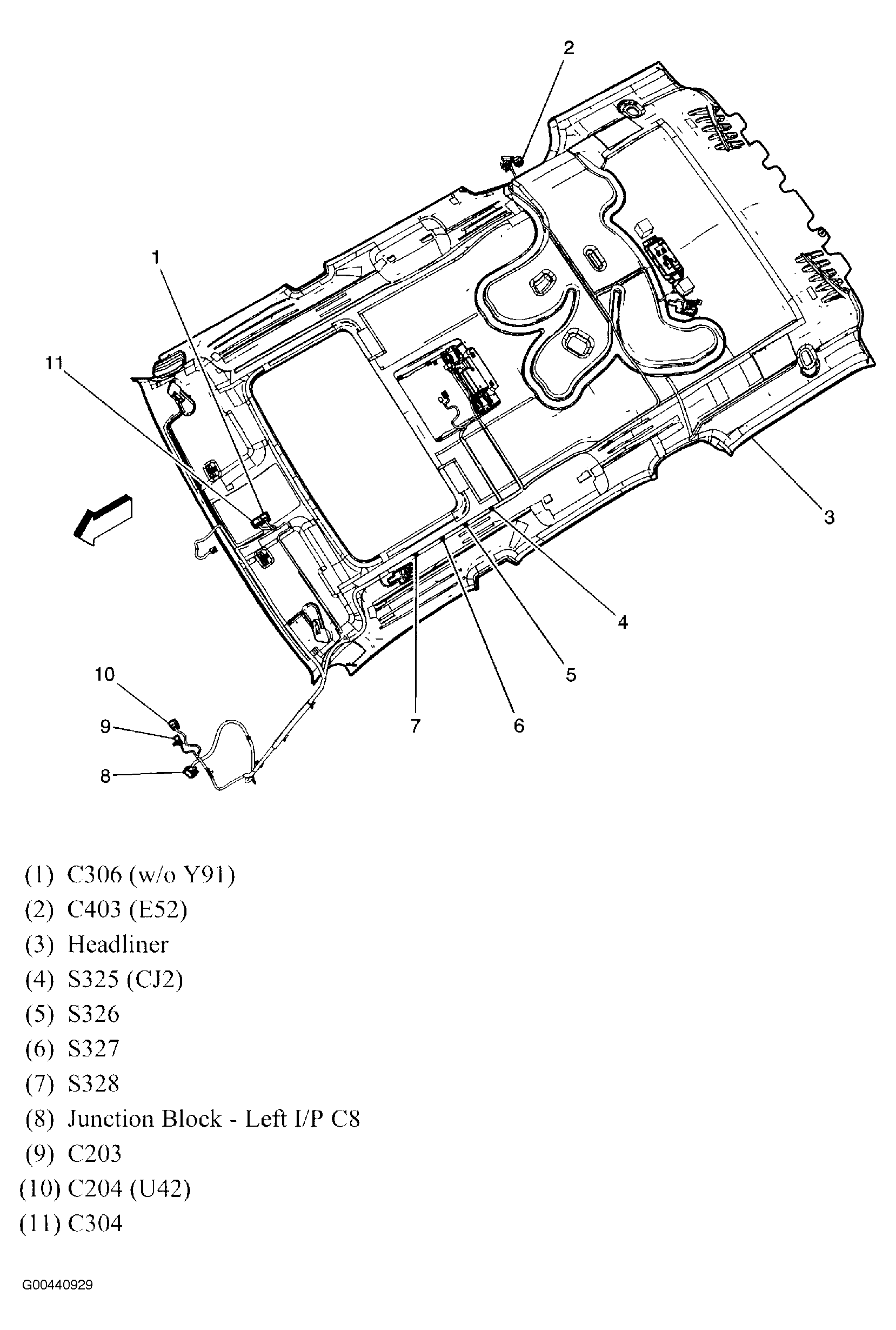

Fig 92: Roof (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.

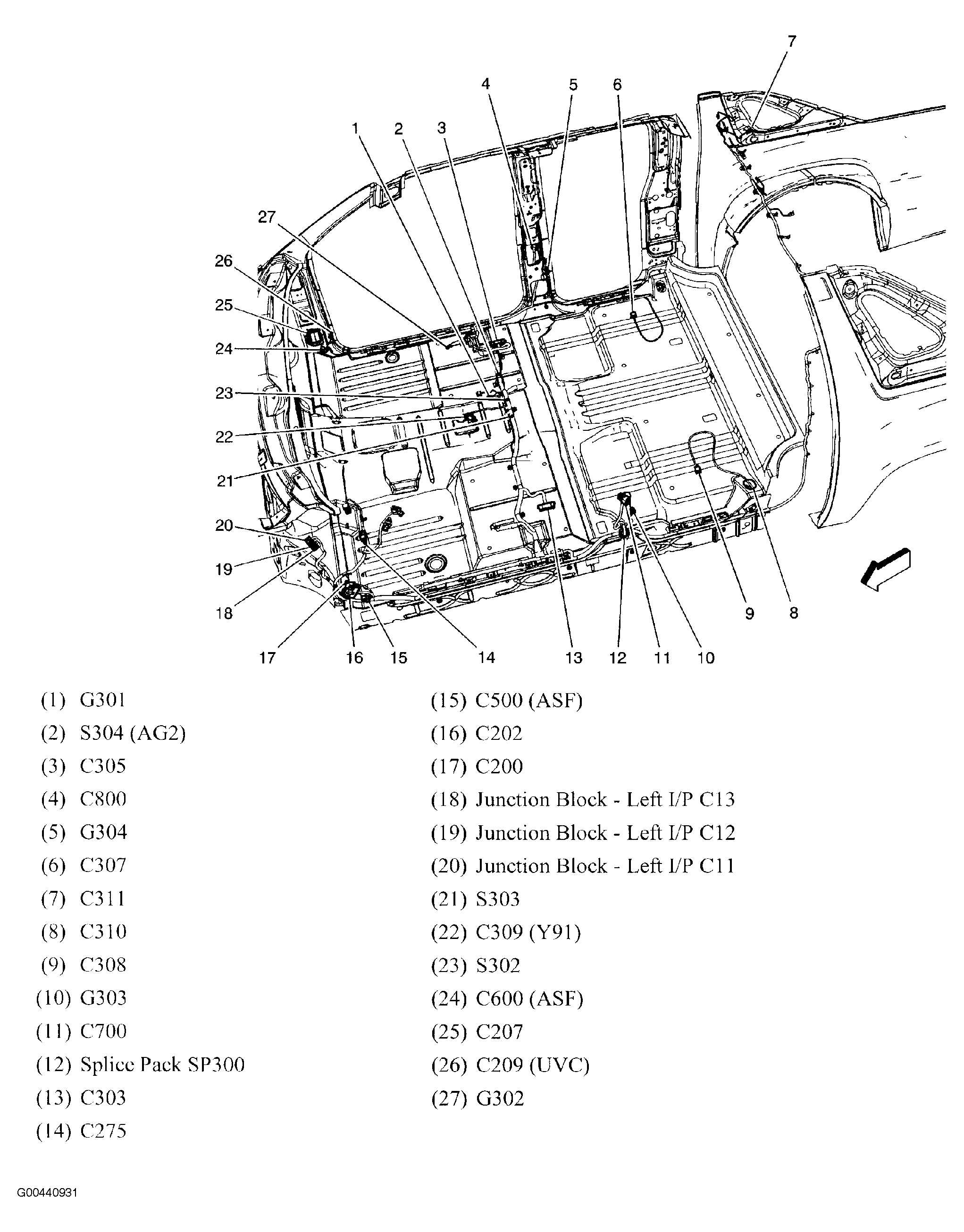

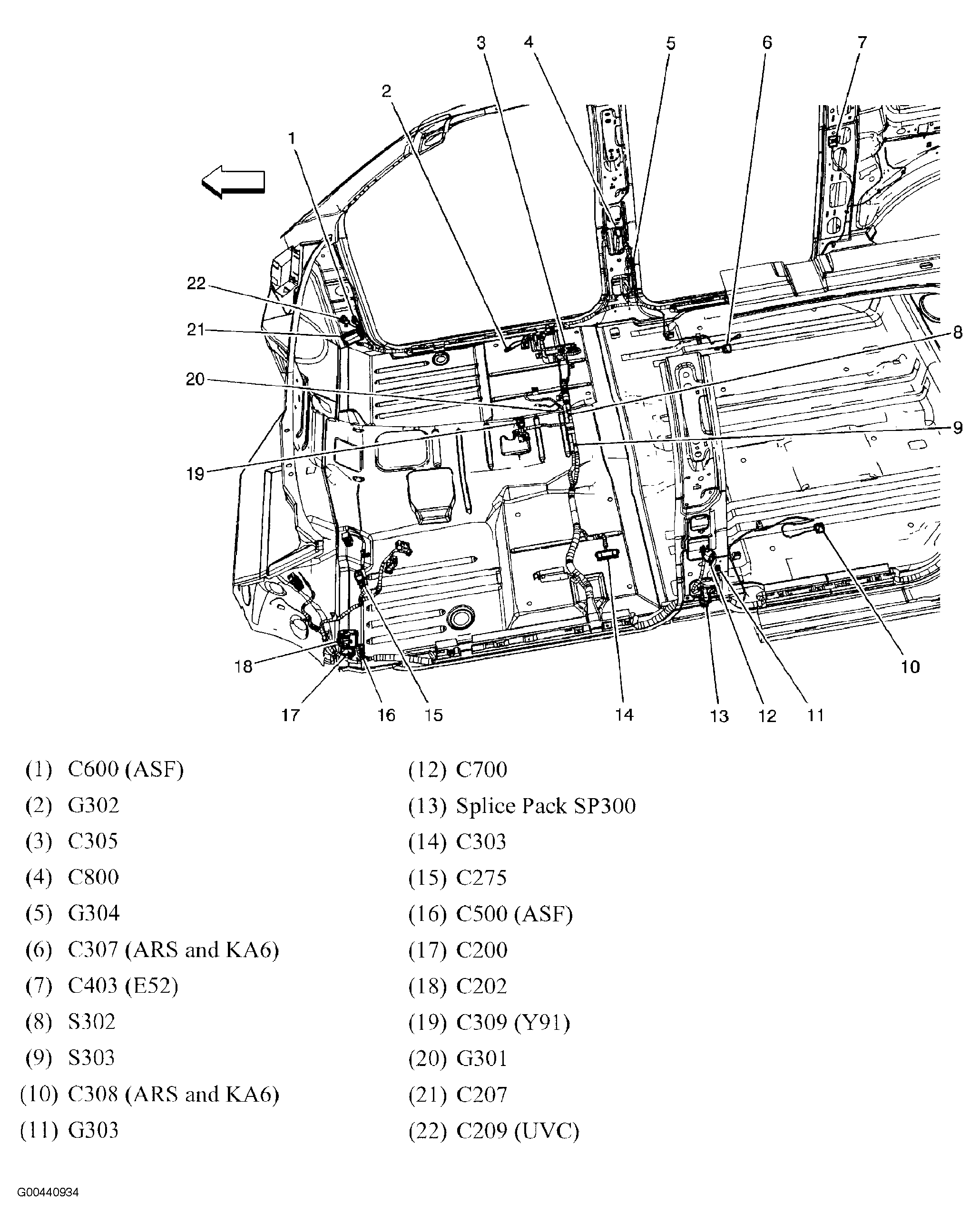

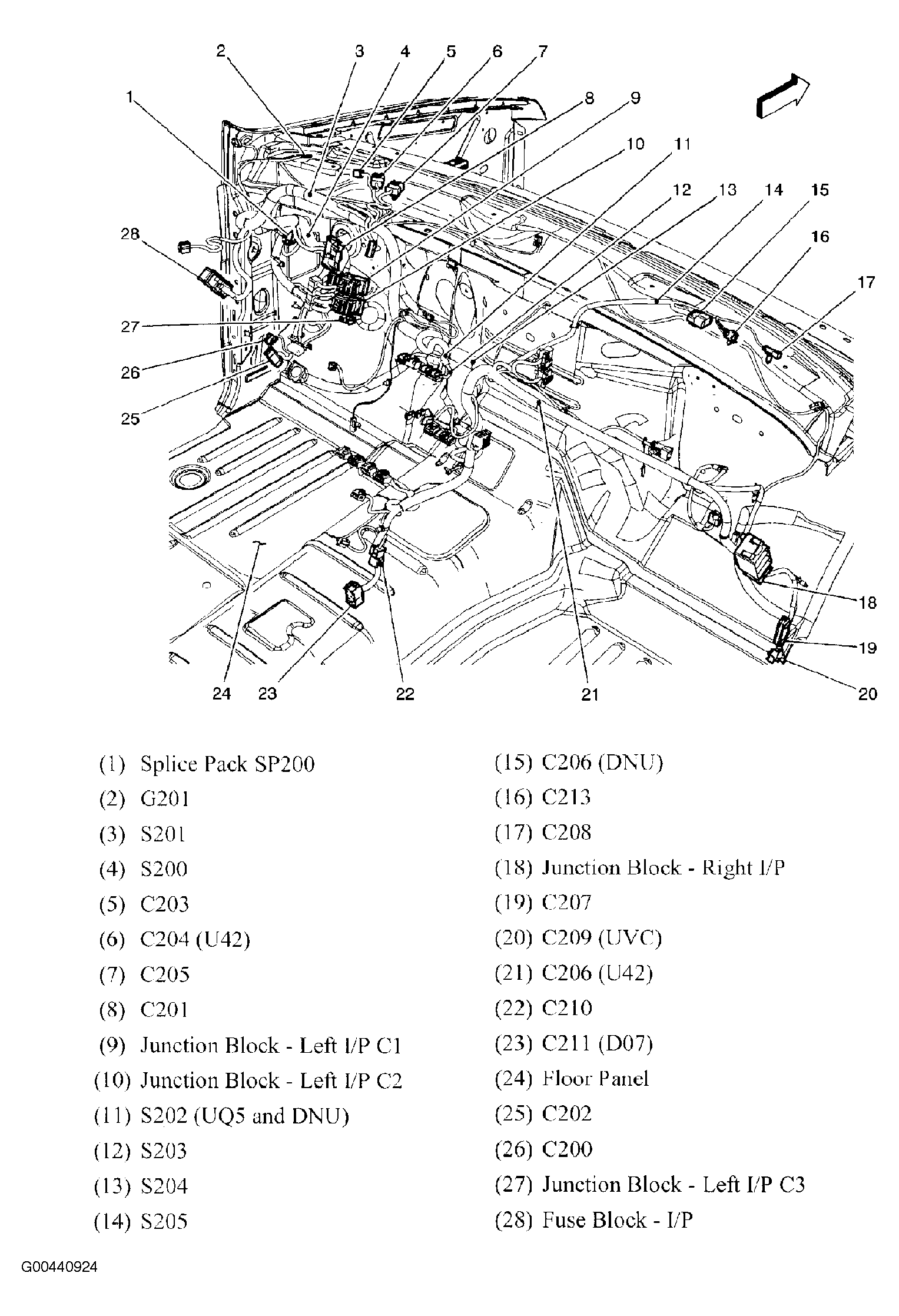

Fig 93: Passenger Compartment (Except One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.

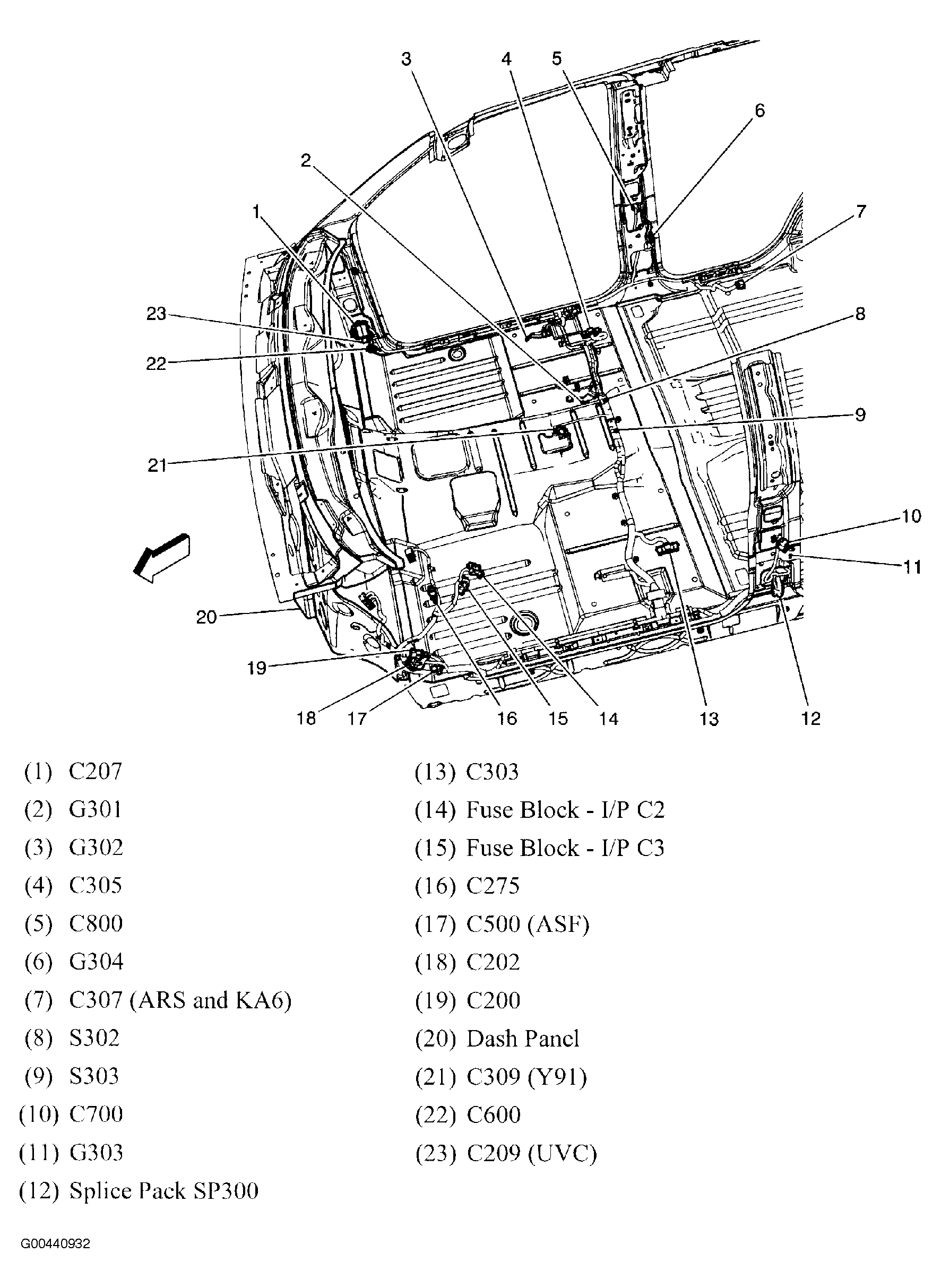

Fig 94: Front Passenger Compartment (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.

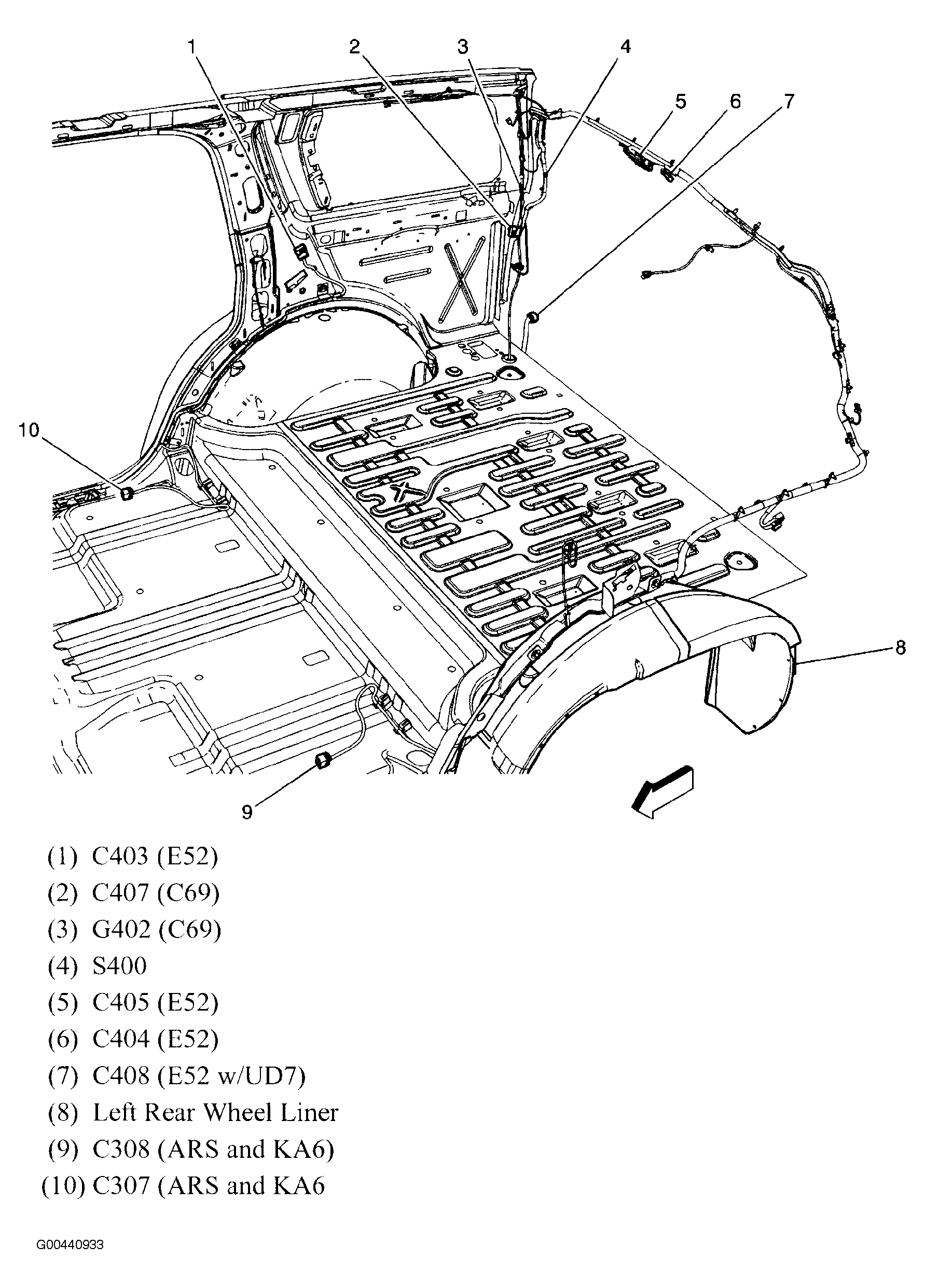

Fig 95: Rear Passenger Compartment (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 96: Front Passenger Compartment (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 97: Rear Passenger Compartment (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.

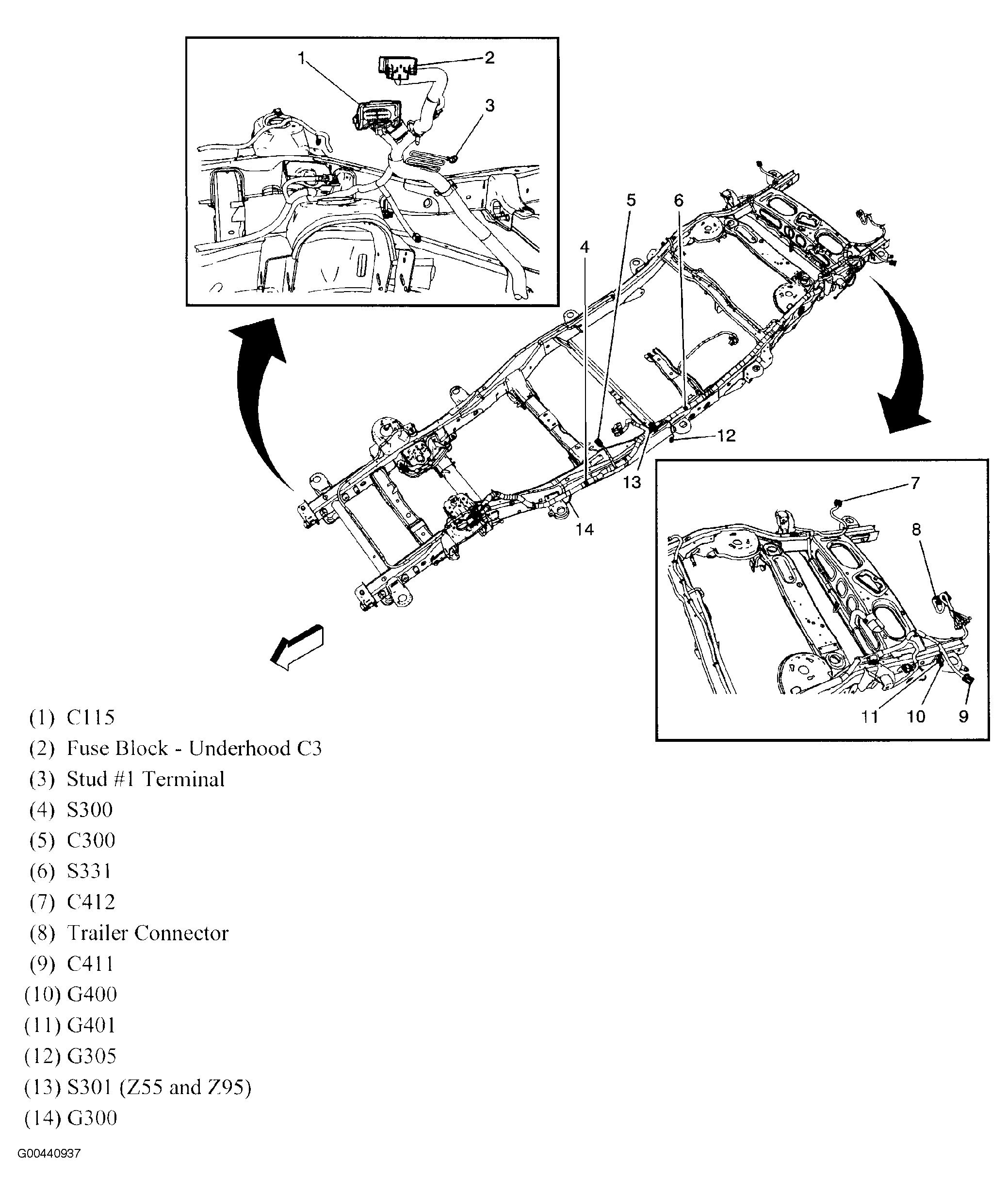

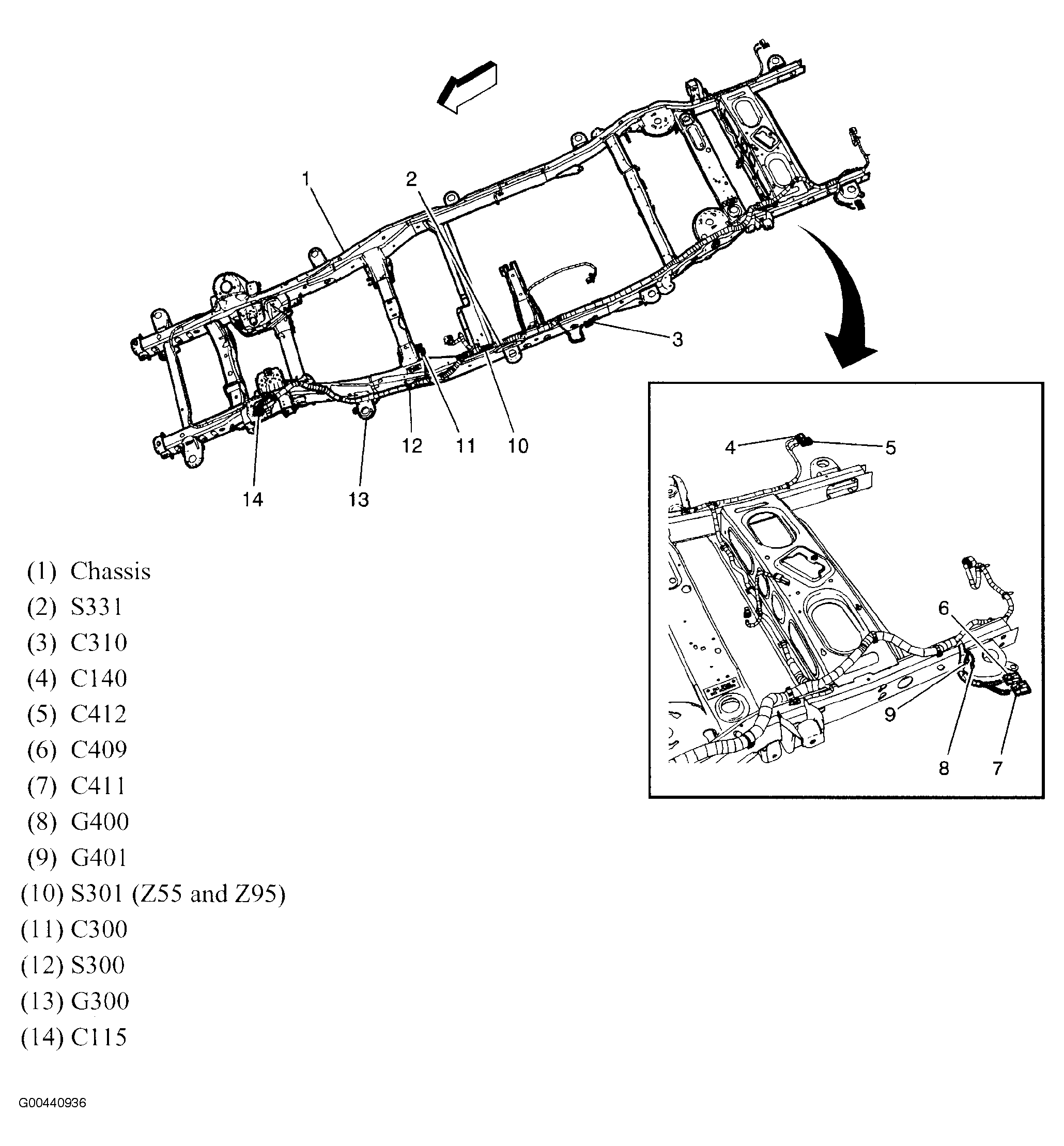

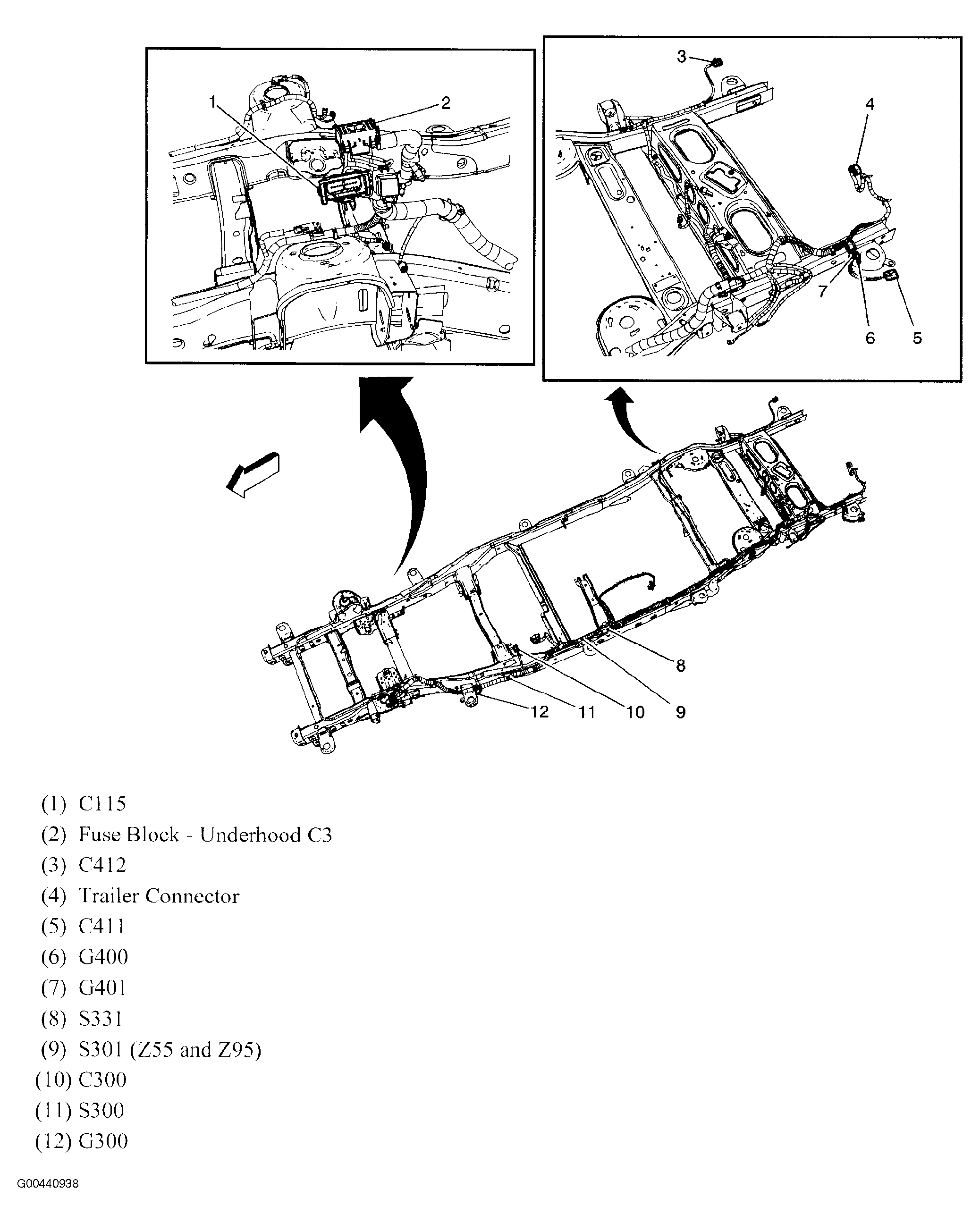

Fig 98: Chassis (Except One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.
Fig 99: Chassis (Short Wheel Base)
Courtesy of GENERAL MOTORS CORP.
Fig 100: Chassis (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.

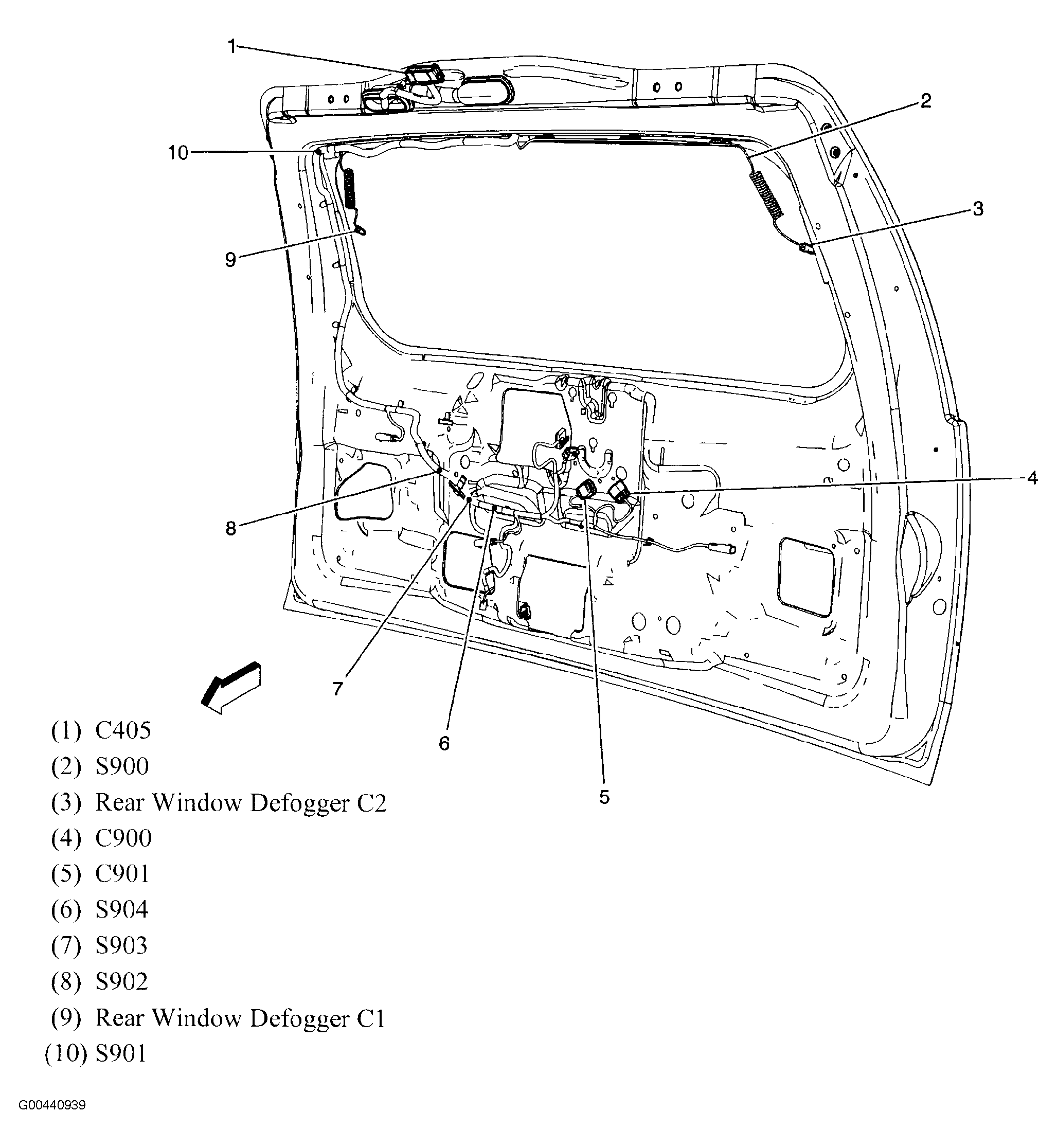

Fig 101: Liftgate (One Piece Liftgate)
Courtesy of GENERAL MOTORS CORP.

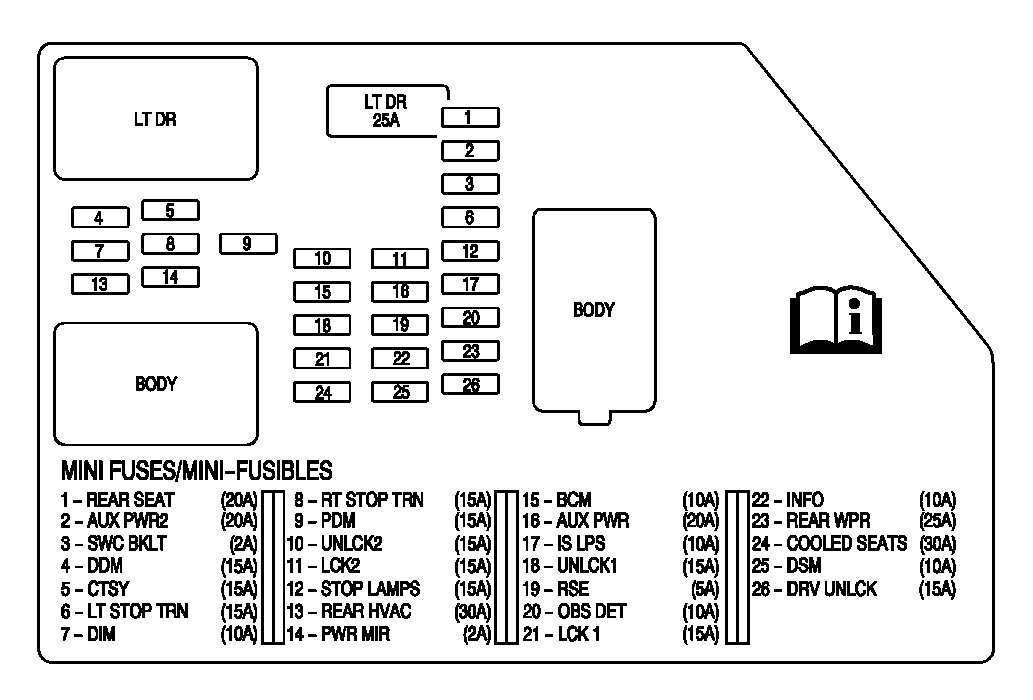

Fig 102: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
