Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

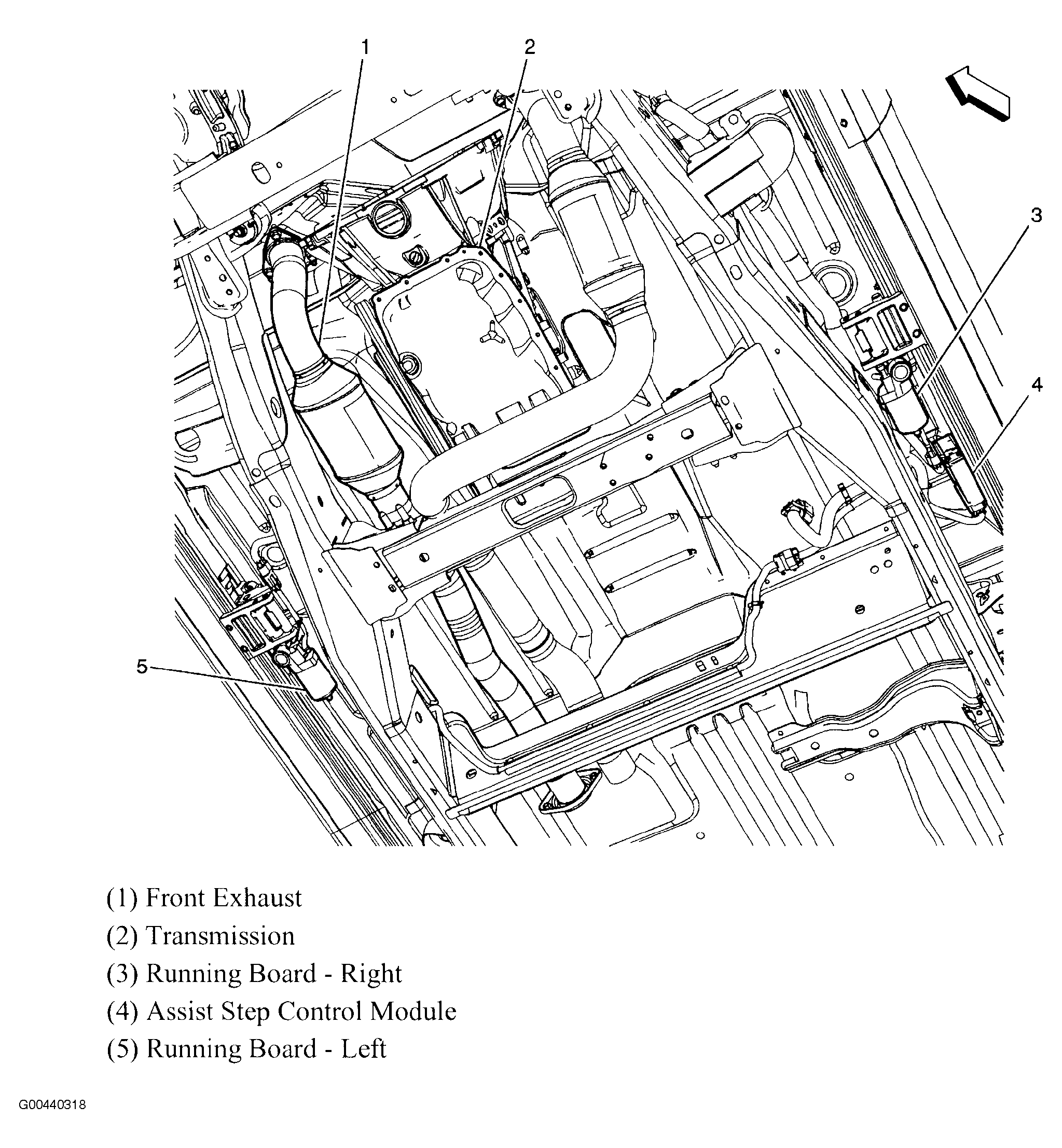

| Assist Step Control Module | Under left center of vehicle. See Figure. |

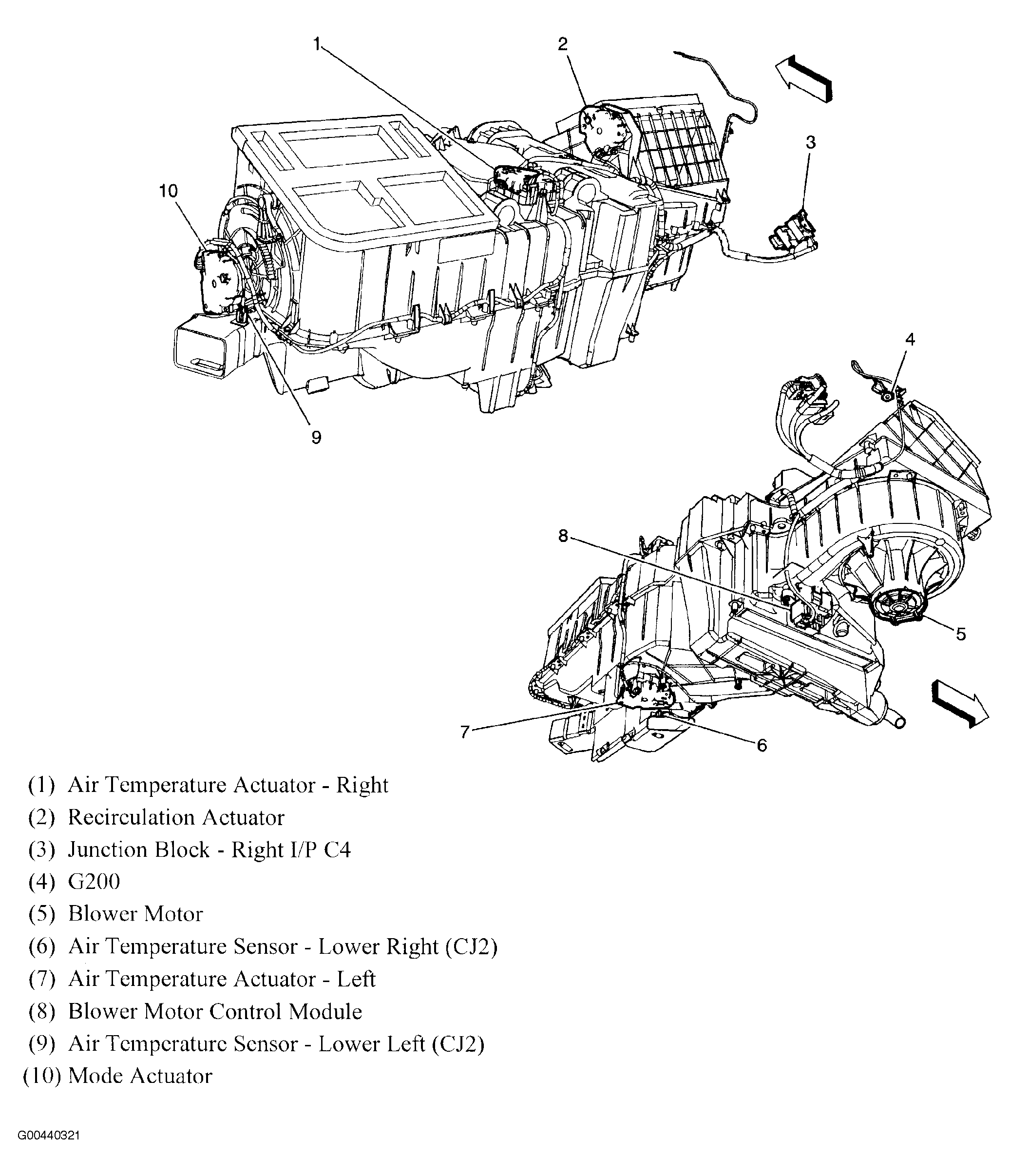

| Blower Motor Control Module | Bottom center of HVAC module. See Figure. |

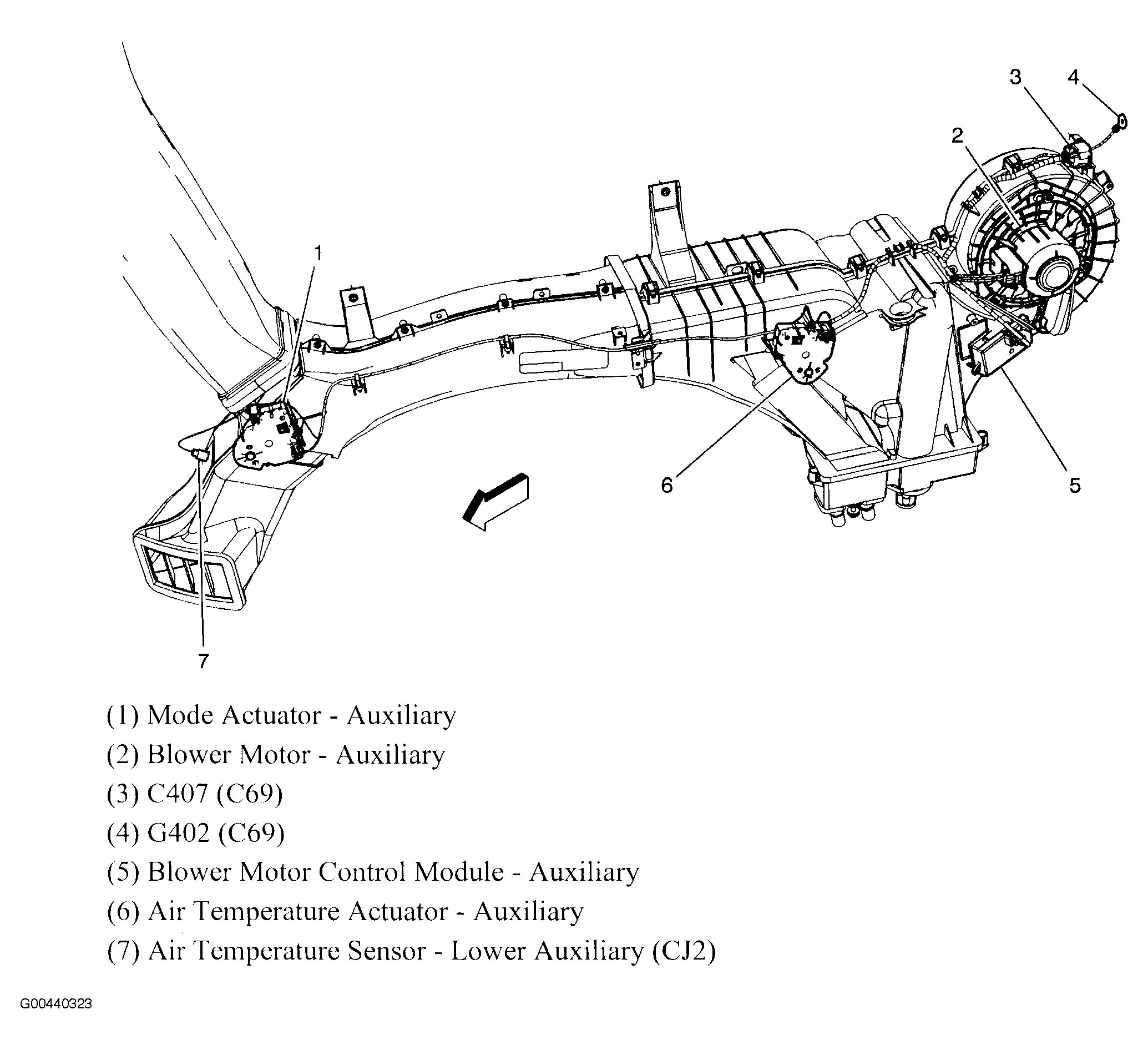

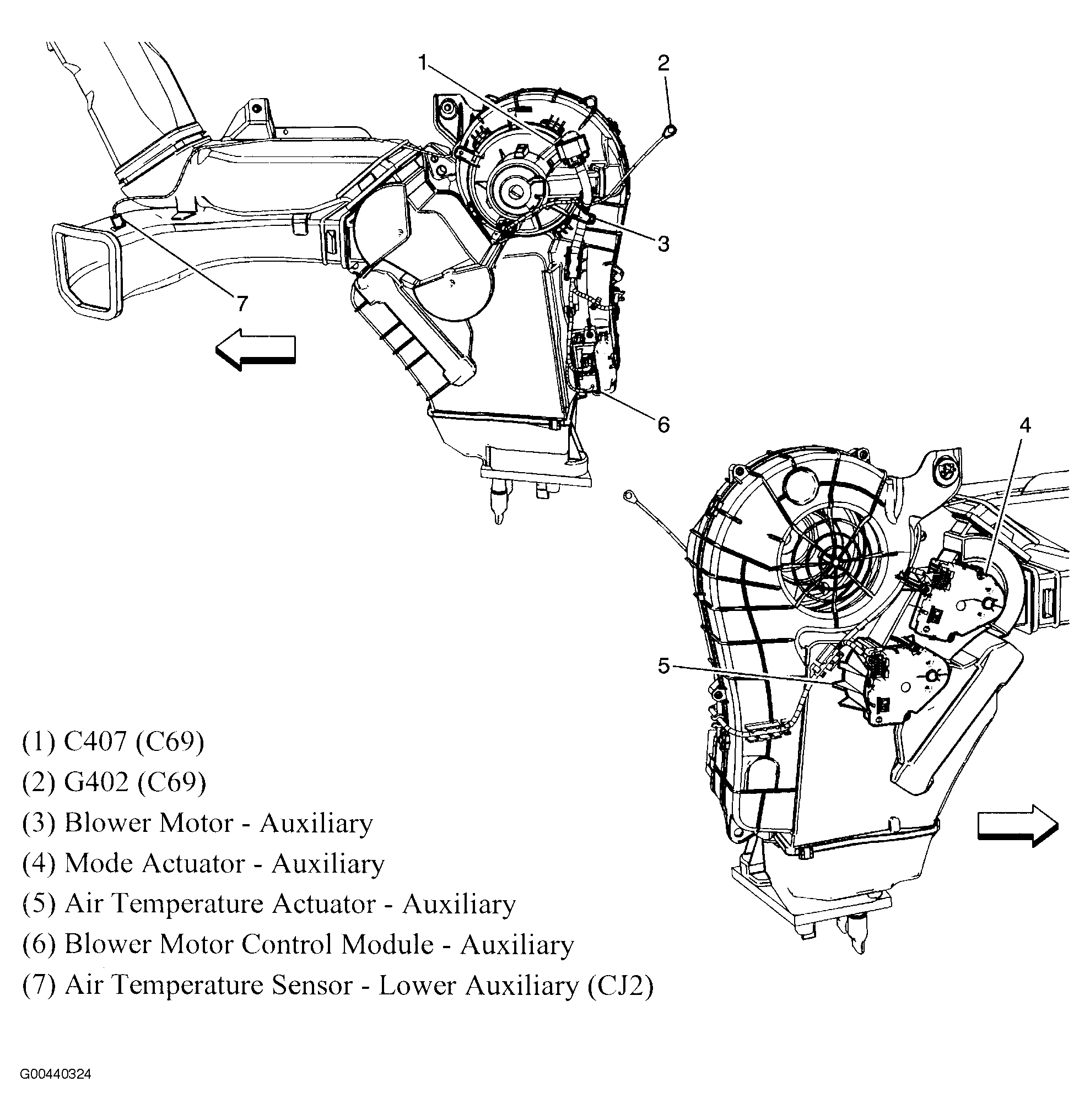

| Blower Motor Control Module - Auxiliary (Long Wheel Base) | Below rear HVAC blower motor. See Figure. |
| Blower Motor Control Module - Auxiliary (Short Wheel Base) | Below rear HVAC blower motor. See Figure. |
| Body Control Module (BCM) | Behind lower left side of dash. See Figure. |

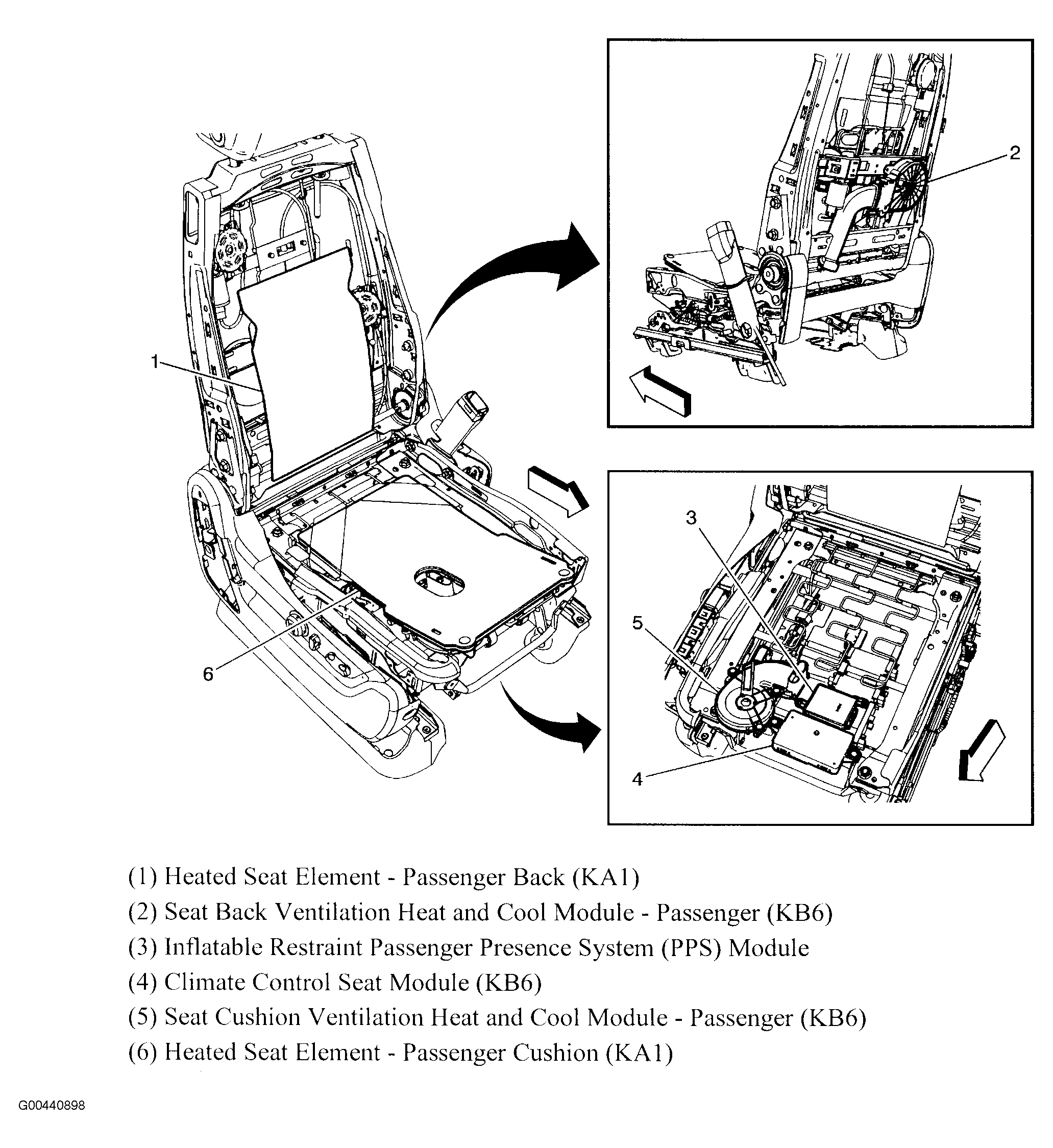

| Climate Control Seat Module (Passenger) | Under right front seat. See Figure. |

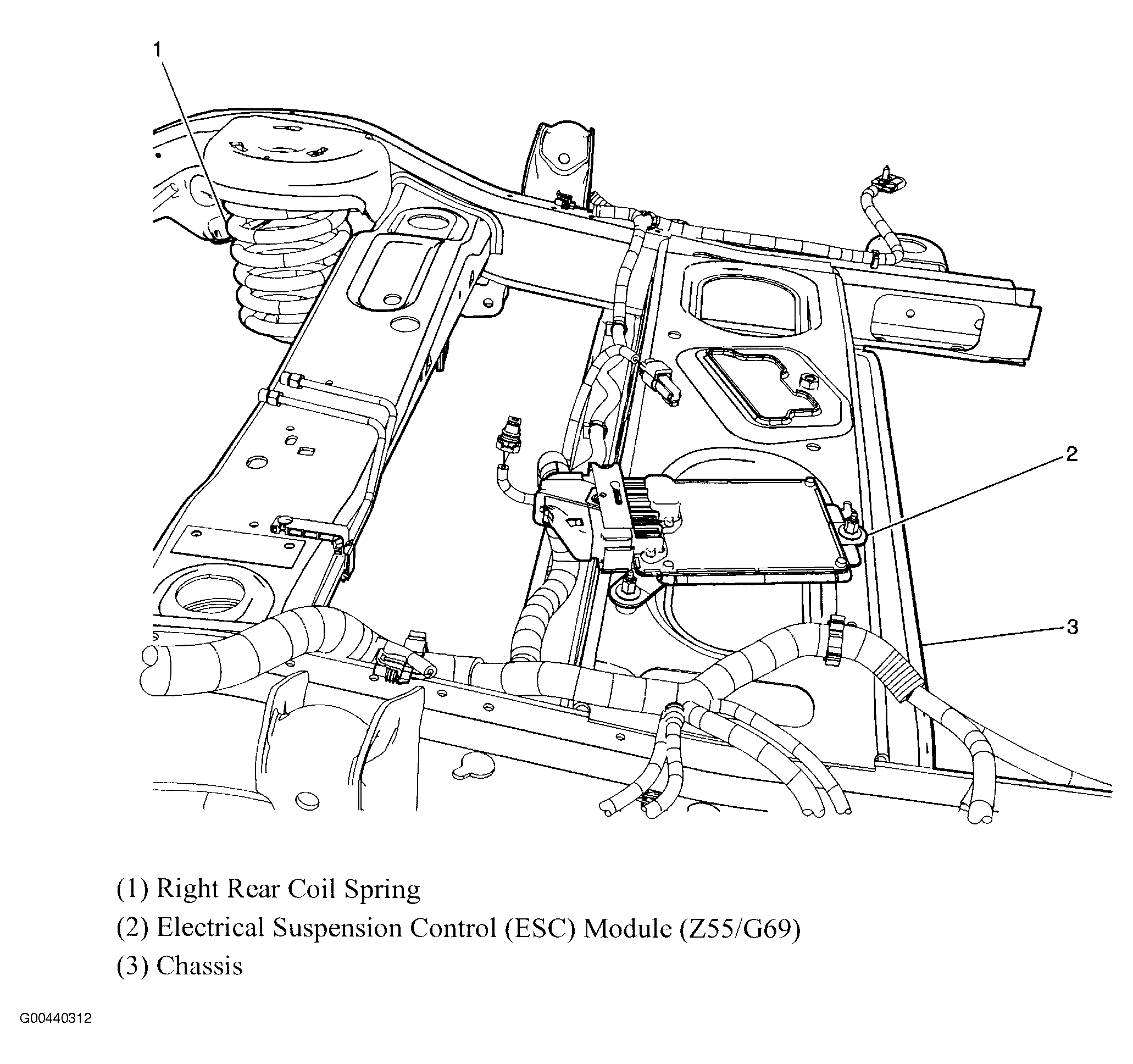

| Electrical Suspension Control (ESC) Module | Above spare tire, on chassis. See Figure. |

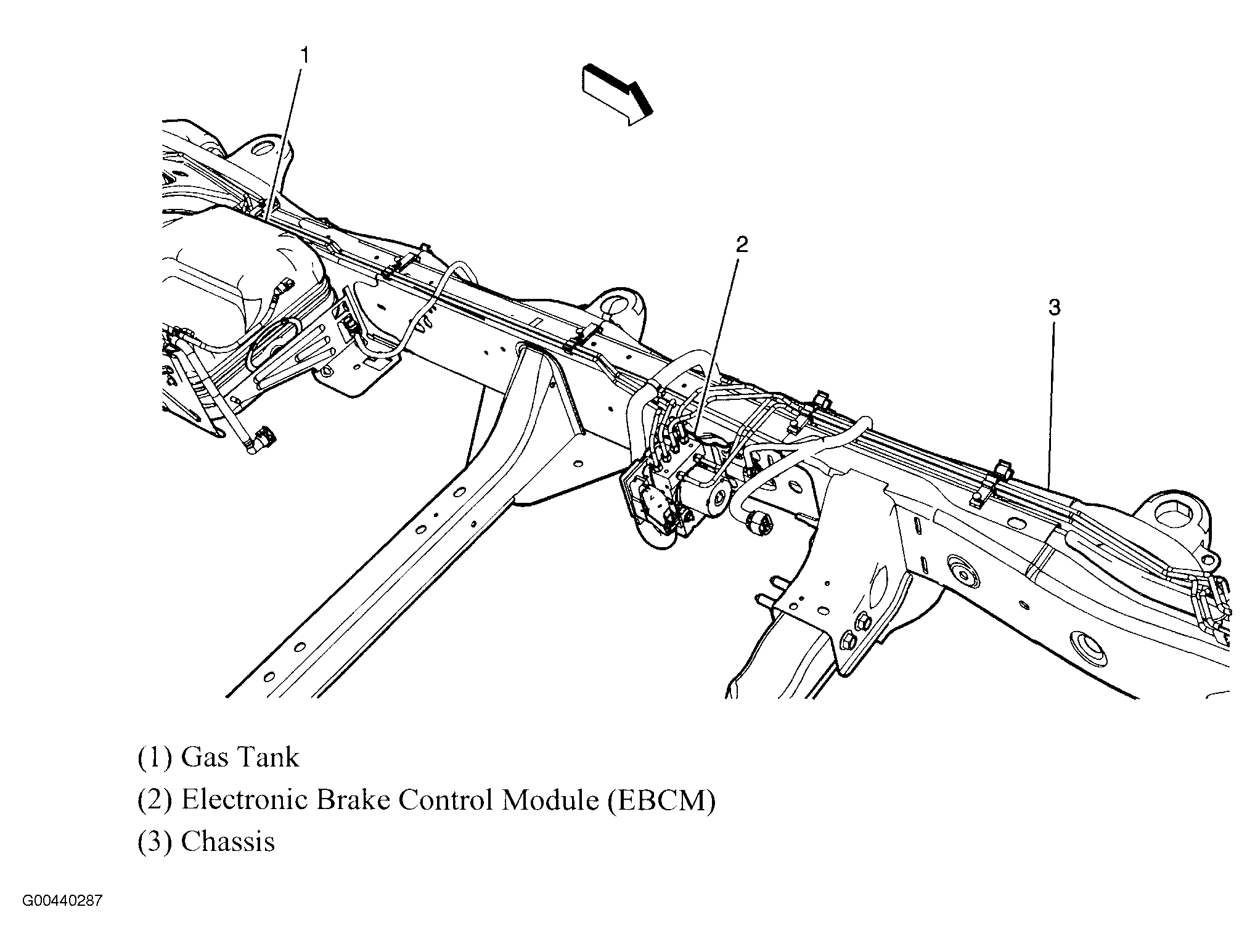

| Electronic Brake Control Module (EBCM) | On left rear frame rail. See Figure. |

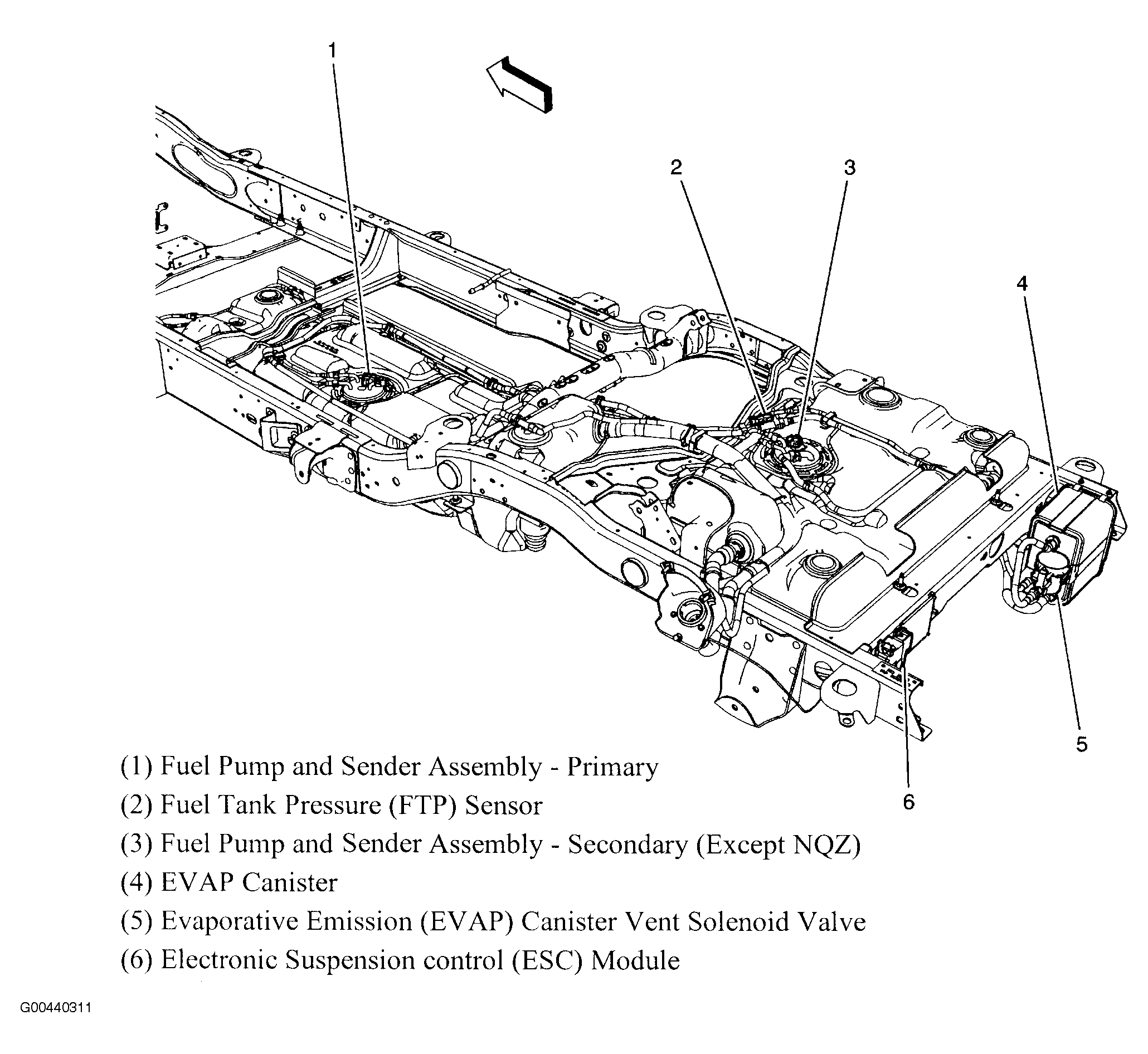

| Electronic Suspension Control (ESC) Module | Left rear of frame chassis. See Figure. |
| Engine Control Module (ECM) | Left side of engine compartment. See Figure. |

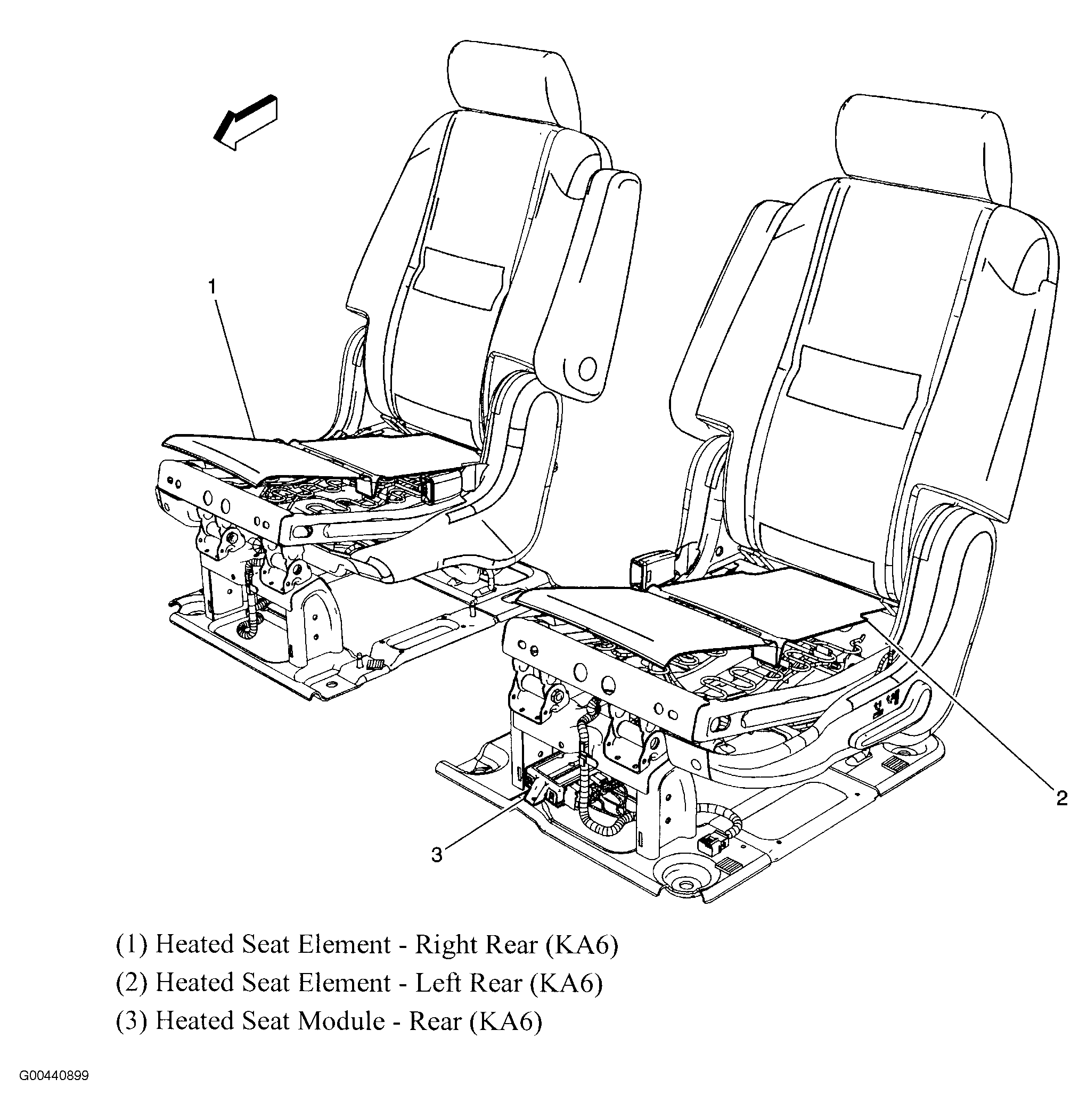

| Heated Seat Module - Rear | Under left rear seat. See Figure. |

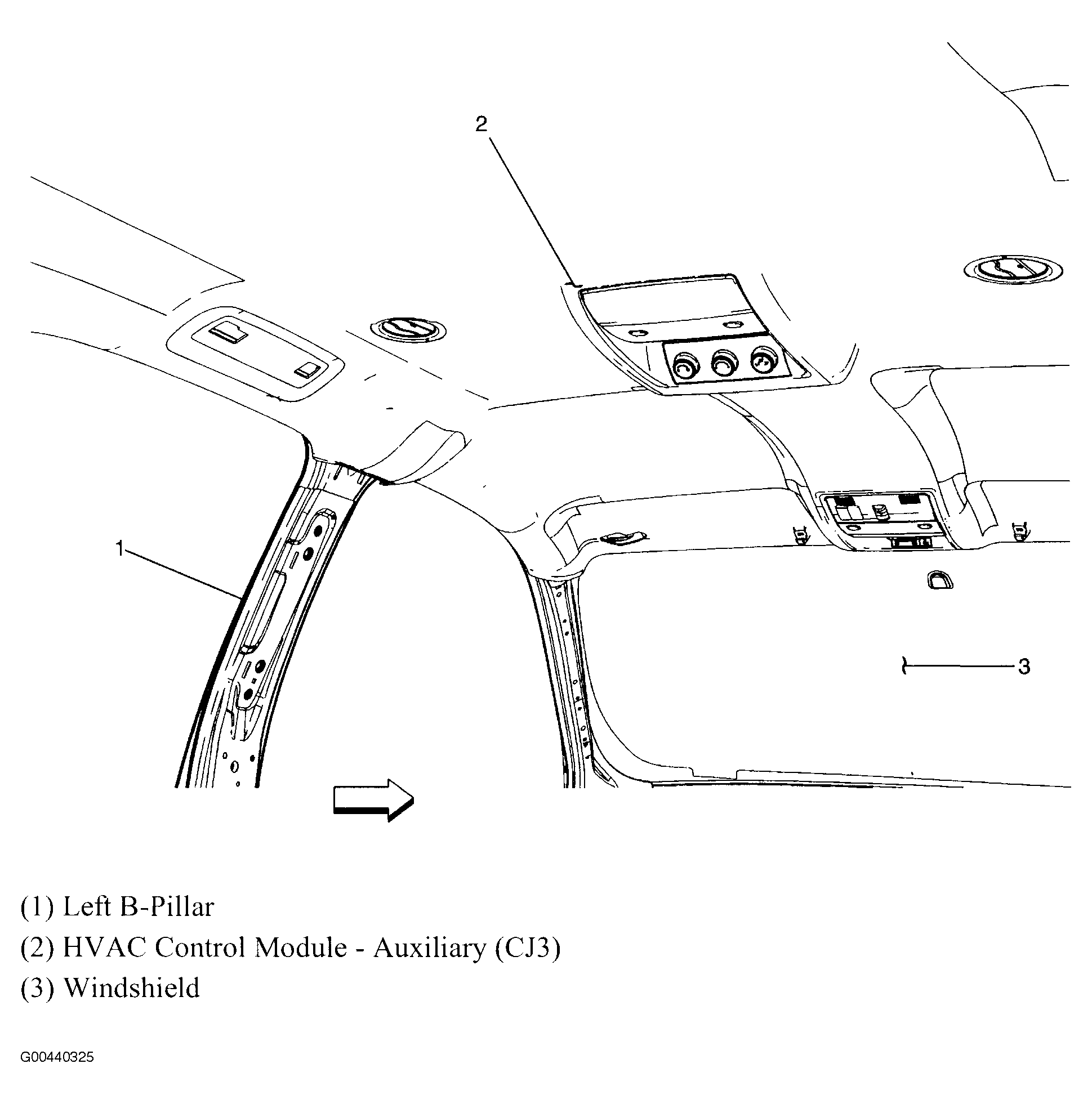

| HVAC Control Module - Auxiliary | Above middle of headliner. See Figure. |
| Inflatable Restraint Front Passenger Presence System (PPS) Module | Below right front seat. See Figure. |

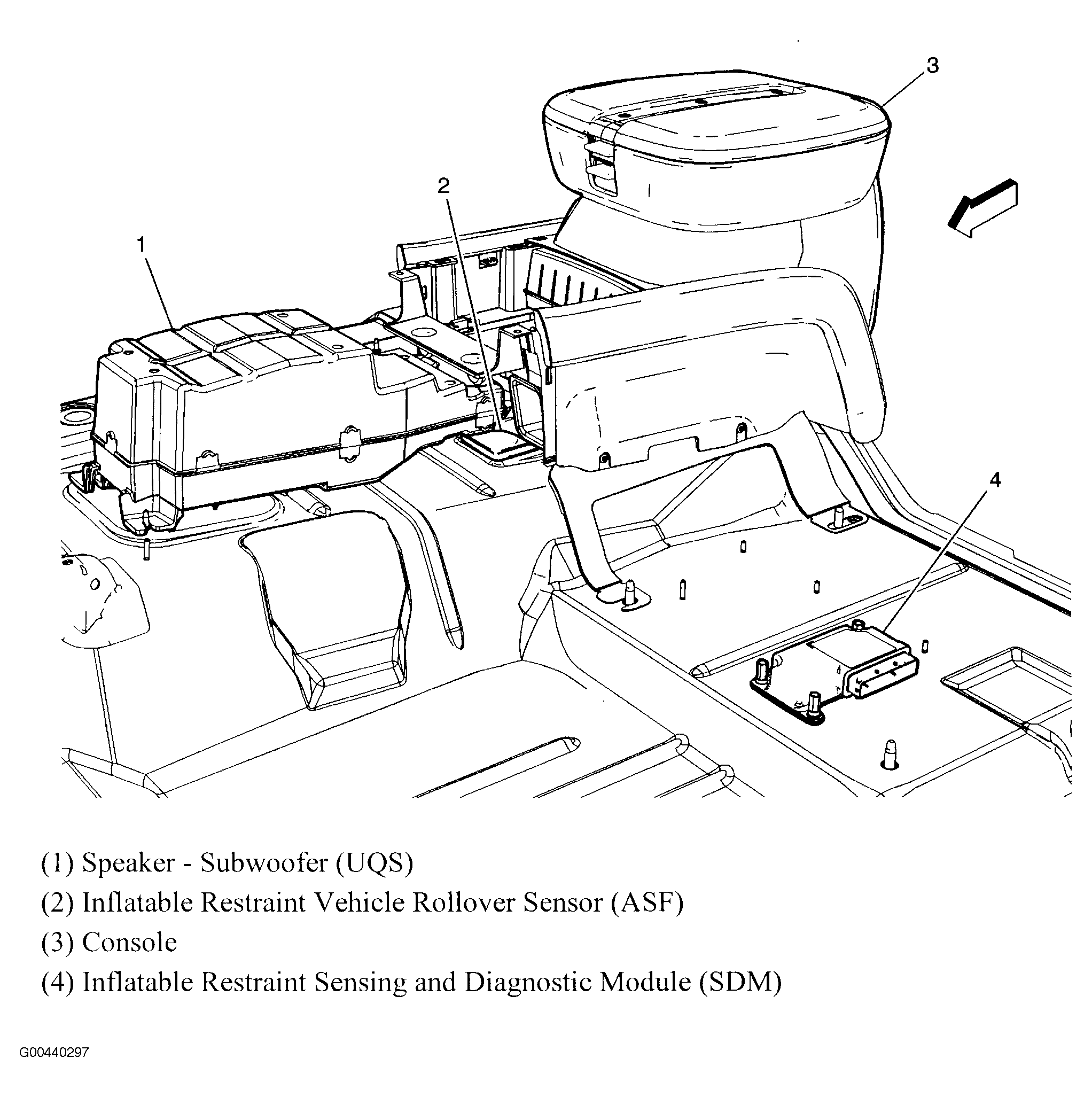

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under left front seat. See Figure. |

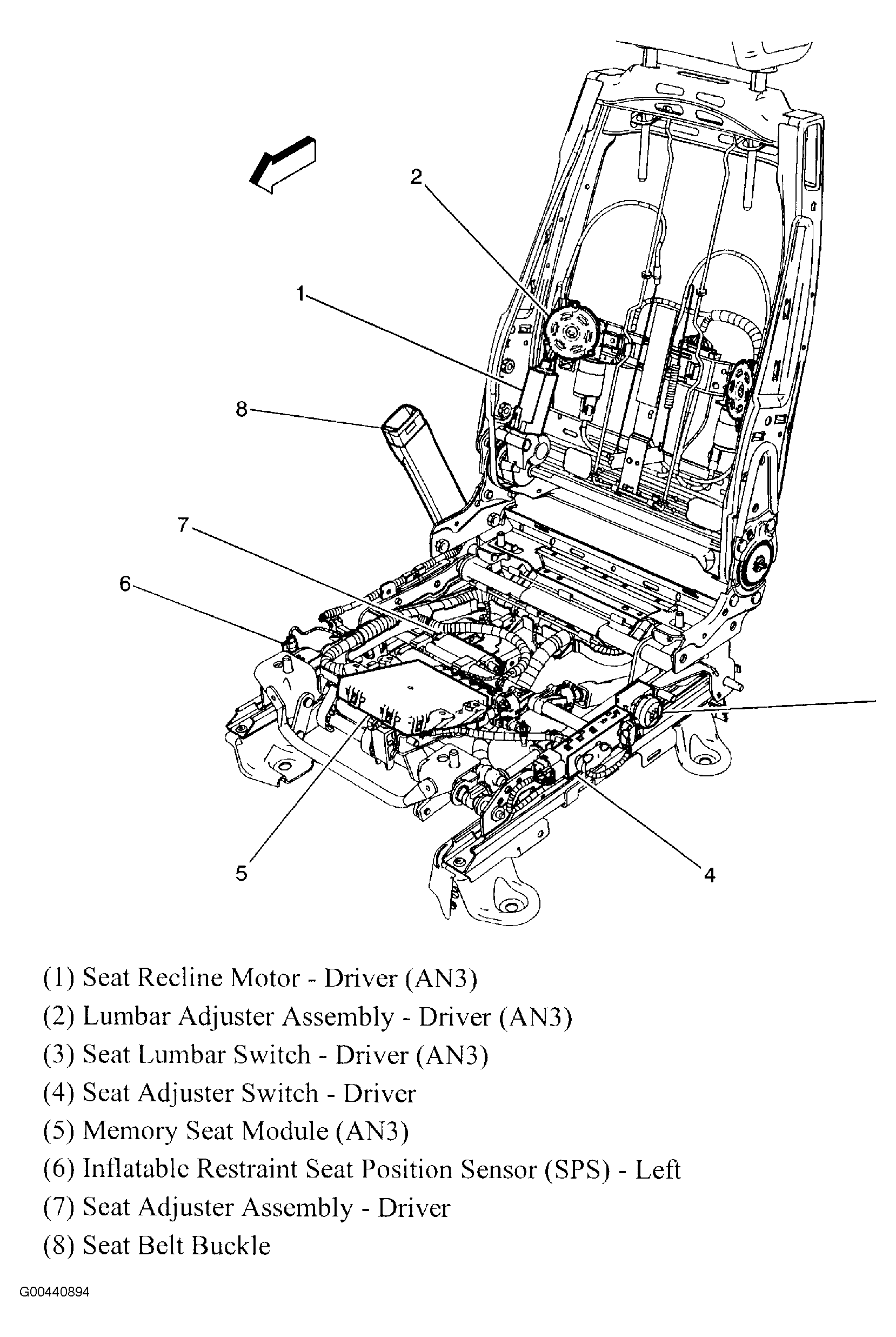

| Memory Seat Module - Driver | Under front of driver's seat. See Figure. |

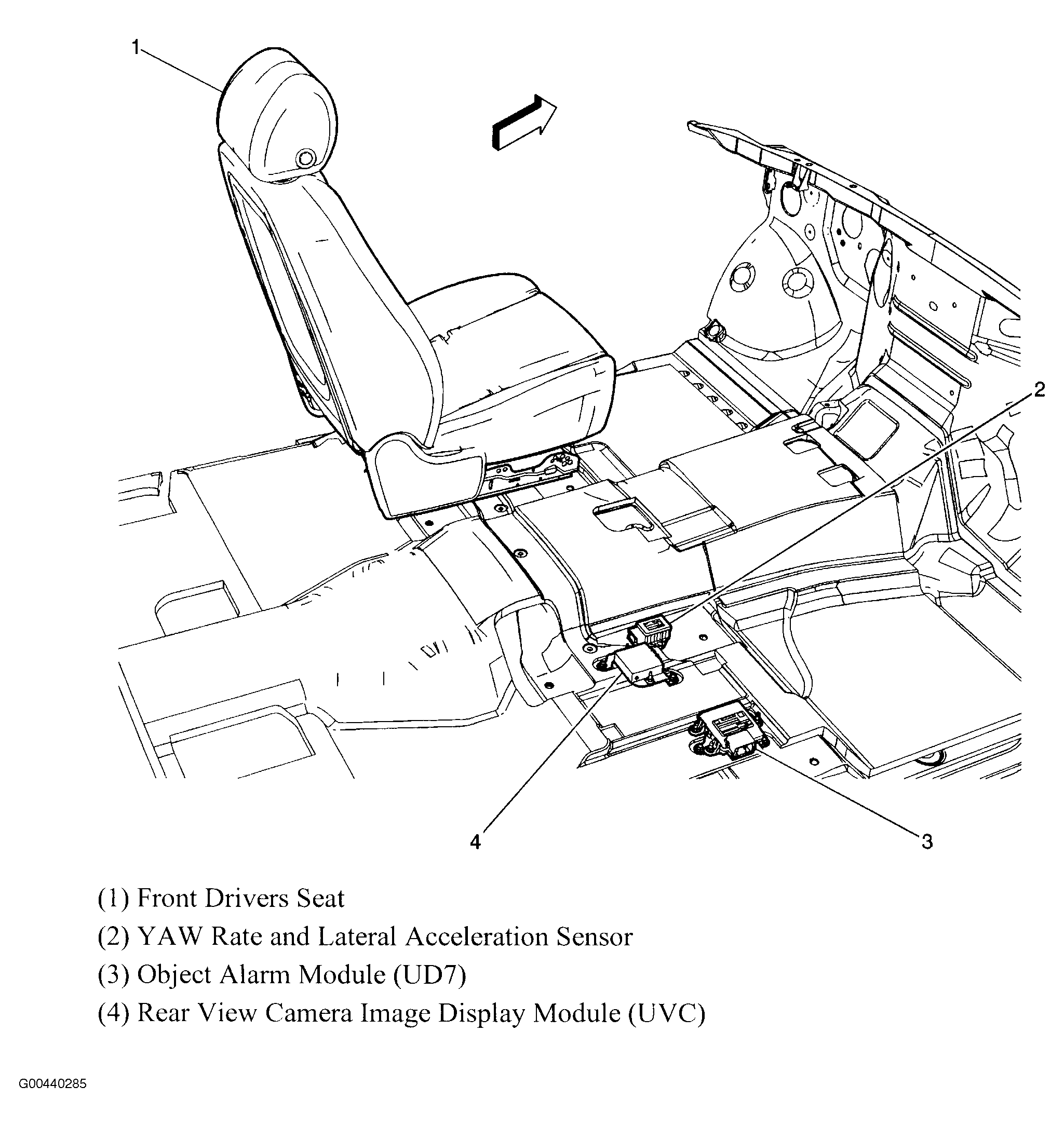

| Object Alarm Module | Under right front seat. See Figure. |

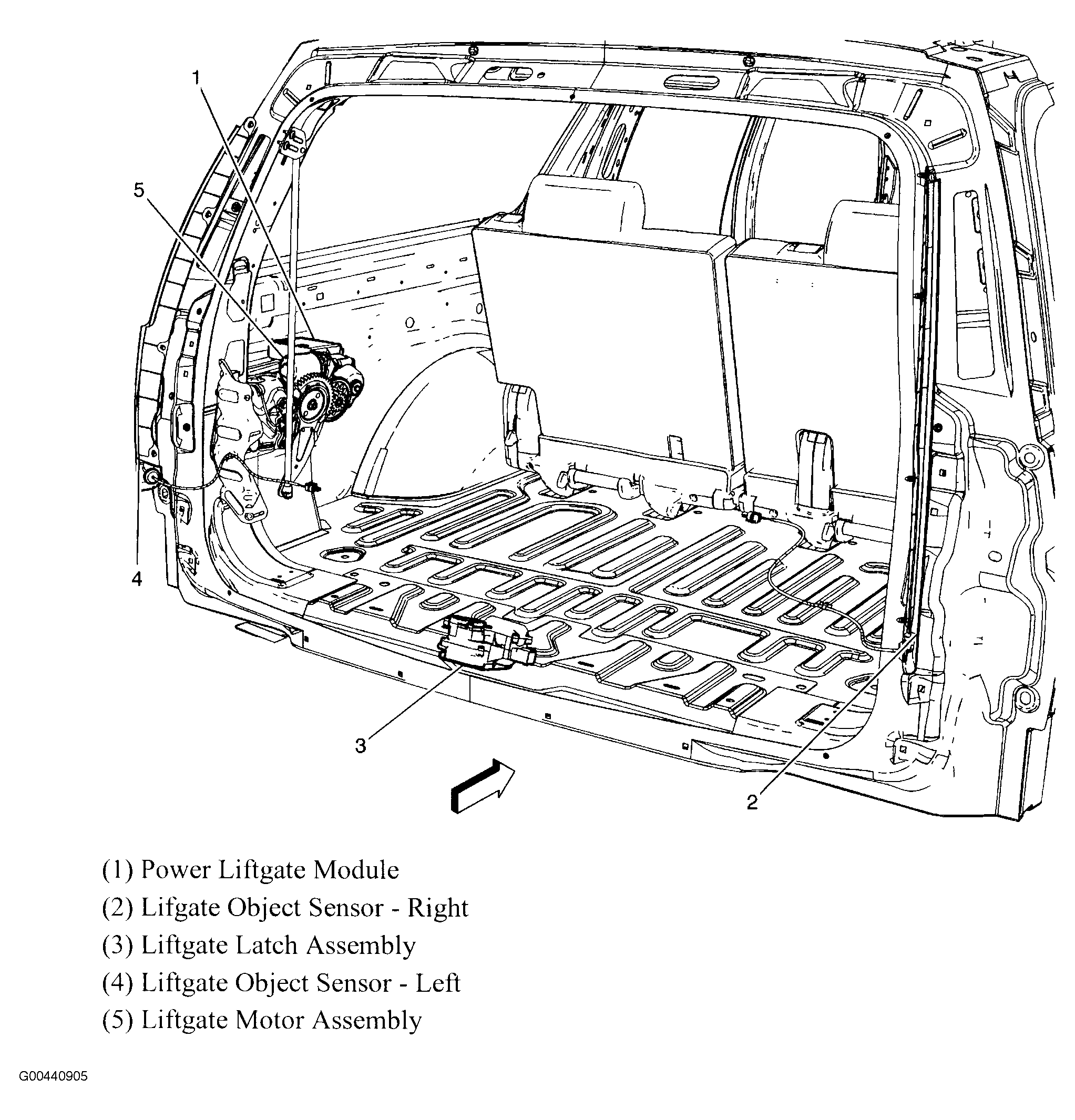

| Power Liftgate Module | Left rear of cargo area, behind trim panel. See Figure. |
| Rear View Camera Image Display Module | Under right front seat. See Figure. |
| Rear Window Wiper Module | In liftgate, below rear glass. |

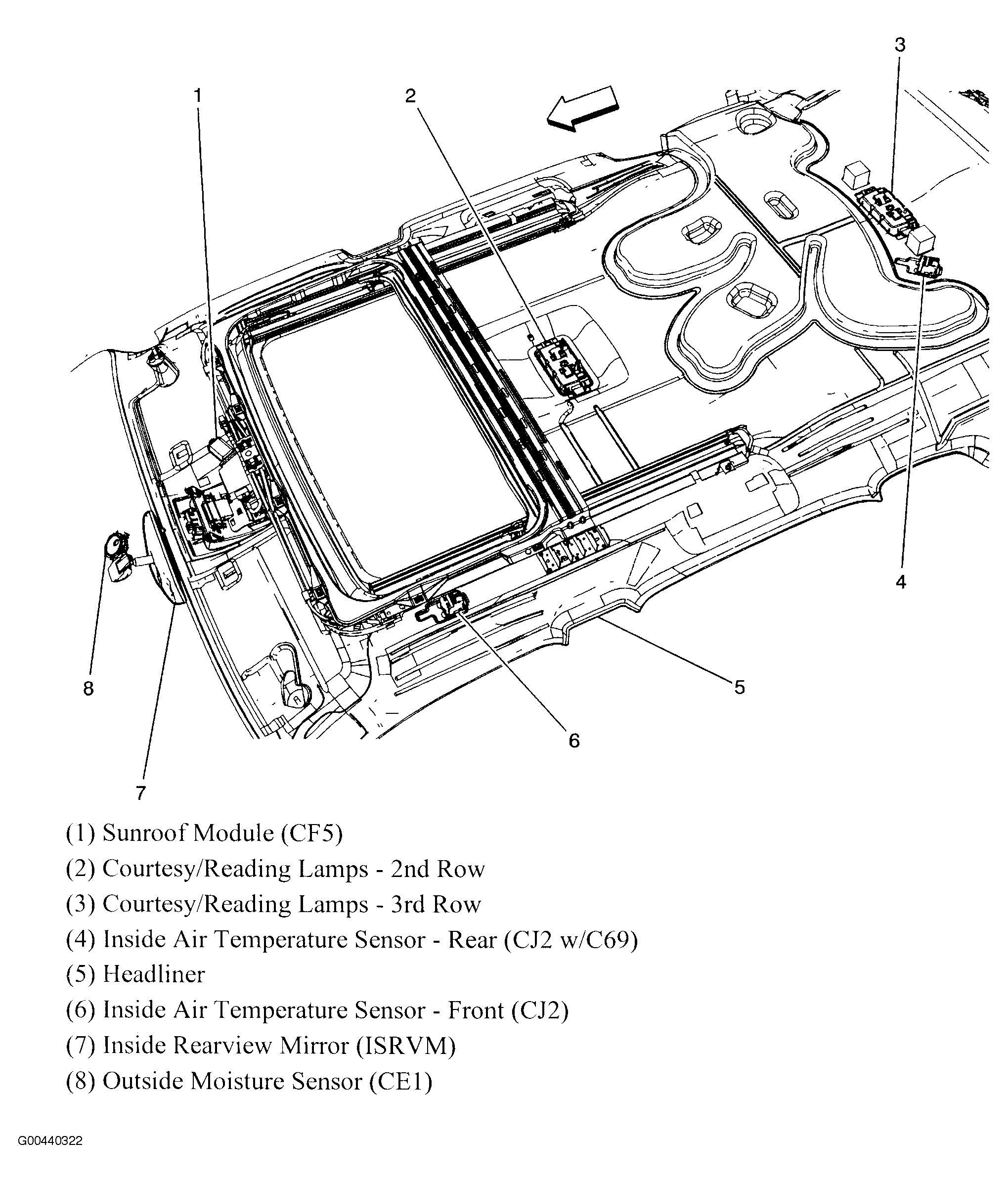

| Sunroof Module | Above front of headliner. See Figure. |

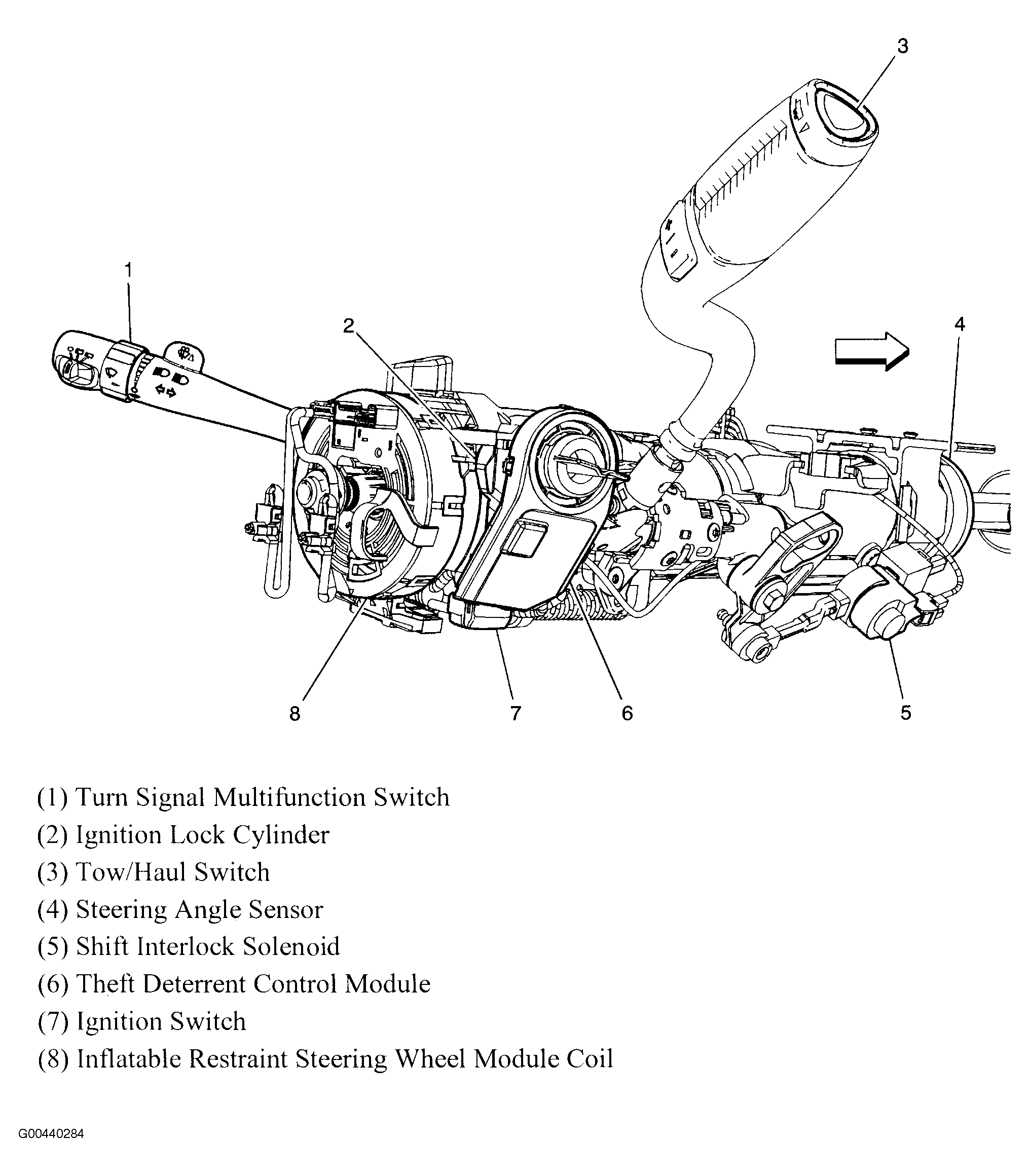

| Theft Deterrent Control Module | On ignition switch. See Figure. |
| Transfer Case Shift Control Module | Below left end of dash. See Figure. |
| Transmission Control Module (TCM) | Left side of engine compartment. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Behind center of dash. See Figure. |
