Rear Object Alarm Module Switch Replacement (Tahoe/Yukon)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

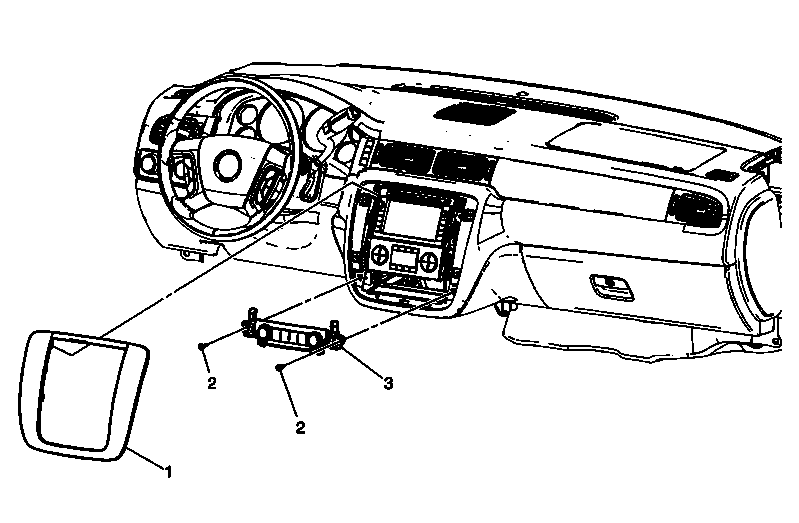

Fig 1: View Of Instrument Panel Accessory Switch Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Cadillac) .
2	Instrument Panel Accessory Switch Screws (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Instrument Panel Accessory Switch Assembly Tip: Disconnect the electrical connector.
