Rear Object Sensor Housing Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear fascia. Refer to Rear Bumper Fascia Replacement (All Utility, Cadillac ESV) or Rear Bumper Fascia Replacement (Avalanche, Cadillac EXT) .

Fig 1: View Of Rear Object Sensor

GM1699865

Courtesy of GENERAL MOTORS CORP.

Disconnect the sensor harness.
Remove the sensor from the sensor housing.
The sensor housing must be painted if replaced. If reinstalled, painting will not be necessary.

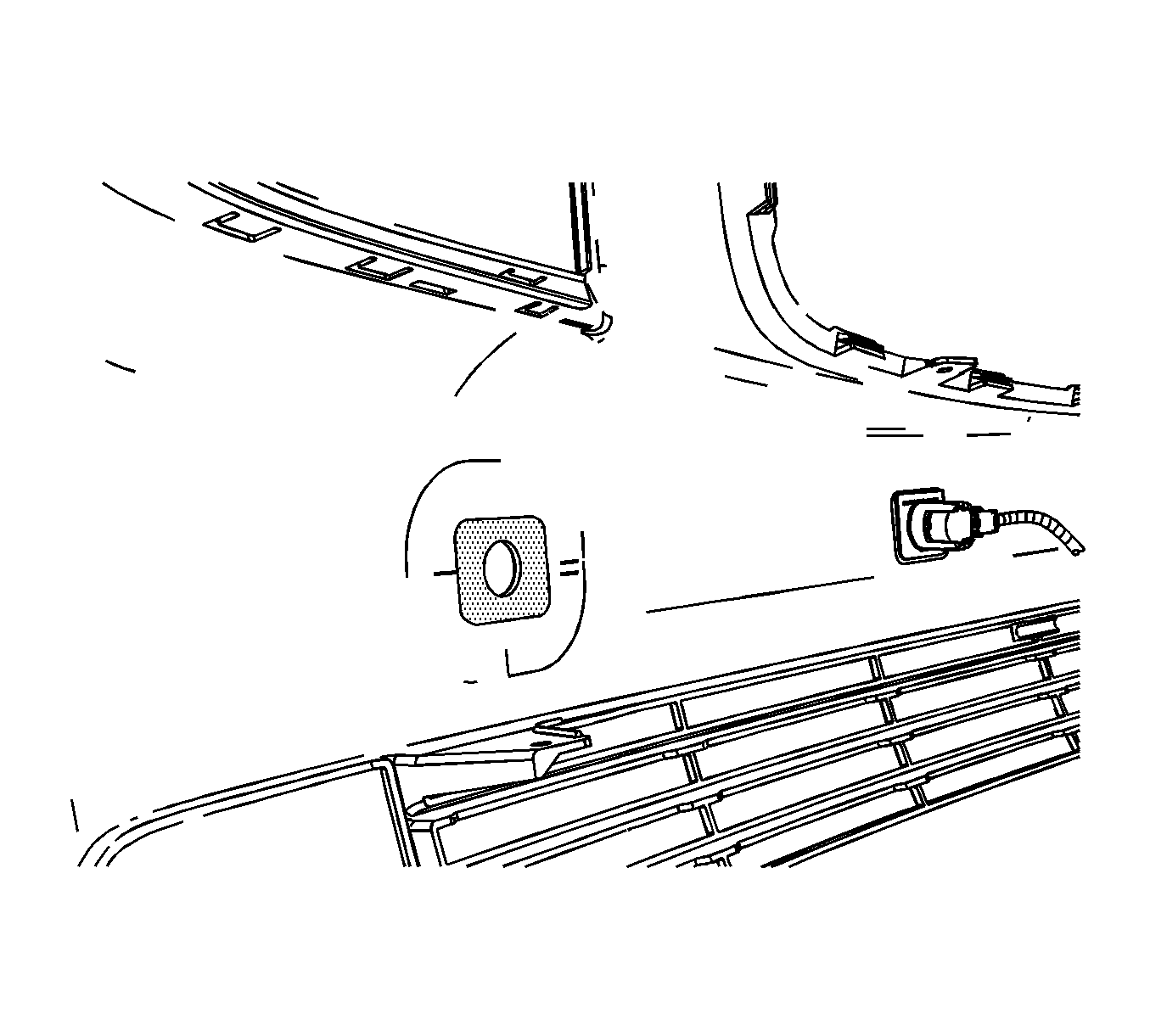

Fig 2: Illustrating Sanding/Grinding Sonic Weld Plastic Residue From Fascia

GM1699859

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do Not grind off alignment tabs.

Sand/grind sonic weld plastic residue from the fascia.

Fig 3: View Of Structural Adhesive Epoxy On Fascia

GM1699866

Courtesy of GENERAL MOTORS CORP.

Apply structural adhesive epoxy, Lord Fusor™ 127EZ or equivalent, to fascia at mating surface.

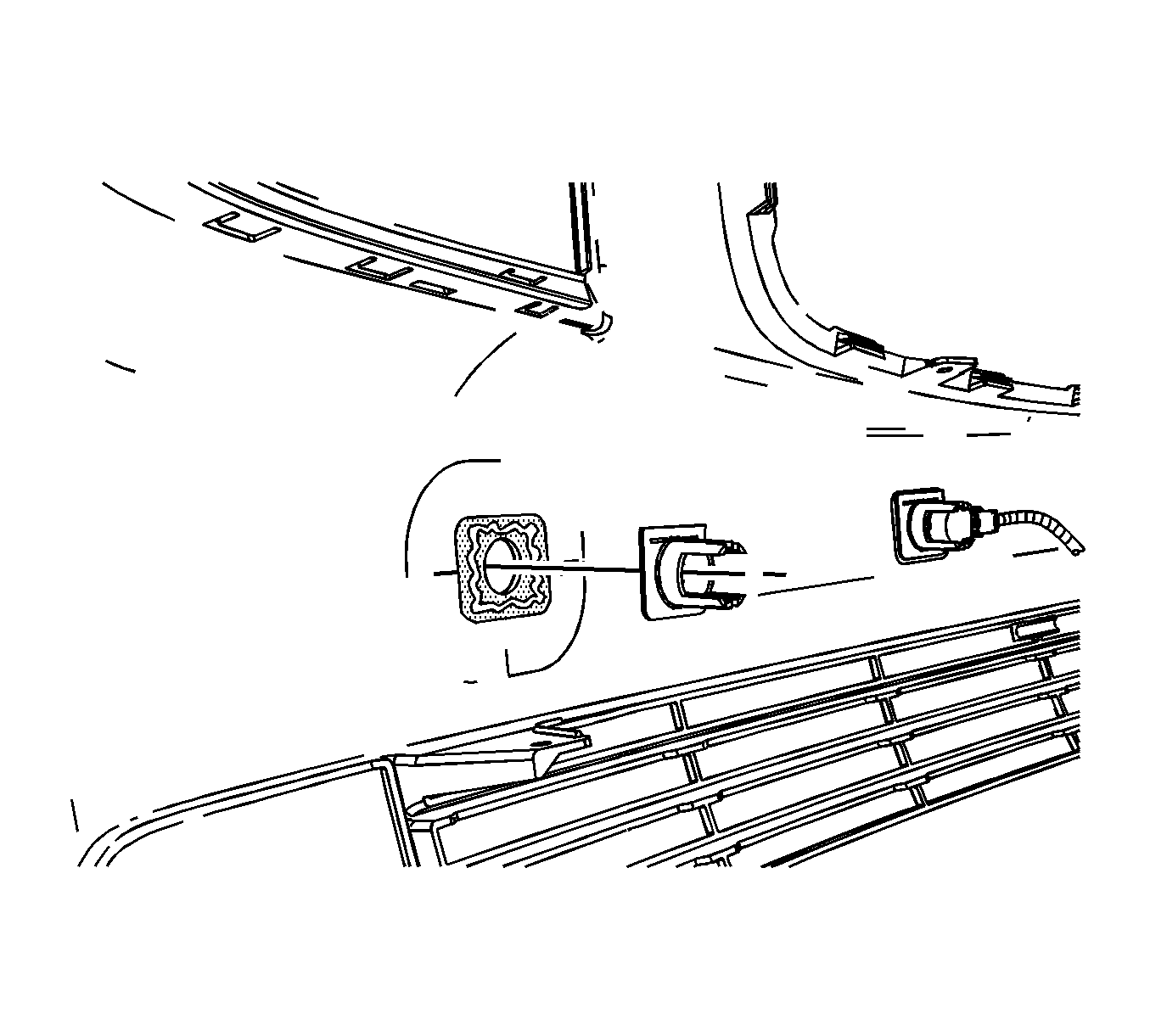

Fig 4: Identifying Sensor Housing & Tabs

GM1699868

Courtesy of GENERAL MOTORS CORP.

Using the alignment tabs, install the sensor housing to the fascia.
Allow adhesive to cure according to manufacturer's directions.

Fig 5: View Of Rear Object Sensor

GM1699865

Courtesy of GENERAL MOTORS CORP.

Install the sensor to the sensor housing.
Connect the electrical harness.
Install the rear fascia. Refer to Rear Bumper Fascia Replacement (All Utility, Cadillac ESV) or Rear Bumper Fascia Replacement (Avalanche, Cadillac EXT) .
