Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the push pin retainer (1) into the air temperature sensor bracket (2).
  2. Connect the electrical connector to the air temperature sensor.
  3. Install the front grille to the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .

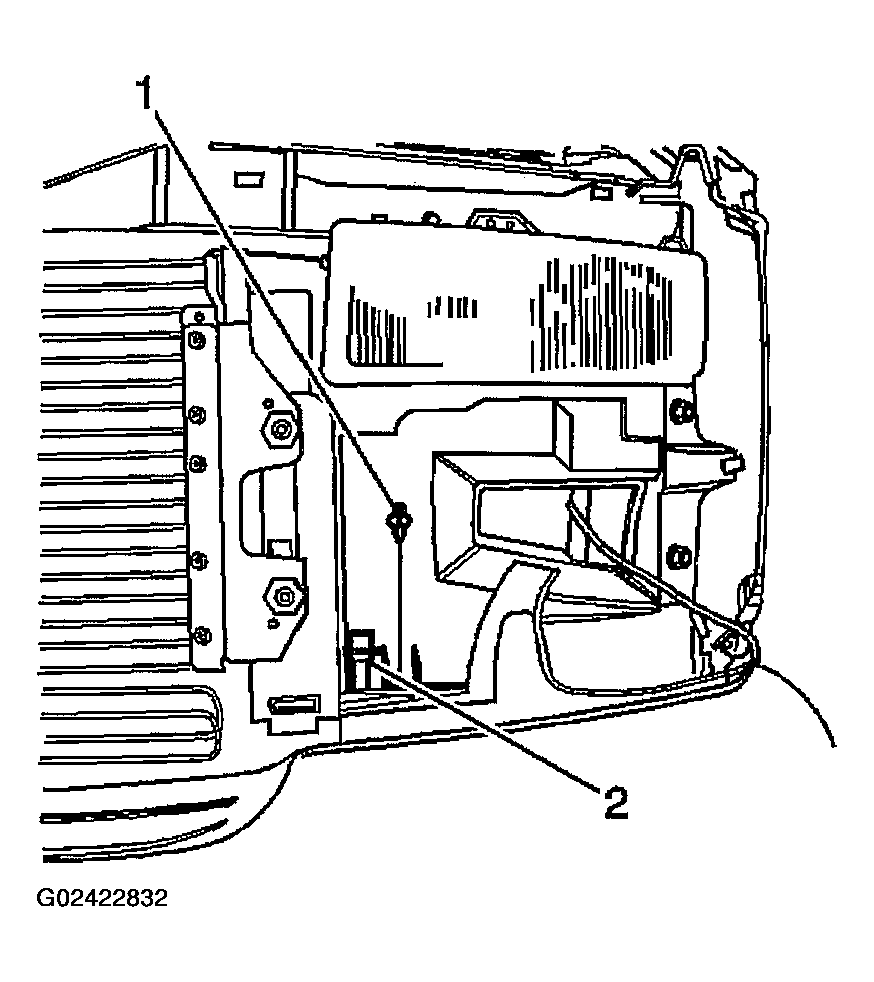

    Fig 1: Installing Ambient Air Temperature Sensor
    G02422832Courtesy of GENERAL MOTORS CORP.
