Center of the I/P
WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

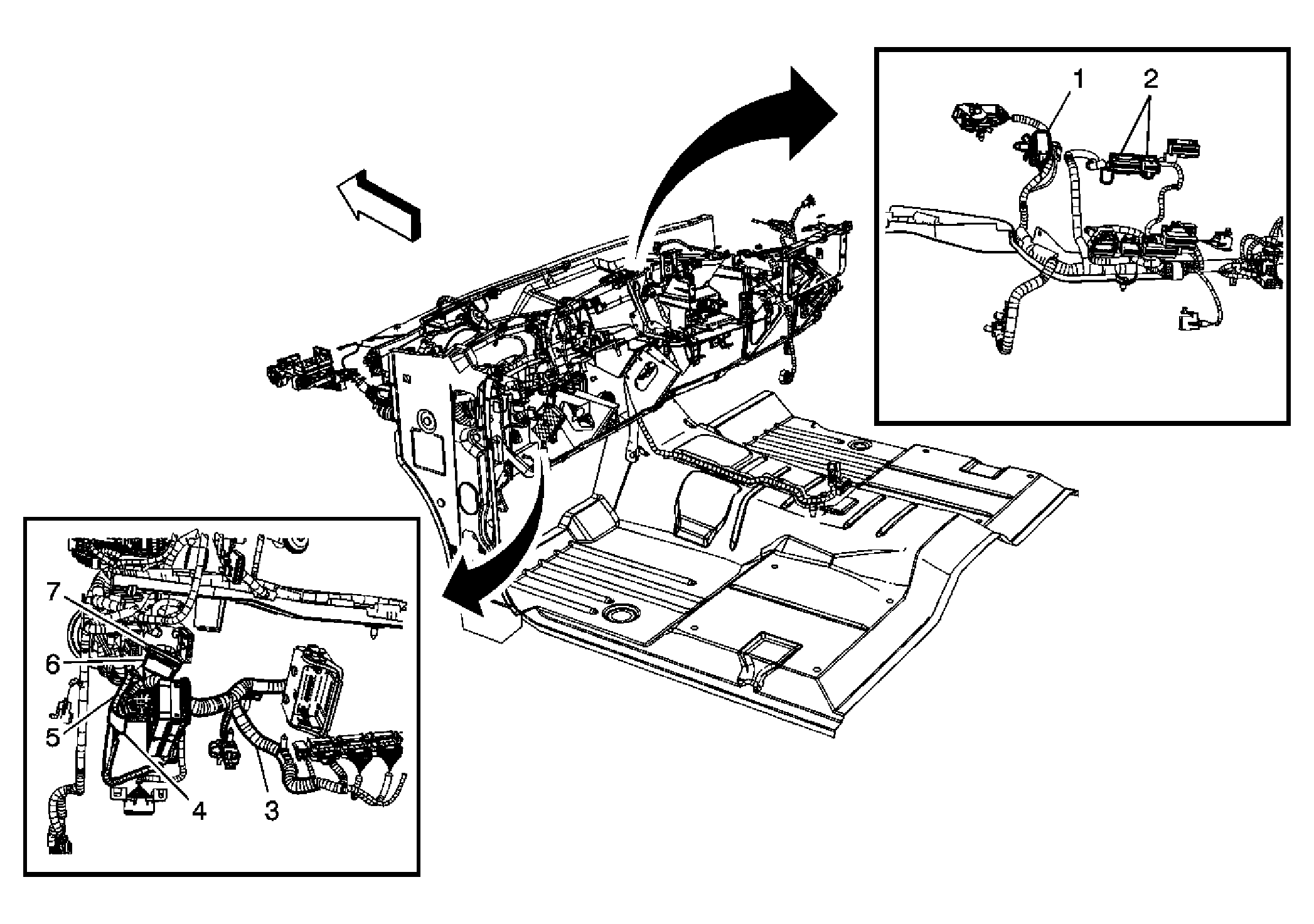

Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | SP250 (UQ7 w/U2K/U42 or U2K/U1S or U42/U1S or U2K/U42/U1S) |
| 2 | HVAC Control Module Connectors |
| 3 | I/P Harness |
| 4 | SP207 (UQ3/UQ7 w/o Y91) |
| 5 | I/P Extension Harness (UQ3/UQ7 w/o Y91) |
| 6 | SP205 |
| 7 | SP207 (Y91) |
