Lower Left Of The I/P
WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

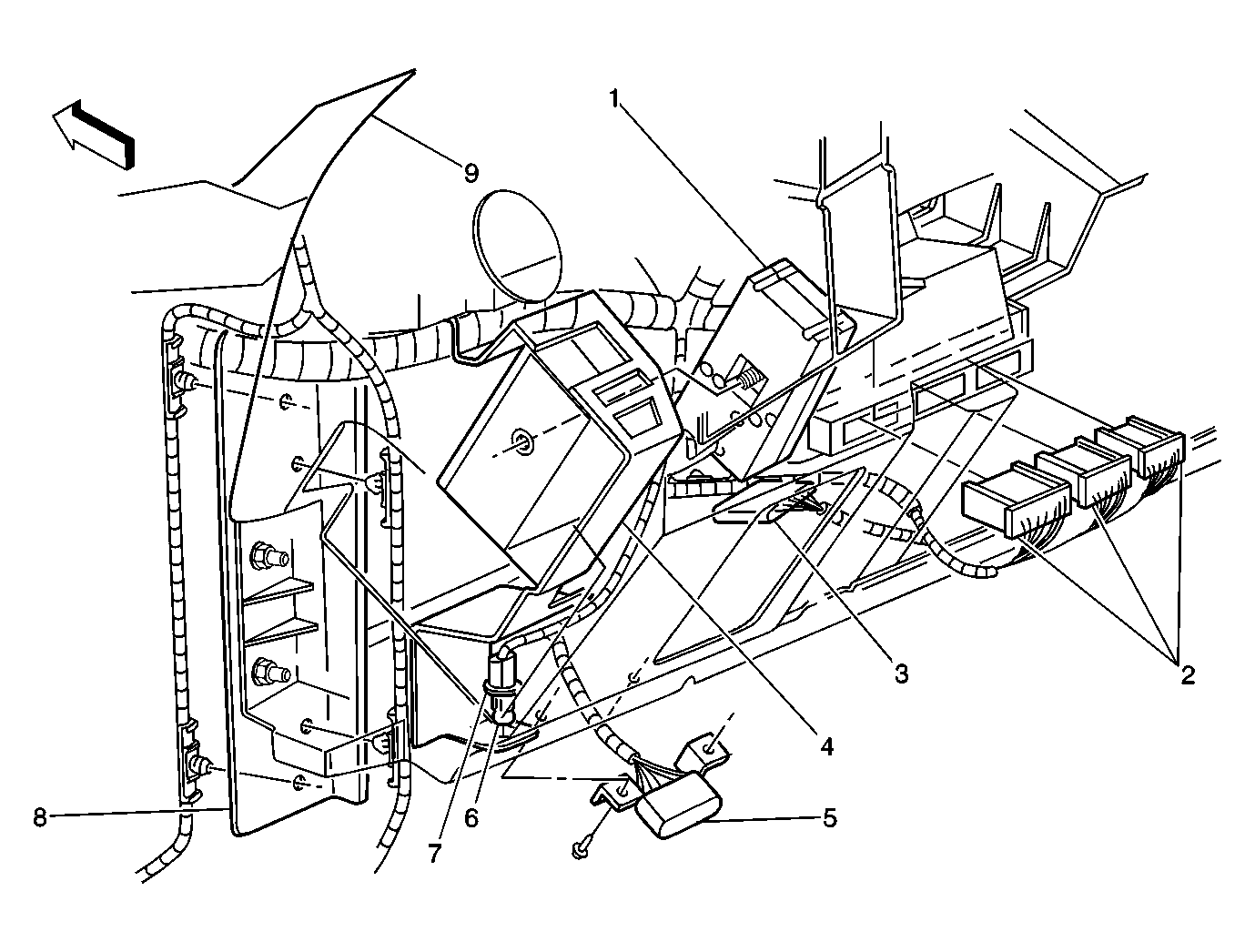

Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | I/P Harness Connector |
| 2 | Body Control Module (BCM) Connectors |
| 3 | I/P Harness |
| 4 | Fuse Block - Left I/P |
| 5 | Data Link Connector (DLC) |
| 6 | I/P Courtesy Lamp - Left |
| 7 | I/P Courtesy Lamp Connector - Left |
| 8 | Instrument Panel |
| 9 | Left Windshield Pillar |
