Body Control Module (BCM) - C1

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

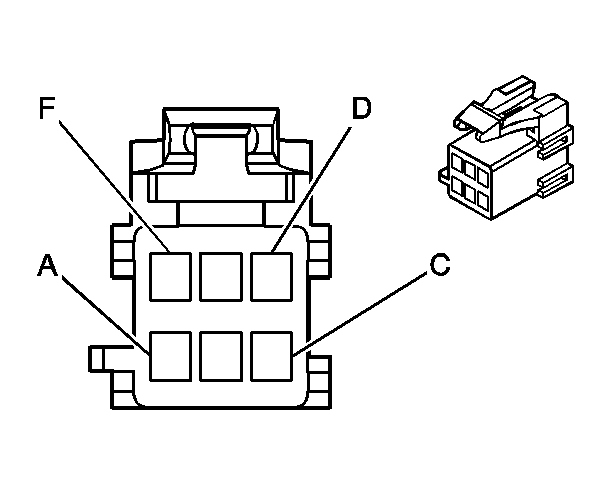

Body Control Module (BCM) - C1

GM40446Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12177194
  • 6-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A RD 2353 Instrument Panel Lamps Dimming Supply Voltage
B PU/WH 1382 LED Dimming Signal
C OG 4040 Battery Positive Voltage
D OG 1732 Inadvertent Power Courtesy Lamps Supply Voltage
E BN/WH 230 Instrument Panel Lamps Dimming Control
F OG 2240 Battery Positive Voltage
