Installation Procedure

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the DLC to the I/P.

NOTE: Refer to Fastener Notice in Cautions and Notices.

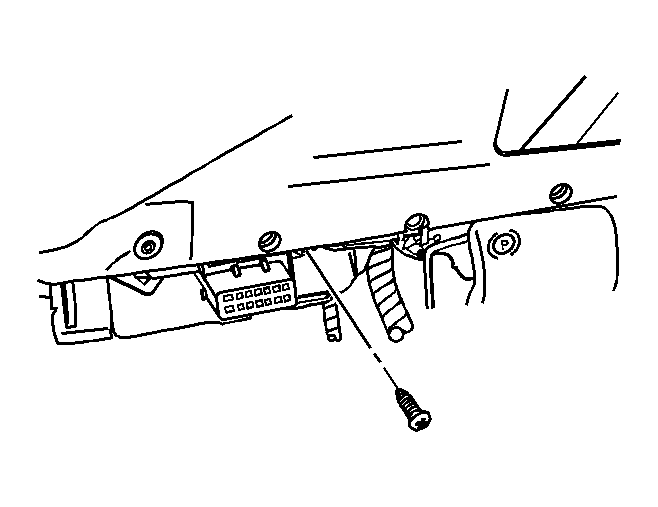

Fig 1: Installing Data Link Connector Bolt

Courtesy of GENERAL MOTORS CORP.

Install the DLC bolt.
Tighten: Tighten the bolt to 6 N.m (53 lb in).
