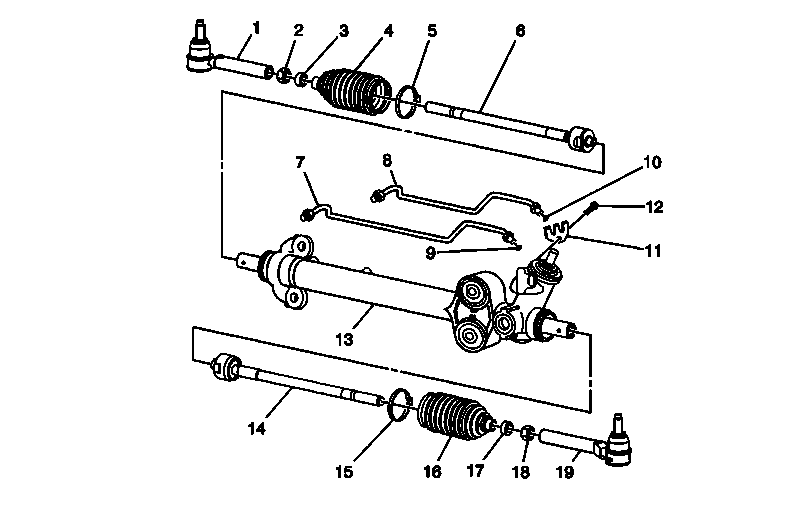

Power Steering Gear Disassembled View
| Callout | Component Name |
|---|---|
| 1 | Outer Tie Rod |
| 2 | Hexagon Jam Nut |
| 3 | Tie Rod End Clamp |
| 4 | Rack and Pinion Boot |
| 5 | Boot Clamp |
| 6 | Inner Tie Rod |
| 7 | Cylinder Line - LT |
| 8 | Cylinder Line - RH |
| 9 | O-Ring Seal |
| 10 | O-Ring Seal |
| 11 | Cylinder Line Retaining Plate |
| 12 | External TORX® Screw |
| 13 | Rack and Pinion Gear Assembly |
| 14 | Inner Tie Rod |
| 15 | Boot Clamp |
| 16 | Rack and Pinion Boot |
| 17 | Tie Rod End Clamp |
| 18 | Hexagon Jam Nut |
| 19 | Outer Tie Rod |
