Installation Procedure

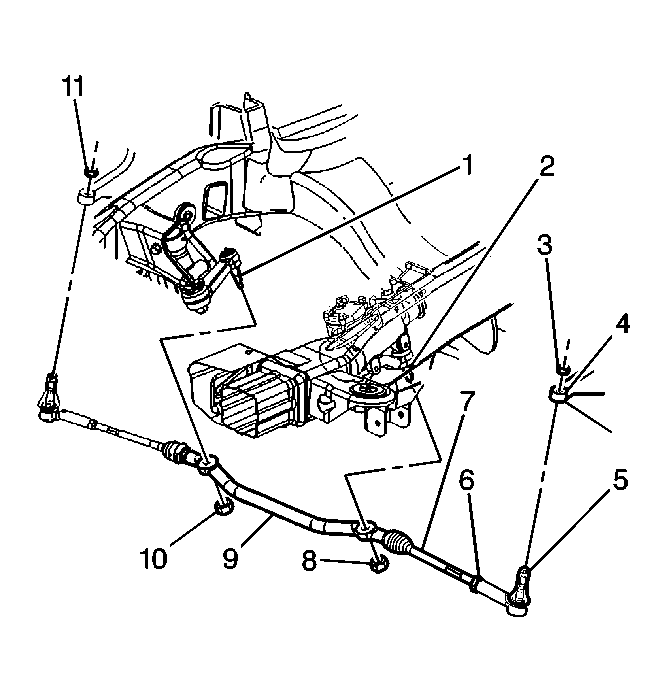

    Fig 1: View Of Relay Rod & Components
    GM340481Courtesy of GENERAL MOTORS CORP.
  1. Install the relay rod (9) to the vehicle.
  2. Connect the pitman arm ball stud (2) to the relay rod.
  3. Connect the idler arm ball stud (1) to the relay rod.
  4. Install the new pitman arm prevailing torque nut.
    5. NOTE: Refer to Fastener Notice .
  5. Install the new idler arm prevailing torque nut.

    Tighten:  Tighten the nuts to 62 N.m (46 lb ft).

  6. Install the inner tie rod ends. Refer to Tie Rod Replacement - Inner .
  7. Install the steering damper to the relay rod, if equipped. Refer to Steering Damper Replacement .
  8. Install the engine protection shield, if equipped. Refer to Engine Shield Replacement .
  9. Lower the vehicle.
  10. Check the wheel alignment. Refer to Measuring Wheel Alignment .
