Front Toe Adjustment

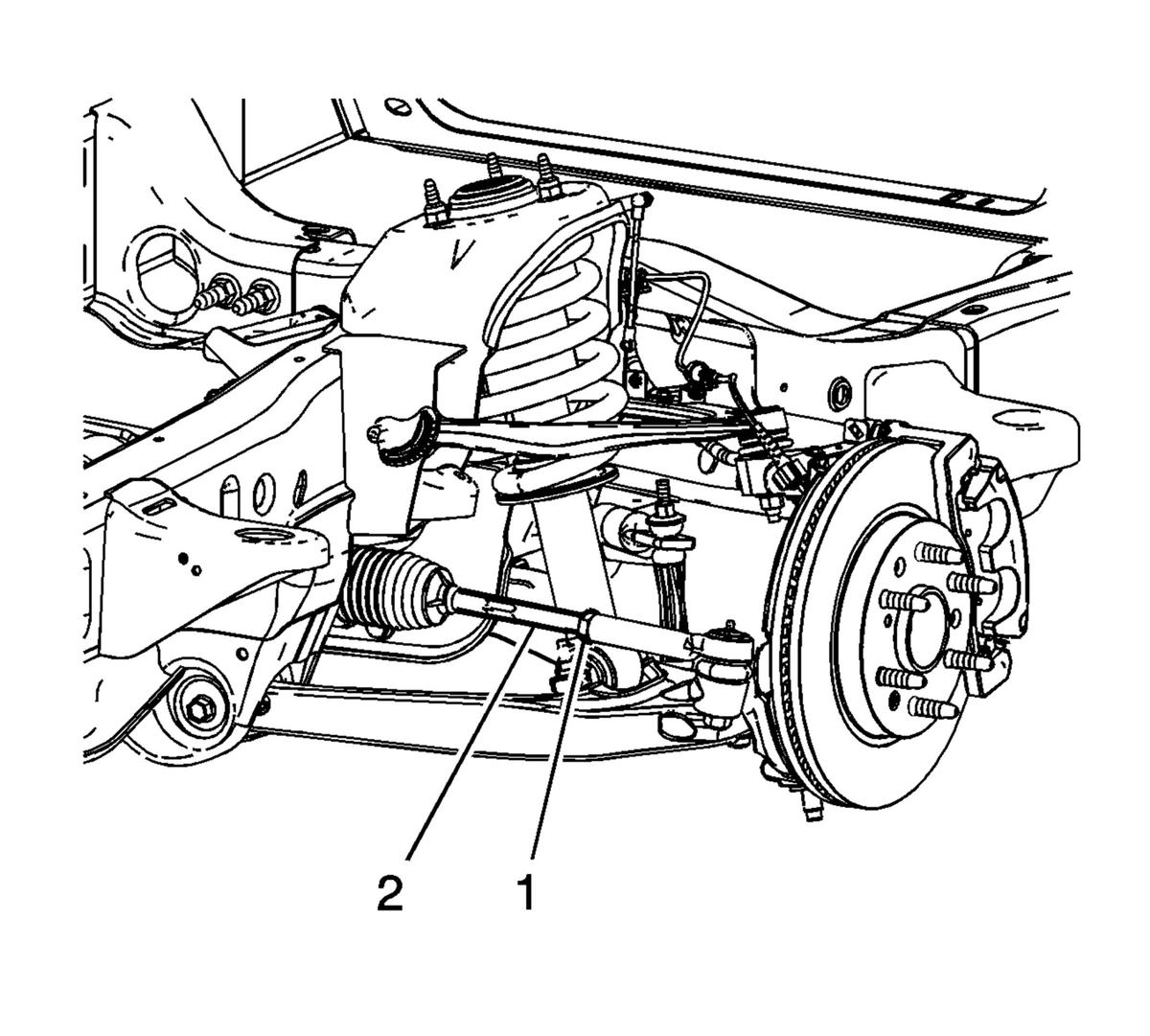

Fig 1: View Of Inner Tie Rod & Jam Nut

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut on the inner tie rod (1).
Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications .

NOTE: Refer to Fastener Notice .

Tighten the jam nut (1) on the tie rod.
Tighten: Tighten the tie rod jam to 95 N.m (70 lb ft).
Check the toe setting after tightening.
Re-adjust the toe setting if necessary.
