Shift Lock Control Component Views

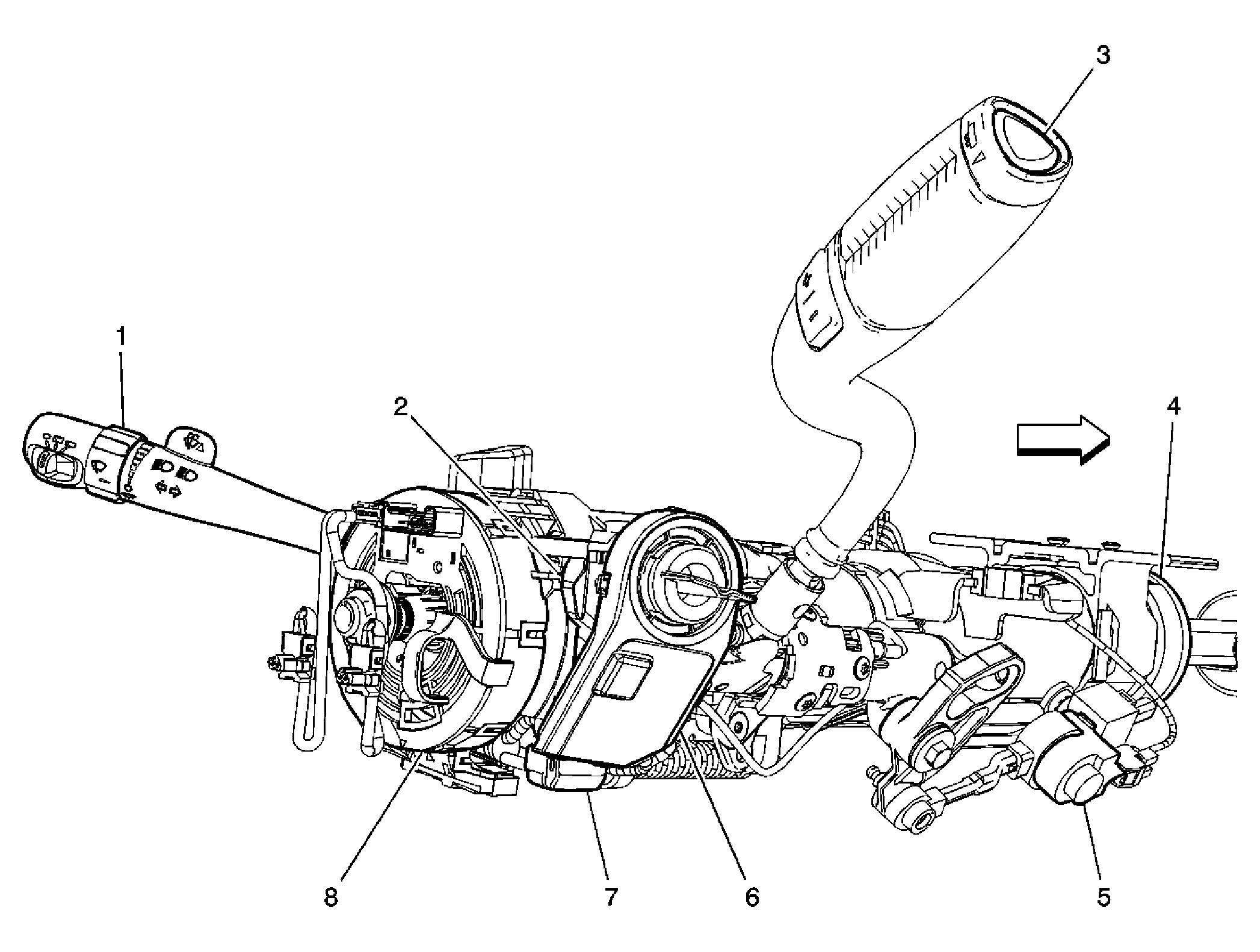

Fig 1: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Multifunction Switch
2	Ignition Lock Cylinder
3	Tow/Haul Switch
4	Steering Angle Sensor
5	Shift Interlock Solenoid
6	Theft Deterrent Control Module
7	Ignition Switch
8	Inflatable Restraint Steering Wheel Module Coil
