Rear Fuse Block
Electrical Center Identification Views
Fuse Block - Left Rear Top View

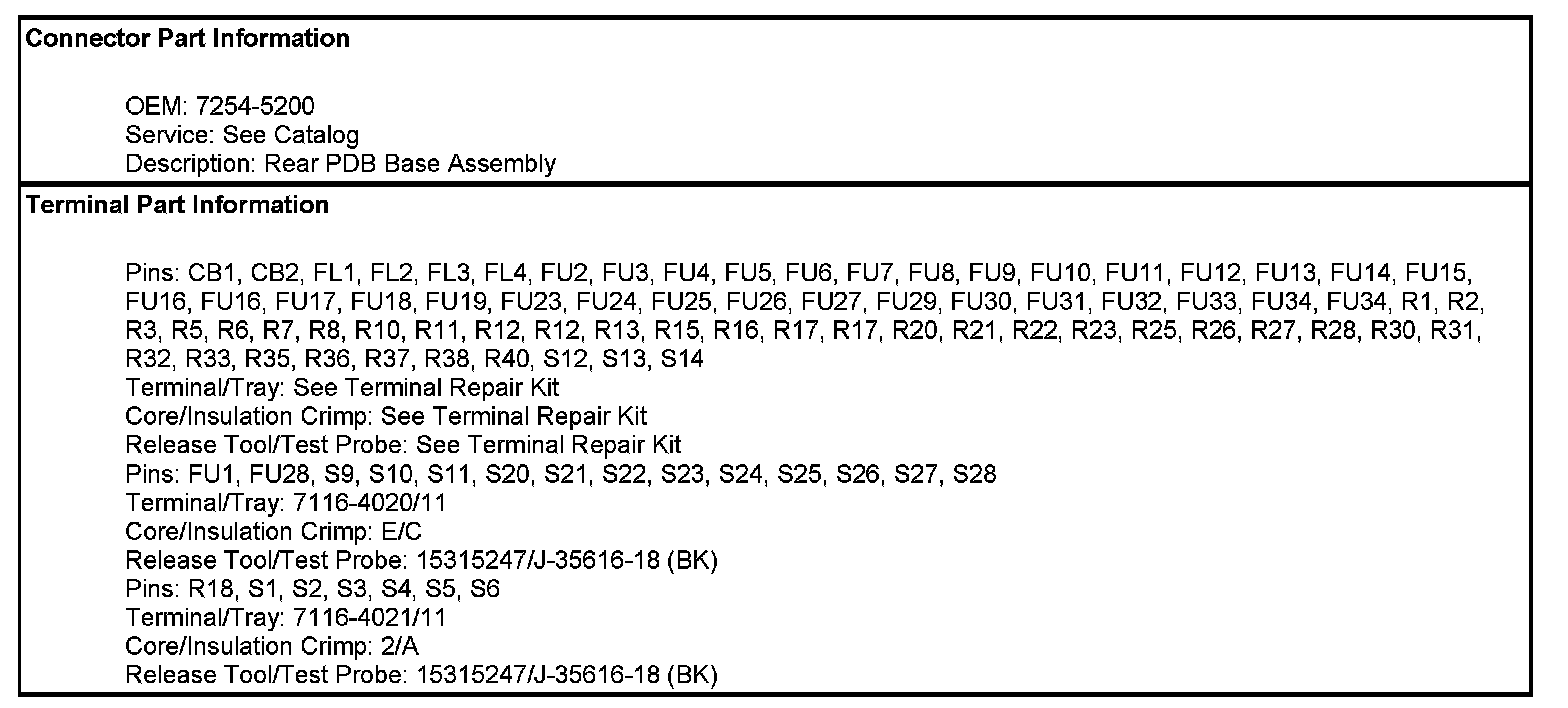

Fuse Block - Left Rear - Wire Entry C1

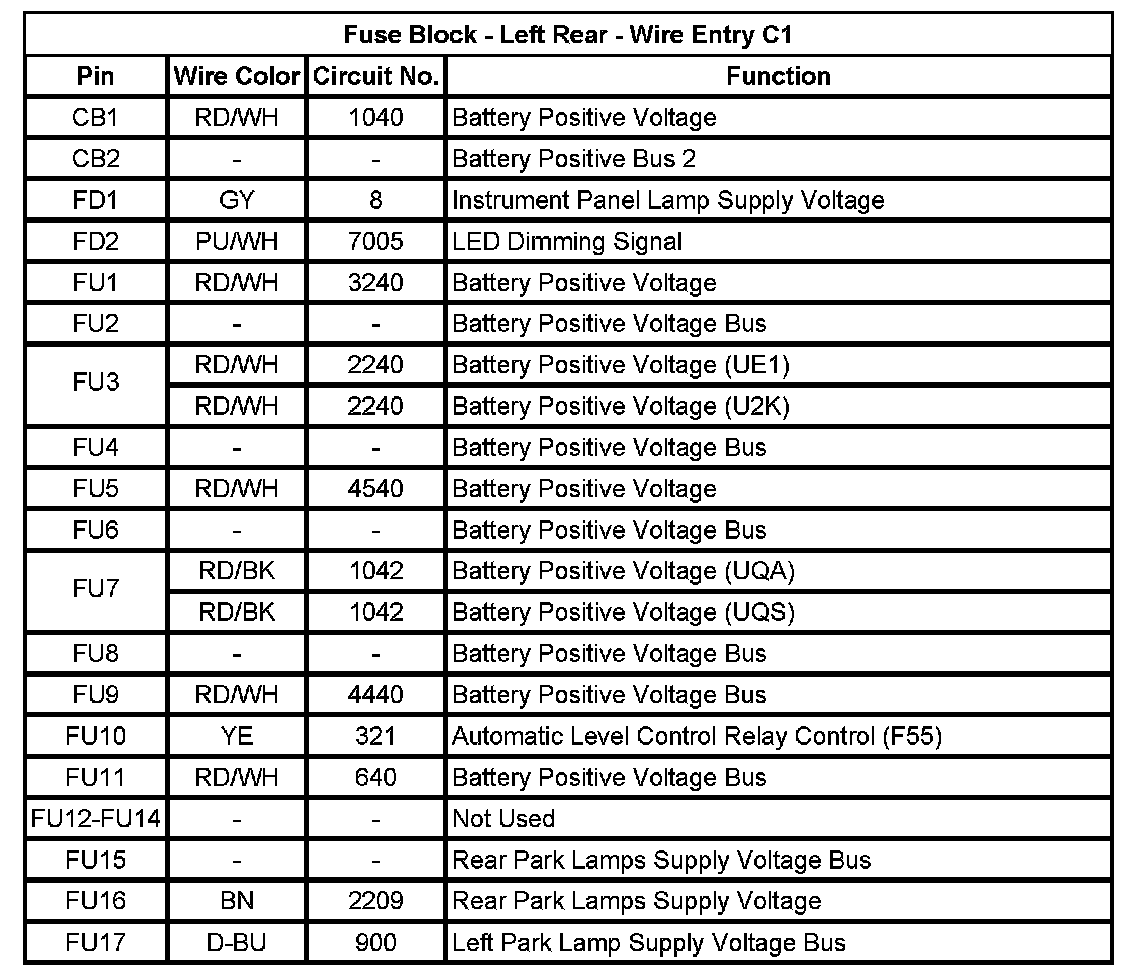

Fuse Block - Left Rear - Wire Entry C1 (Pin CB1 To FU17):

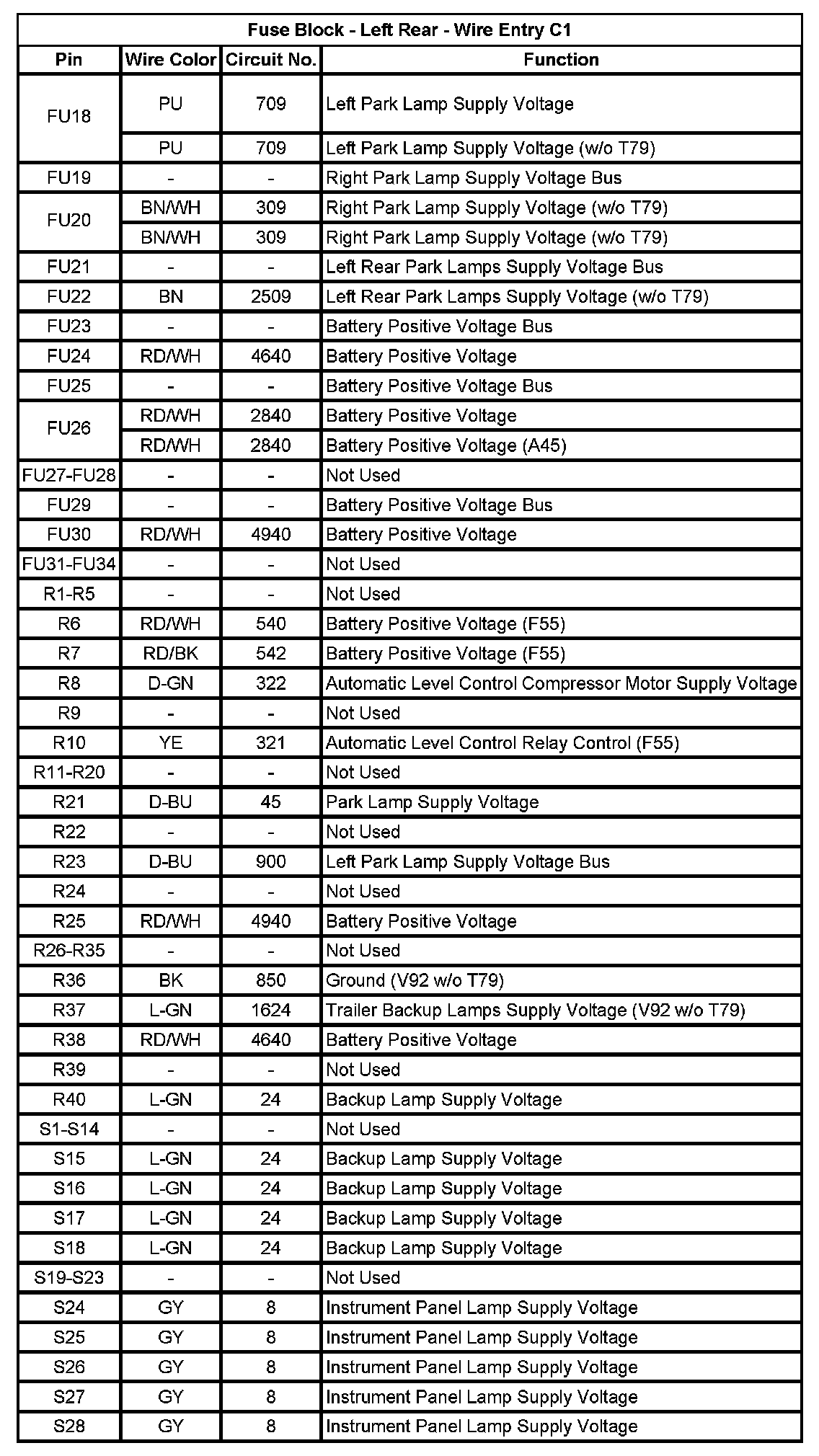

Fuse Block - Left Rear - Wire Entry C1 (Pin FU18 To S28):
Fuse Block - Left Rear C2
Fuse Block - Right Rear Top View

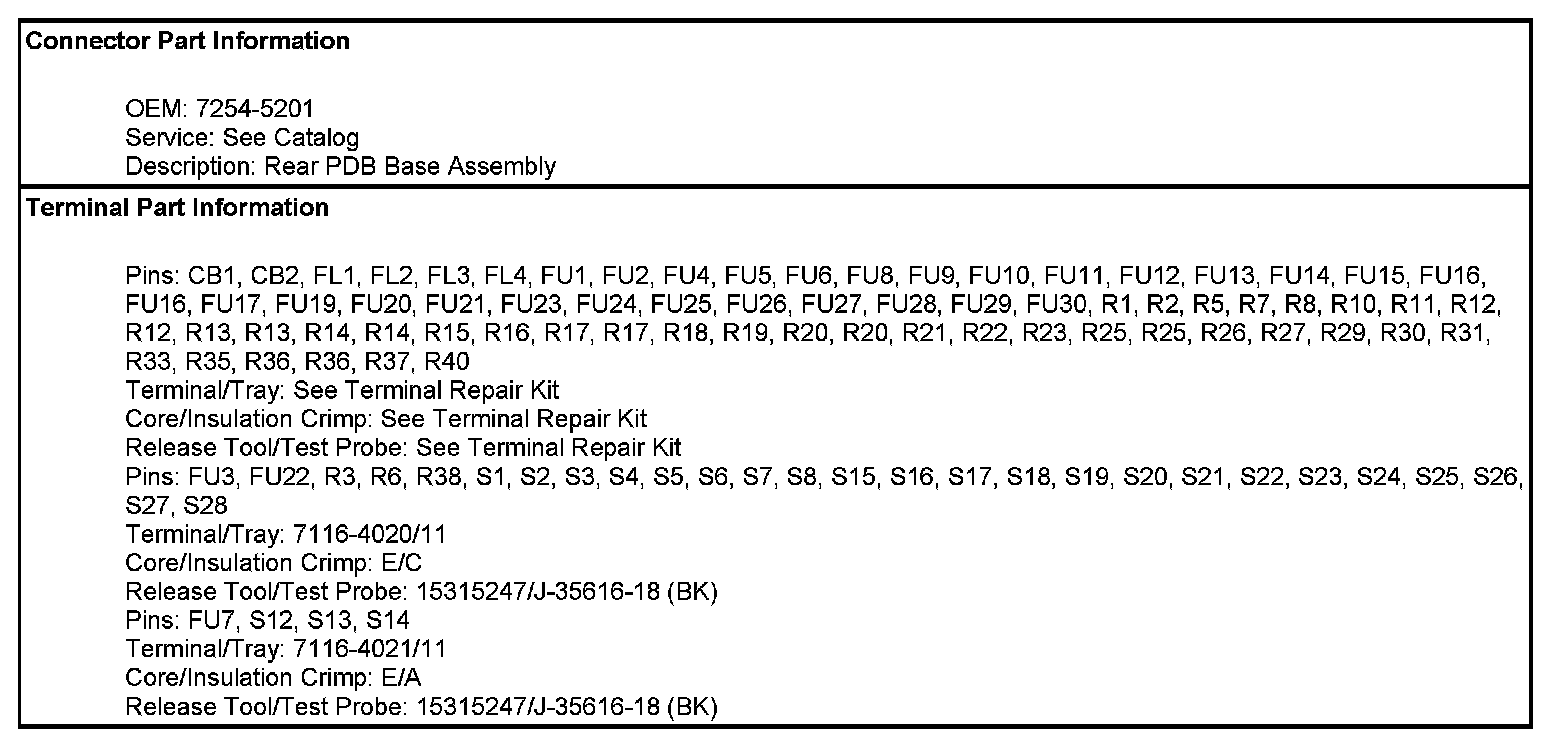

Fuse Block - Right Rear - Wire Entry C1

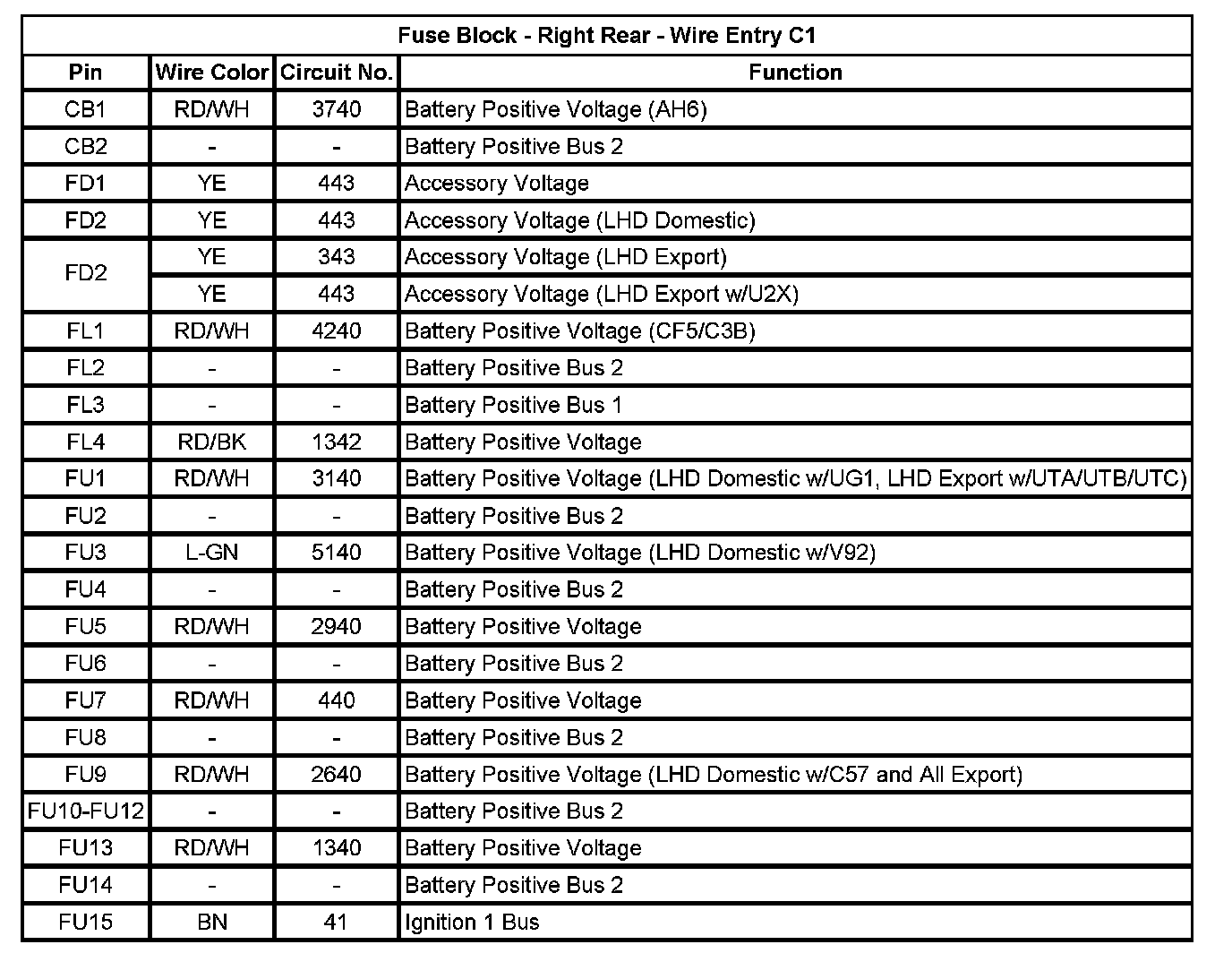

Fuse Block - Right Rear - Wire Entry C1 (Pin CB1 To FU15):

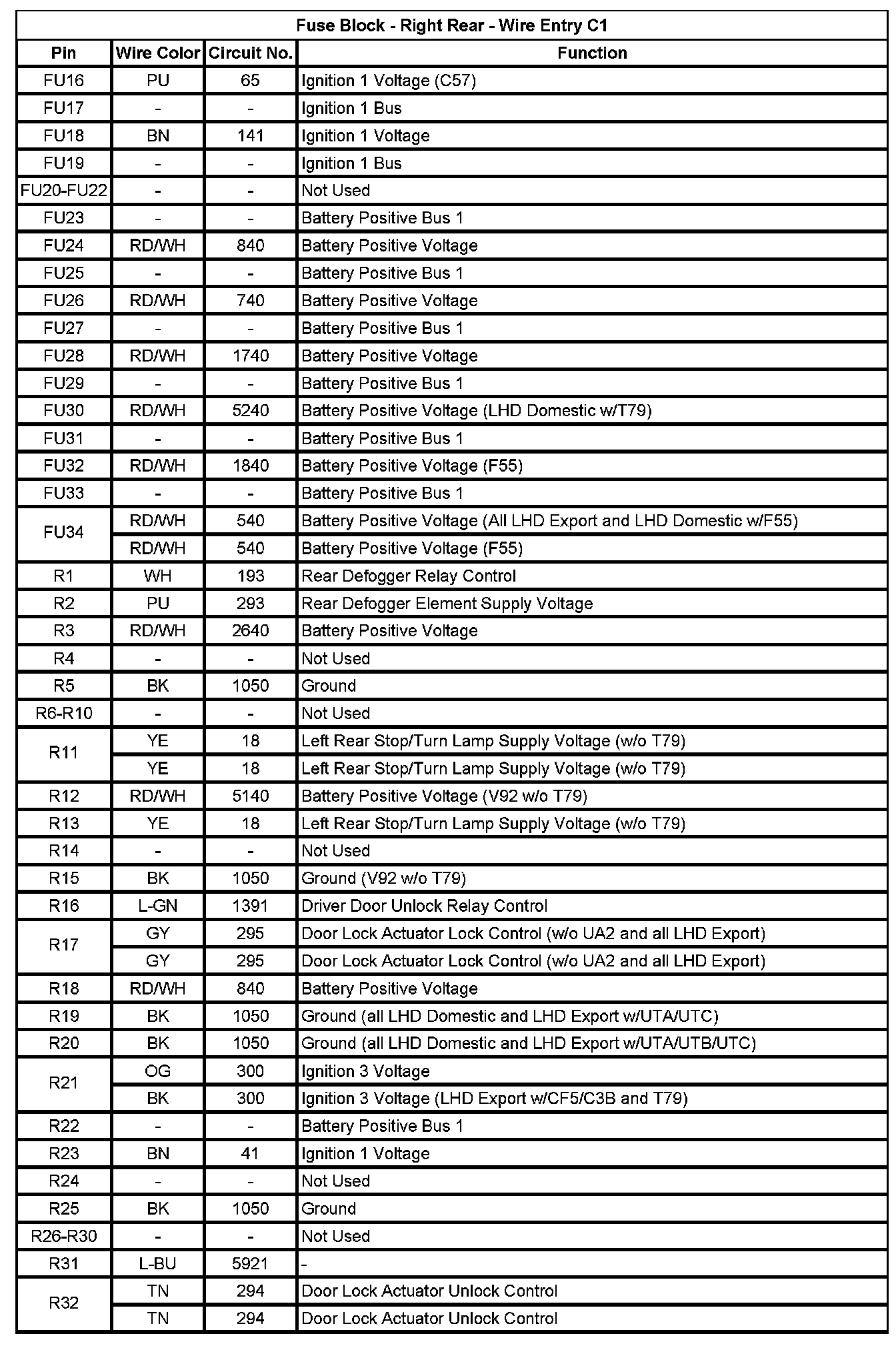

Fuse Block - Right Rear - Wire Entry C1 (Pin FU16 To R32):

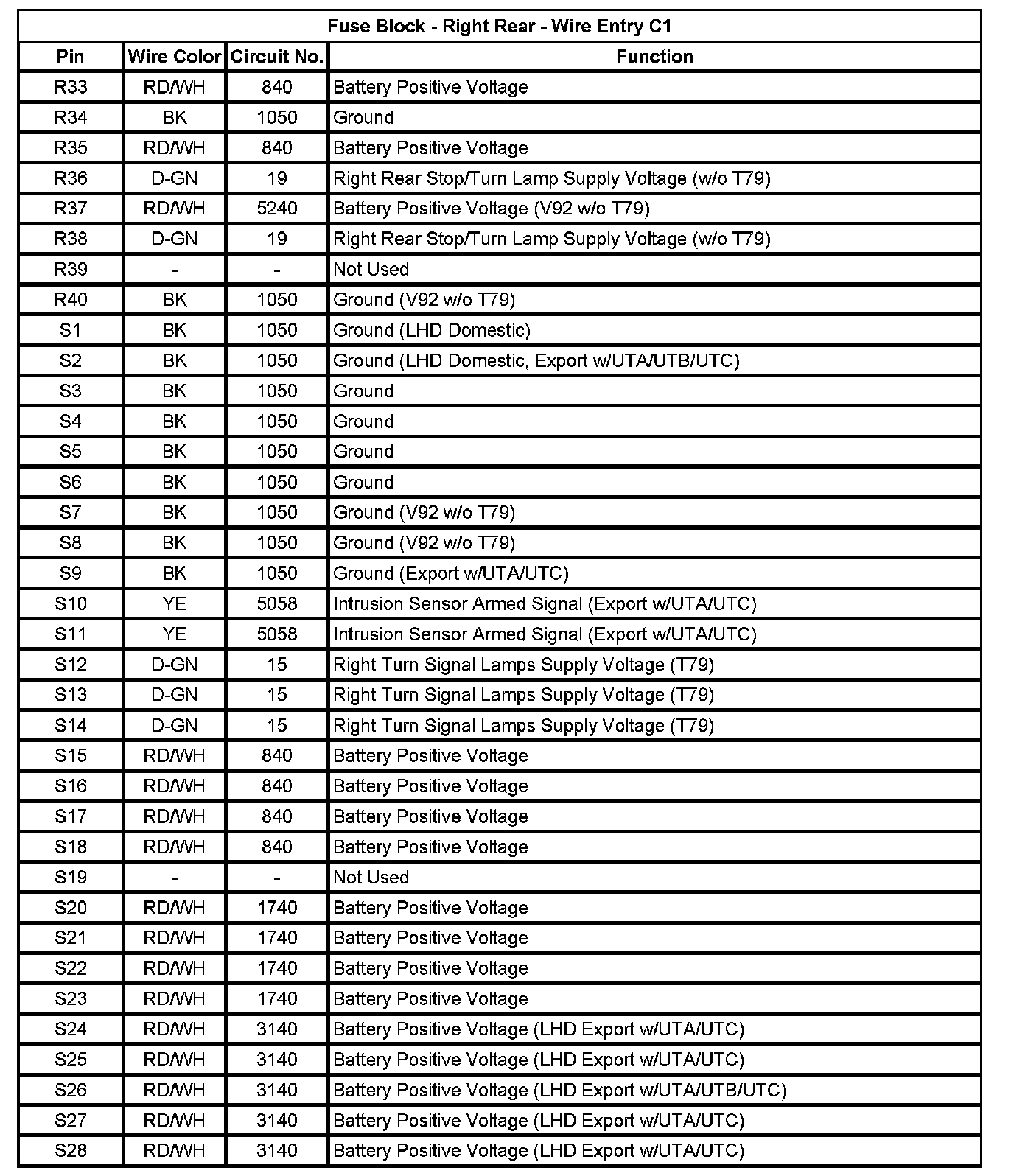

Fuse Block - Right Rear - Wire Entry C1 (Pin R33 To S28):
Fuse Block - Right Rear C2
