Control Module HVAC



HVAC Connector End Views

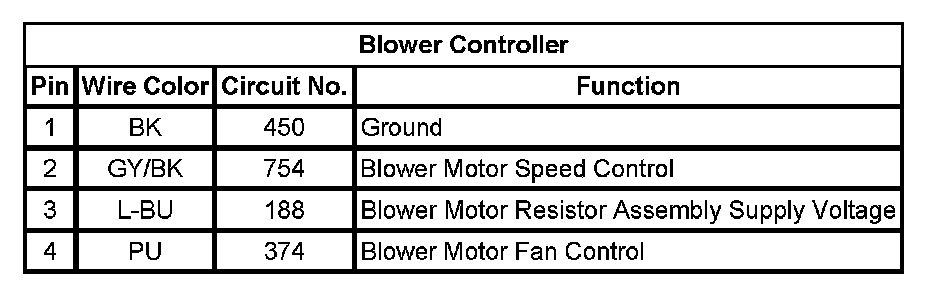

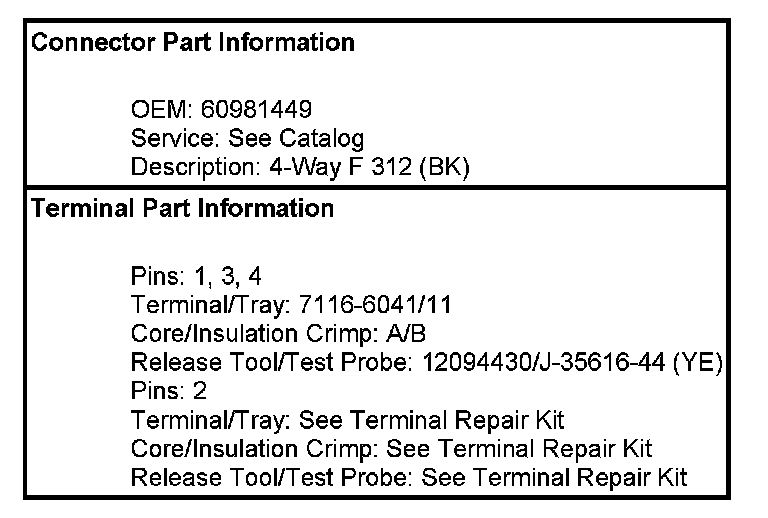

Blower Controller (RHD)

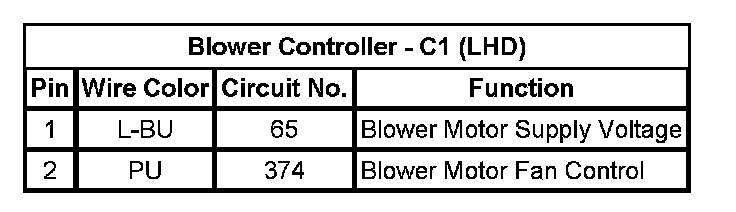

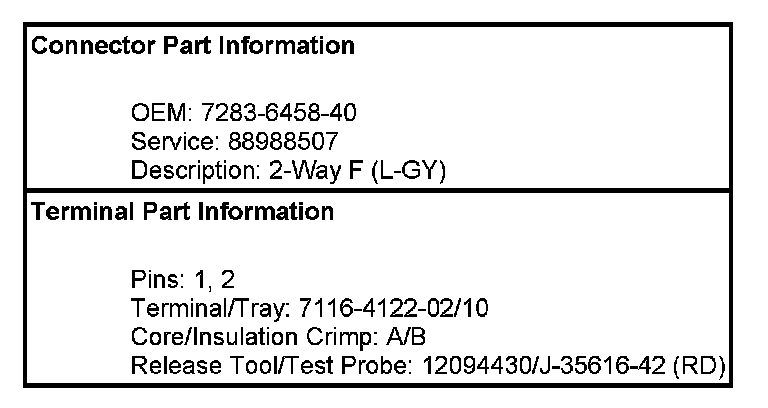

Blower Controller - C1 (LHD)

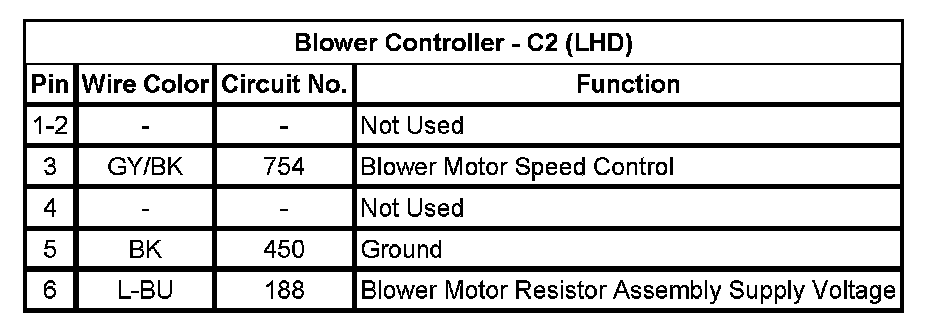

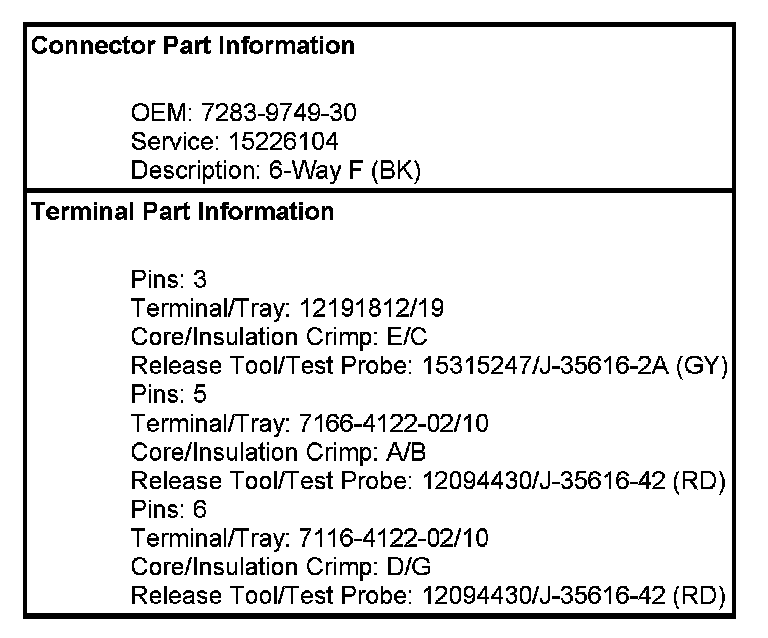

Blower Controller - C2 (LHD)
