Control Assembly: Locations

HVAC Component Views

Ambient Air Temperature Sensor, Sunload Sensor
and HVAC Control Module




1 - Ambient Air Temperature Sensor Connector
2 - Ambient Air Temperature Sensor
3 - Instrument Panel Cluster (IPC) (LHD shown, RHD similar)
4 - Radio
5 - HVAC Control Module
6 - Sunload Sensor Connector
7 - Speaker - Front Center (U57)
8 - Radio
9 - Sunload Sensor
10 - Trim Panel - I/P Center

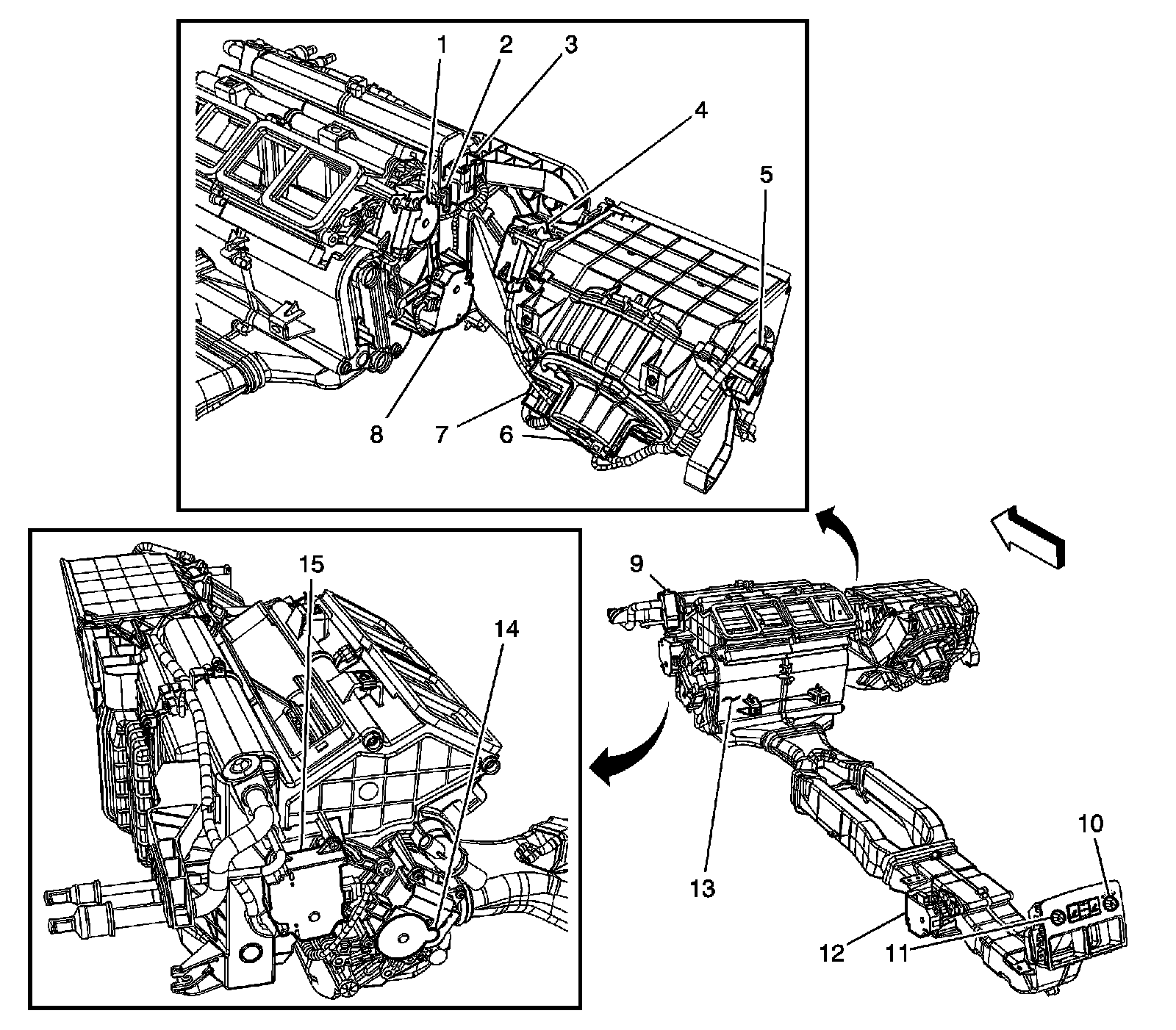

Interior A/C Components




1 - Mode Actuator
2 - Evaporator Temperature Sensor
3 - C214
4 - Recirculation Actuator
5 - C200
6 - Blower Motor
7 - Blower Controller
8 - Air Temperature Actuator - Front Passenger
9 - Thermostatic Expansion Valve
10 - HVAC Control Module Mode Switch - Rear Auxiliary
11 - HVAC Control Module Temperature Switch - Rear Auxiliary
12 - Mode Actuator - Auxiliary
13 - HVAC Box
14 - Air Temperature Actuator - Rear Passenger
15 - Air Temperature Actuator - Driver
