Console Views

Harness Routing Views

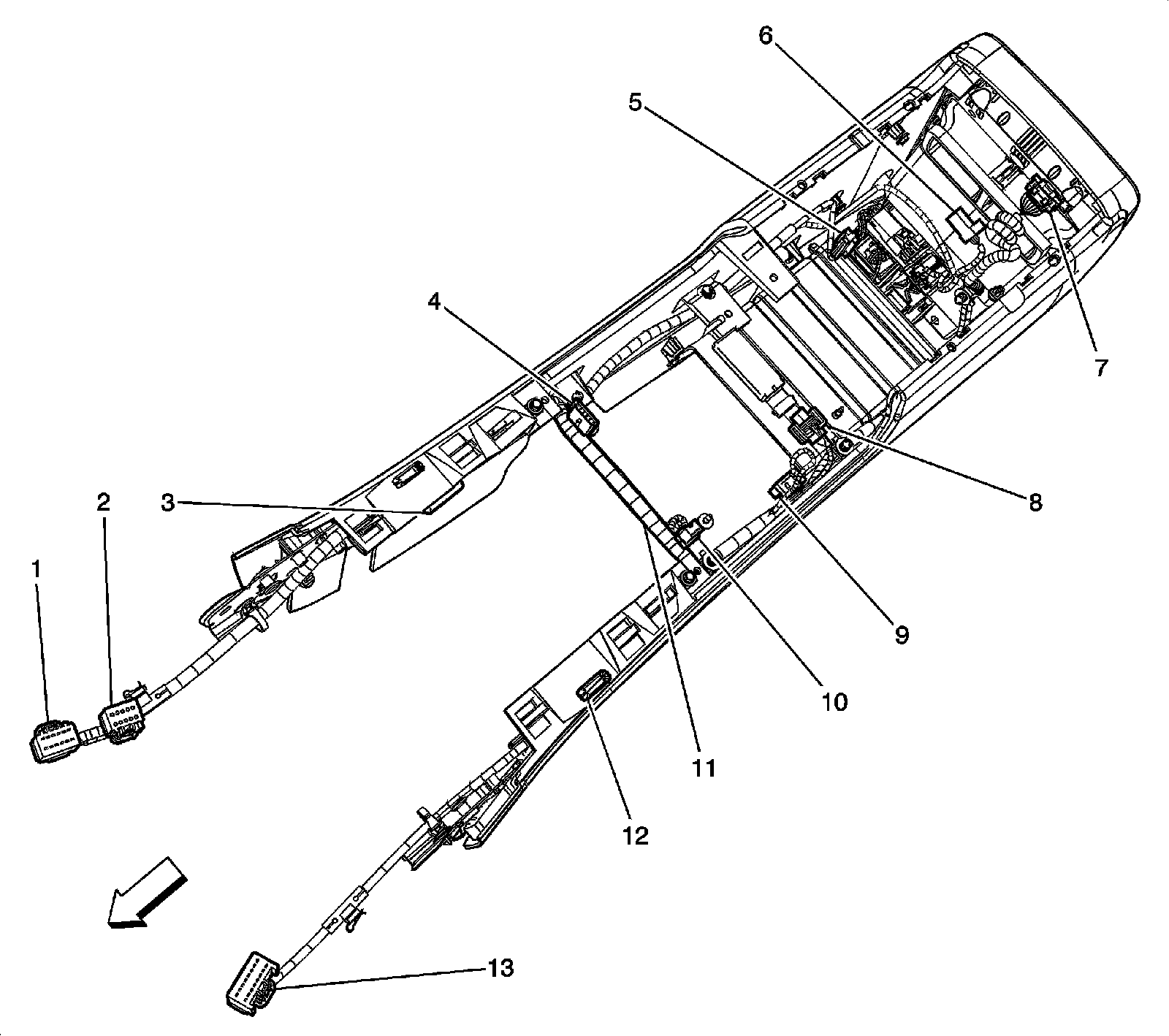

Console Harness




1 - C212
2 - C213
3 - S313
4 - Traction Control Switch Connector
5 - Auxiliary Outlet Connector
6 - Active Console Antenna
7 - Rear Seat Audio Control Module Connector
8 - Console Antenna Connector
9 - Rear Mode Connector
10 - Hazard Switch Connector
11 - S311
12 - S312
13 - C304
